Diagnosis Circuit

CIRCUIT DESCRIPTION

This circuit sends signals to the A/C control assembly requesting output of diagnostic trouble codes.





DIAGNOSTIC CHART

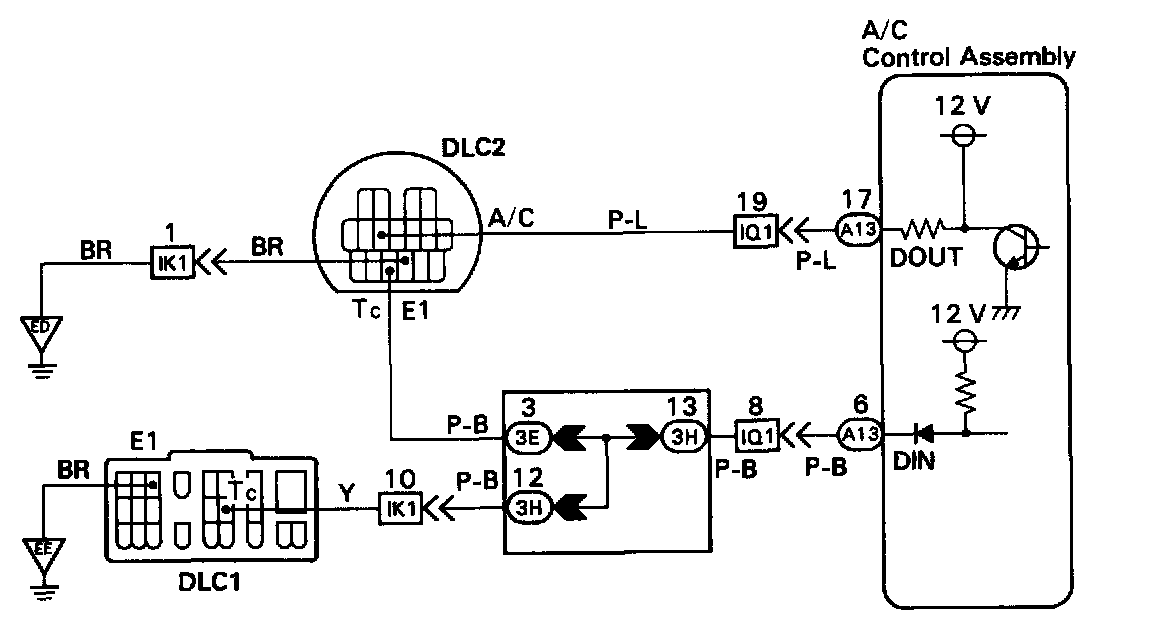

WIRING DIAGRAM

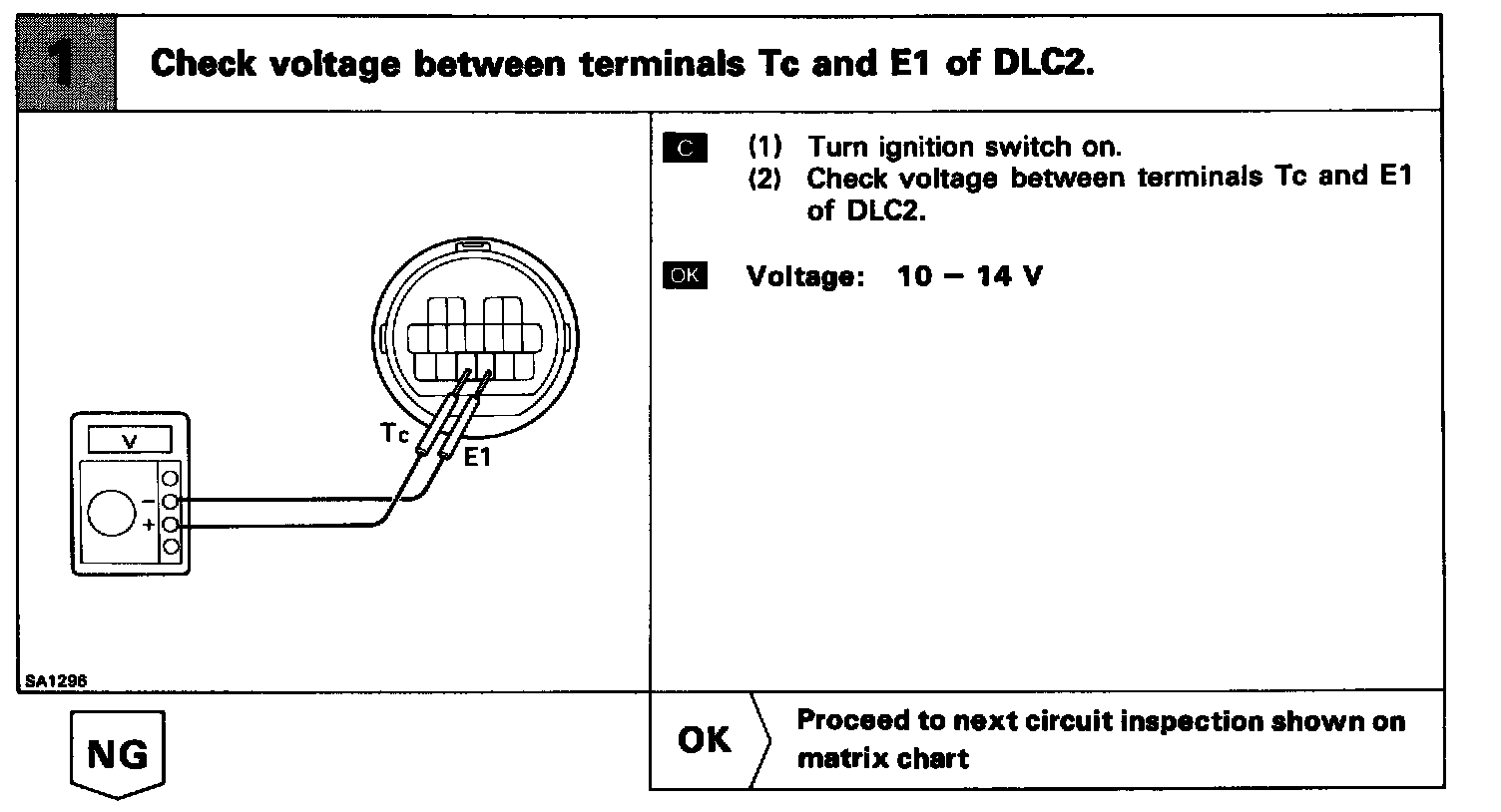

Step 1:

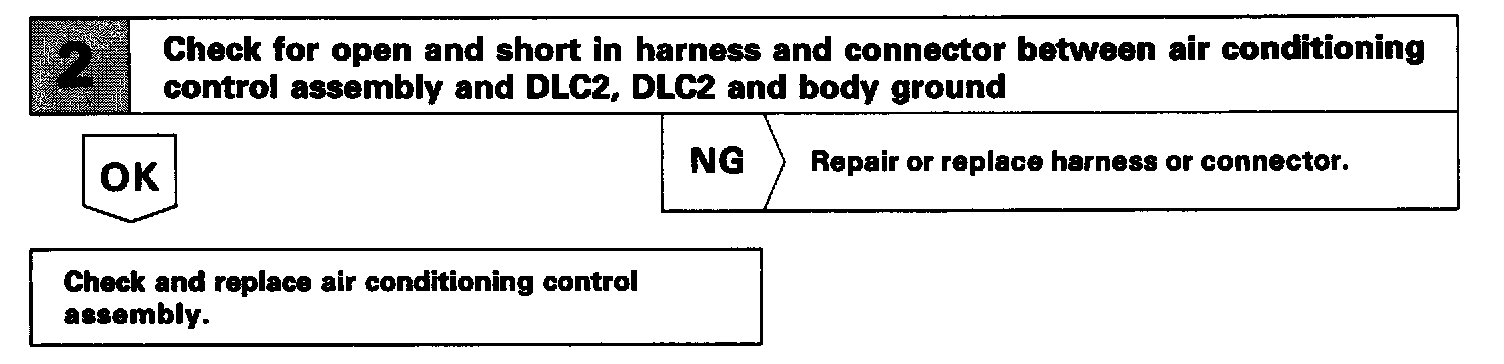

Step 2:

INSPECTION PROCEDURE
