Back-Up Power Source Circuit

BACK-UP POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the backup power source for the air conditioning control assembly. Power is supplied even when the ignition switch is off and is used for diagnostic trouble code memory, etc.

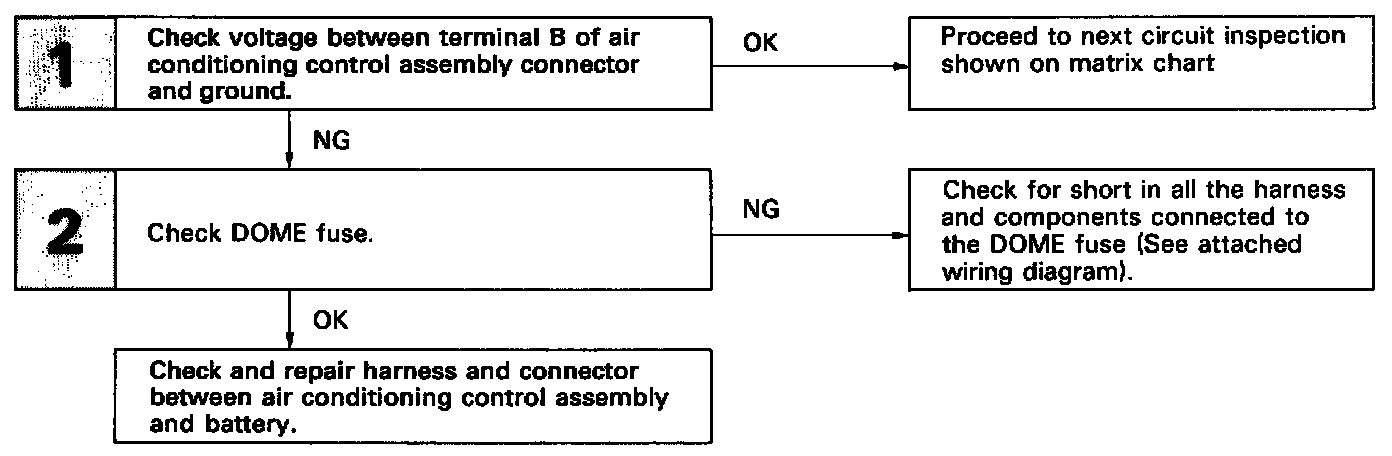

DIAGNOSTIC CHART

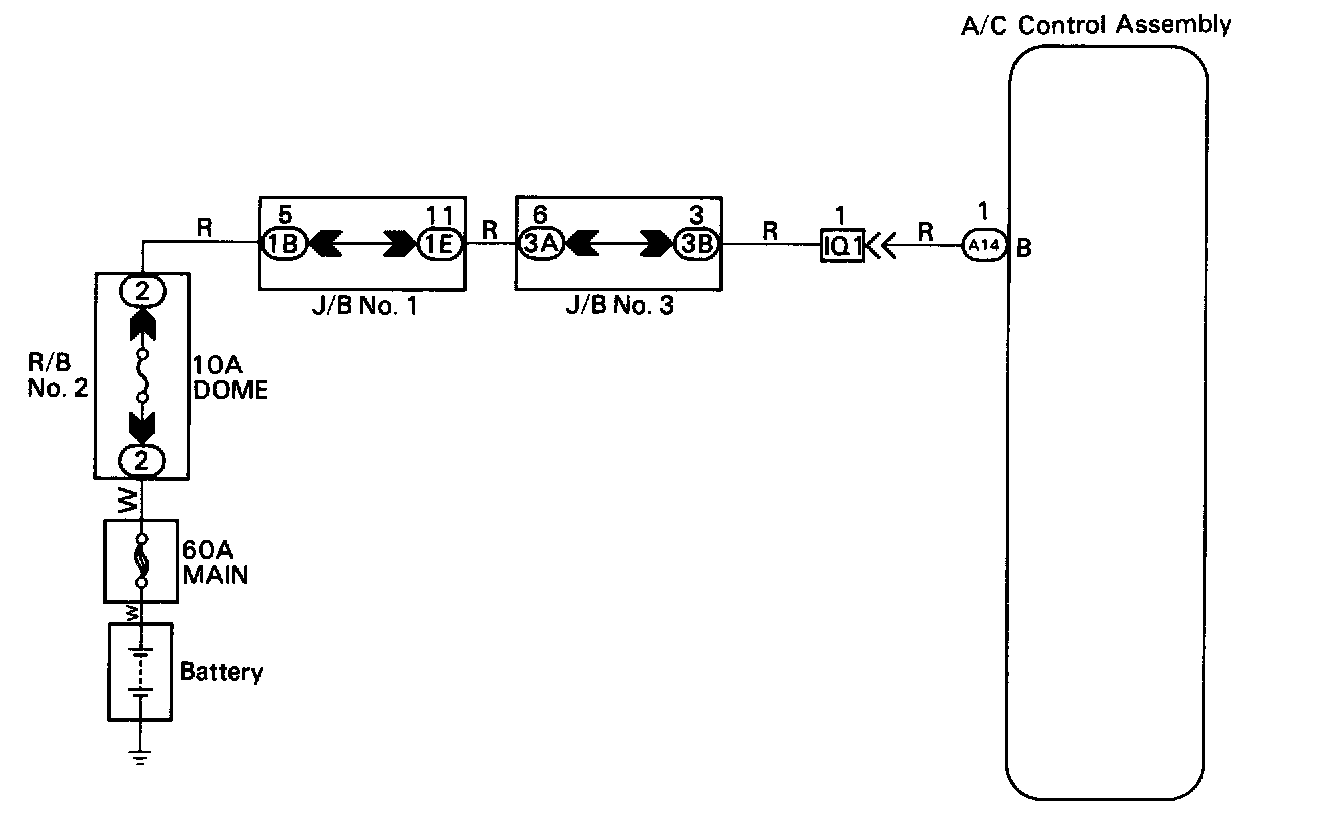

WIRING DIAGRAM

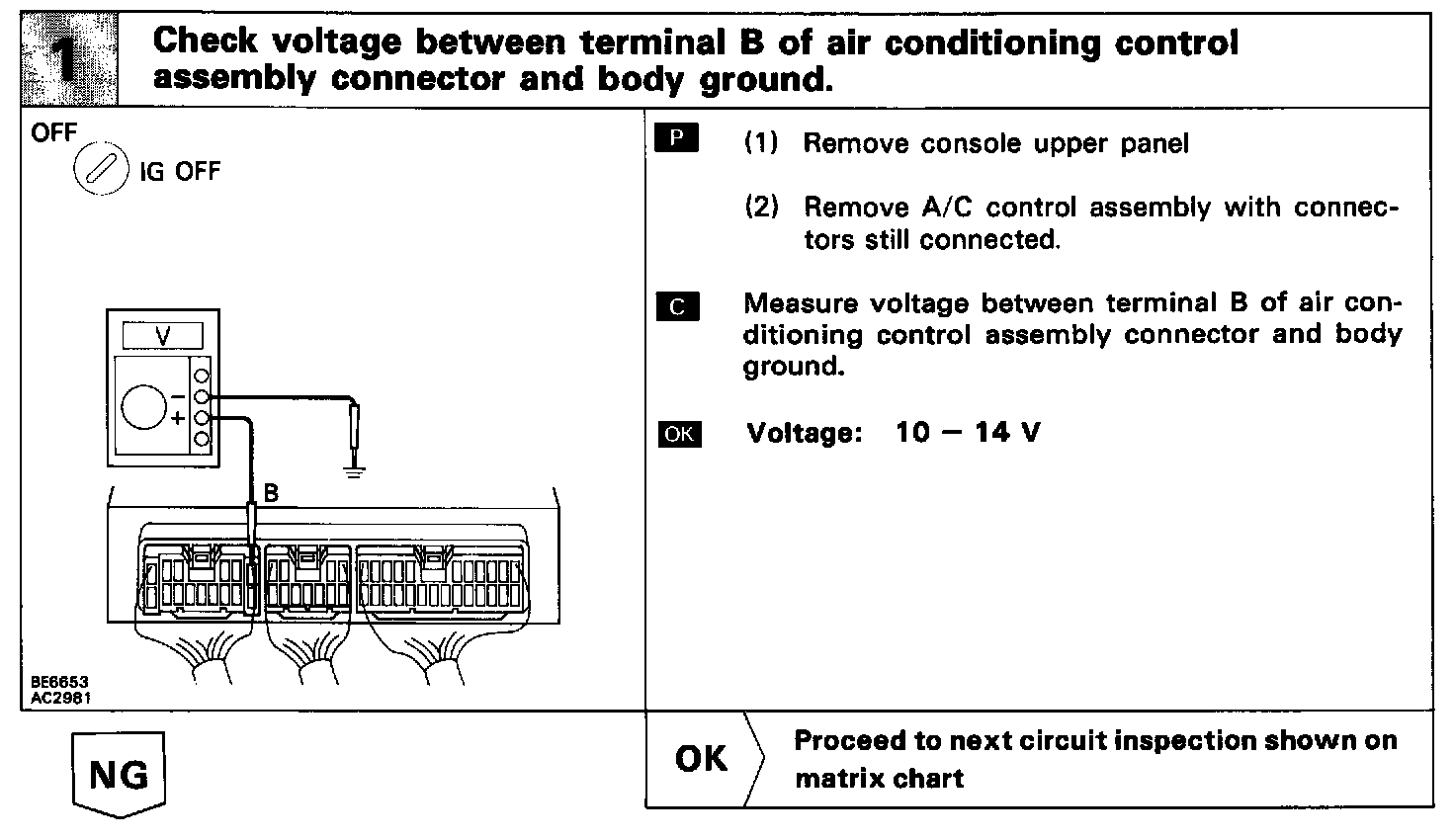

Step 1:

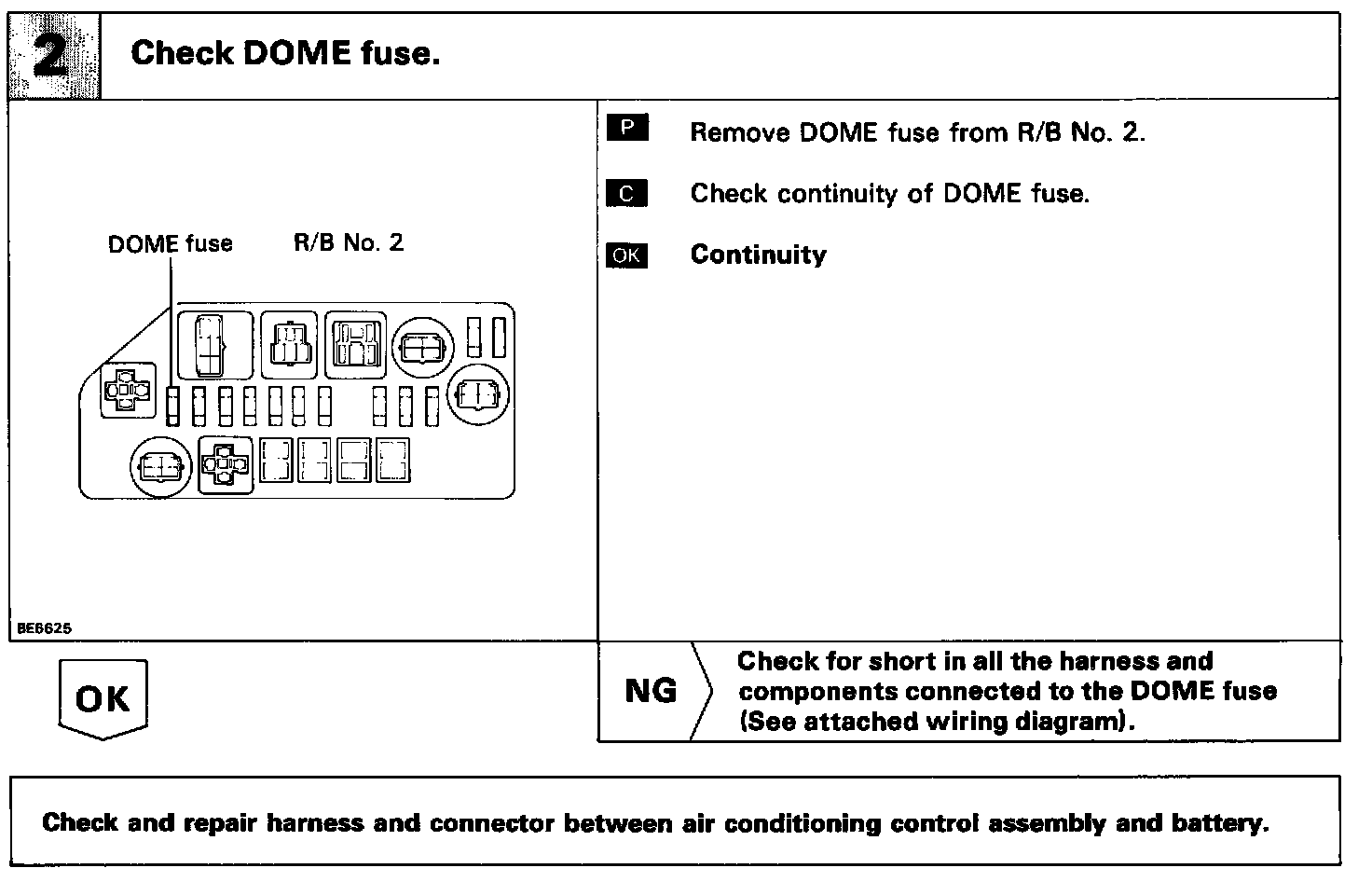

Step 2:





INSPECTION PROCEDURE
