ACC Power Source Circuit
ACC POWER SOURCE CIRCUITCIRCUIT DESCRIPTION
This circuit supplies power to the air conditioning control assembly (contains the A/C control assembly).

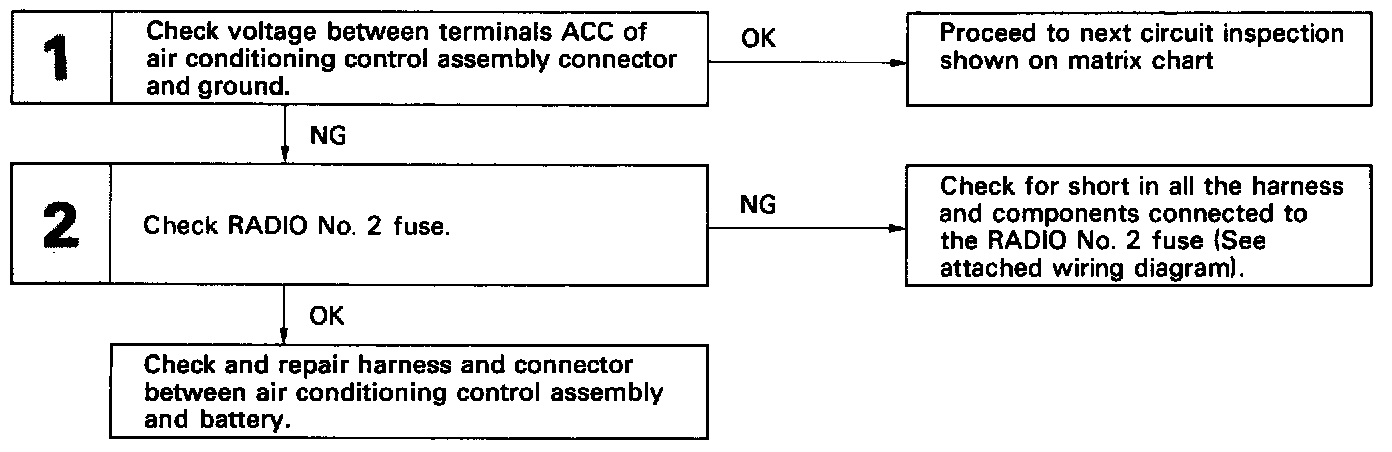

DIAGNOSTIC CHART

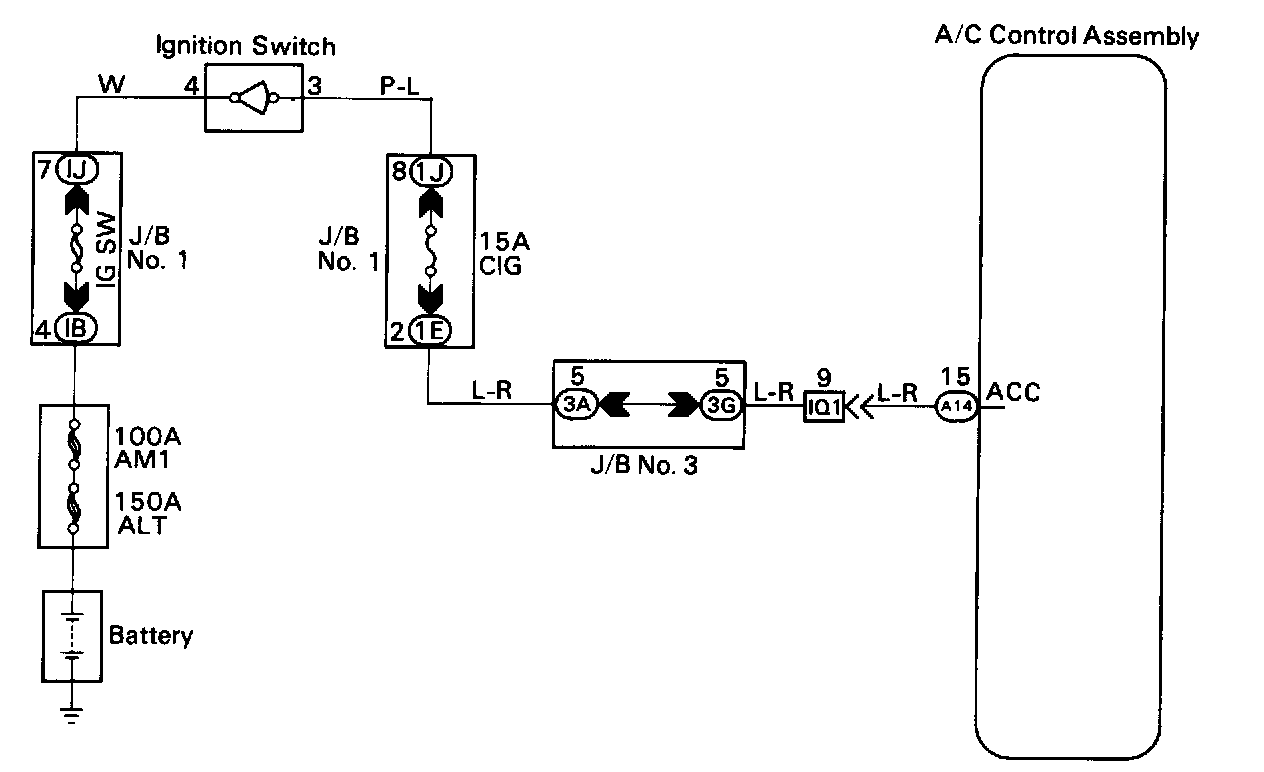

WIRING DIAGRAM

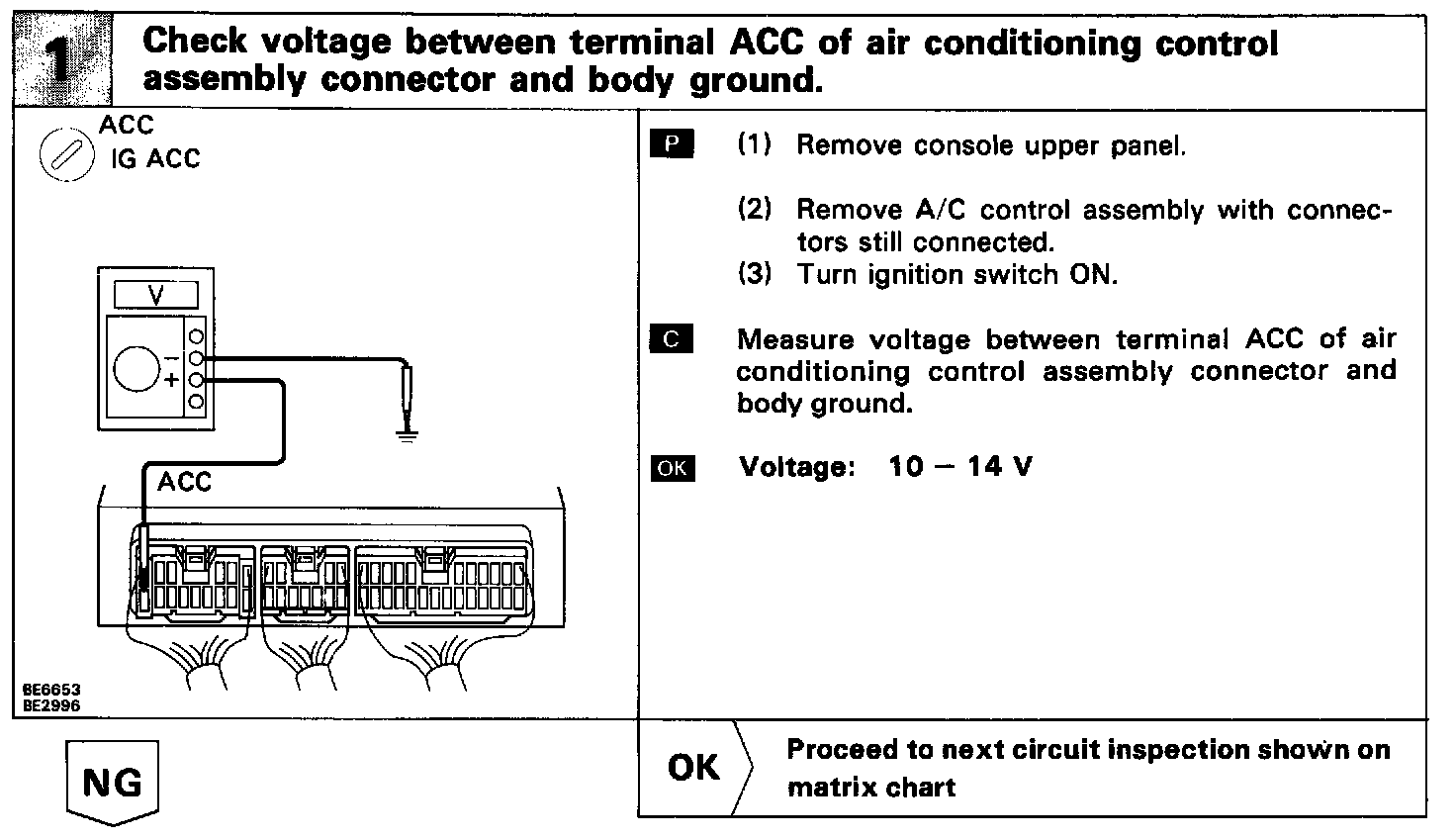

Step 1:

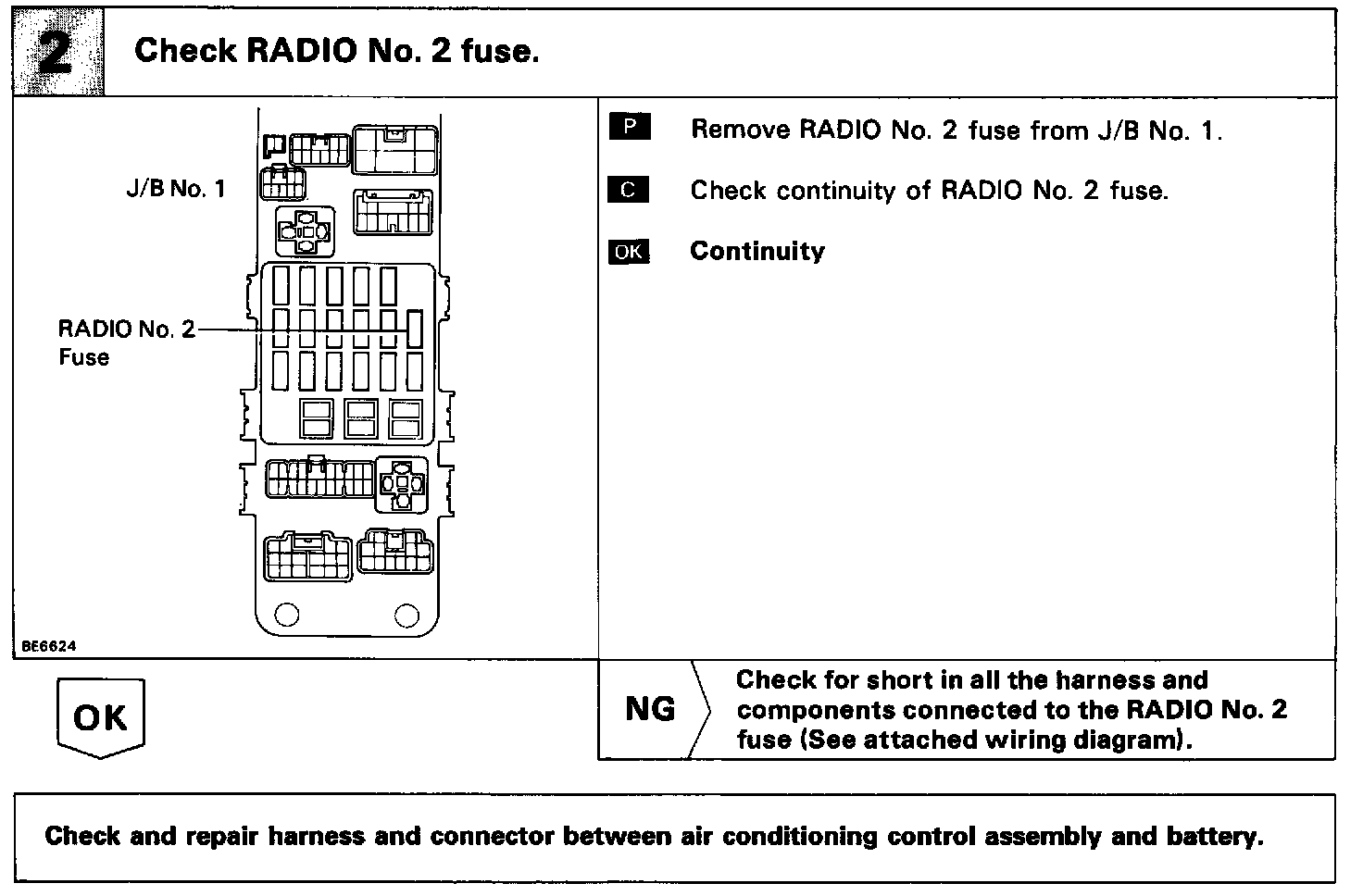

Step 2:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
This circuit supplies power to the air conditioning control assembly (contains the A/C control assembly).
DIAGNOSTIC CHART
WIRING DIAGRAM
INSPECTION PROCEDURE
