Home >> Lexus >> 1993 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> System Diagram >> ABS Connector ID

ABS Connector ID

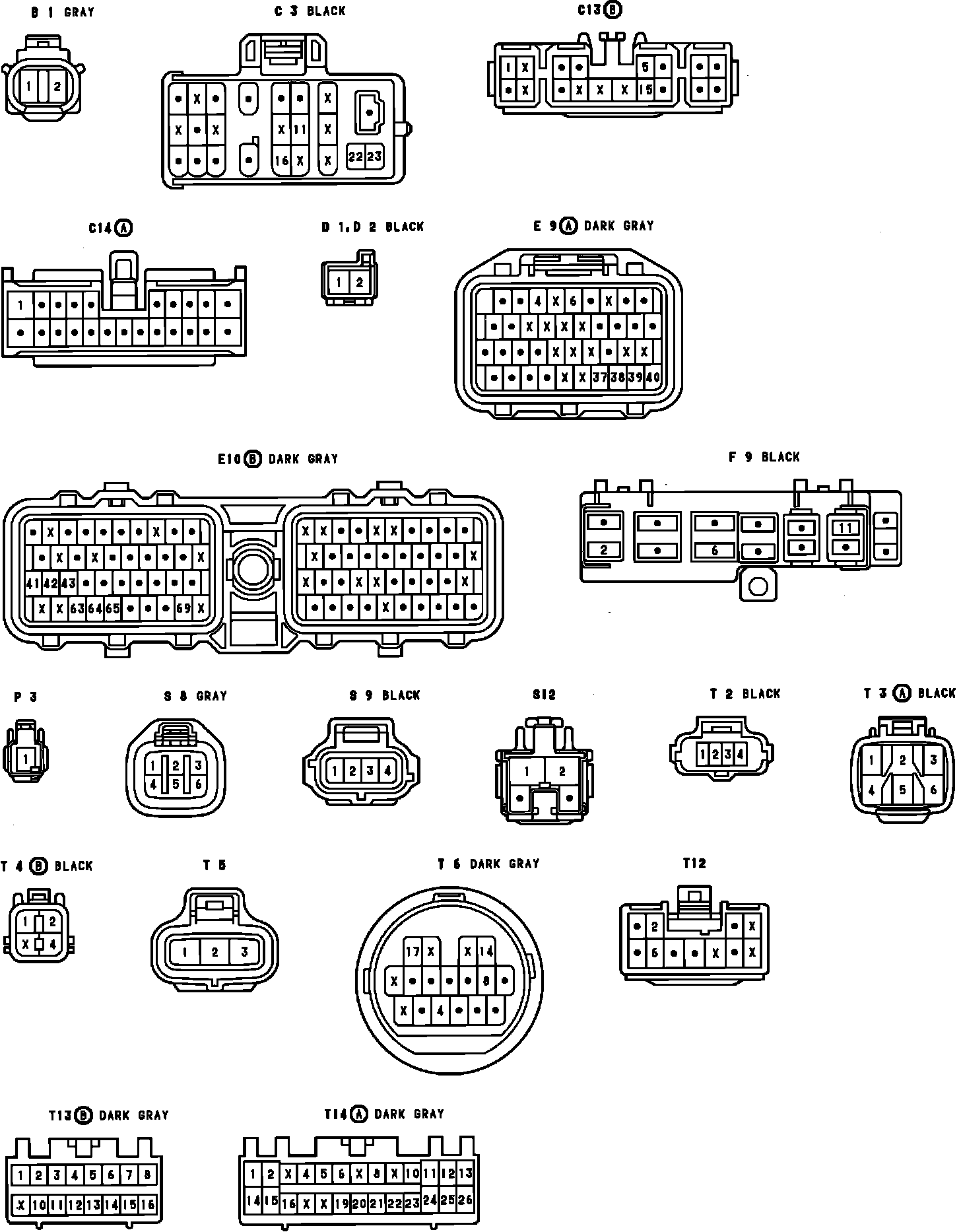

Connector ID And Pin Location:



Connector ID And Pin Location:
