Removal and Installation

REAR SEAT REMOVAL

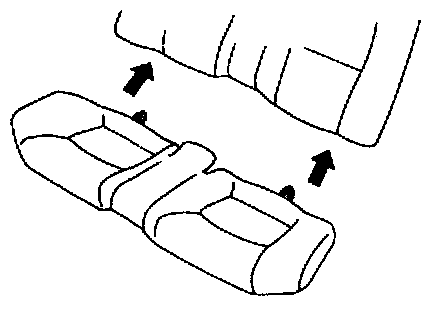

1. REMOVE REAR SEAT CUSHION
Pull up the seat cushion to remove it.

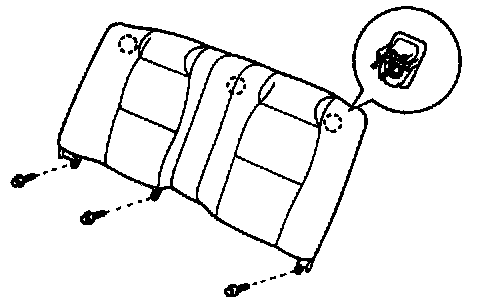

2. REMOVE REAR SEATBACK
(a) Remove three bolts.
(b) Pull up the seatback to remove it.

REAR SEAT INSTALLATION

1. INSTALL THE REAR SEAT BACK
Push down the seatback and install three bolts.

Torque: 18 N.m (185 kgf.cm, 13 ft.Ibf)

2. INSTALL REAR SEAT CUSHION





(a) Pass the seat cushion wire to seatback.

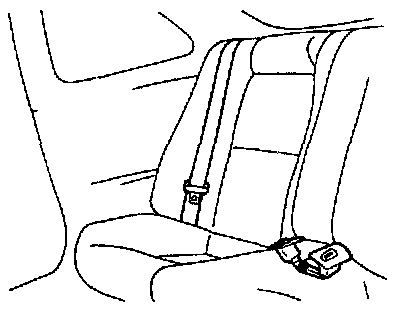

HINT: Before installation, confirm that the rear seat belts are positioned shown.

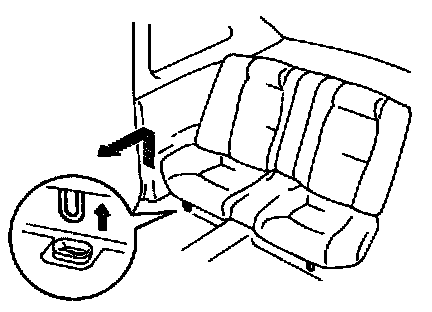

(b) Push down the cushion to install the hook to the body panel.

HINT: Confirm that the seat is installed firmly.
