Power Seat Regulator

POWER SEAT REGULATOR DISASSEMBLY

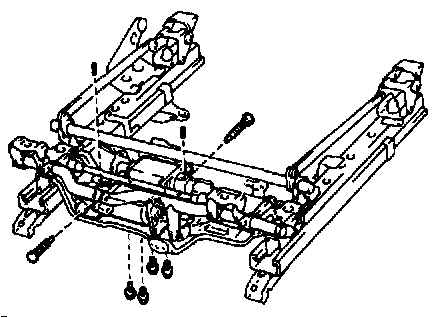

1. REMOVE FRONT AND REAR VERTICAL MOTOR
Remove eight screws and vertical motors.

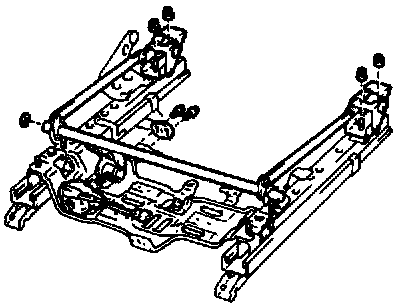

2. REMOVE FRONT SEAT LINK WITH FRONT VERTICAL
(a) Remove two screws and the screw support bushing.
(b) Remove four nuts and the link.

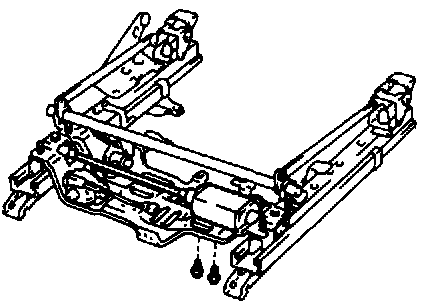

3. REMOVE SLIDE MOTOR
(a) Remove two screws and the motor.
(b) Remove the cable.

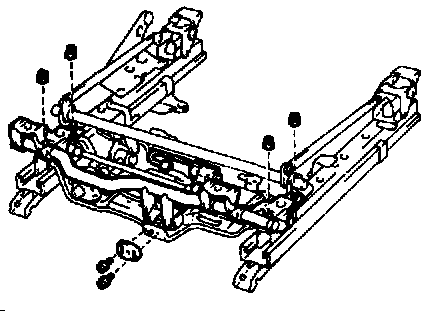

4. REMOVE FRONT SEAT LINK WITH REAR VERTICAL
(a) Remove two screws and the screw support bushing.
(b) Remove snap ring from the link.
(c) Remove four nuts and the link.





5. REMOVE POWER SEAT HOUSING
(a) Using pliers and hold the screw shaft.
(b) Remove the nuts and washers.
(c) Remove the housings.

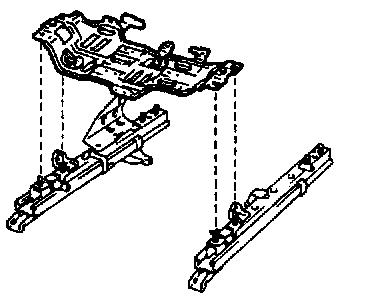

6. REMOVE FRONT SEAT MOTOR SUPPORT BRACKET
Remove the bracket from the front seat track.

POWER SEAT REGULATOR ASSEMBLY
Assemble Power Seat Regulator Parts By Following Disassembly Sequence In Reverse.
