DTC 43

DTC 43 - AIR OUTLET DAMPER POSITION VALUE DOES NOT CHANGE

CIRCUIT DESCRIPTION





This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly. When the AUTO switch is on, the A/C control assembly changes the mode automatically between (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.

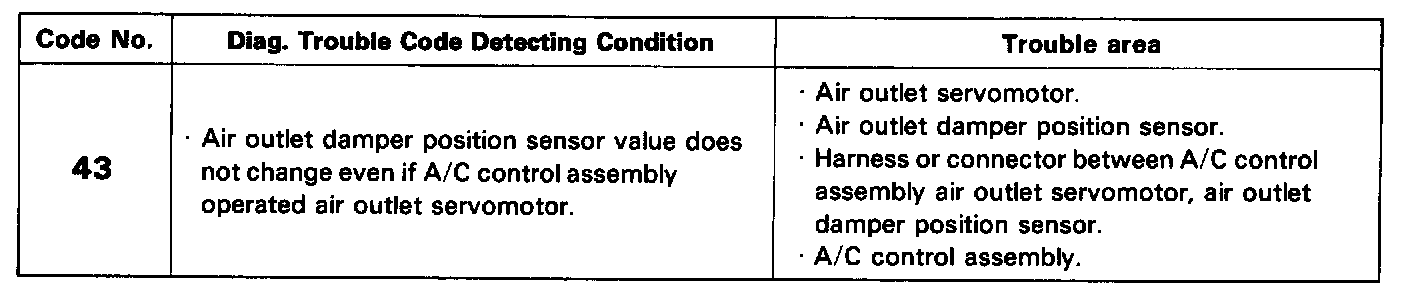

DIAGNOSTIC CHART

Air conditioning control From HTR Fuse A/C Control Assembly Check and replace air assembly.

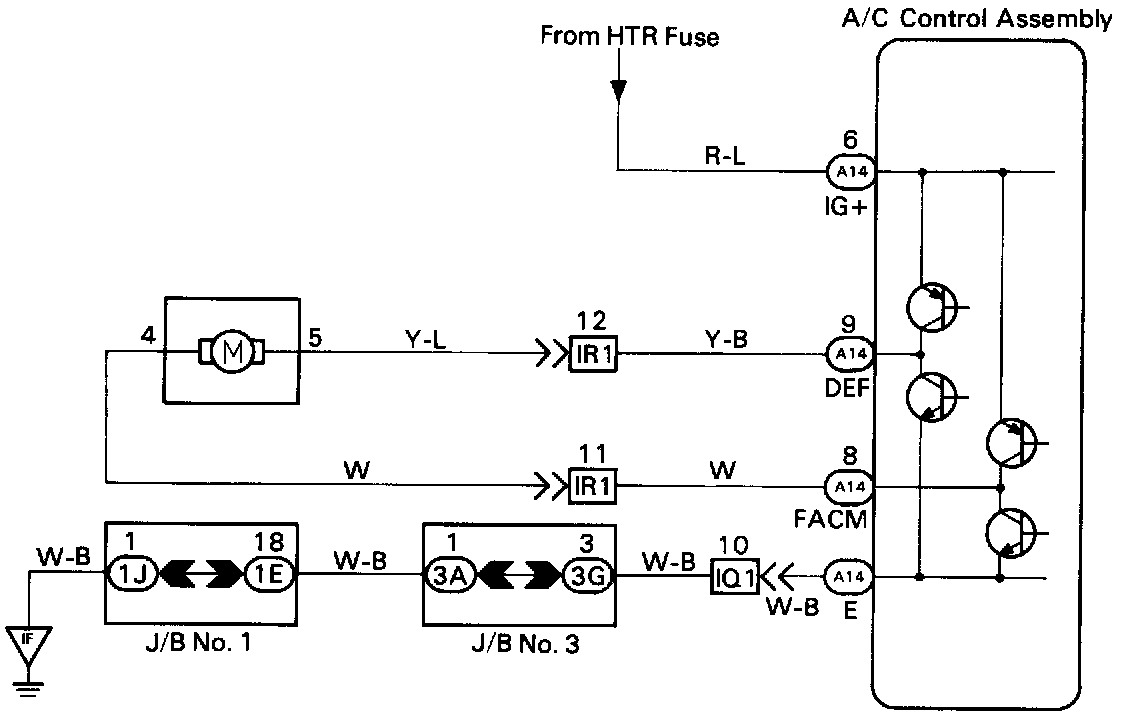

WIRING DIAGRAM

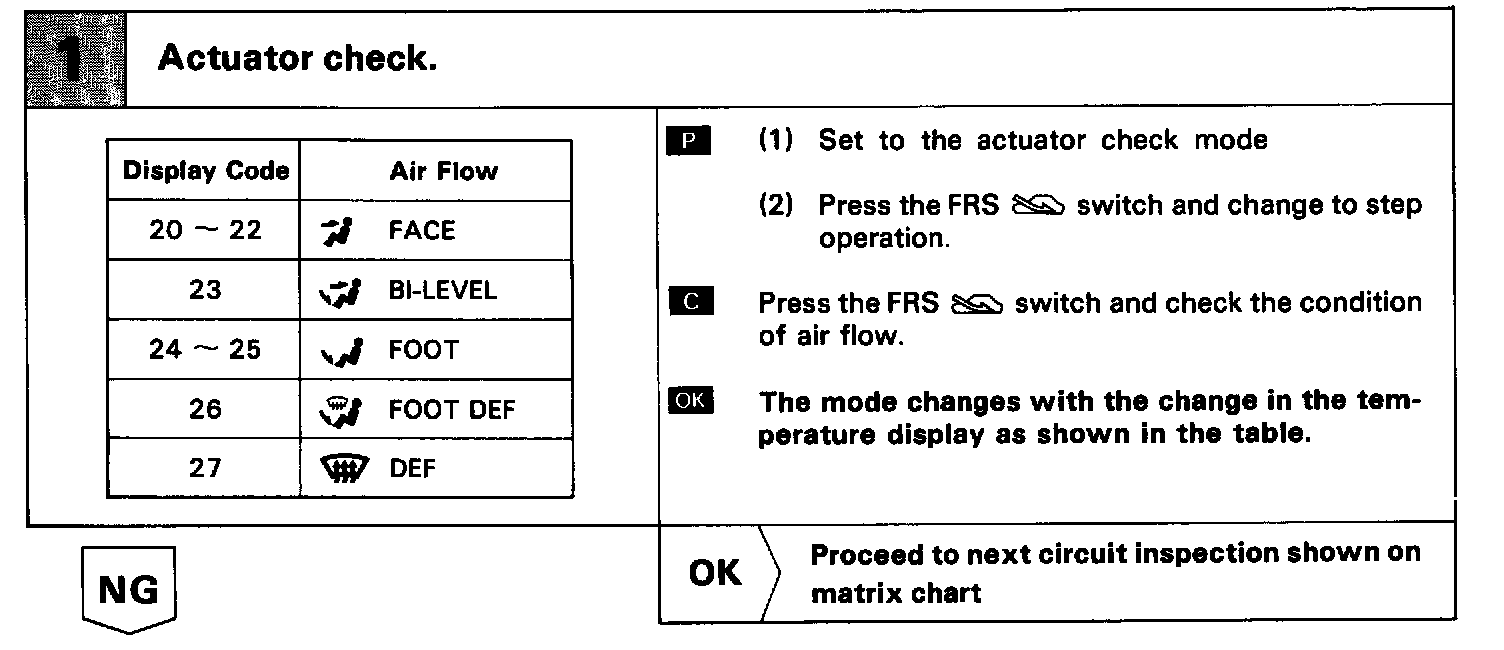

Step 1:

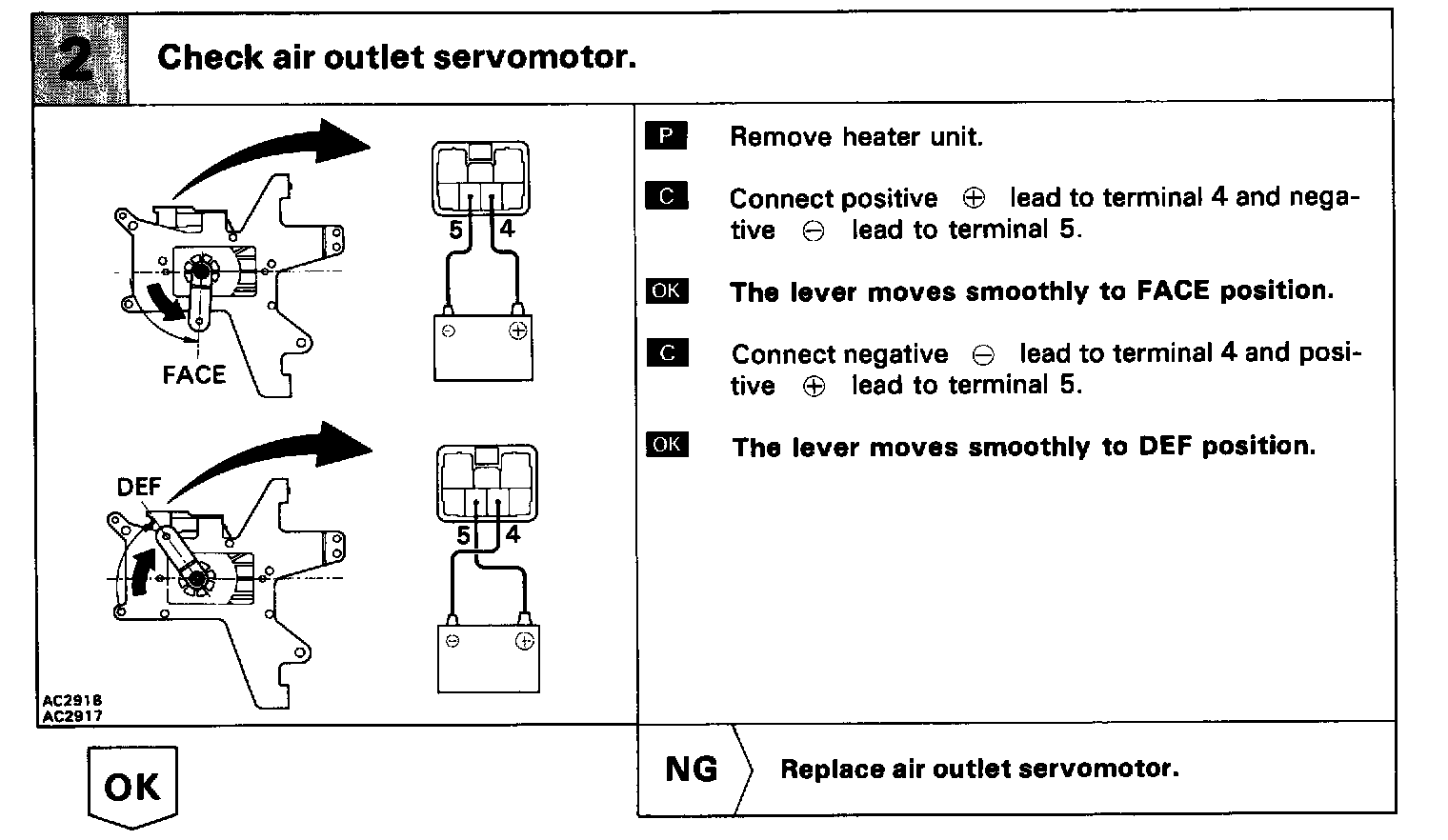

Step 2:

Step 3:

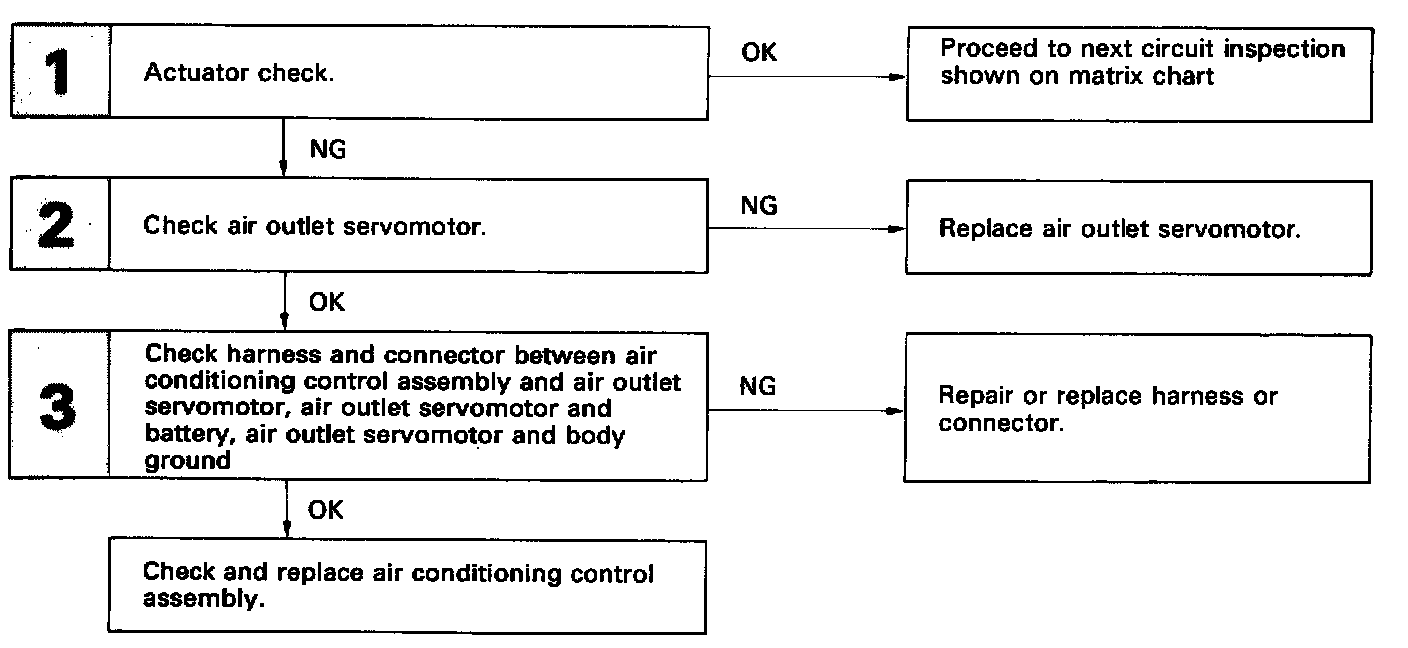

INSPECTION PROCEDURE
