DTC 41

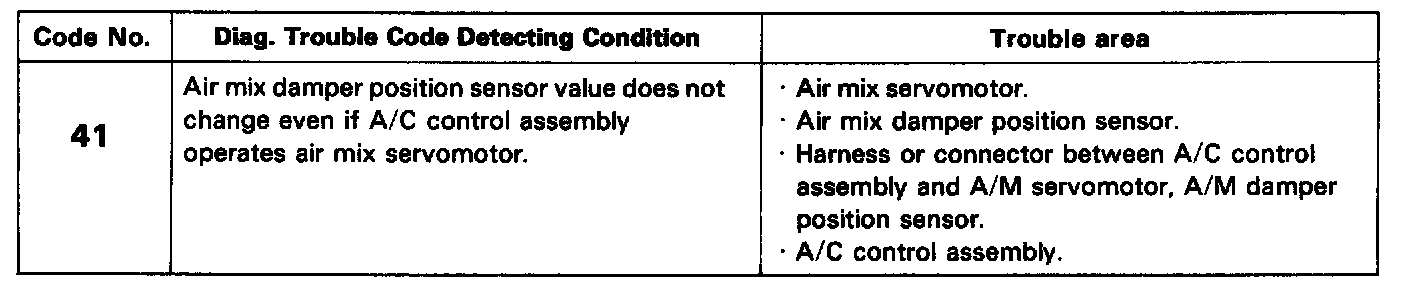

DTC 41 - AIR MIX DAMPER POSITION VALUE DOES NOT CHANGE

CIRCUIT DESCRIPTION





The air mix servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

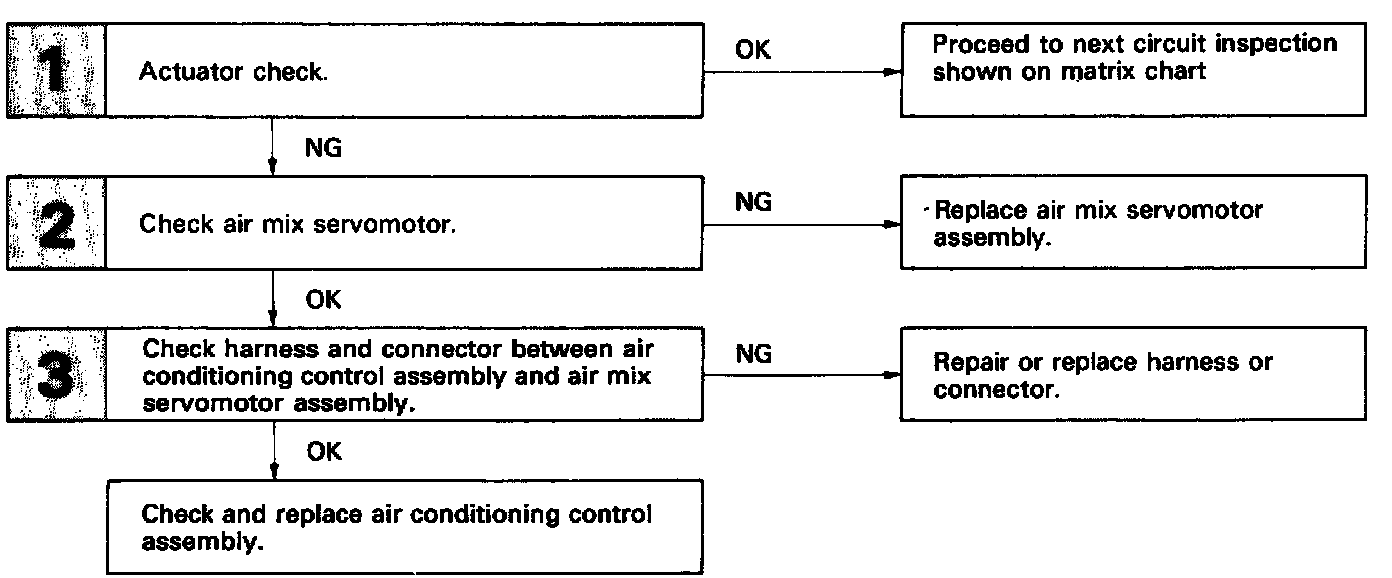

DIAGNOSTIC CHART

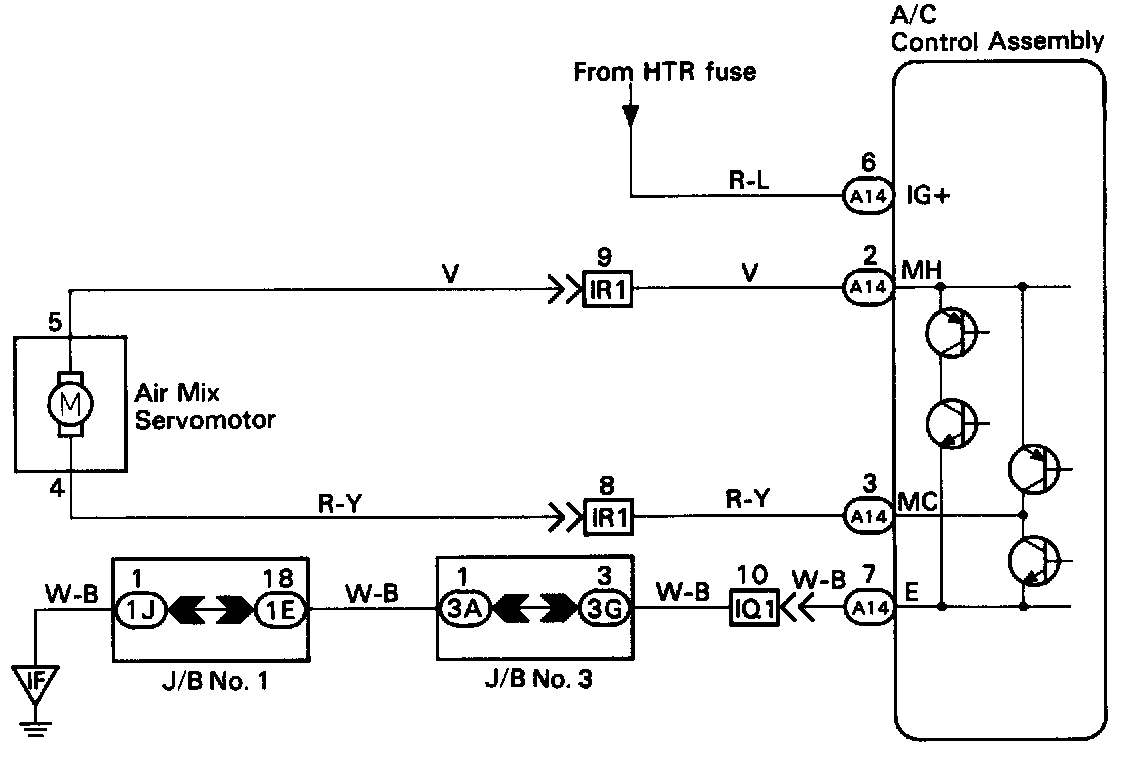

WIRING DIAGRAM

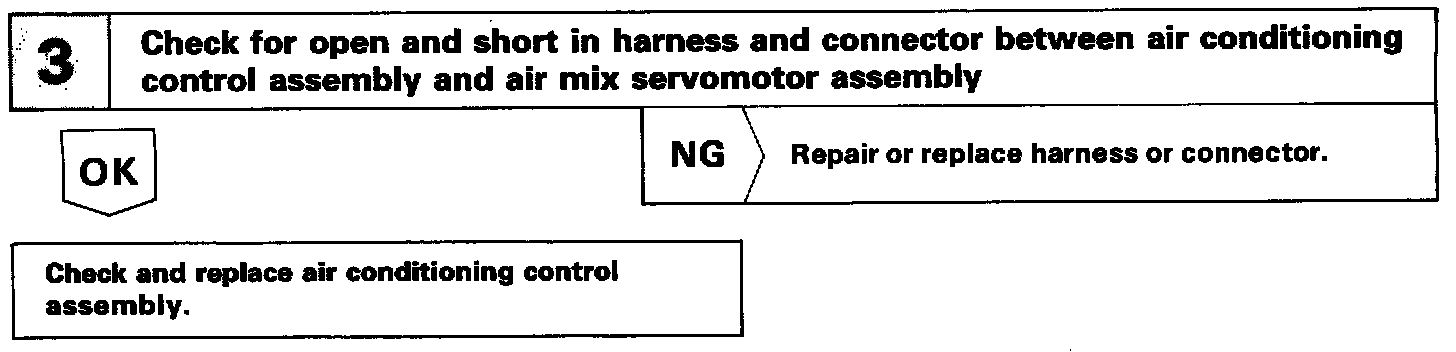

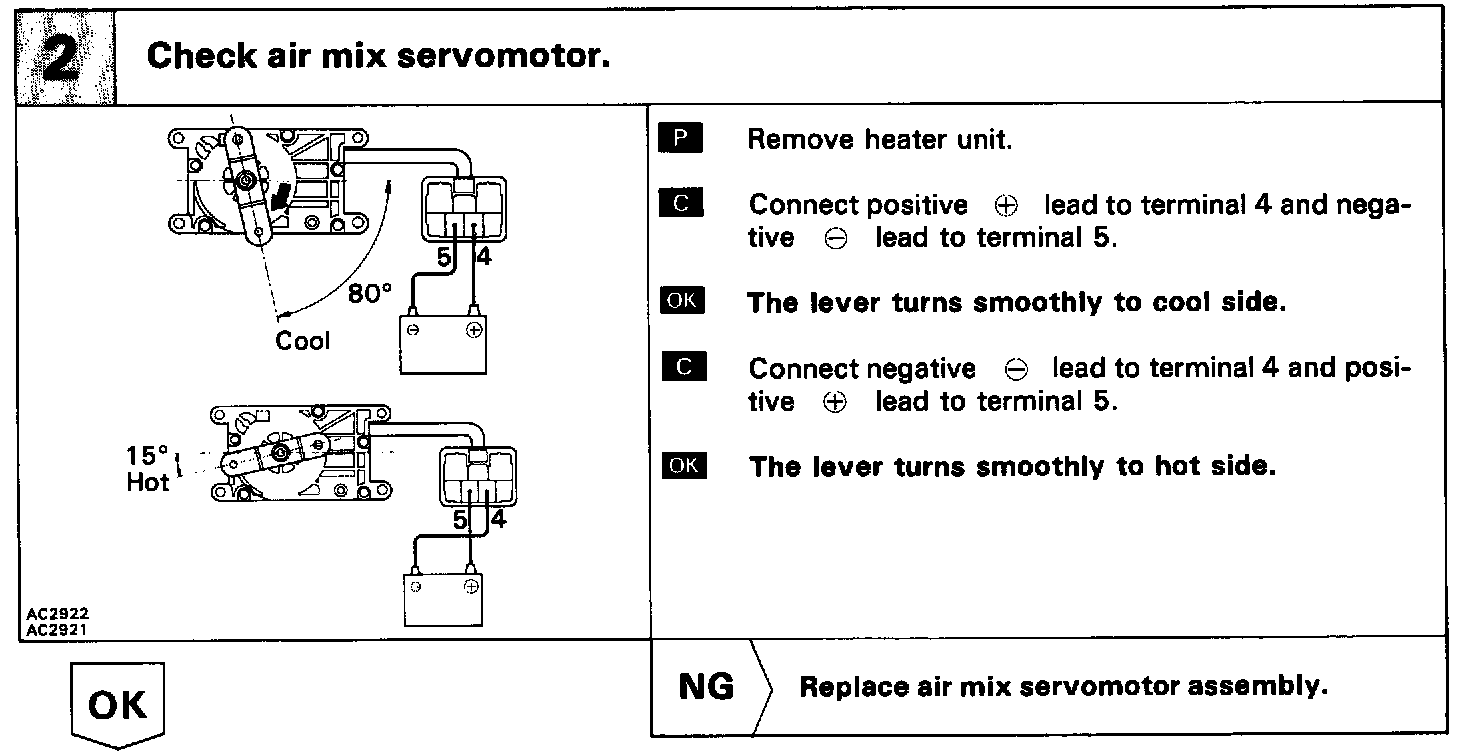

INSPECTION PROCEDURE
