DTC 32

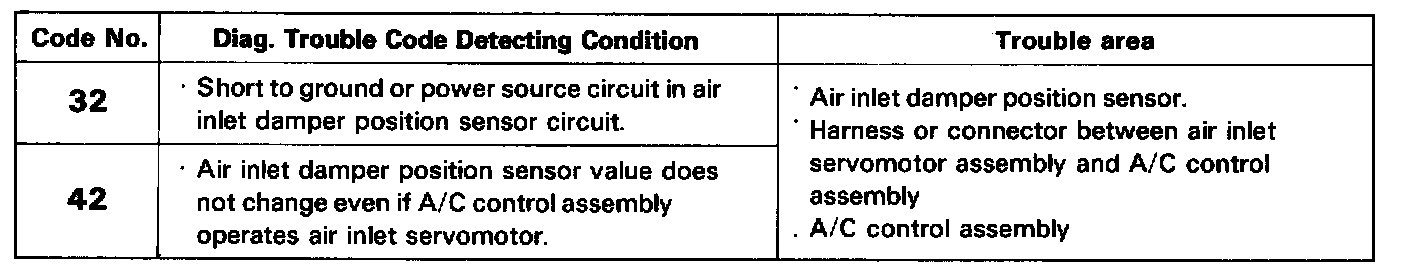

DTC 32 - AIR INLET DAMPER POSITION SENSOR CIRCUIT

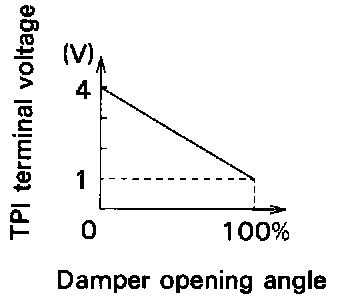

CIRCUIT DESCRIPTION








This sensor detects the position of the air inlet damper and sends the appropriate signals to The position sensor is built into the air mix the air conditioning control assembly.

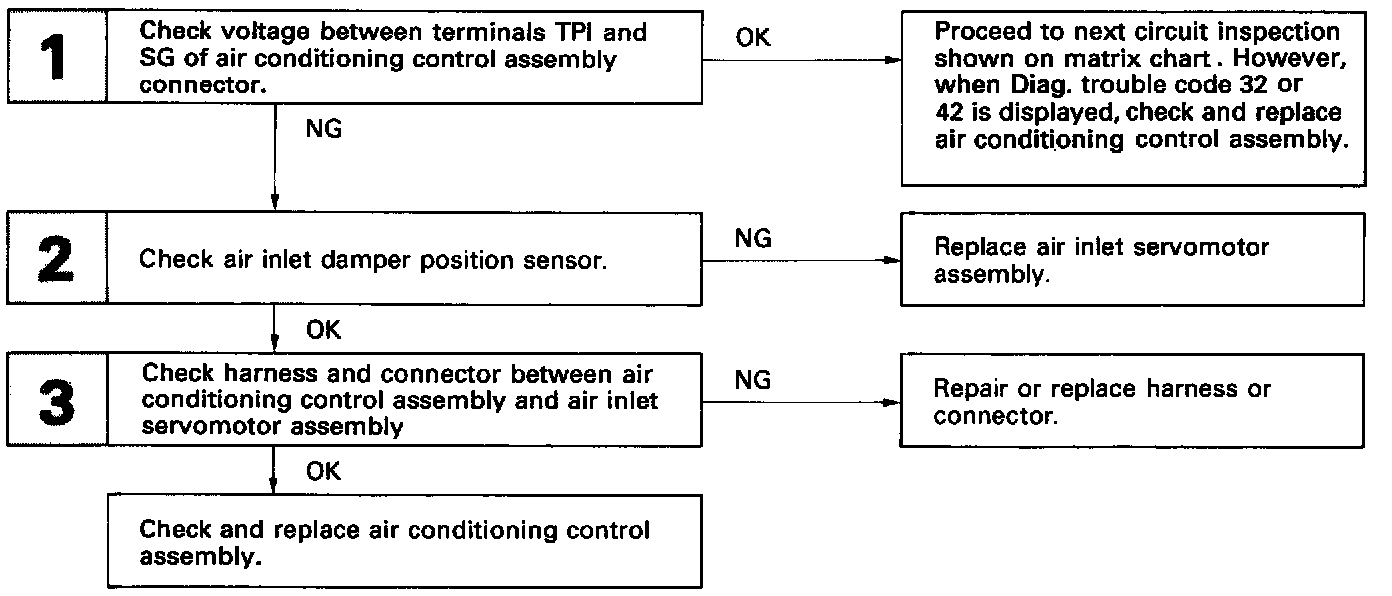

DIAGNOSTIC CHART

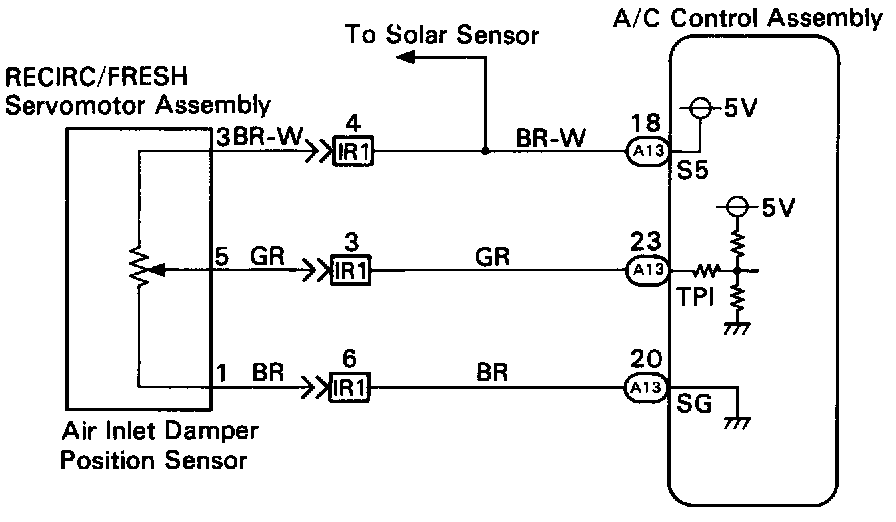

WIRING DIAGRAM

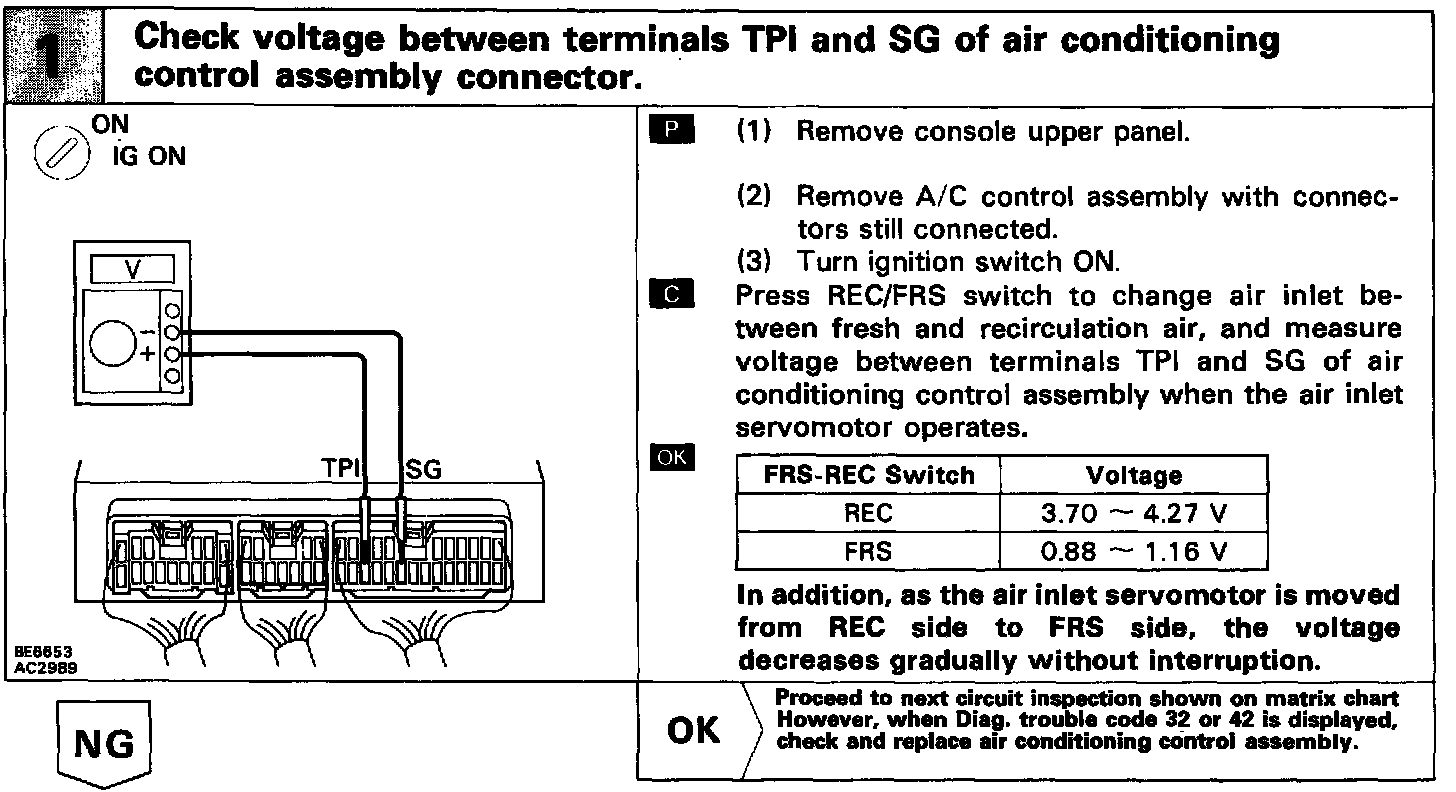

Step 1:

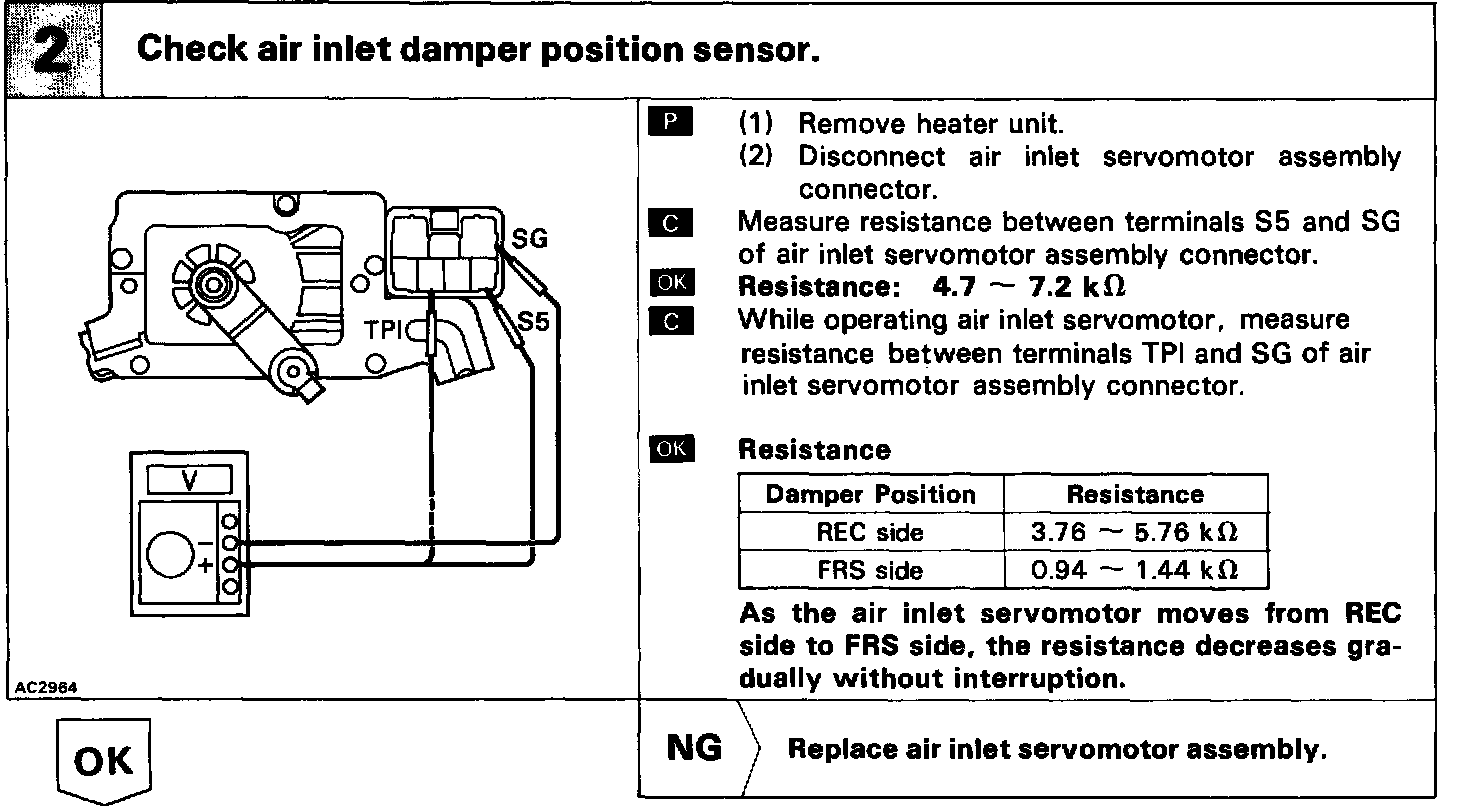

Step 2:

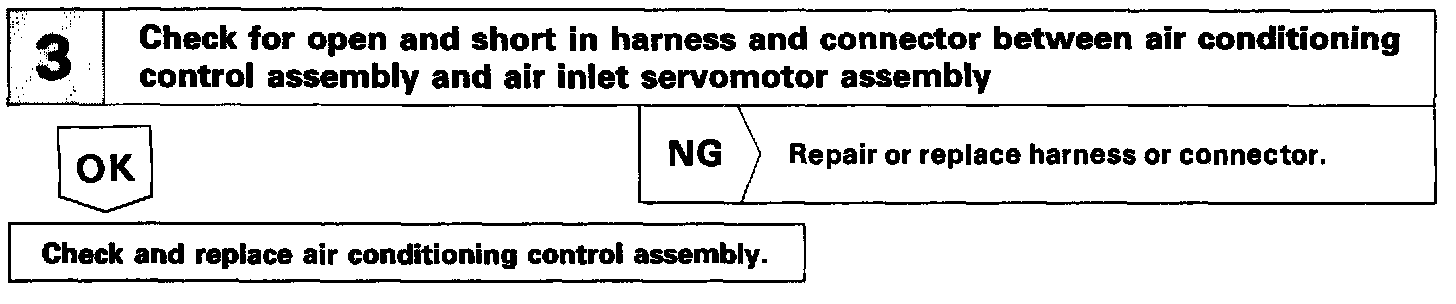

Step 3:

INSPECTION PROCEDURE
