DTC 22

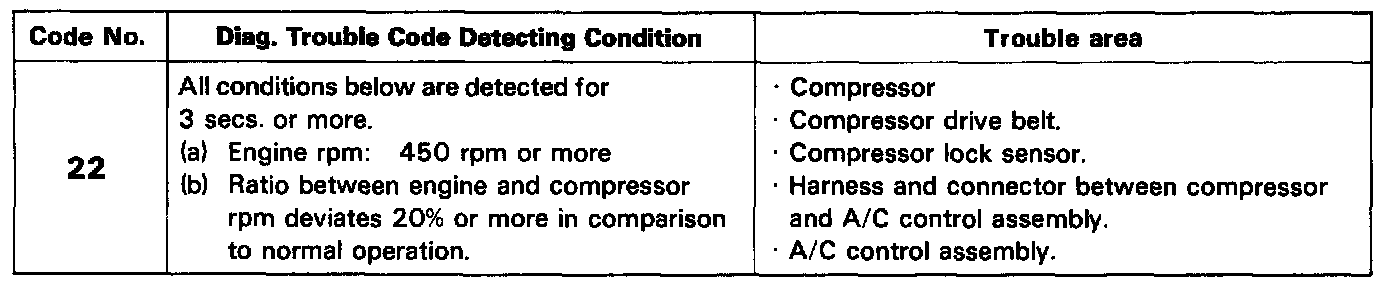

DTC 22 - COMPRESSOR LOCK SENSOR CIRCUIT

CIRCUIT DESCRIPTION





This sensor sends 4 pulses per engine revolution to the air conditioning control assembly. If the number ratio of the compressor speed, divided by the engine speed is smaller that a predetermined value, the air conditioning control assembly turns the compressor off. And, the indicator flashes at about 1 second intervals.

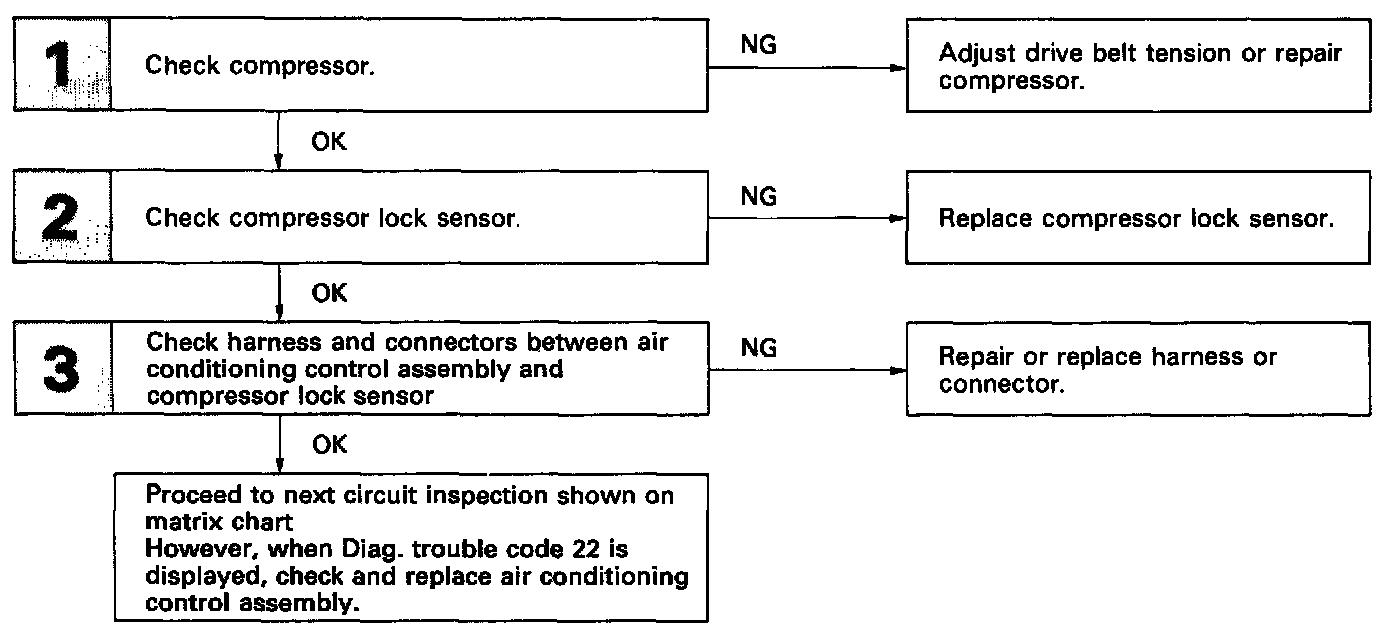

DIAGNOSTIC CHART

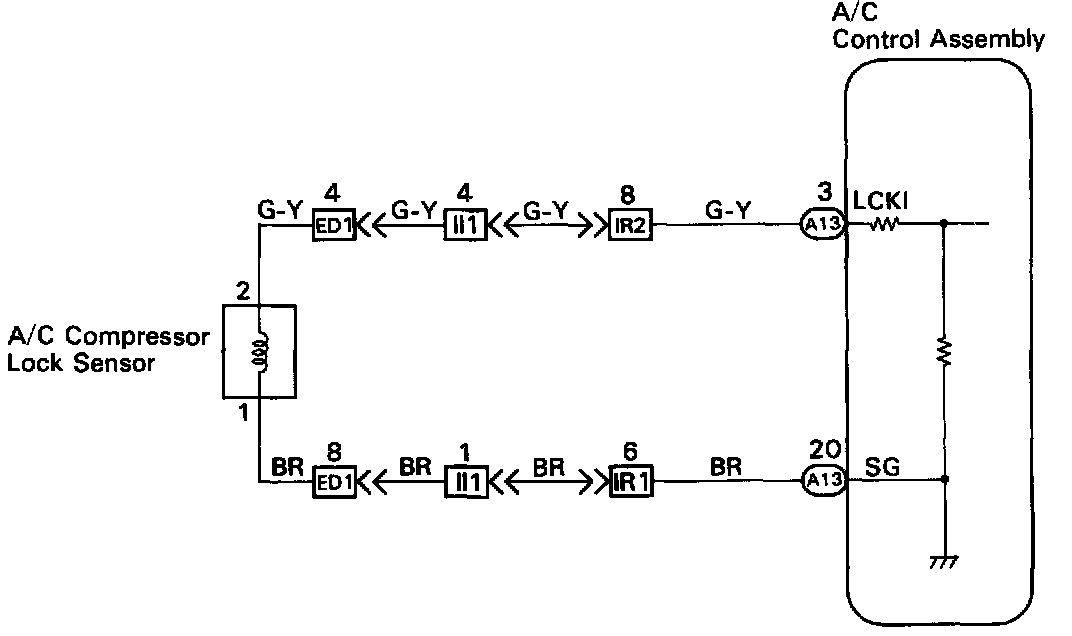

WIRING DIAGRAM

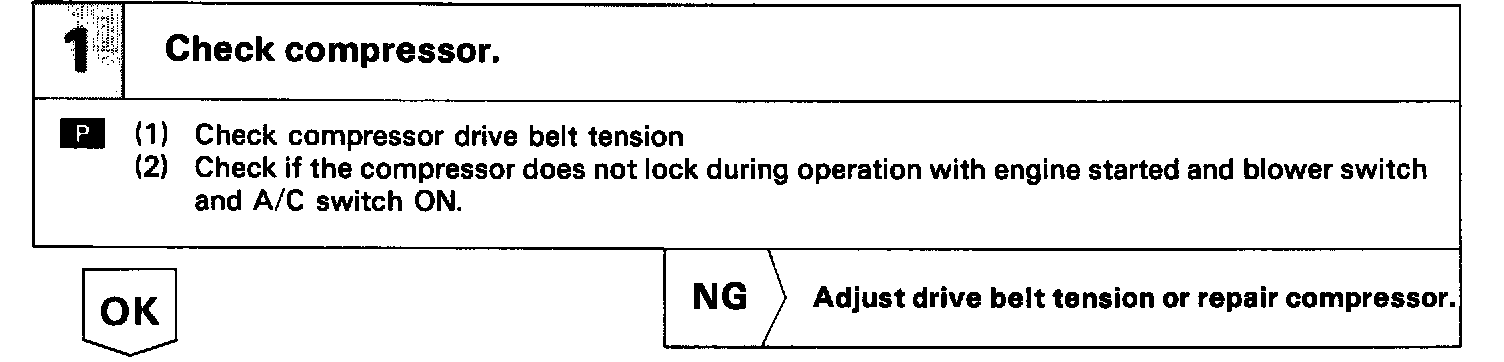

Step 1:

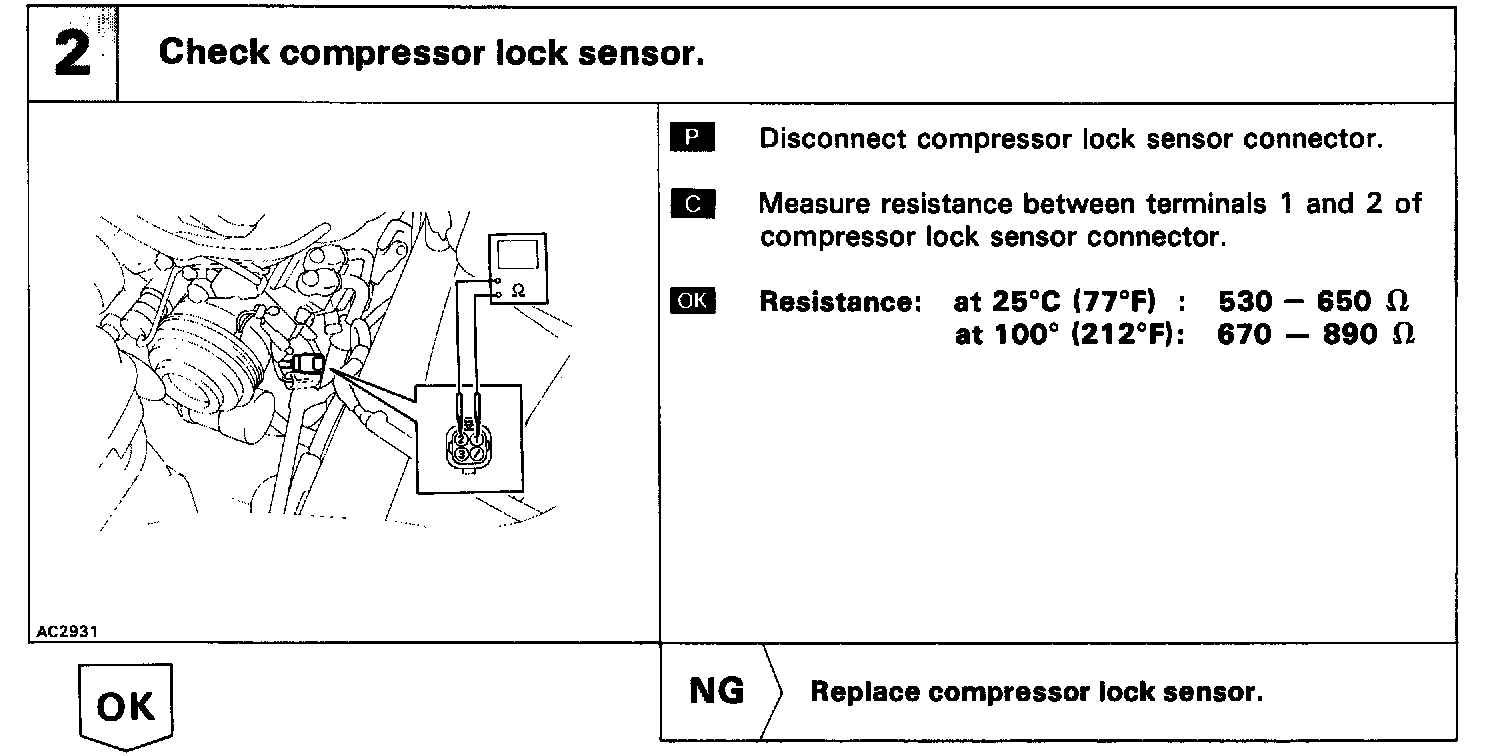

Step 2:

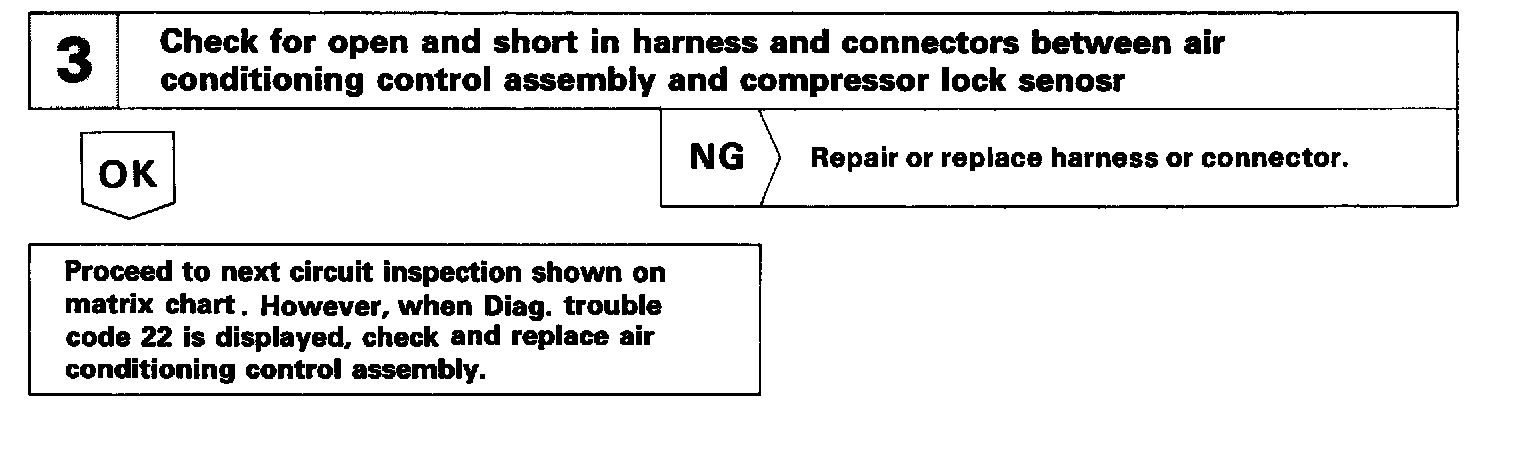

Step 3:

INSPECTION PROCEDURE
