Open In Solar Sensor Circuit

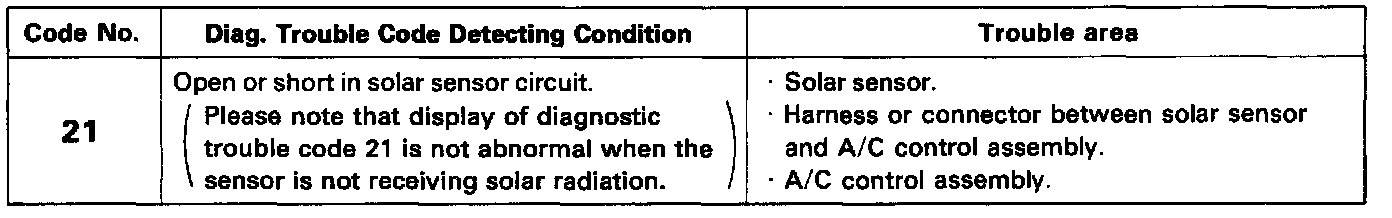

DTC 21 - OPEN IN SOLAR SENSOR CIRCUIT

CIRCUIT DESCRIPTION

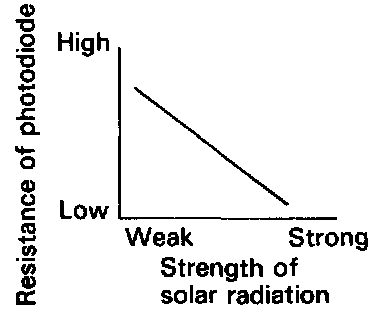

A photo diode in the solar sensor detects solar radiation and sends signals to the air conditioning control assembly.

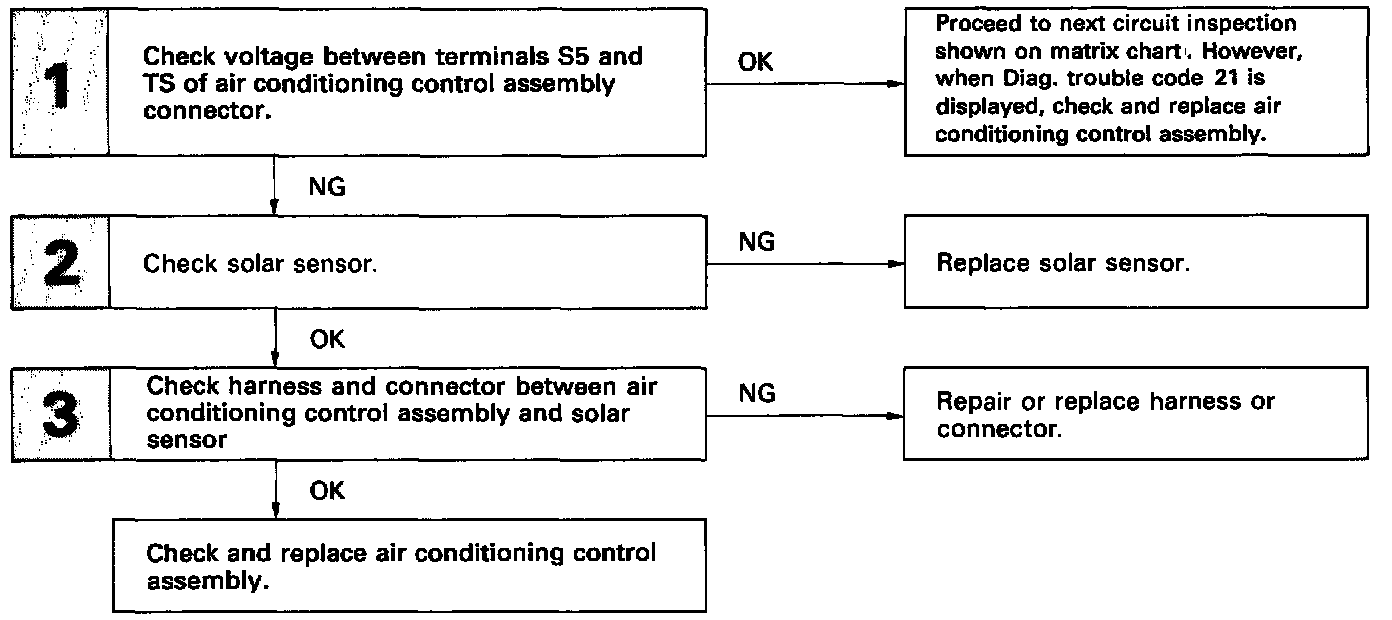

DIAGNOSTIC CHART

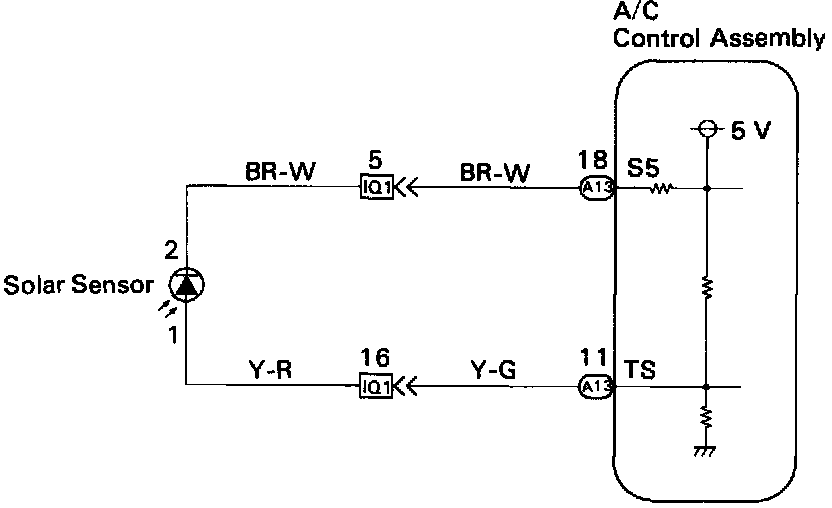

WIRING DIAGRAM

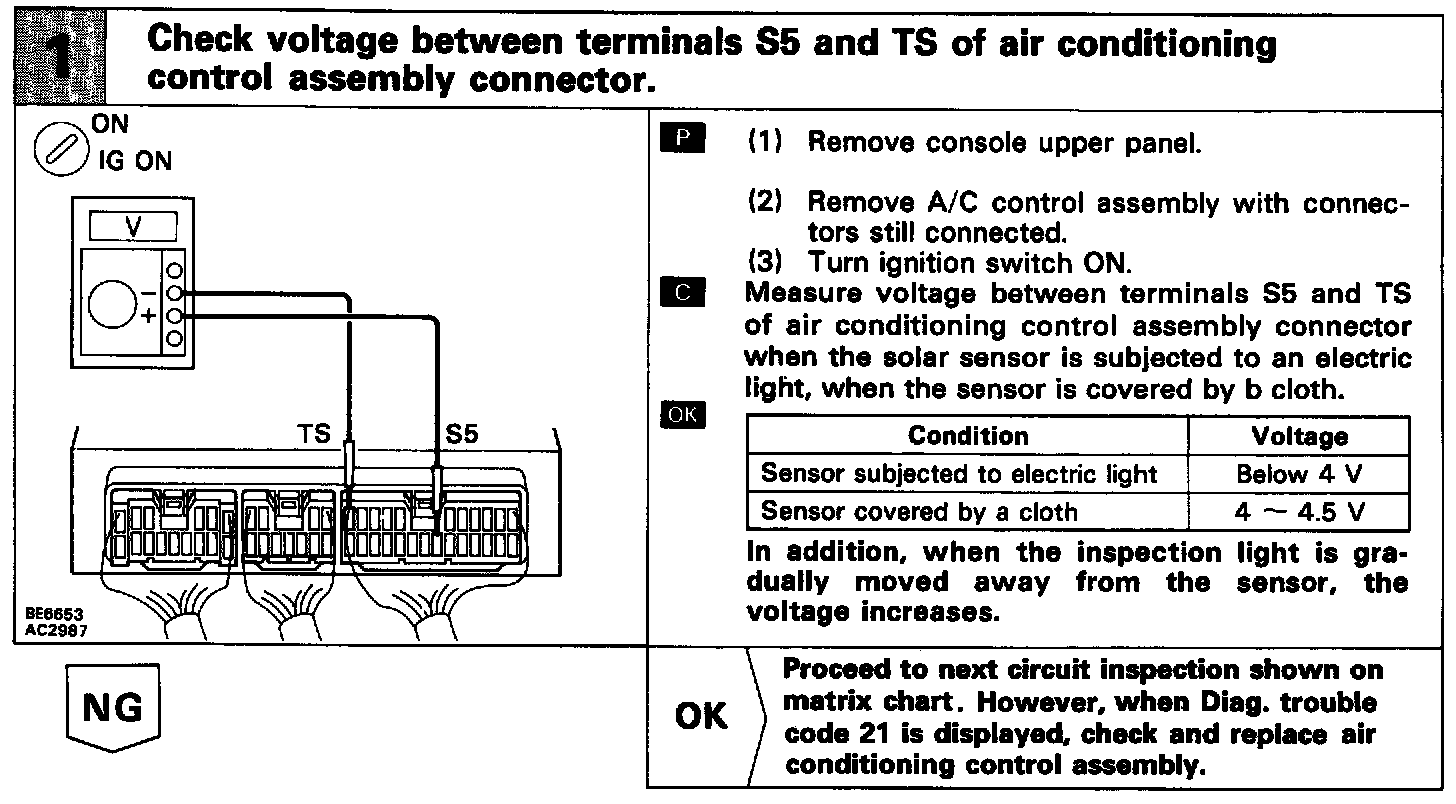

Step 1:

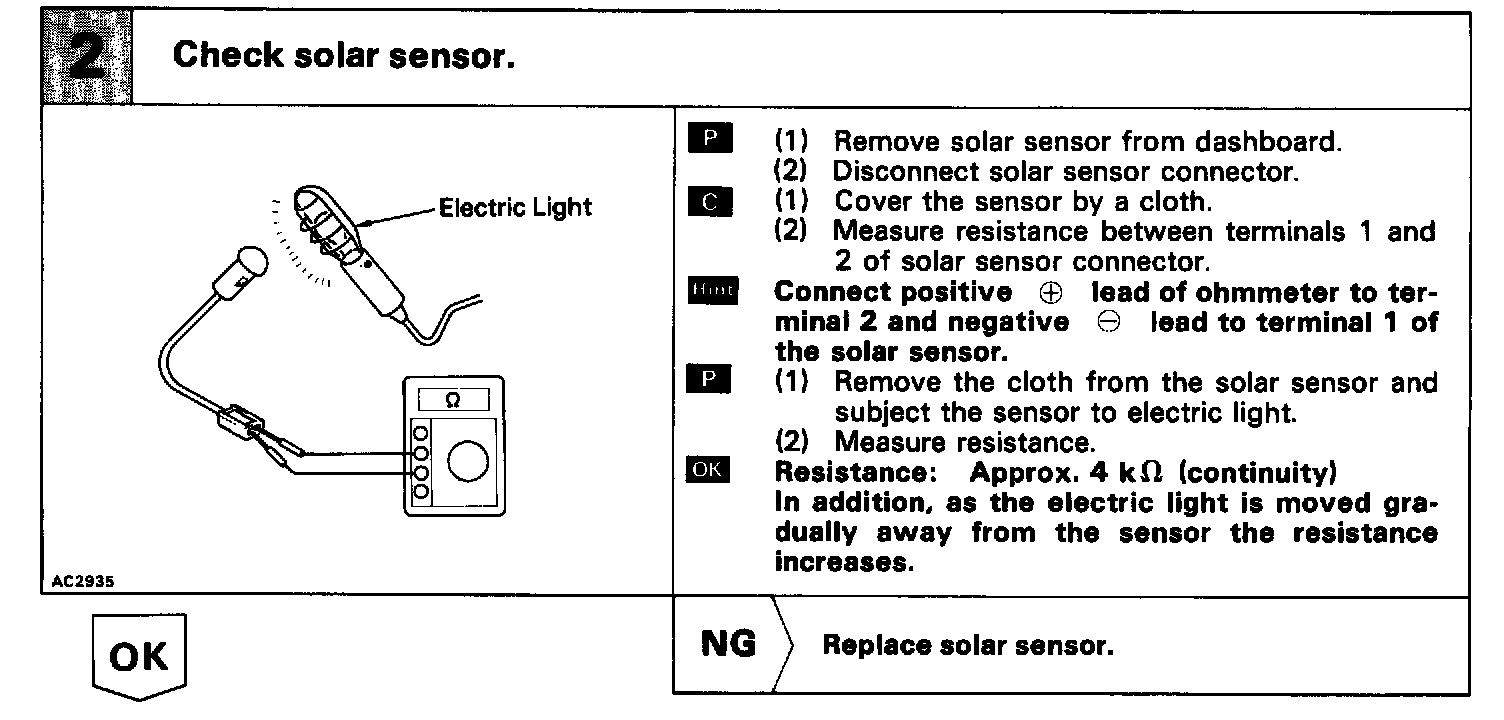

Step 2:

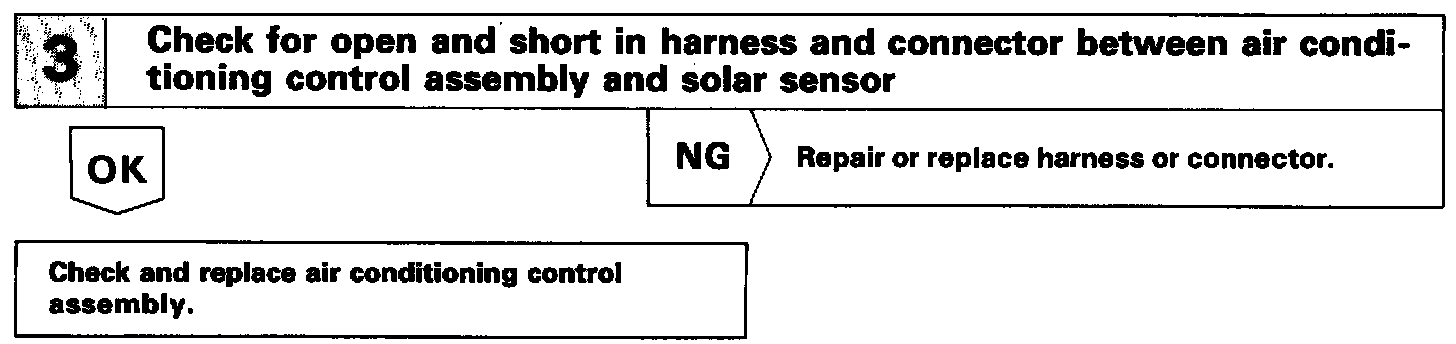

Step 3:

INSPECTION PROCEDURE
