DTC 13

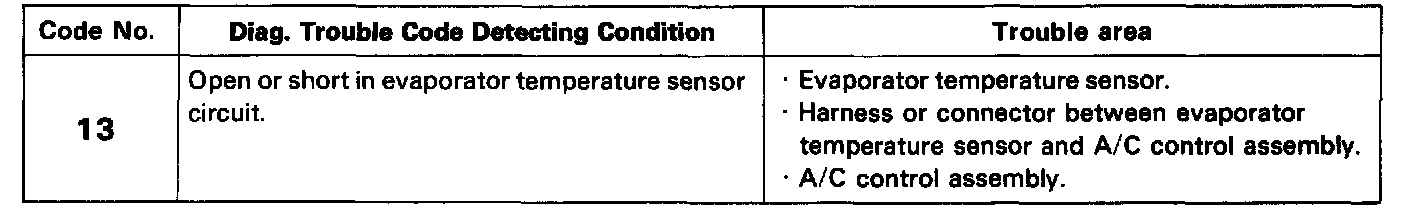

DTC 13 - OPEN OR SHORT IN EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION





This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the air conditioning control assembly.

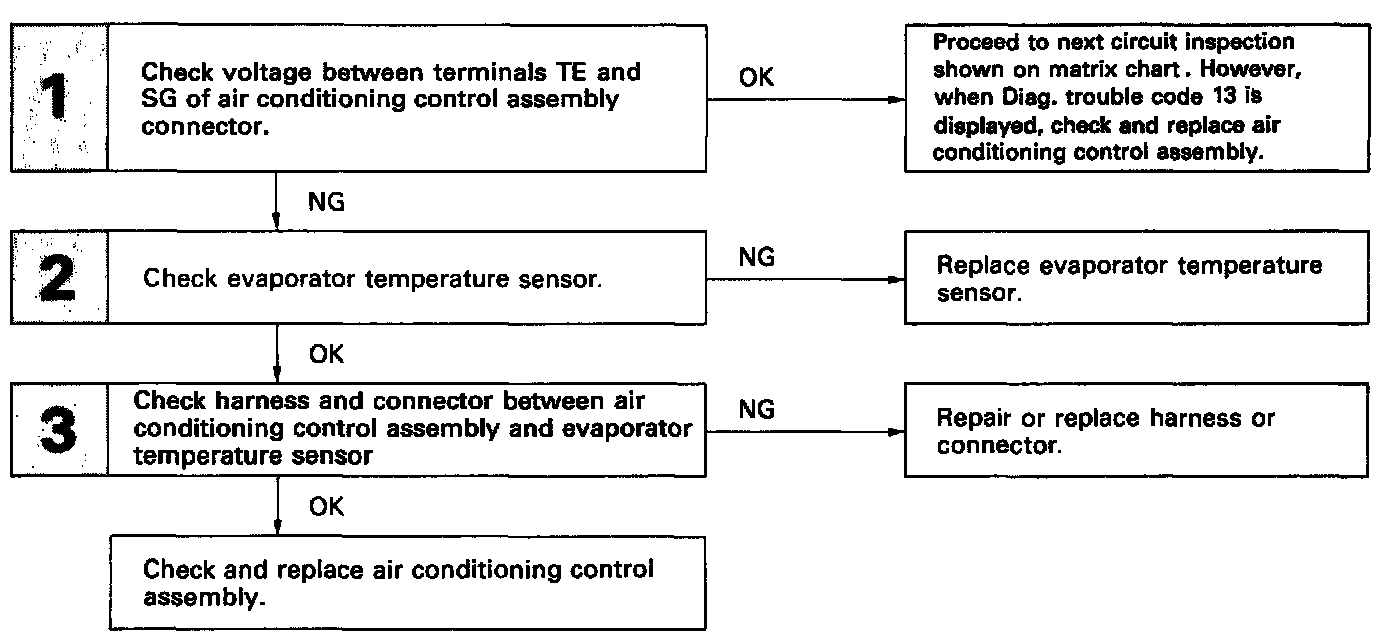

DIAGNOSTIC CHART

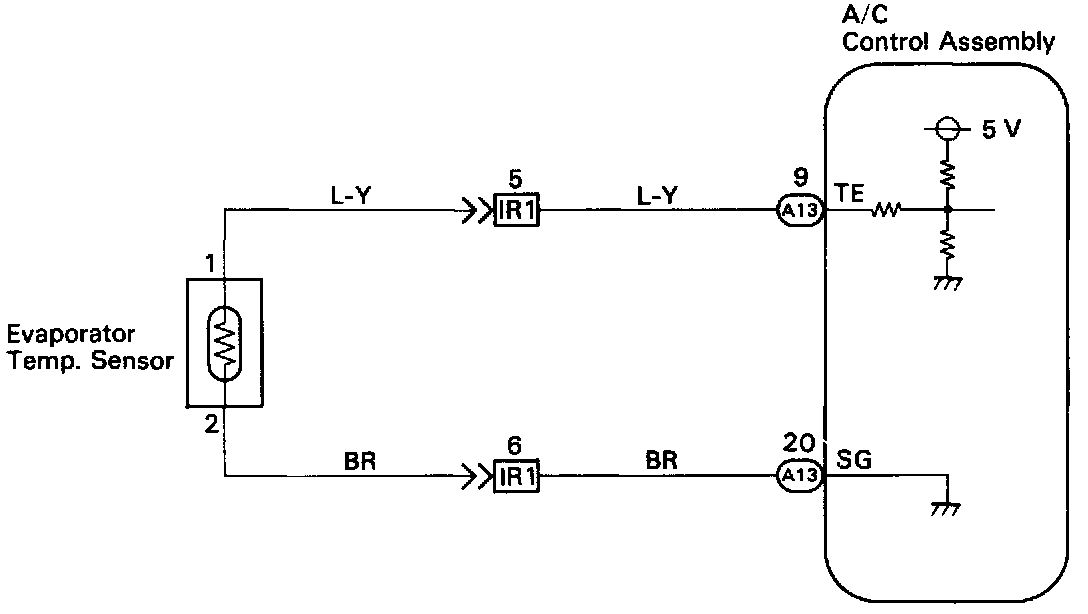

WIRING DIAGRAM

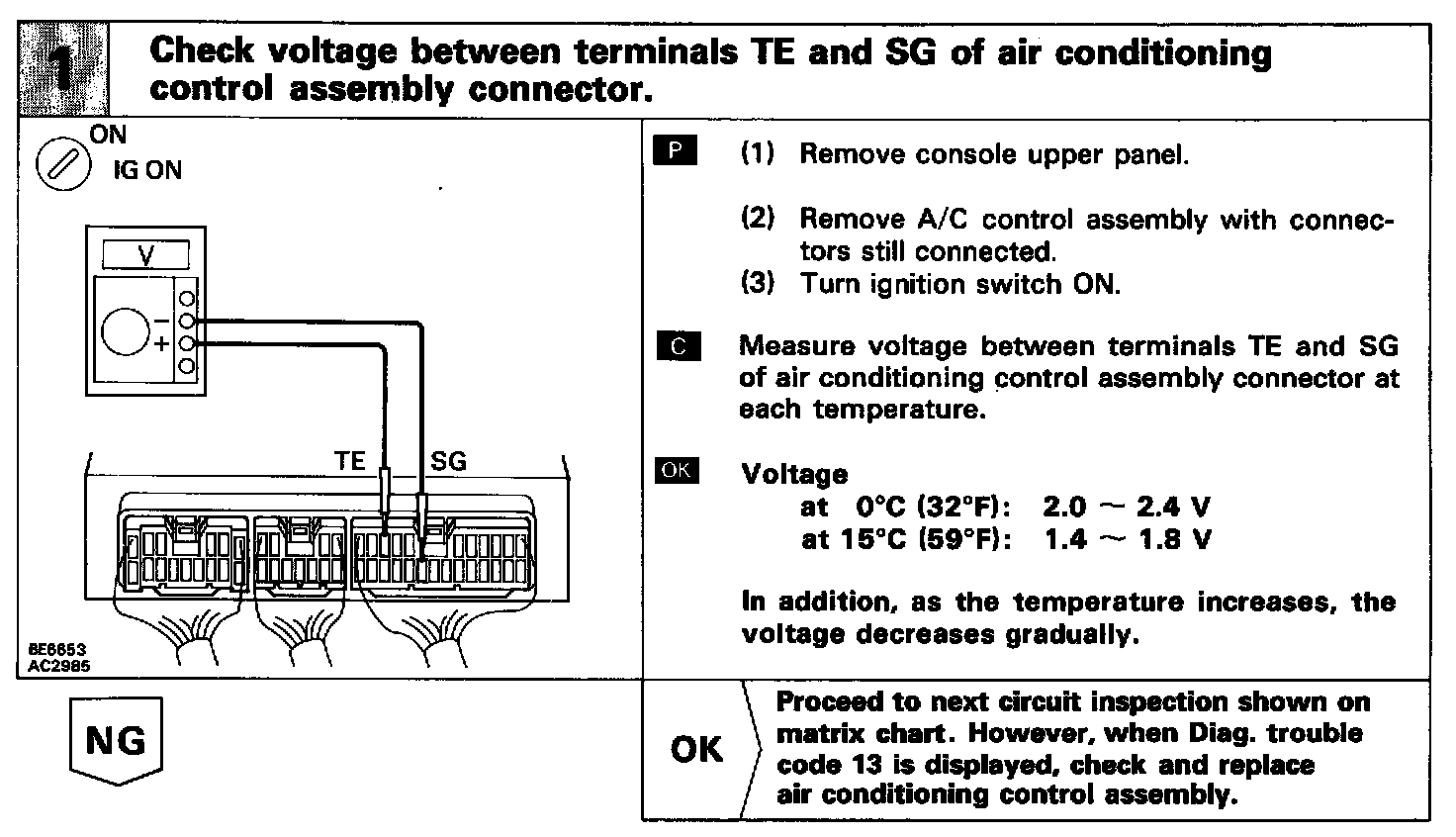

Step 1:

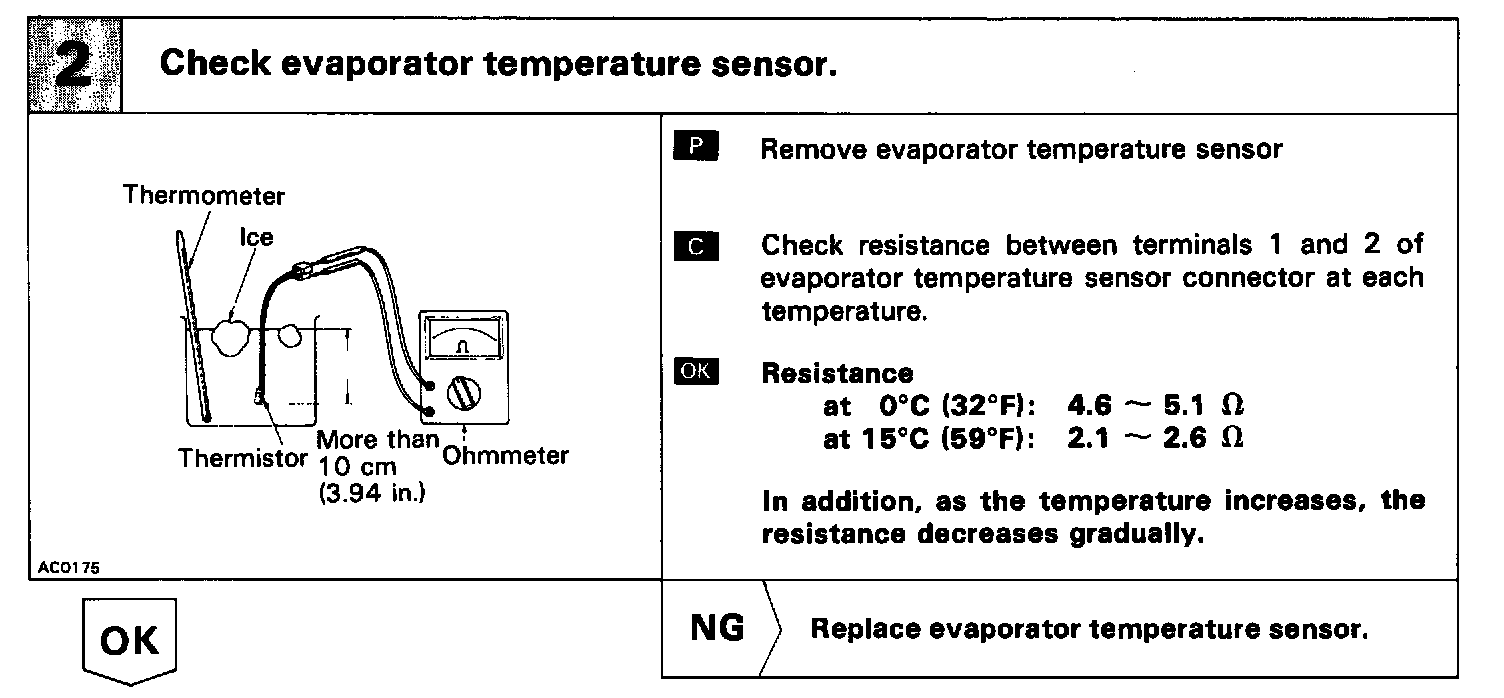

Step 2:

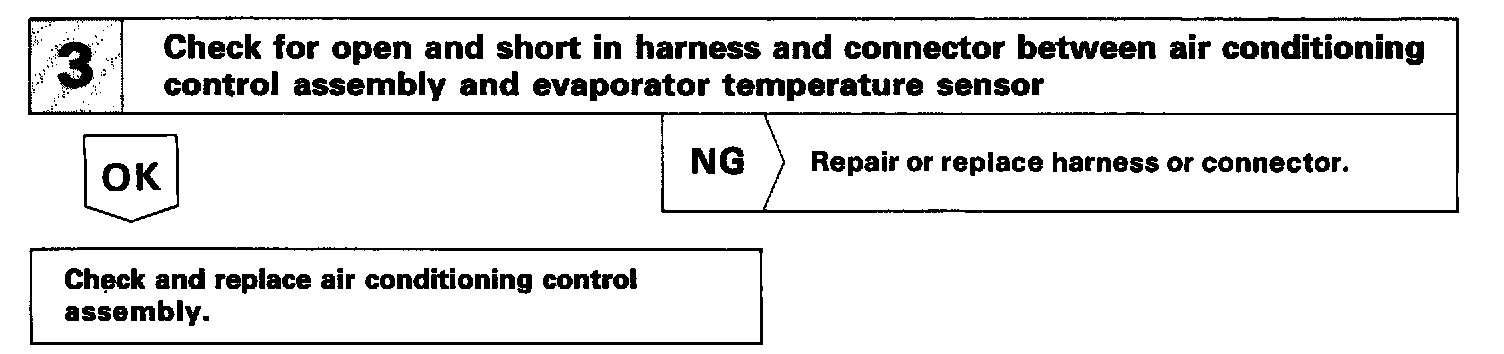

Step 3:

INSPECTION PROCEDURE
