DTC 11

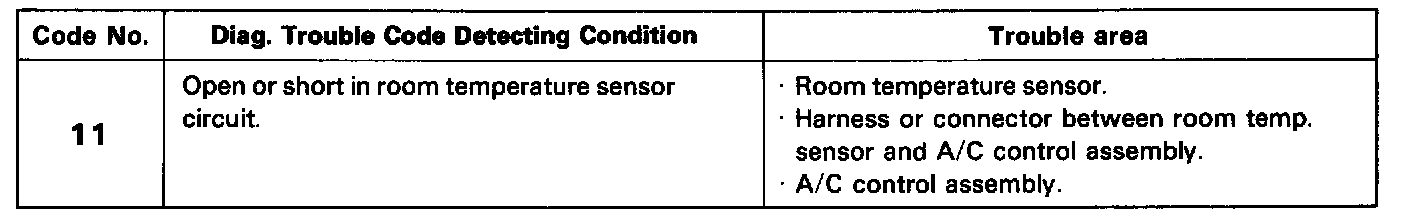

DTC 11 - OPEN OR SHORT IN ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION





This sensor detects the temperature inside the cabin and sends the appropriate signals the A/C control assembly.

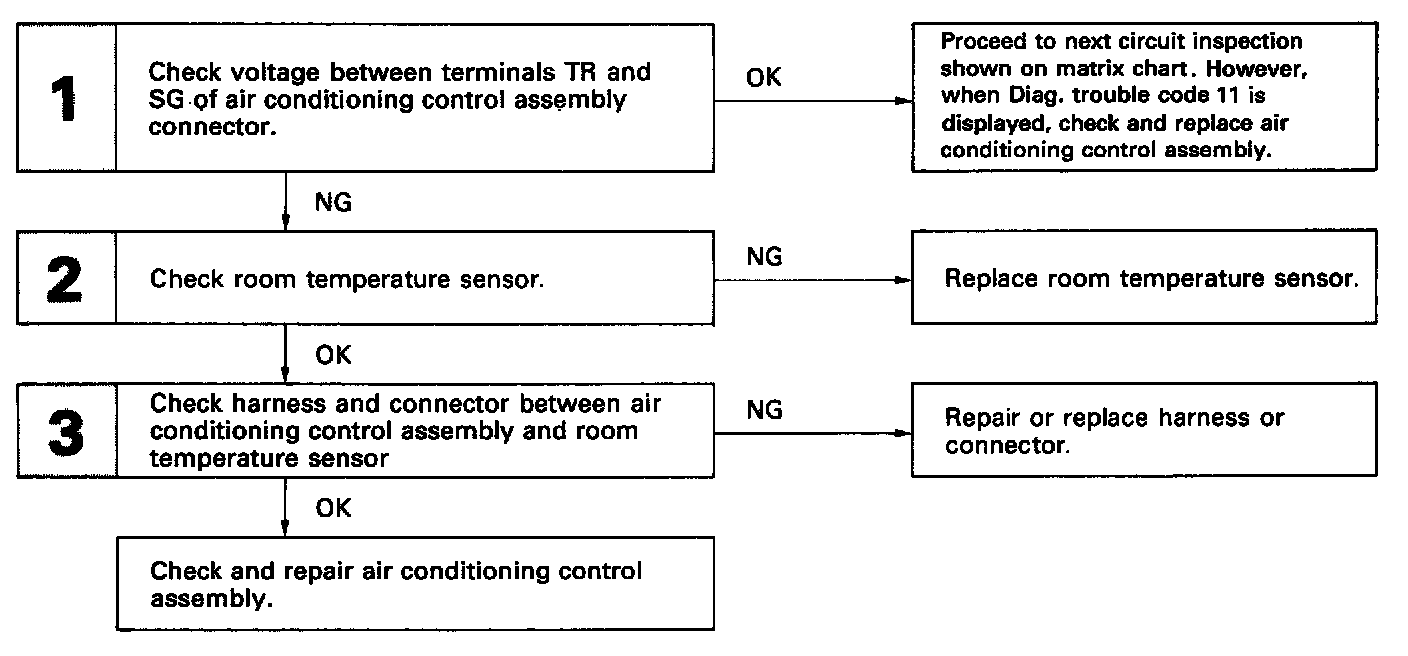

DIAGNOSTIC CHART

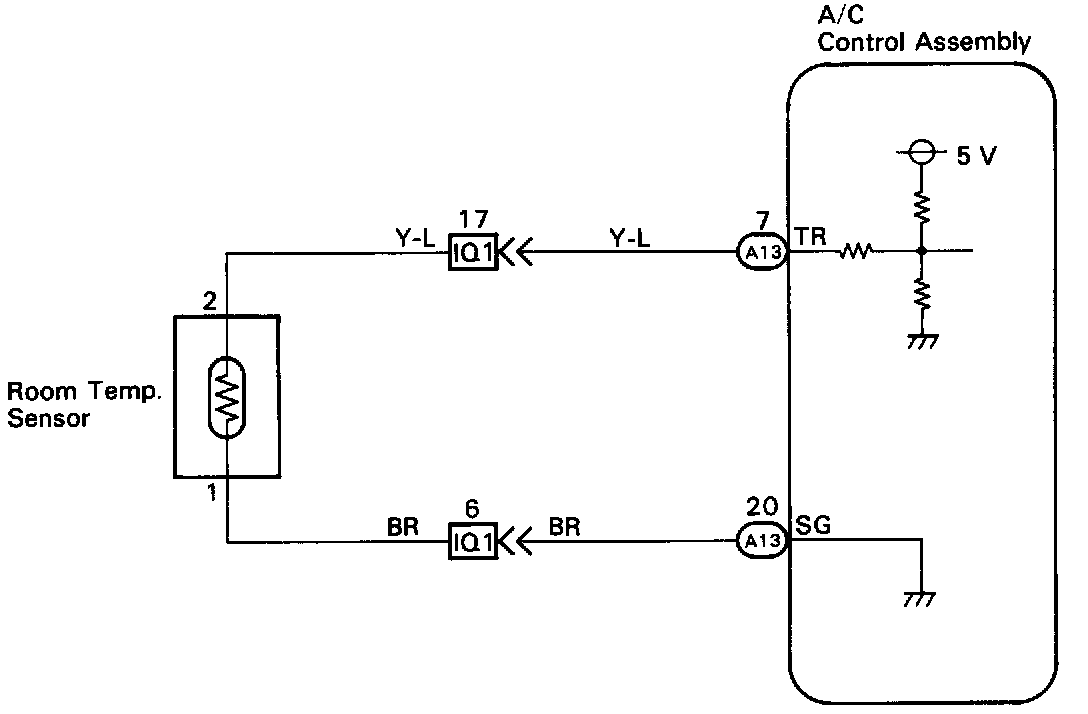

WIRING DIAGRAM

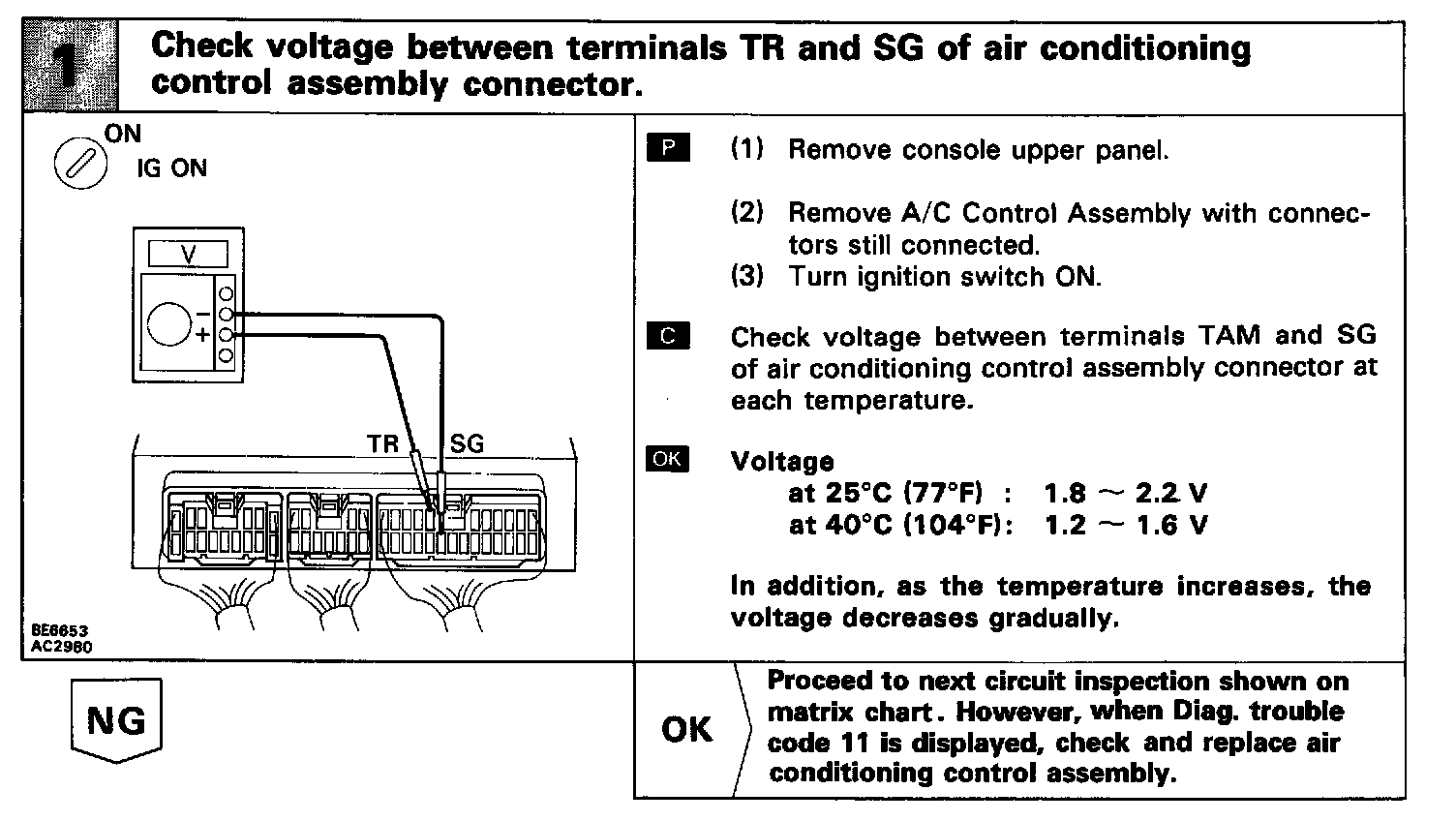

Step 1:

Step 2:

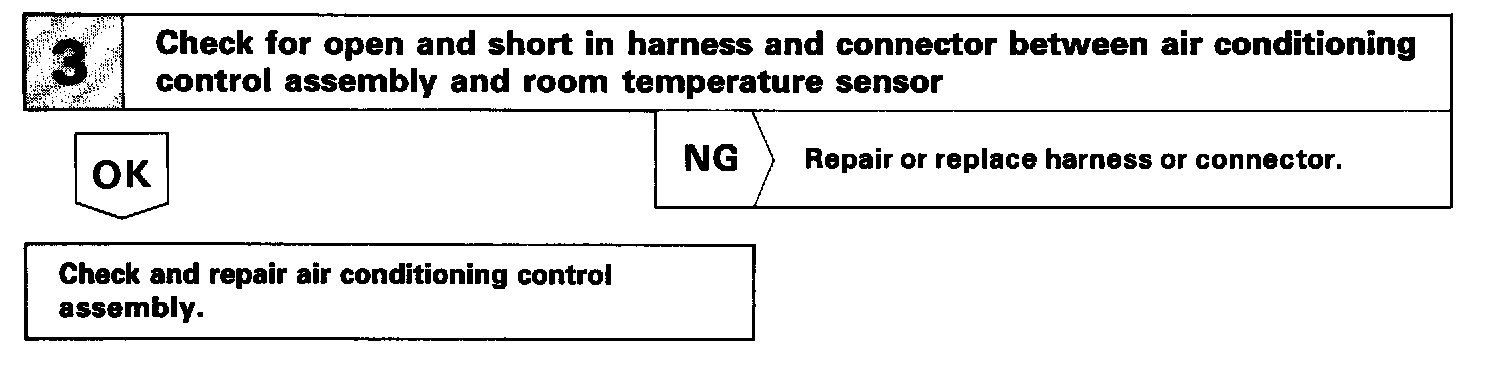

Step 3:

INSPECTION PROCEDURE
