DTC 71

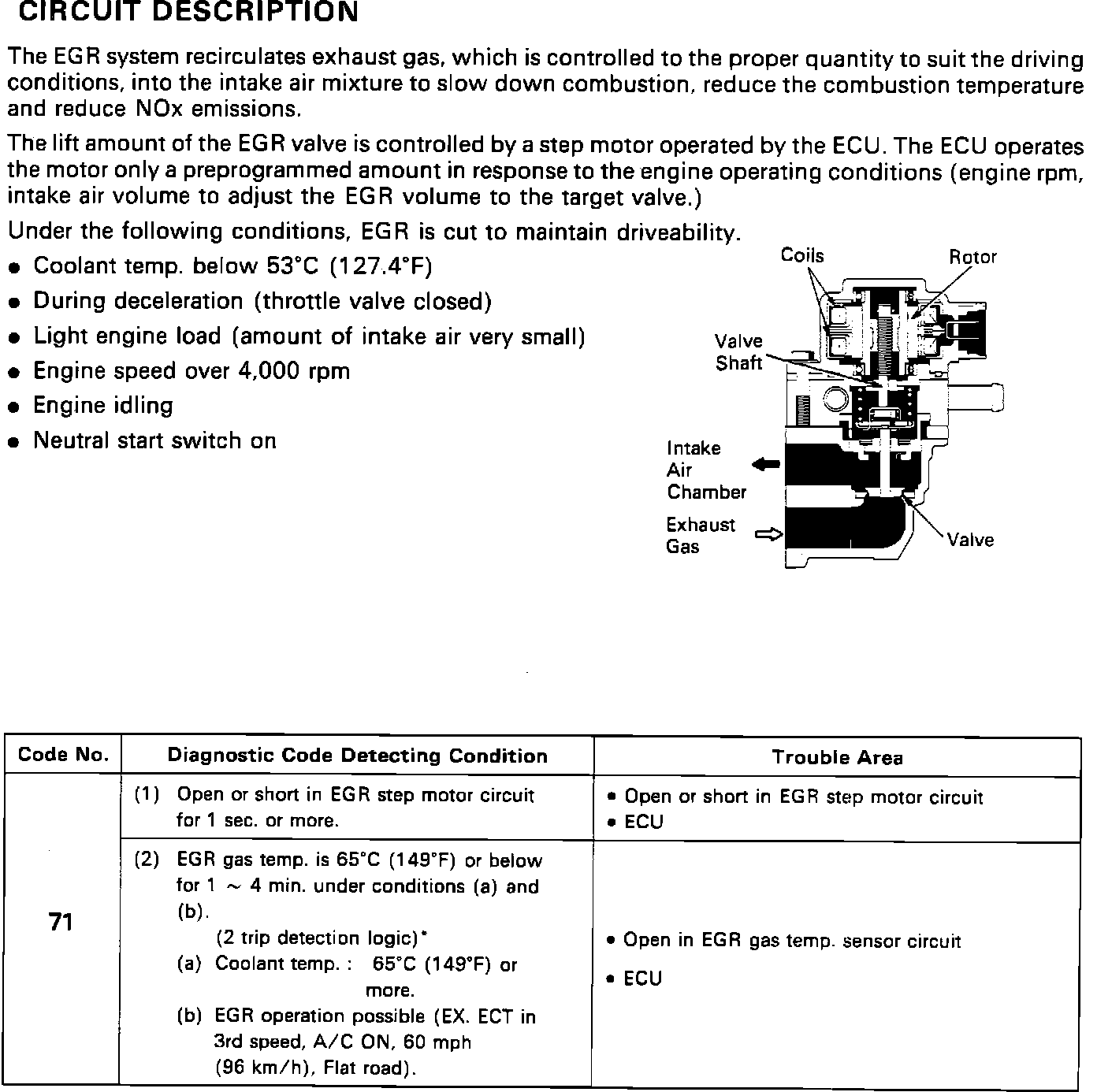

Fig. 29 Diagnostic Code 71 (EGR System Malfunction, Part 1 Of 6):

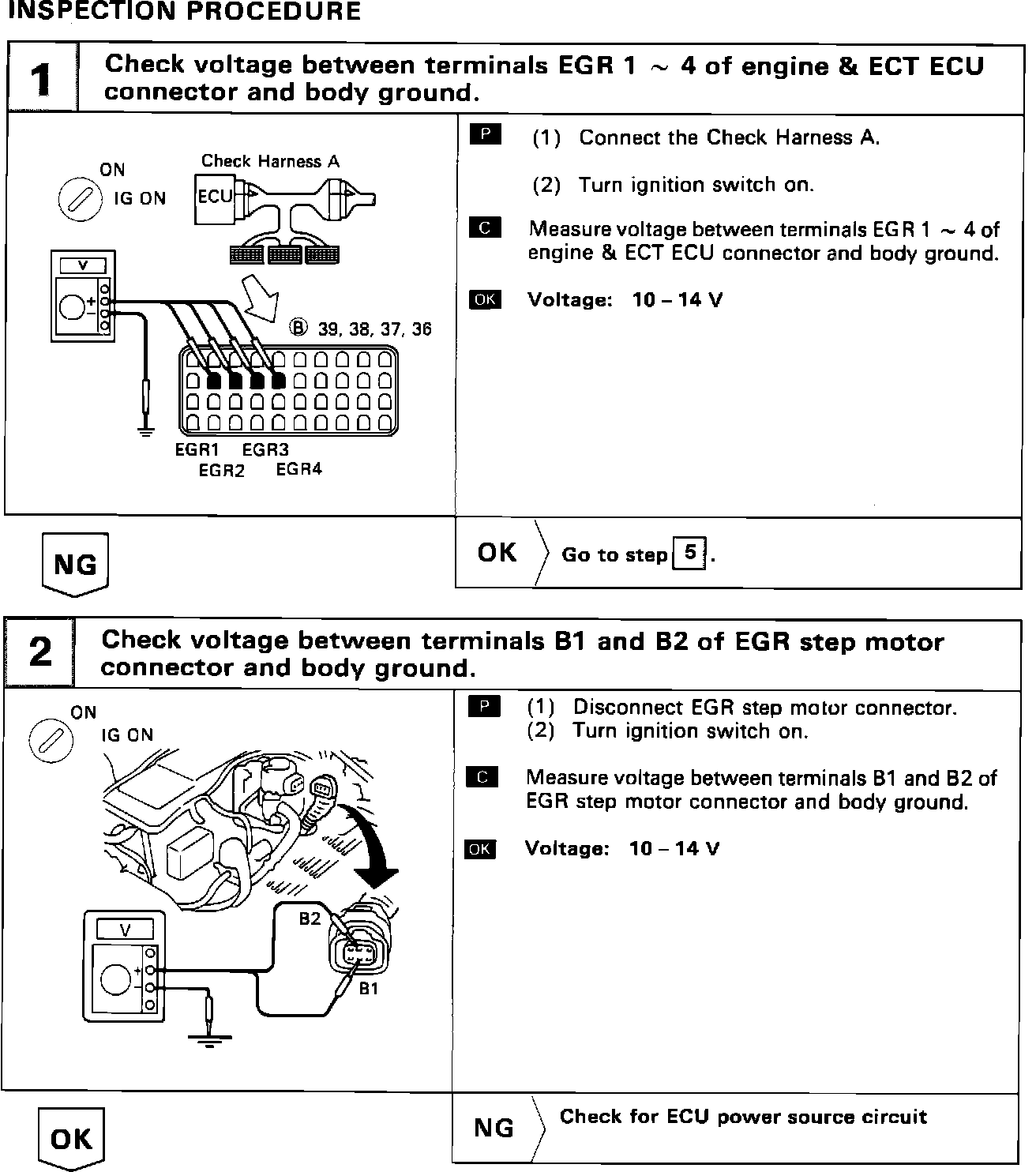

Fig. 29 Diagnostic Code 71 (EGR System Malfunction, Part 2 Of 6):

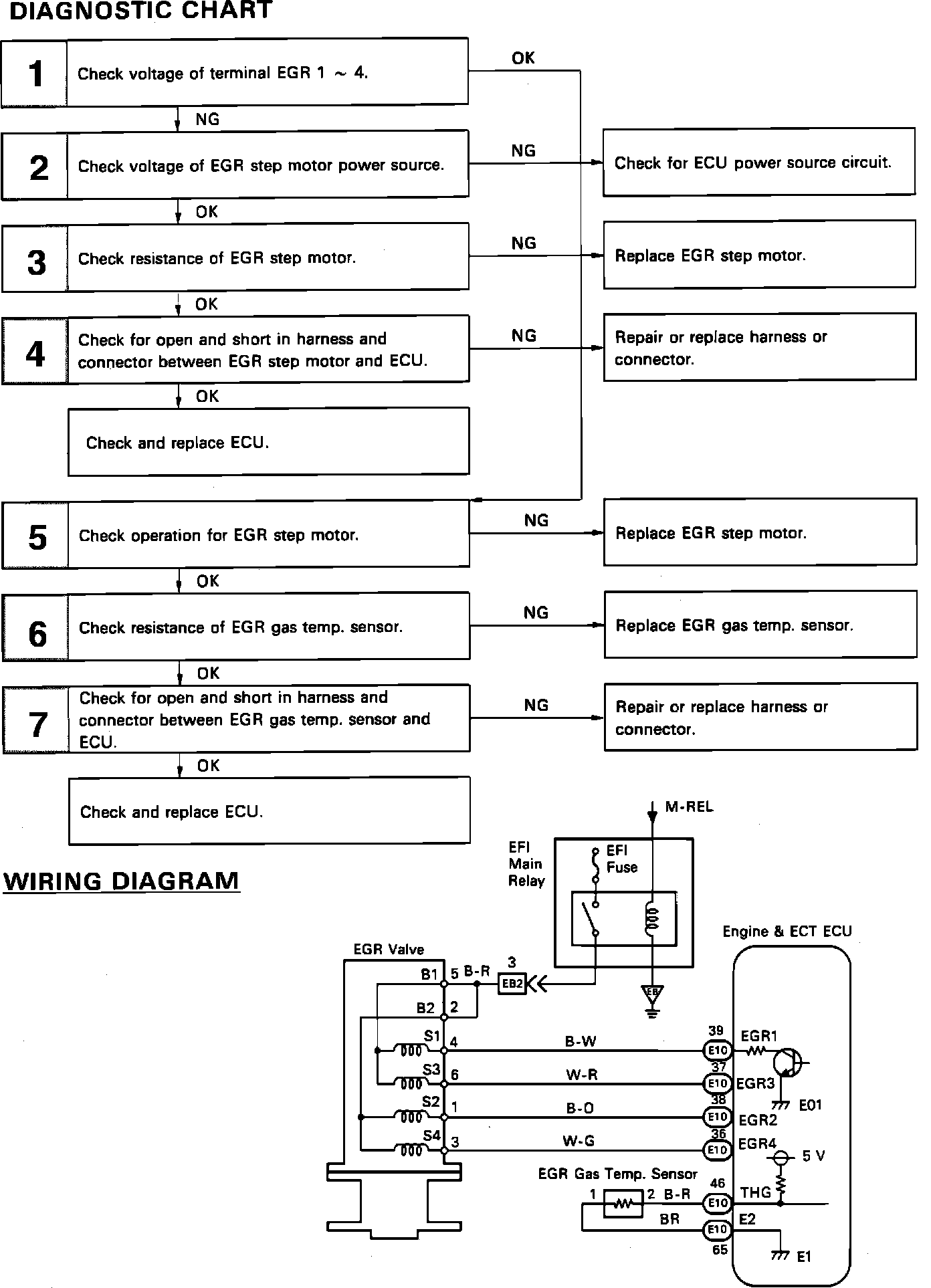

Fig. 29 Diagnostic Code 71 (EGR System Malfunction, Part 3 Of 6):

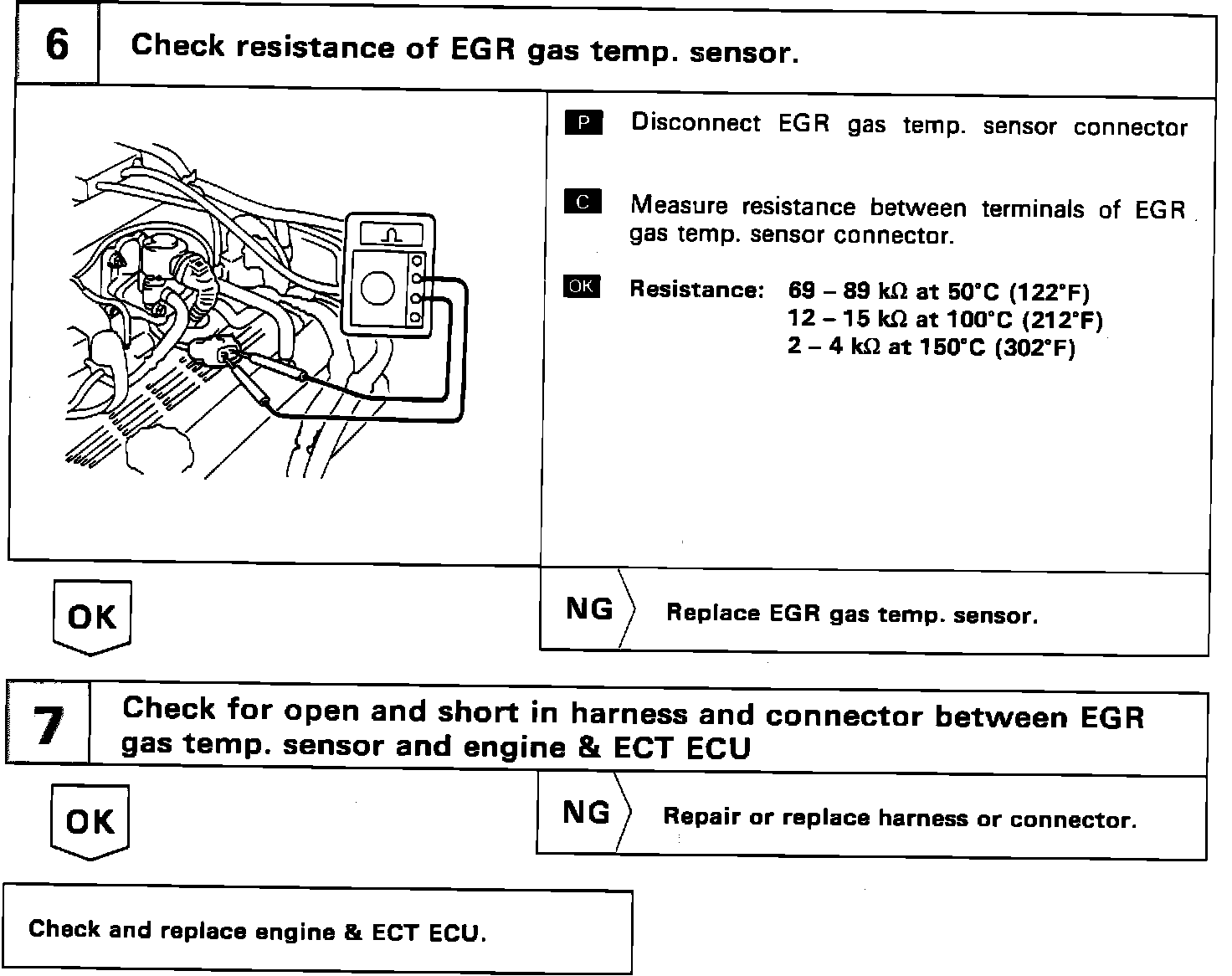

Fig. 29 Diagnostic Code 71 (EGR System Malfunction, Part 4 Of 6):

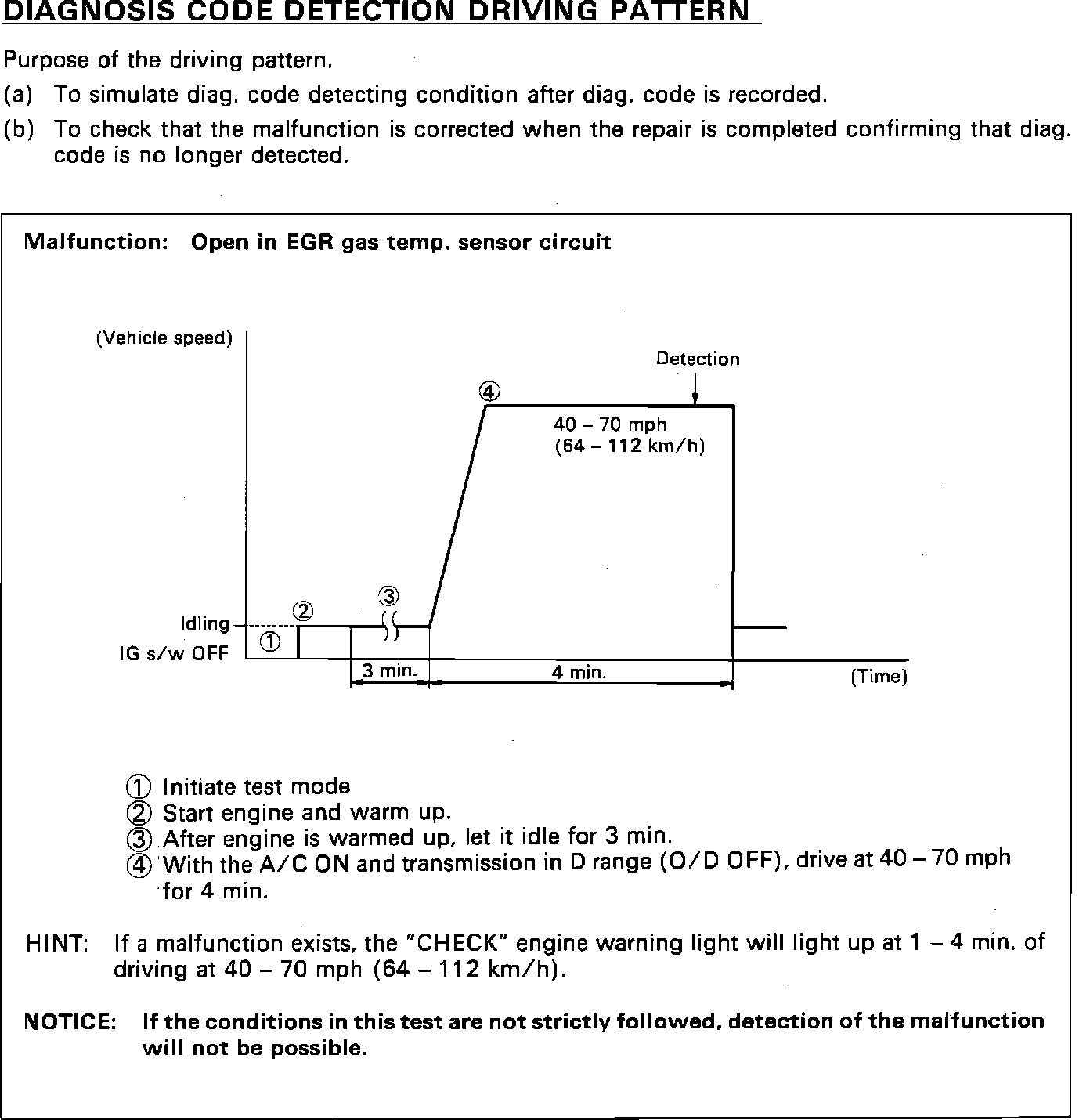

Fig. 29 Diagnostic Code 71 (EGR System Malfunction, Part 5 Of 6):

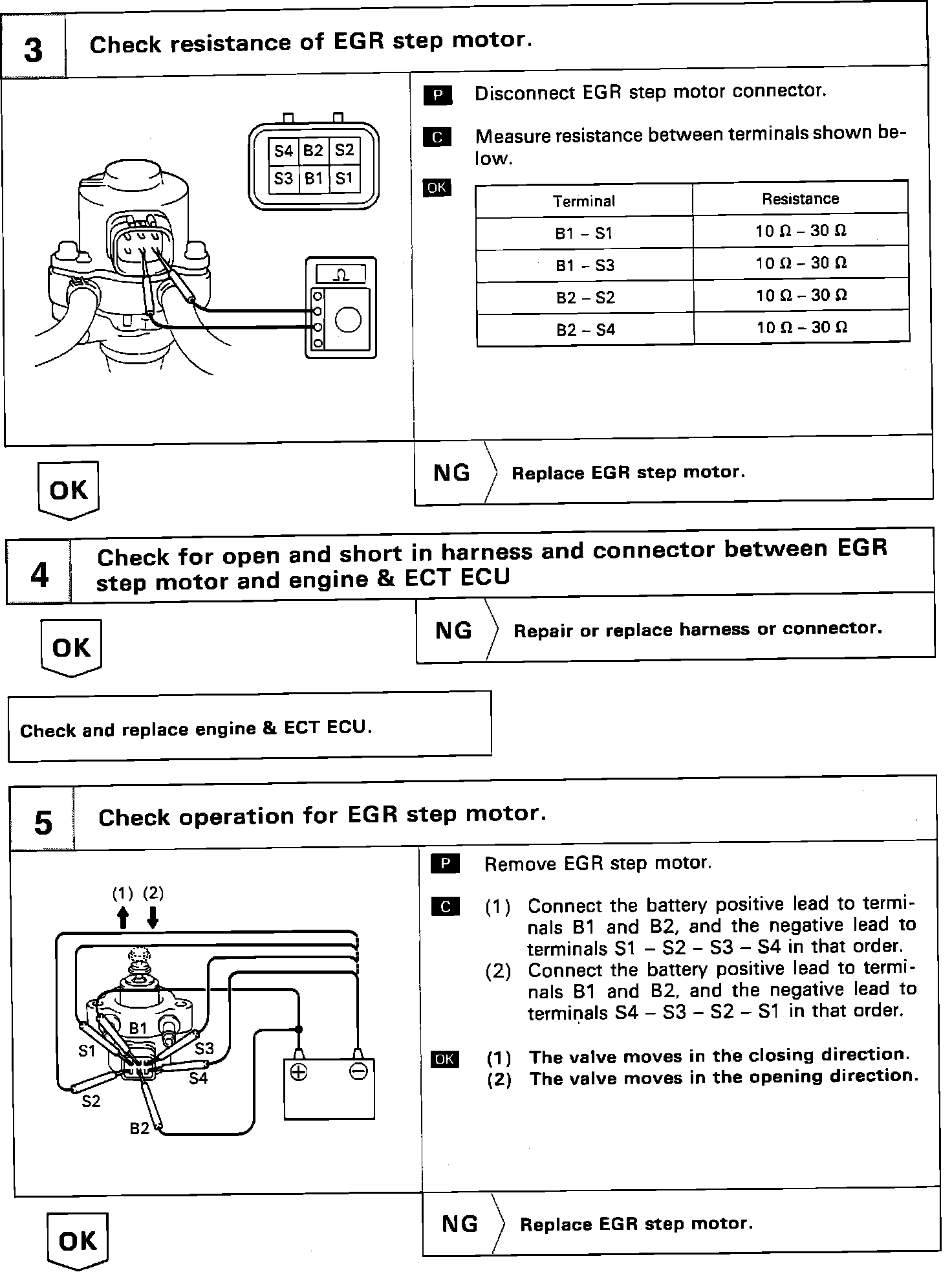

Fig. 29 Diagnostic Code 71 (EGR System Malfunction, Part 6 Of 6):
