DTC 42
DTC 42

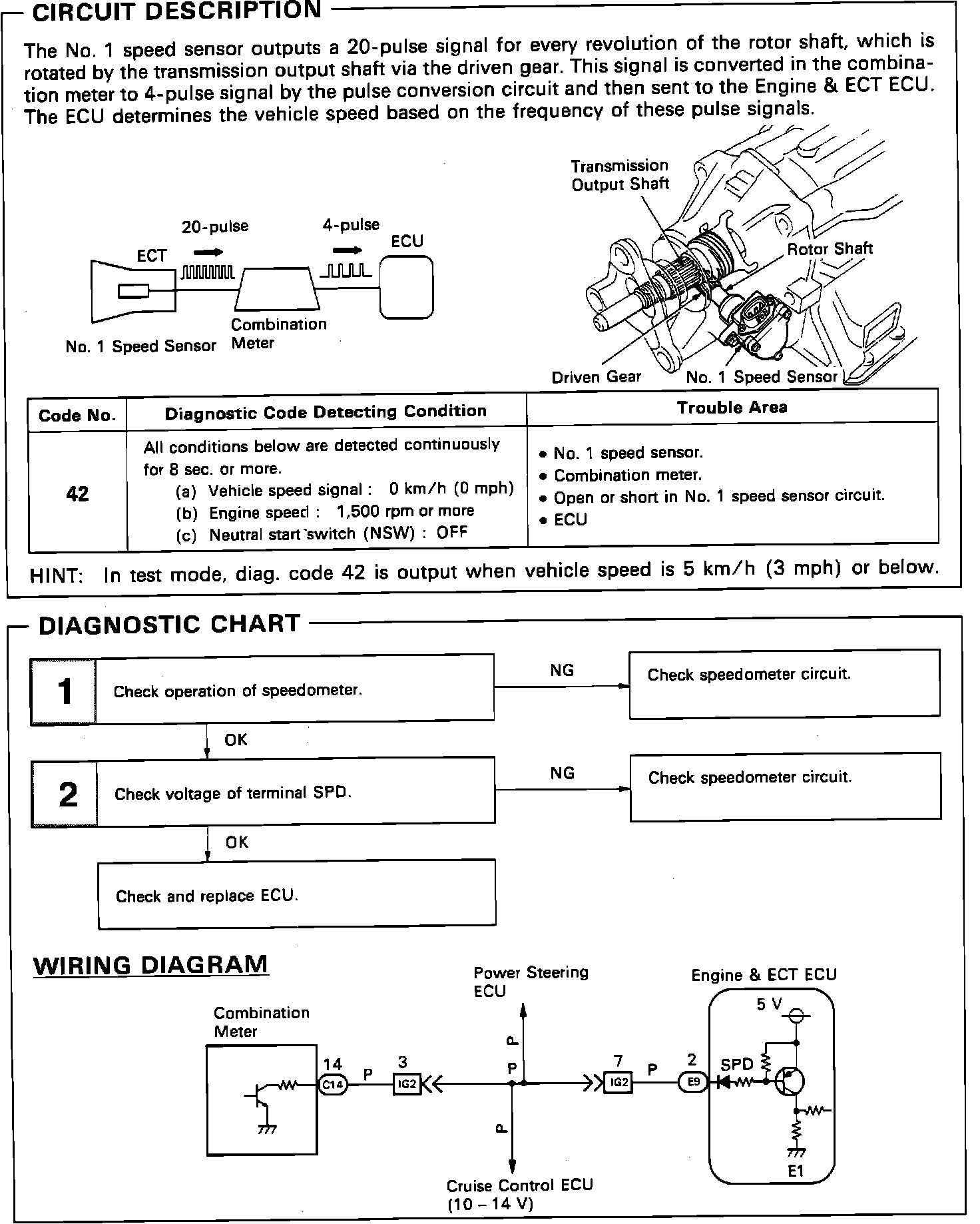

Fig. 23 Diagnostic Code 42 (Vehicle Speed Sensor Signal, Part 1 Of 2):

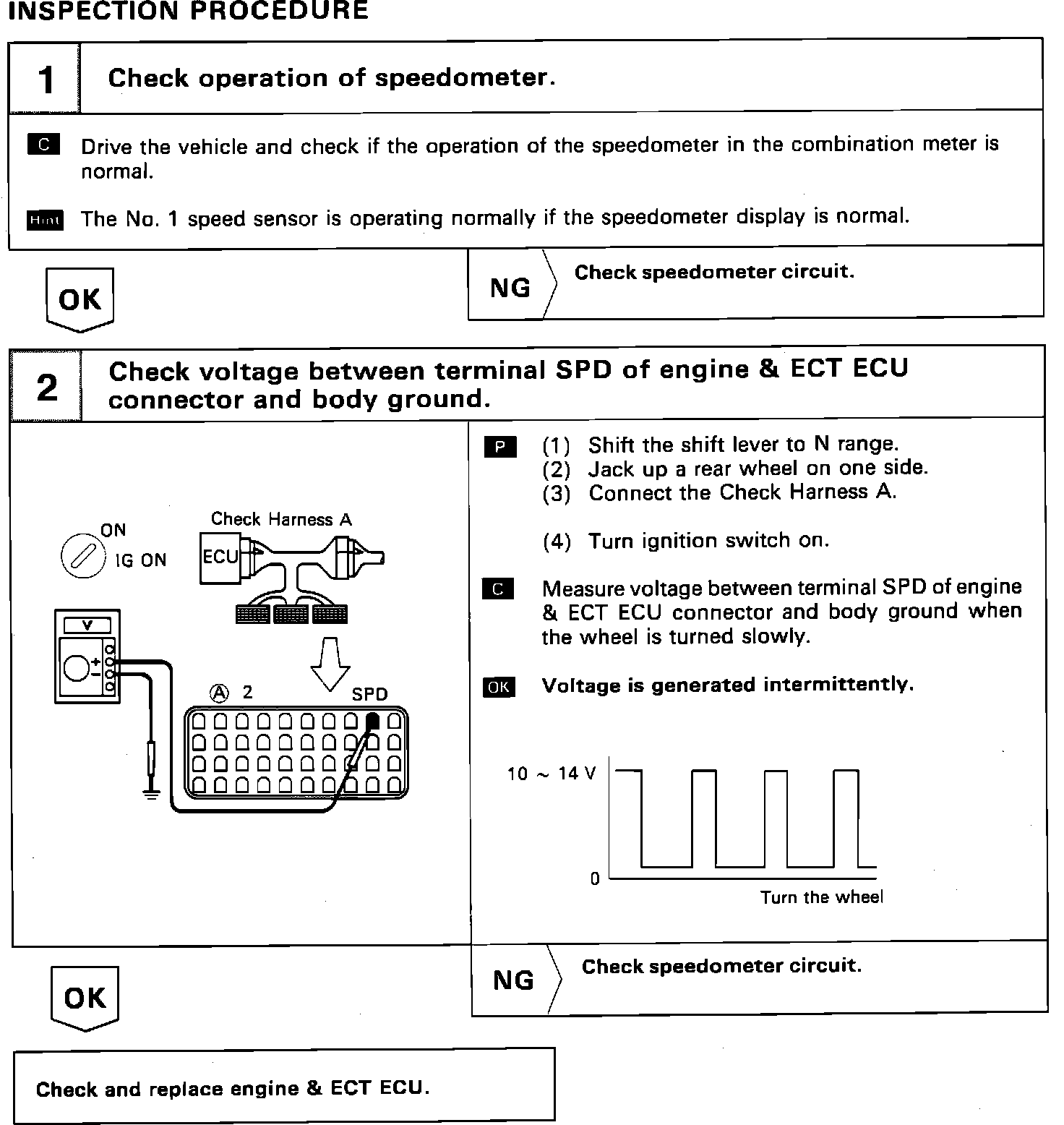

Fig. 23 Diagnostic Code 42 (Vehicle Speed Sensor Signal, Part 2 Of 2):
