SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
DTC 29
DTC 29

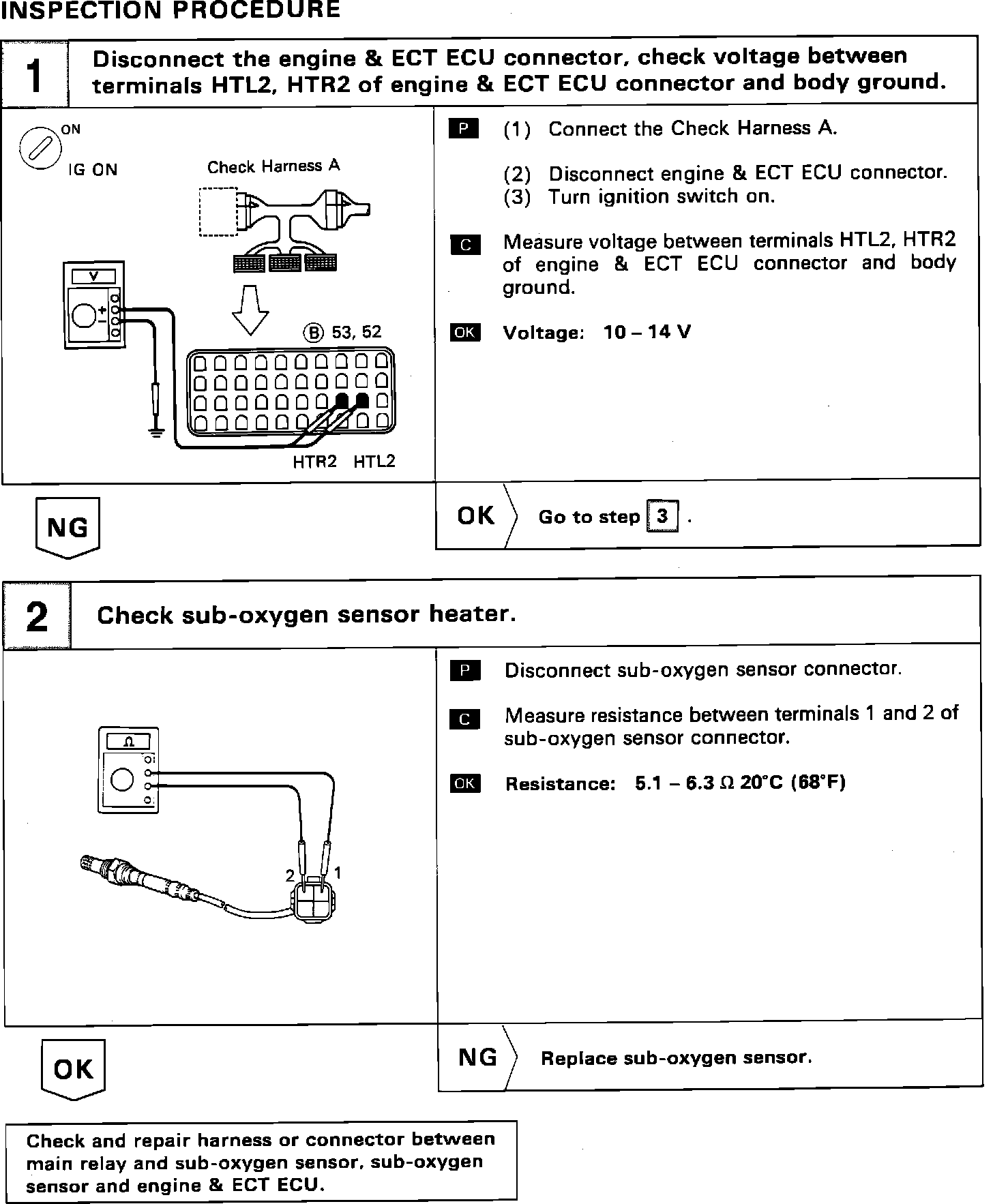

Fig. 19 Diagnostic Code 27 & 29 (Sub Oxygen Sensor Circuit, Part 4 Of 5):

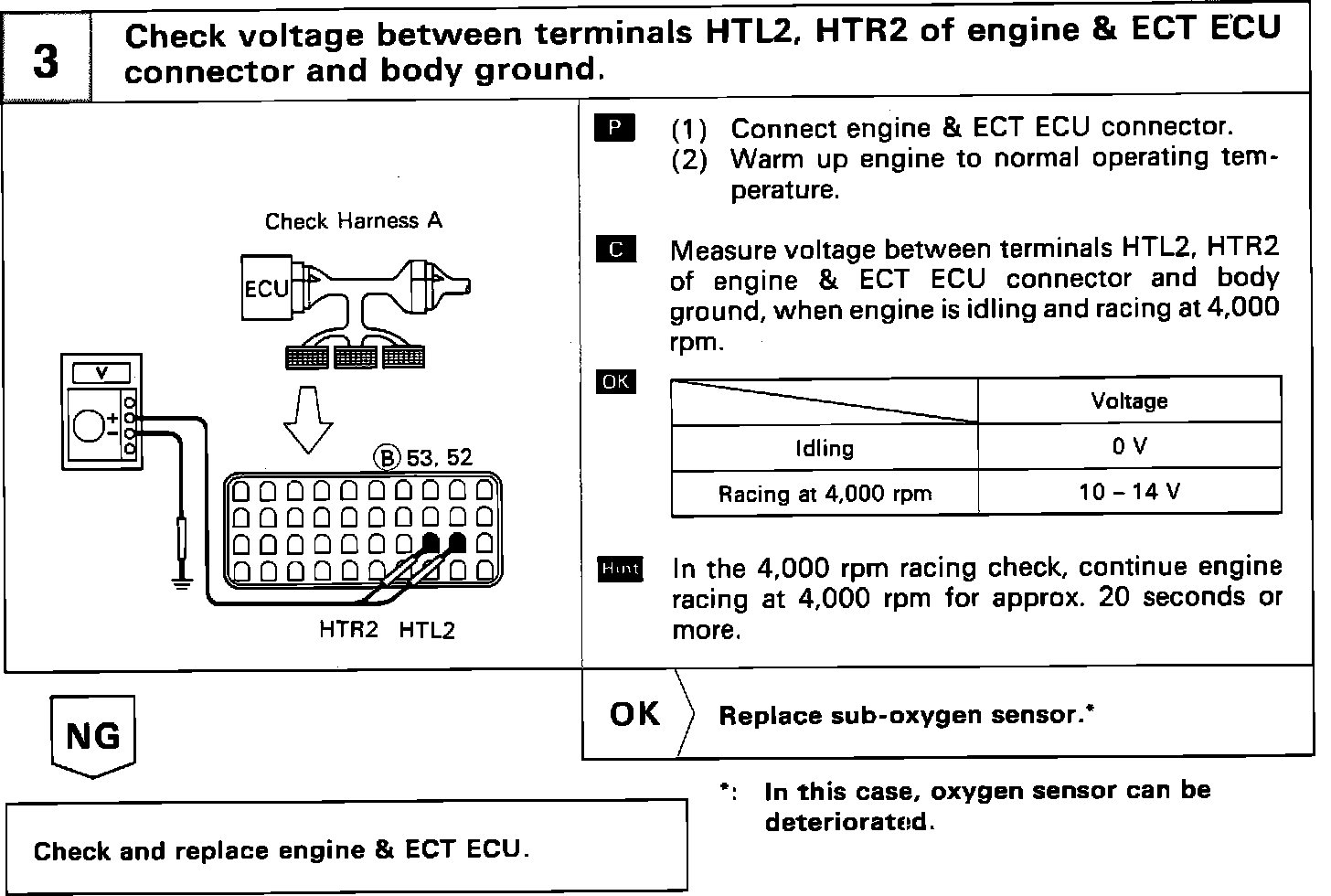

Fig. 19 Diagnostic Code 27 & 29 (Sub Oxygen Sensor Circuit, Part 5 Of 5):
