DTC 26

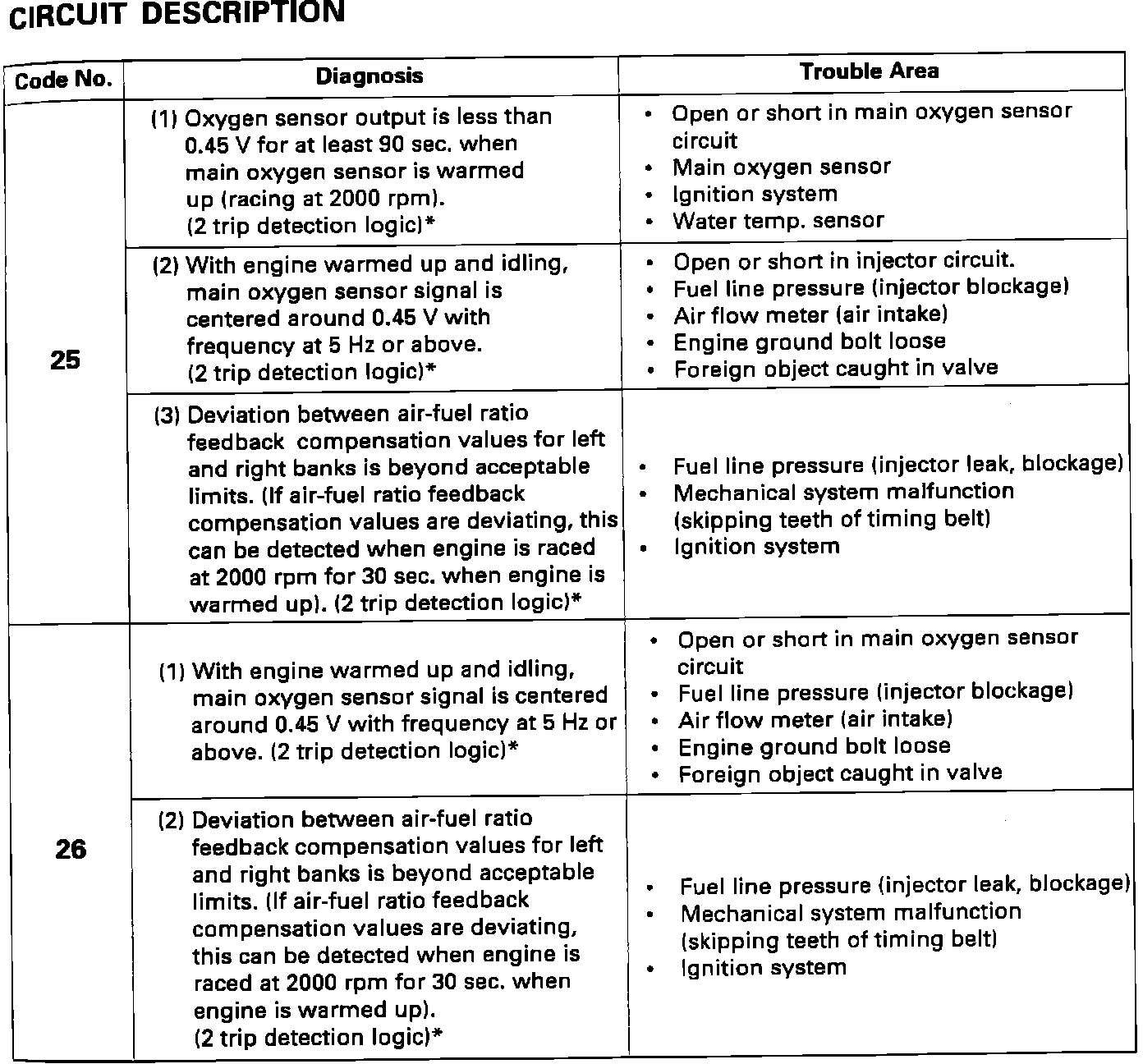

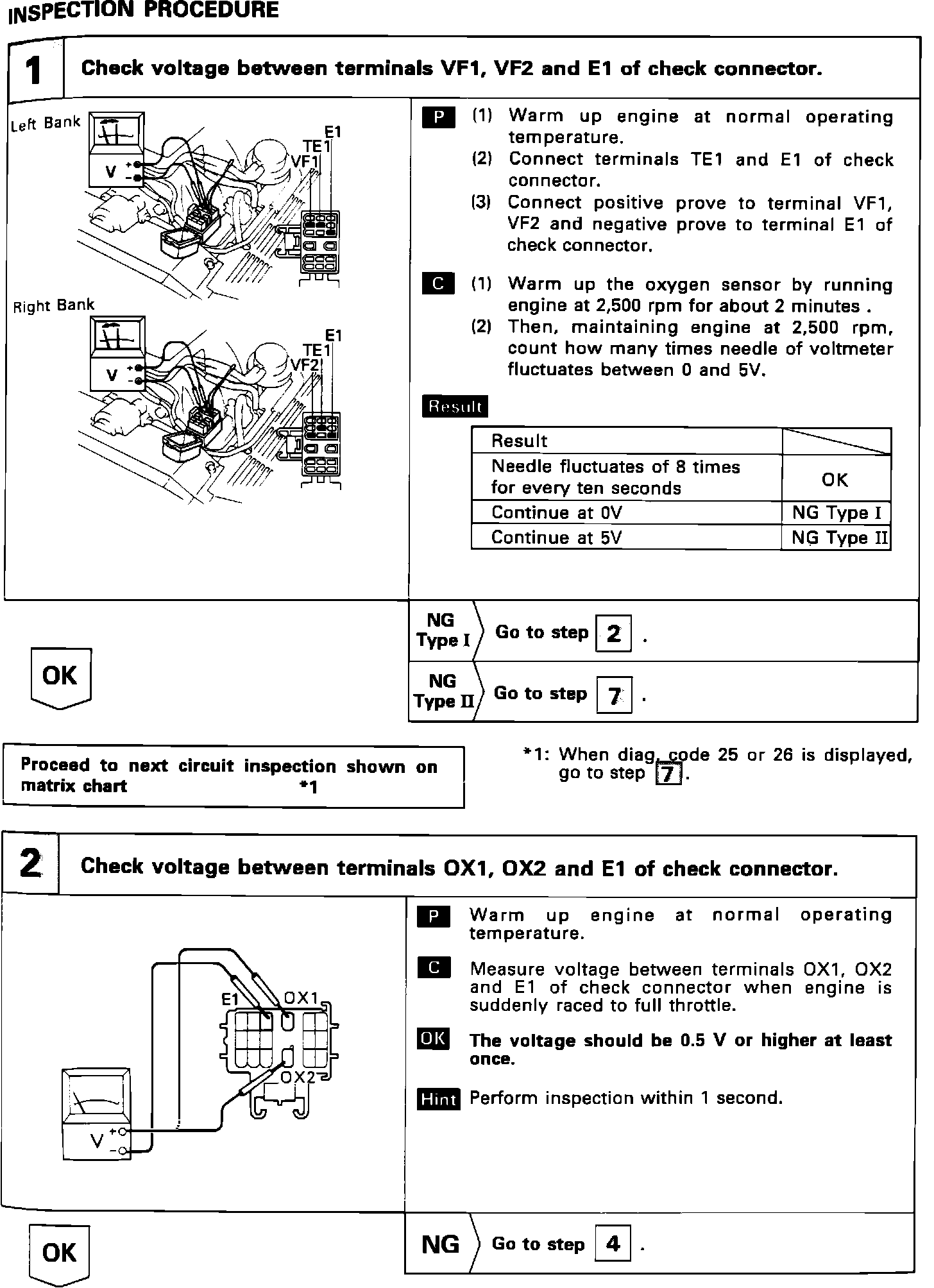

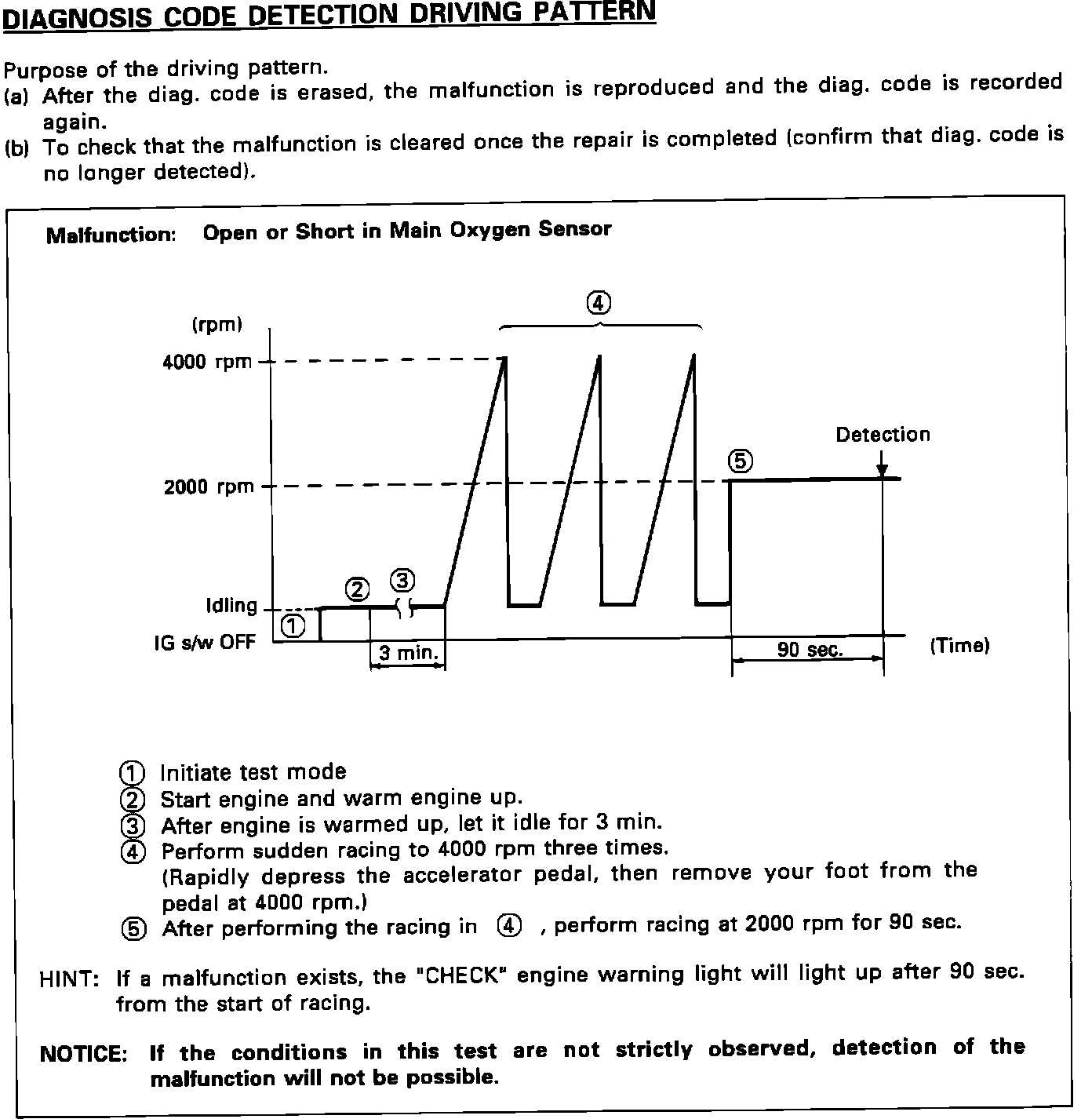

Fig. 18 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 1 Of 7):

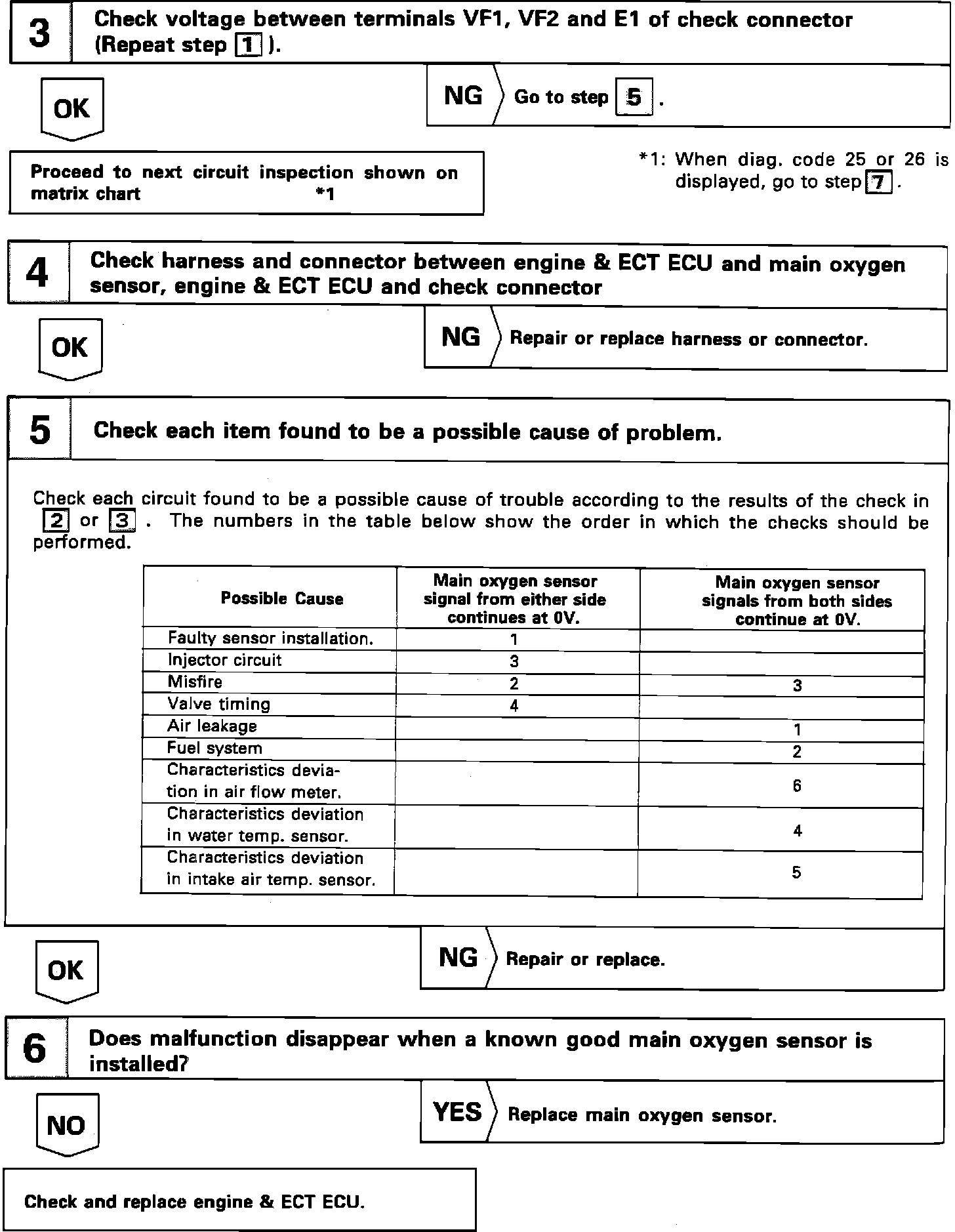

Fig. 18 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 2 Of 7):

Fig. 18 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 5 Of 7):

Fig. 18 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 6 Of 7):

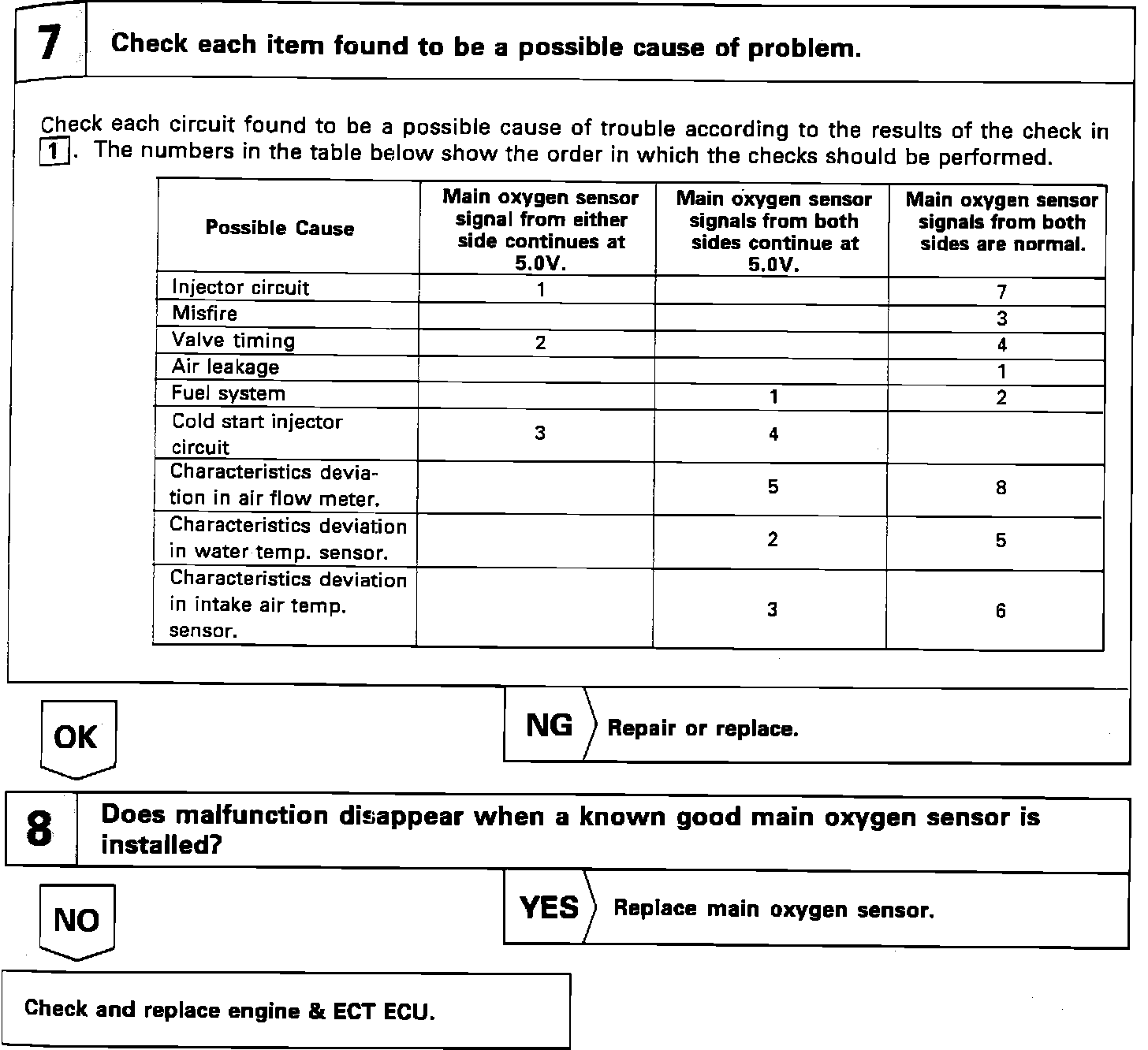

Fig. 18 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 7 Of 7):
