Home >> Lexus >> 1993 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 24

DTC 24

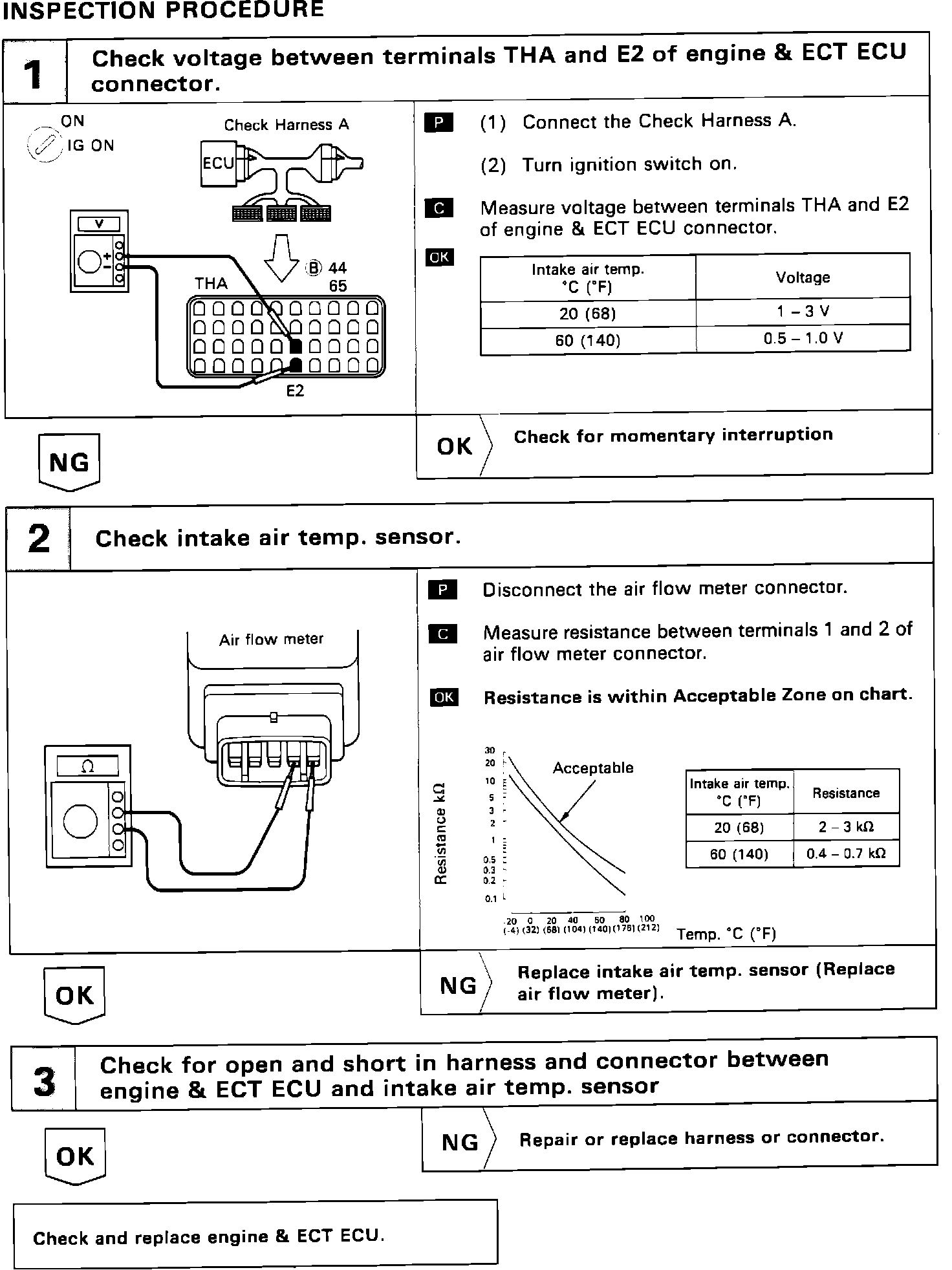

Fig. 17 Diagnostic Code 24 (Intake Air Temperature Sensor Signal:
