Air Conditioning System

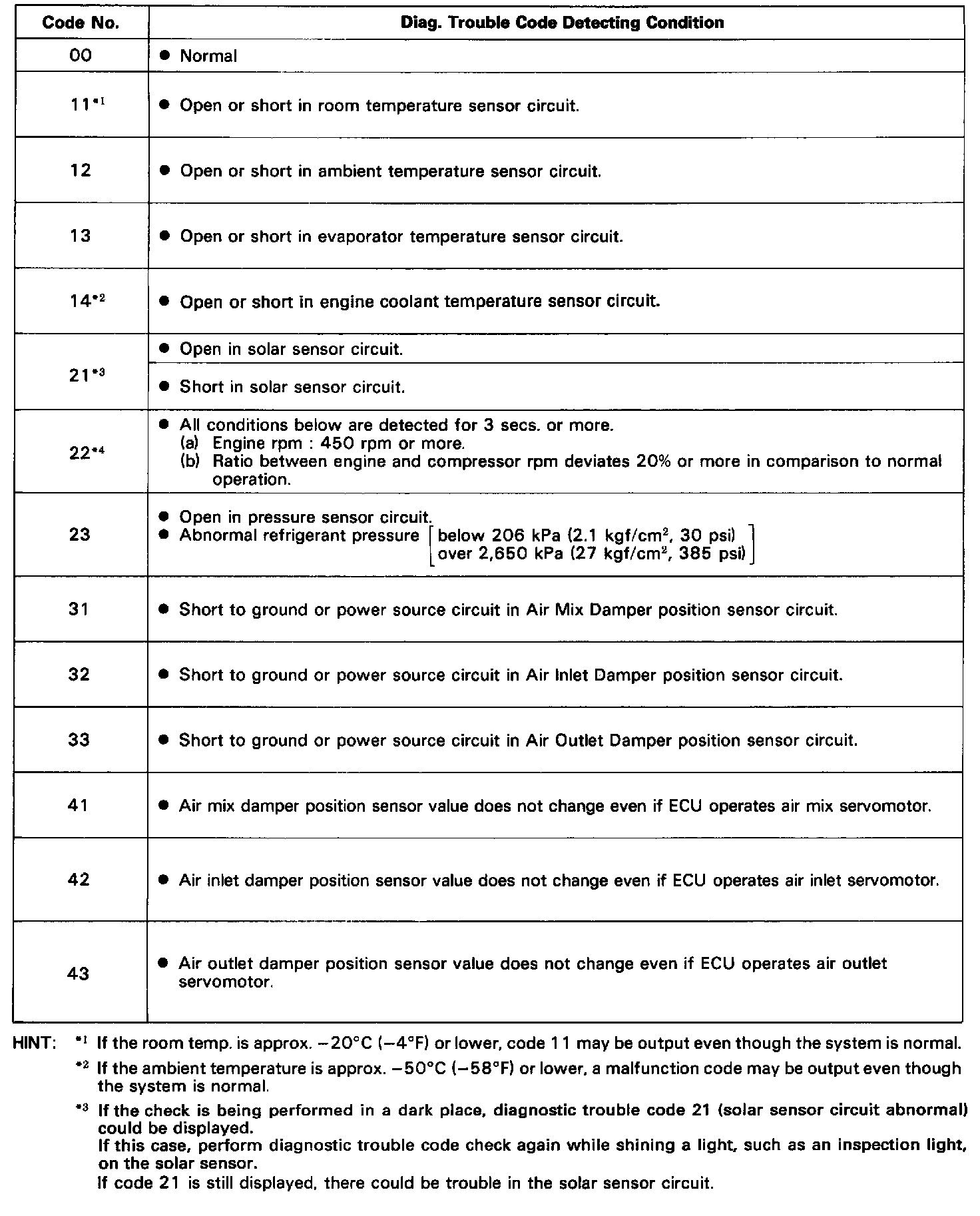

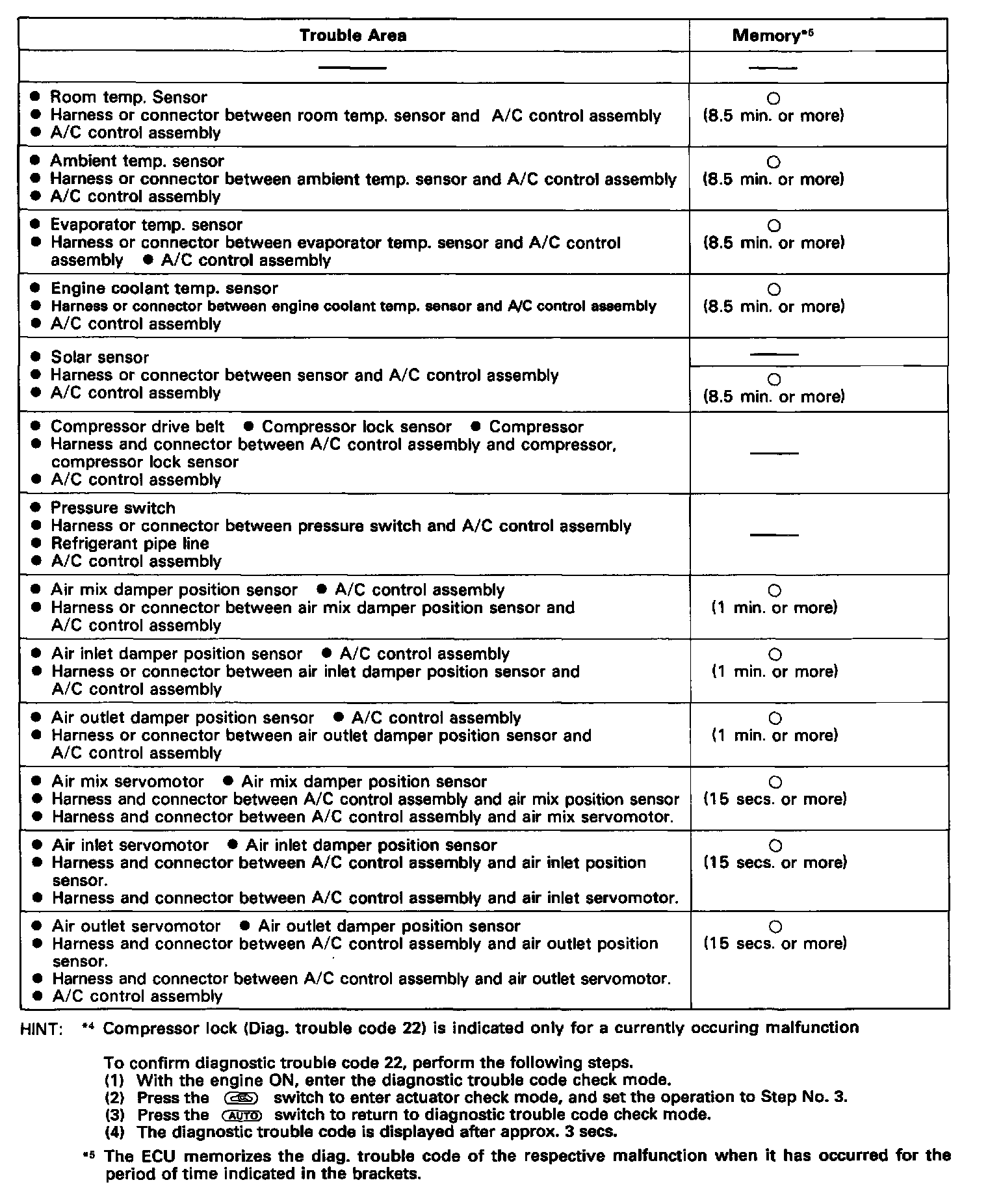

DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the diagnostic trouble code check (sensor check), check the circuit listed for that code in the table below (Proceed to the page given for that circuit.)
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the diagnostic trouble code check (sensor check), check the circuit listed for that code in the table below (Proceed to the page given for that circuit.)
