Symptom Related Diagnostic Procedures
MATRIX CHART OF PROBLEM SYMPTOMSIf a normal code is displayed during the diagnostic trouble code check but the trouble still occurs, check the circuits for each symptom in the order given in the charts and proceed for troubleshooting.
The Matrix Chart is divided into 3 chapters.
Chapter 1: Electronic Circuit Matrix Chart
Chapter 2: On-vehicle Repair Matrix Chart
Chapter 3: Off-vehicle Repair Matrix Chart
When troubleshooting, check Chapter 1 first. If instructions are given in Chapter 1 to proceed to Chapter 2 or 3, proceed as instructed.
1. If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
2. If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check or replace the Engine Control Module (ECM).

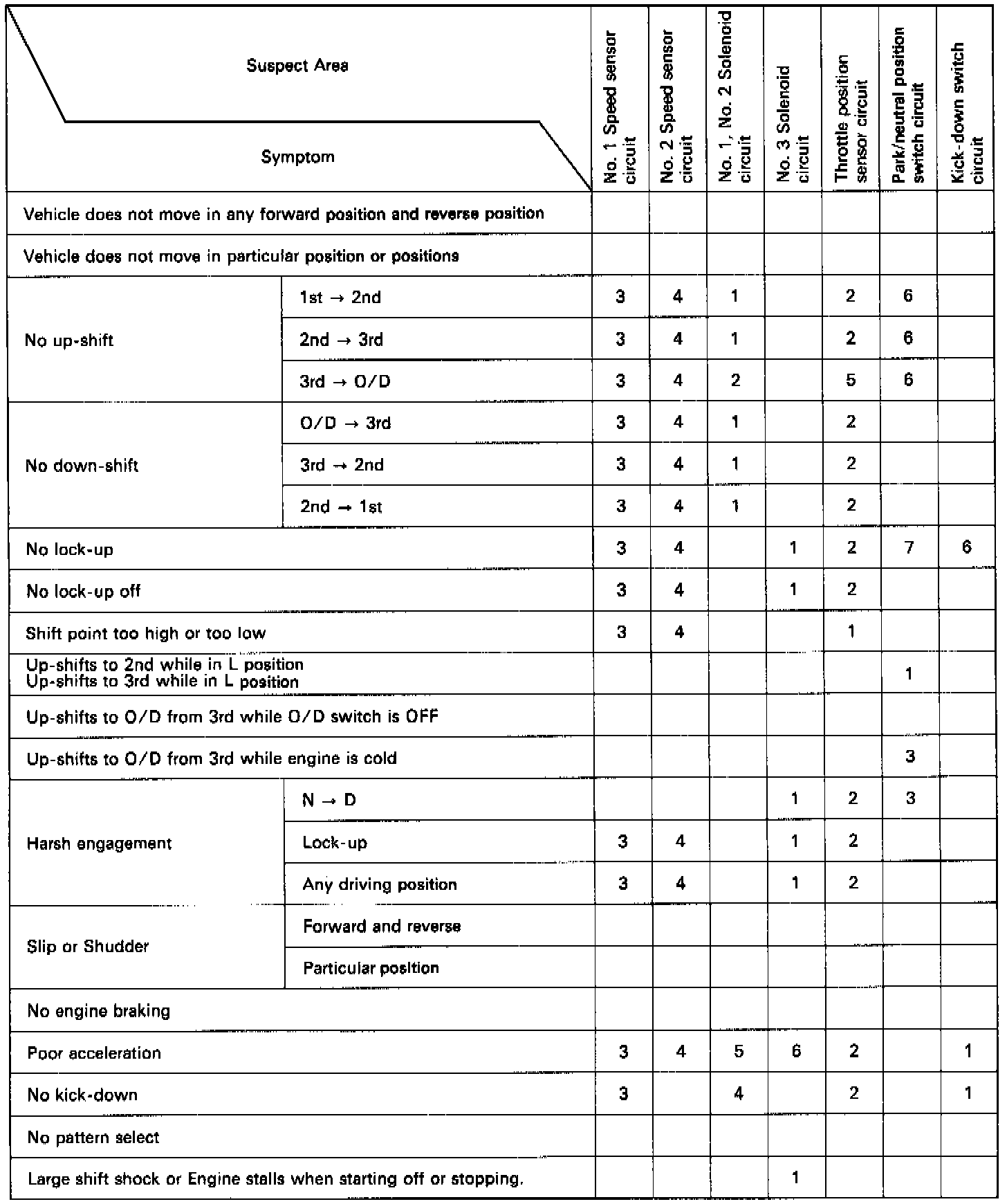

Electronic Circuit

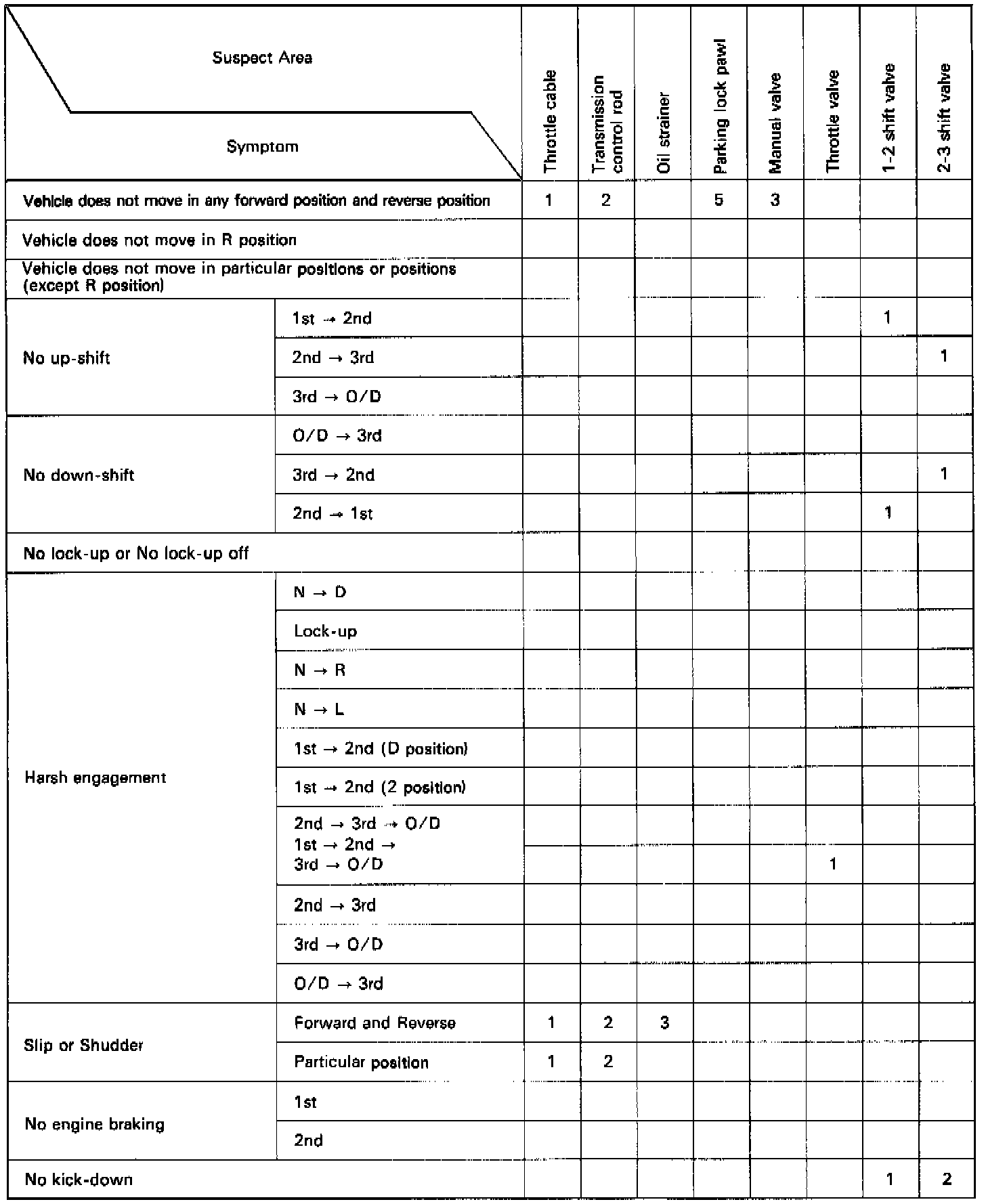

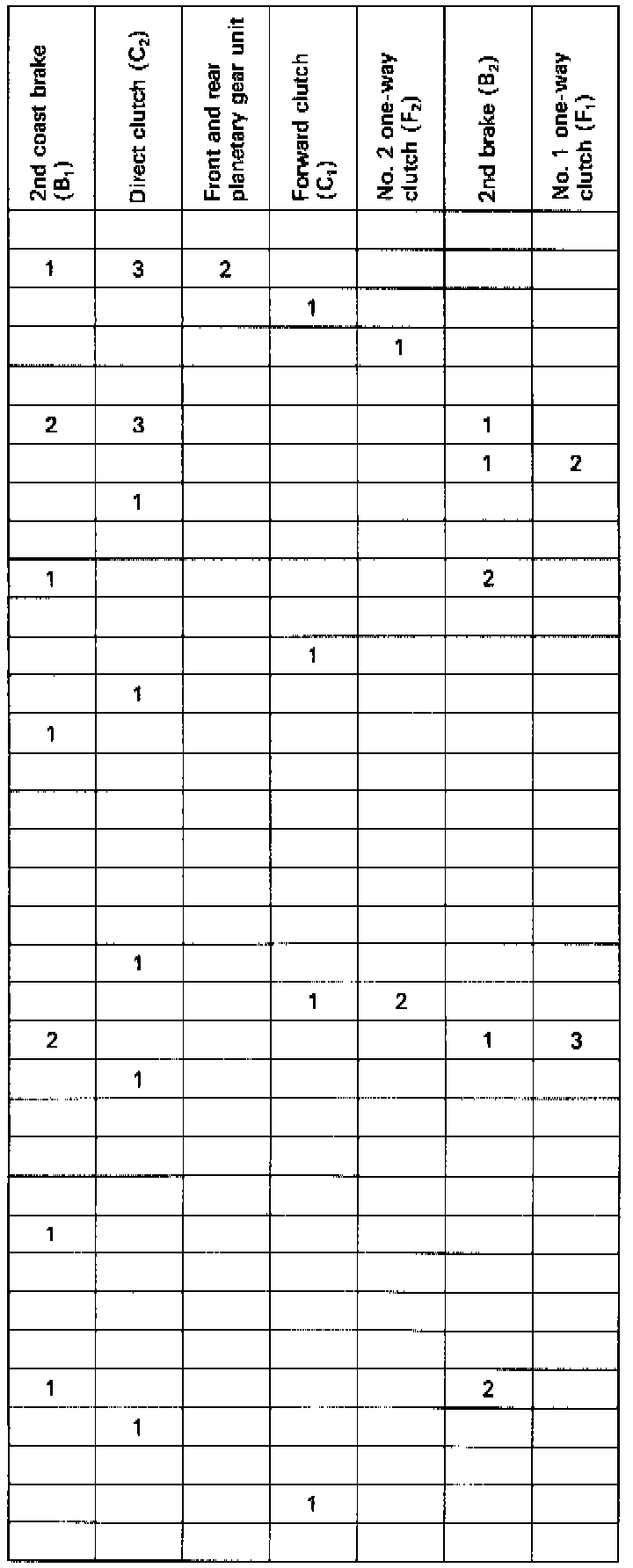

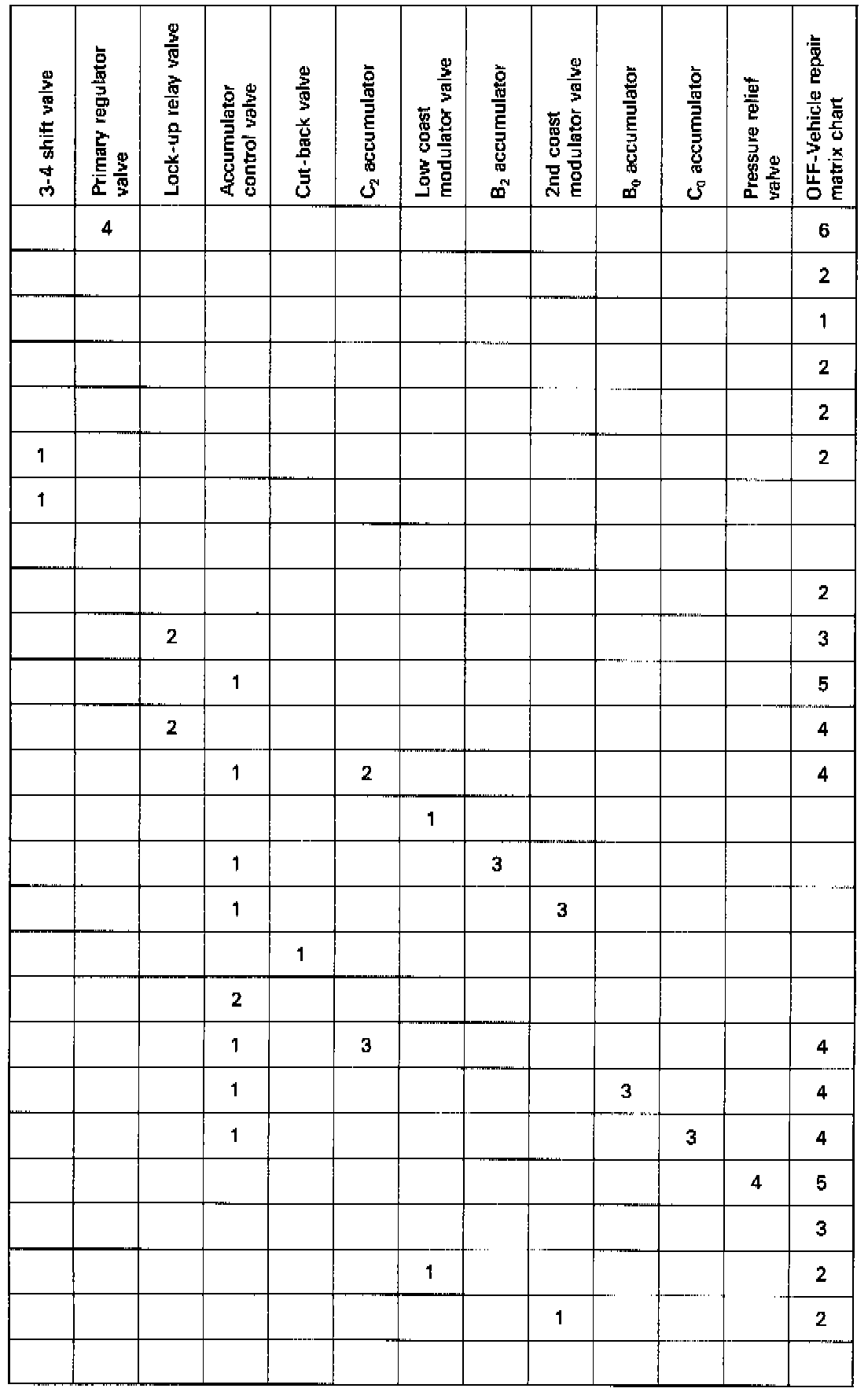

On-Vehicle Repair
(*: A340E AUTOMATIC TRANSMISSION Repair Manual Pub No. RM275U)

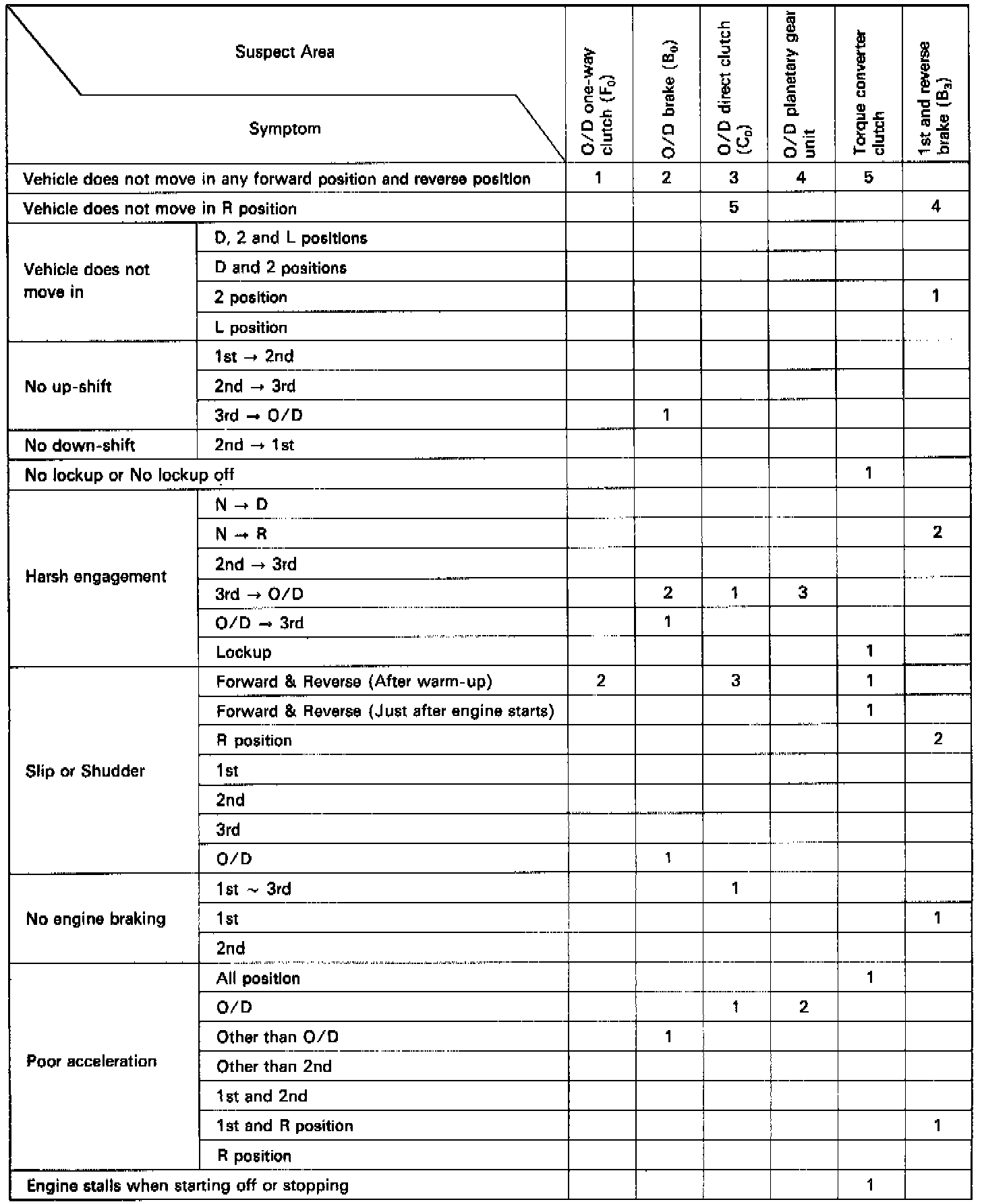

Off-Vehicle Repair
(*: A340E AUTOMATIC TRANSMISSION Repair Manual Pub No. RM275U)
