Stall Test

STALL TEST
The object of this test is to check the overall performance of the transmission and engine by measuring the stall speeds in the D and R positions.

NOTICE:
- Perform the test at normal operating fluid temperature (50-80°C or 122-176°F).
- Do not continuously run this test longer than 5 seconds.
- To ensure safety, conduct this test in a wide, clear, level area which provides good traction.
- The stall test should always be carried out in pairs. One technician should observe the conditions of wheels or wheel stoppers outside the vehicle while the other is performing the test.

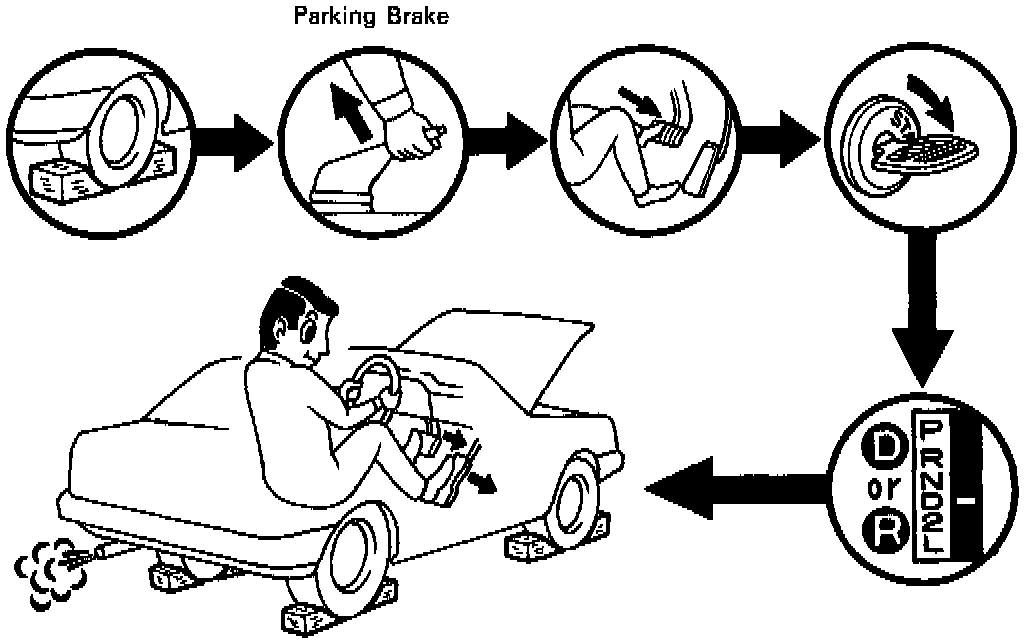

MEASURE STALL SPEED
1. Chock the four wheels.
2. Connect a tachometer to the engine.
3. Fully apply the parking brake.
4. Keep your left foot pressed firmly on the brake pedal.
5. Start the engine.
6. Shift into the D position. Press all the way down on the accelerator pedal with your right foot. Quickly read the stall speed at this time.

Stall speed: 2,200 ± 150 rpm

7. Perform the same test in R position.

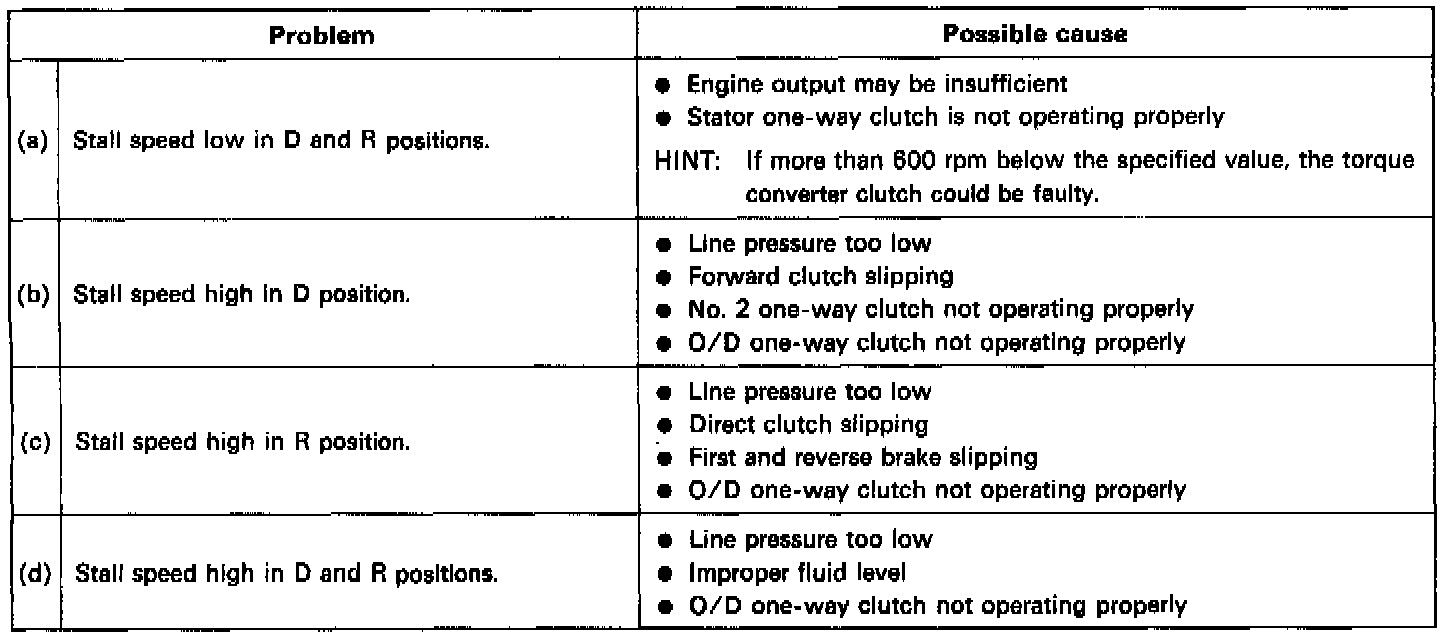

EVALUATION
