Throttle Position Sensor Circuit
CIRCUIT DESCRIPTIONThe throttle position sensor detects the throttle valve opening angle and sends signals to Engine Control Module (ECM).

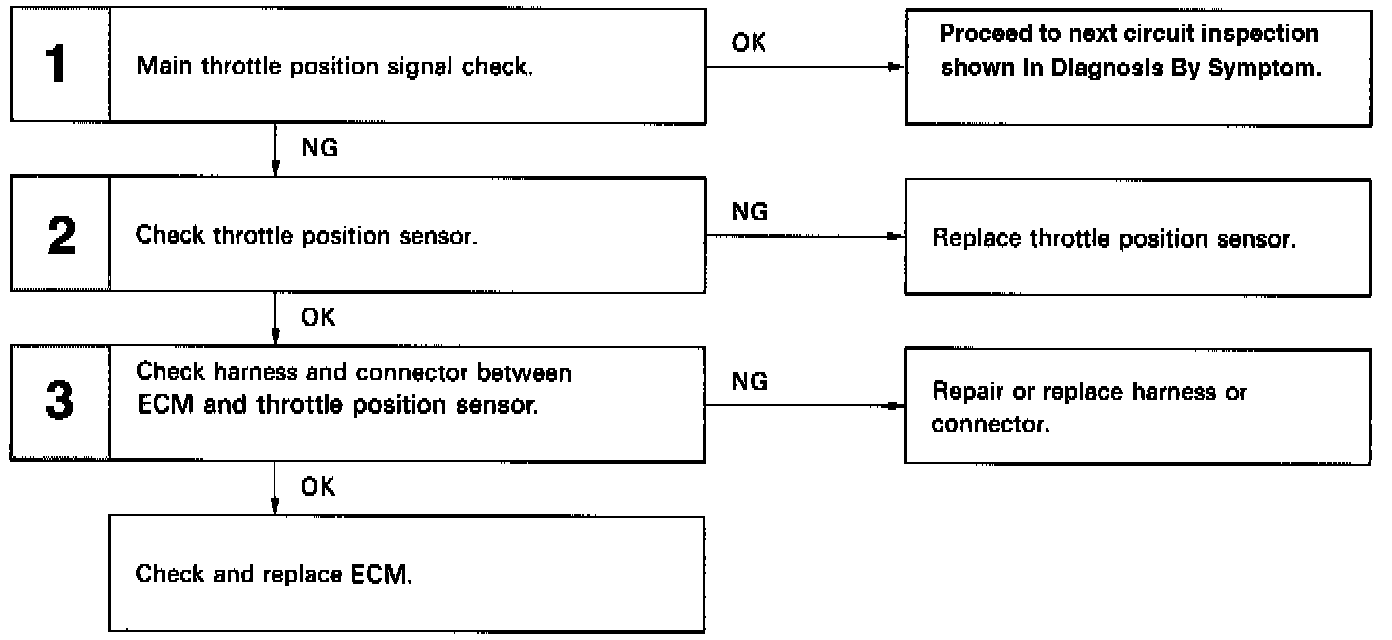

DIAGNOSTIC CHART

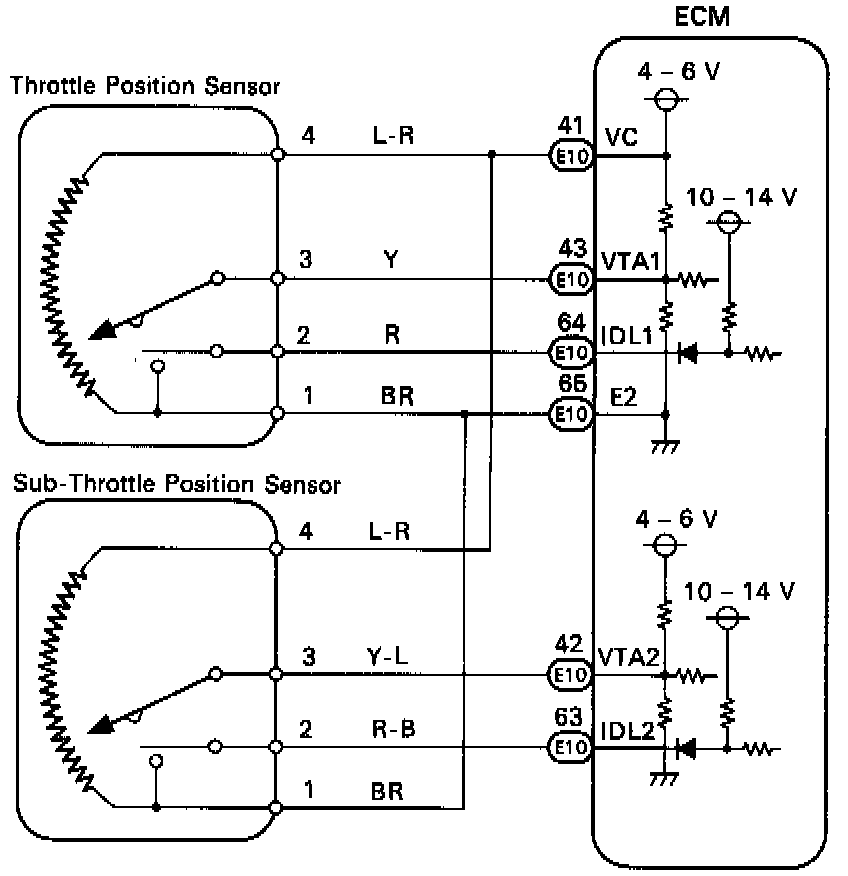

WIRING DIAGRAM
INSPECTION PROCEDURE
The throttle position sensor detects the throttle valve opening angle and sends signals to Engine Control Module (ECM).
DIAGNOSTIC CHART
WIRING DIAGRAM

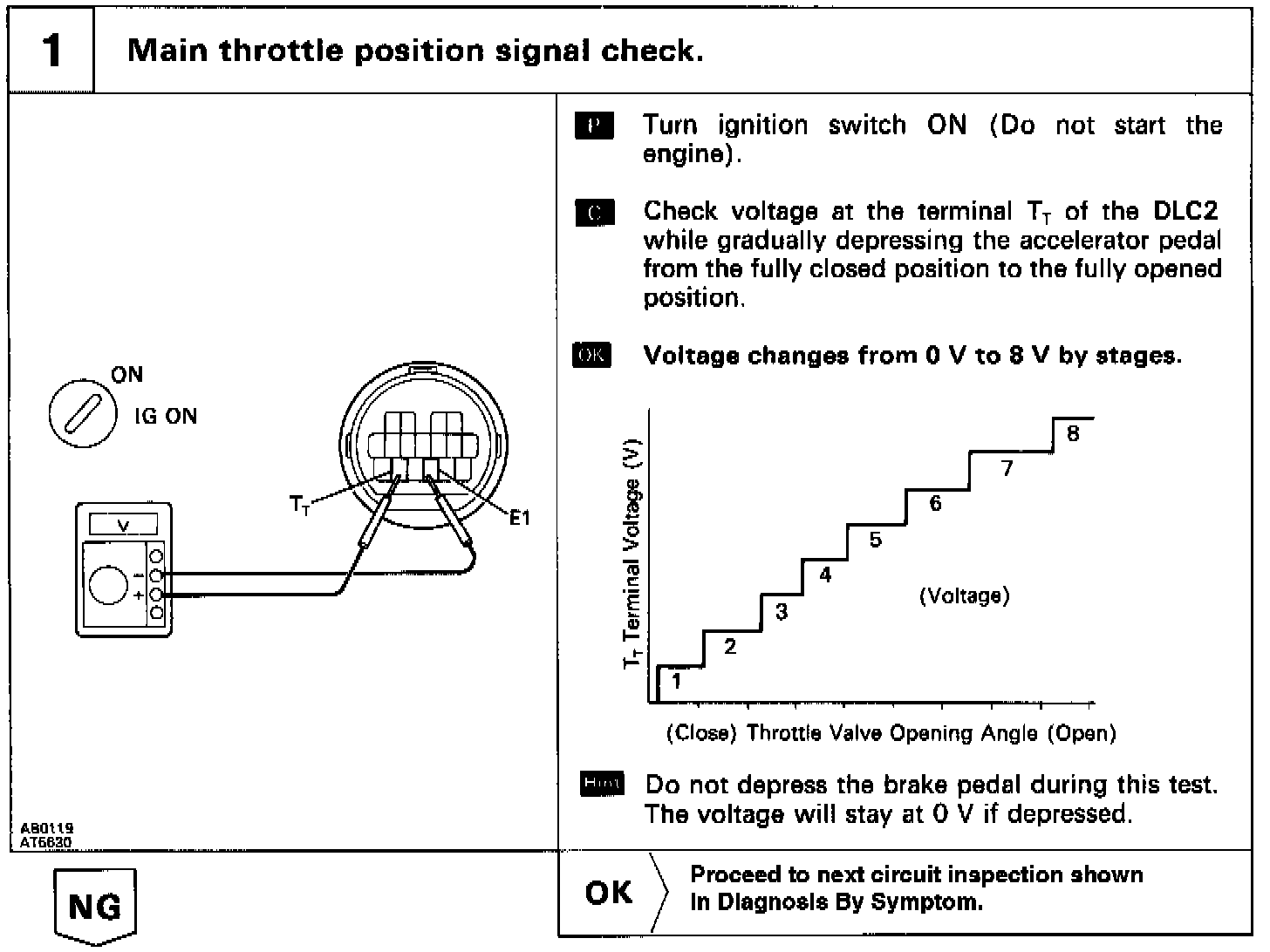

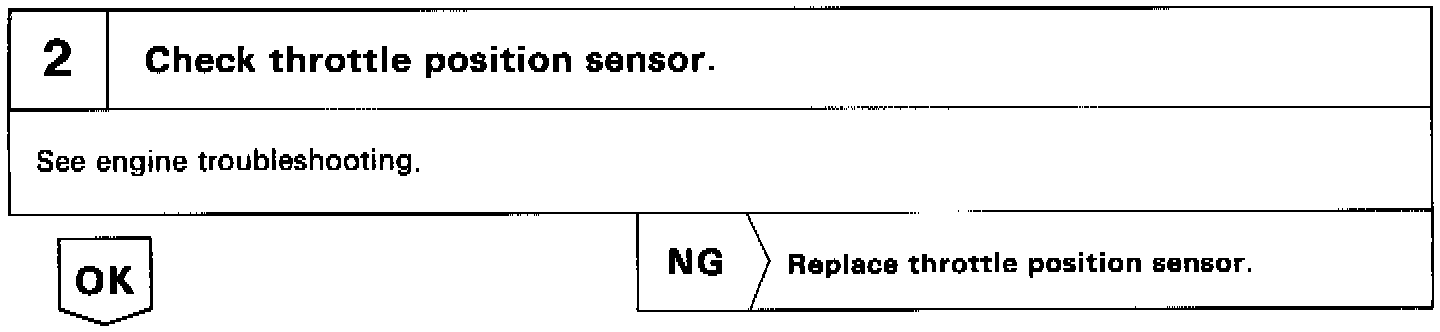

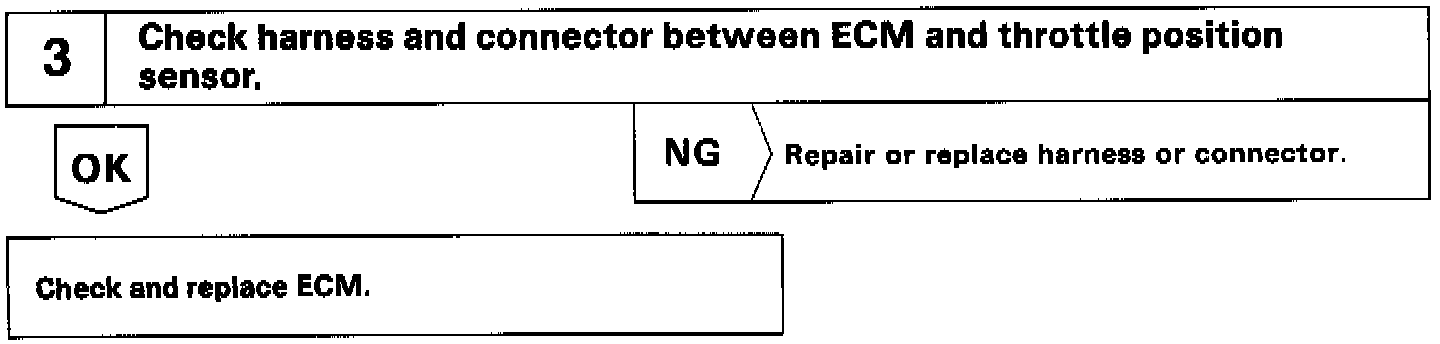

INSPECTION PROCEDURE
