Pattern Select Switch Circuit

CIRCUIT DESCRIPTION
The Engine Control Module (ECM) memory contains the shift programs for the NORMAL and POWER patterns, 2 position, and L position and the lockup patterns. Following the programs corresponding to the signals from the pattern select switch, the park/neutral position switch and other various sensors the ECM switches the solenoid valves ON and OFF, thereby controlling the transmission gear change and the lockup clutch operation.

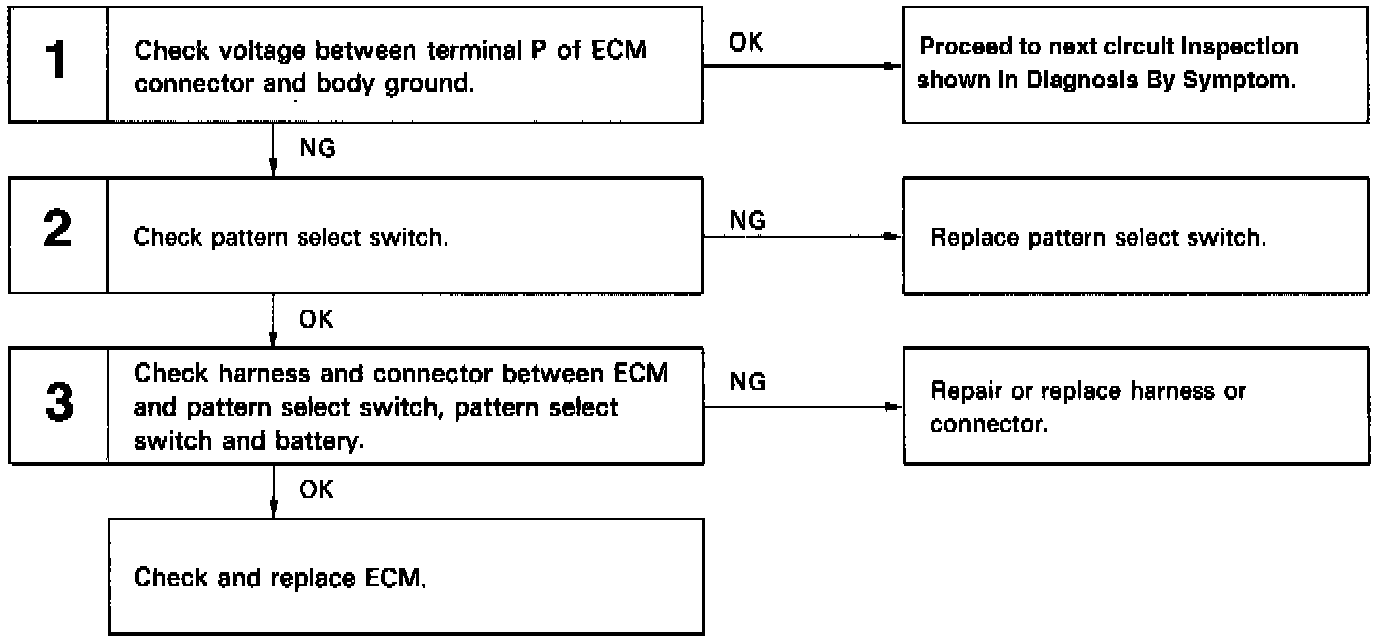

DIAGNOSTIC CHART

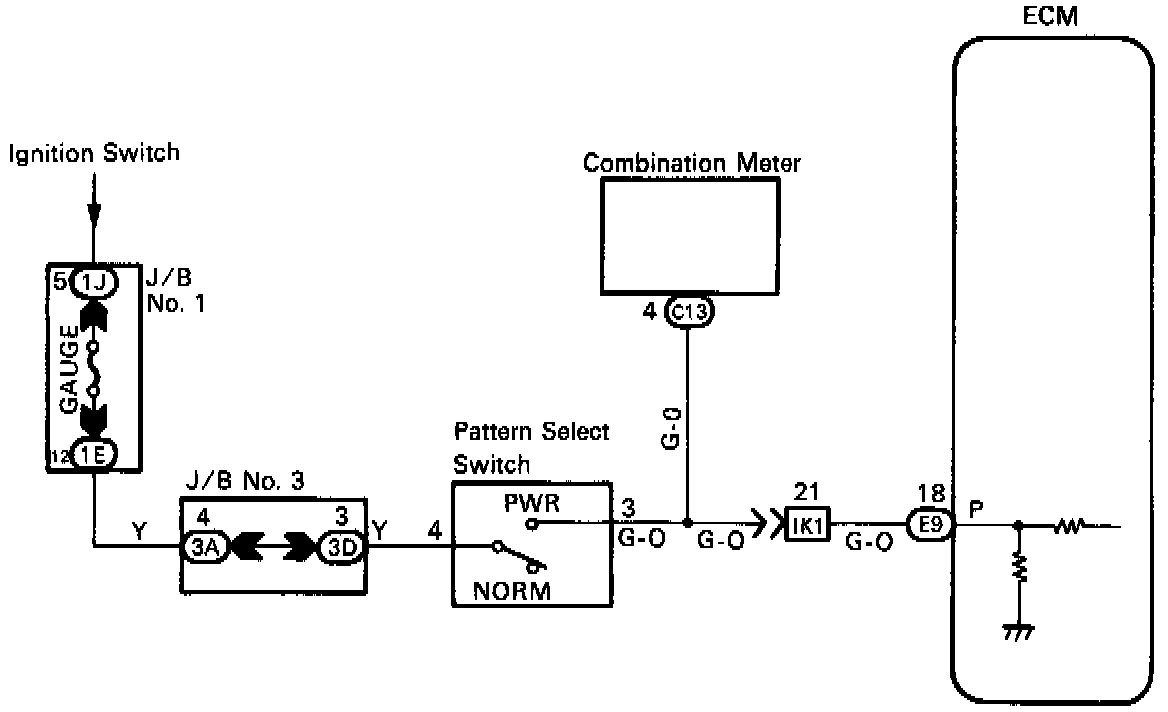

WIRING DIAGRAM

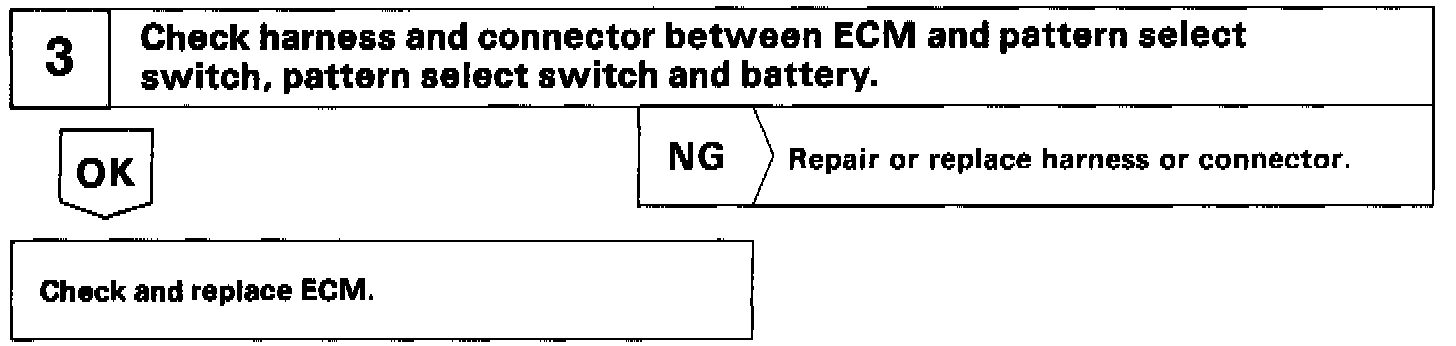

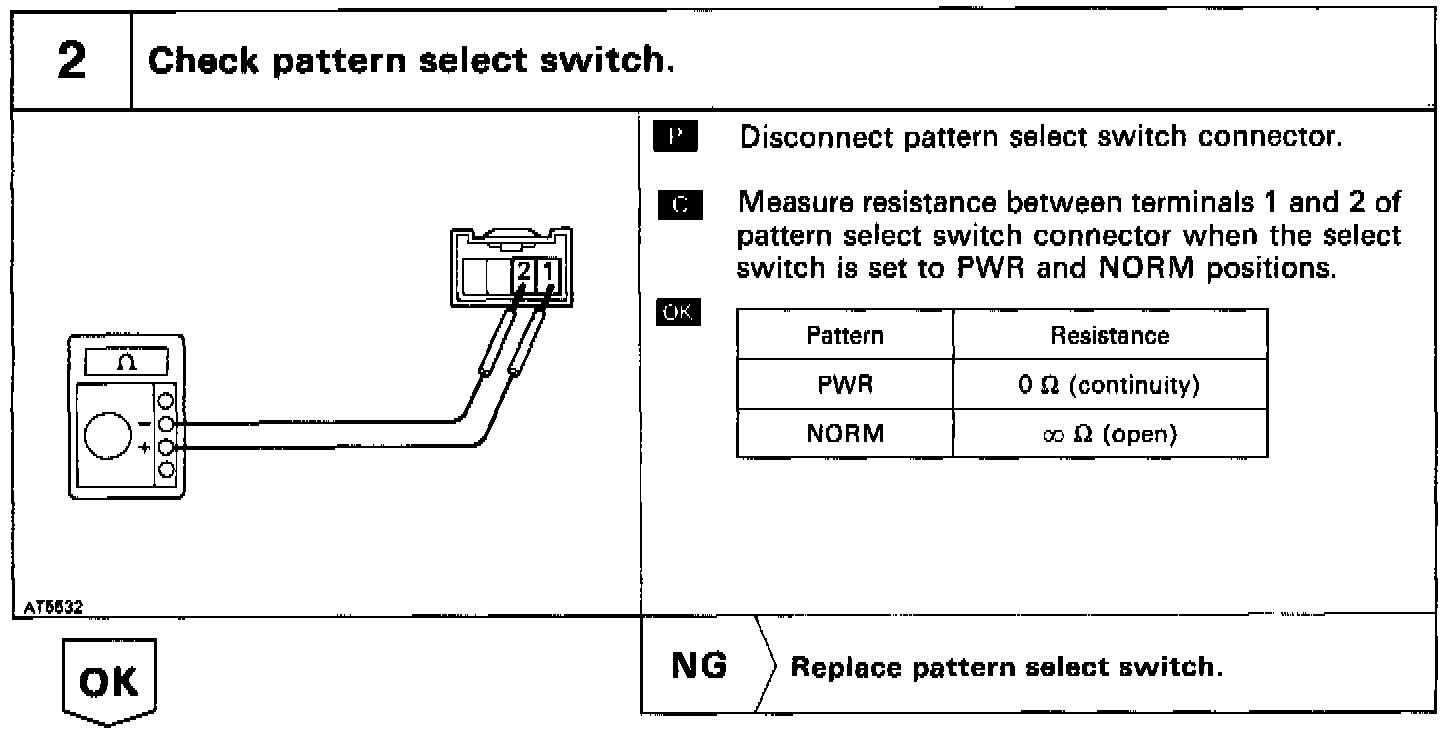

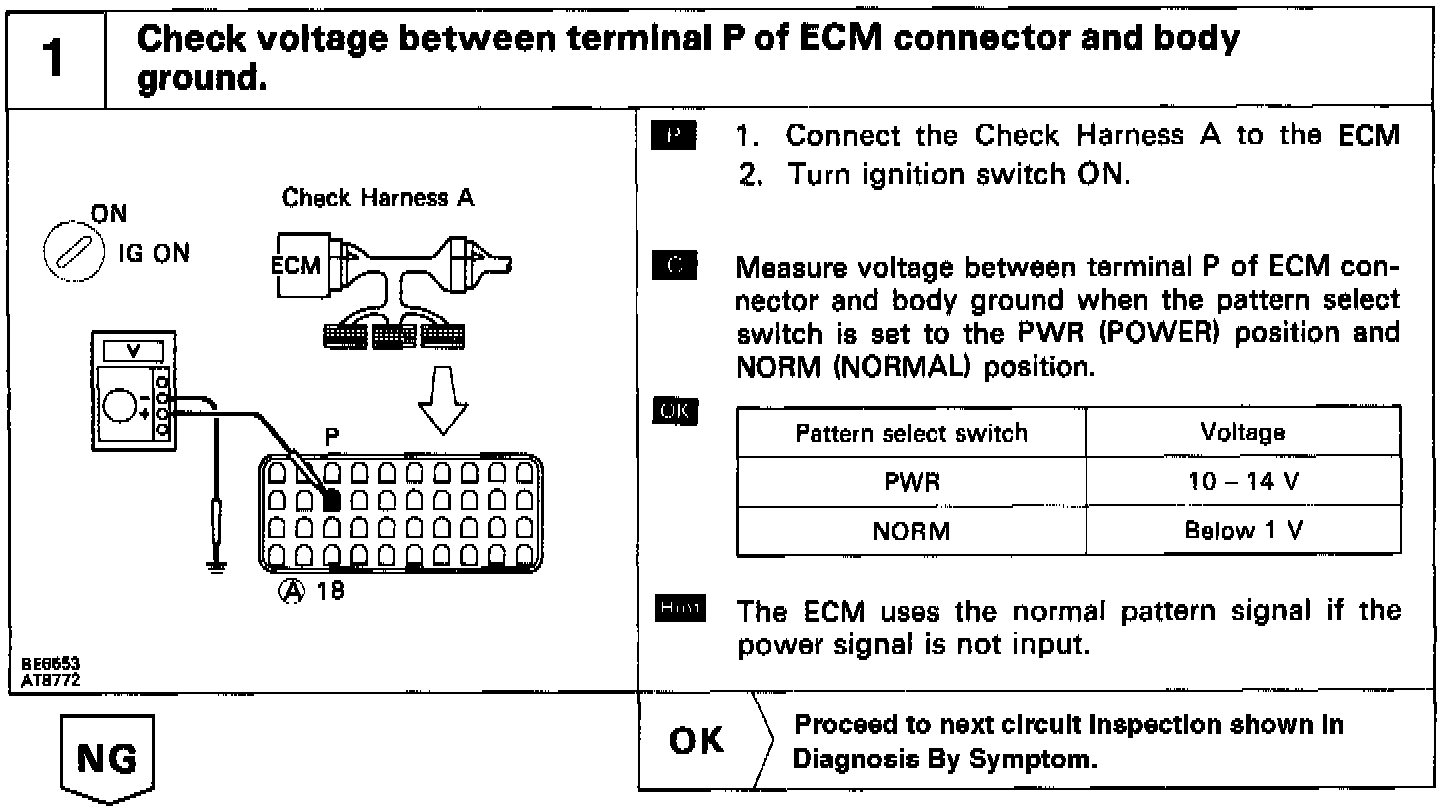

INSPECTION PROCEDURE
