Park/Neutral Position Switch Circuit

CIRCUIT DESCRIPTION

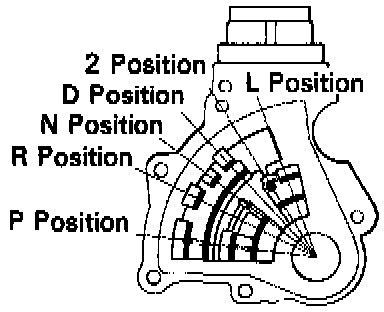

The park/neutral position switch detects the shift lever position and sends signals to Engine Control Module (ECM).
The ECM receives signals (R, PNP, 2 and L) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in the D position.

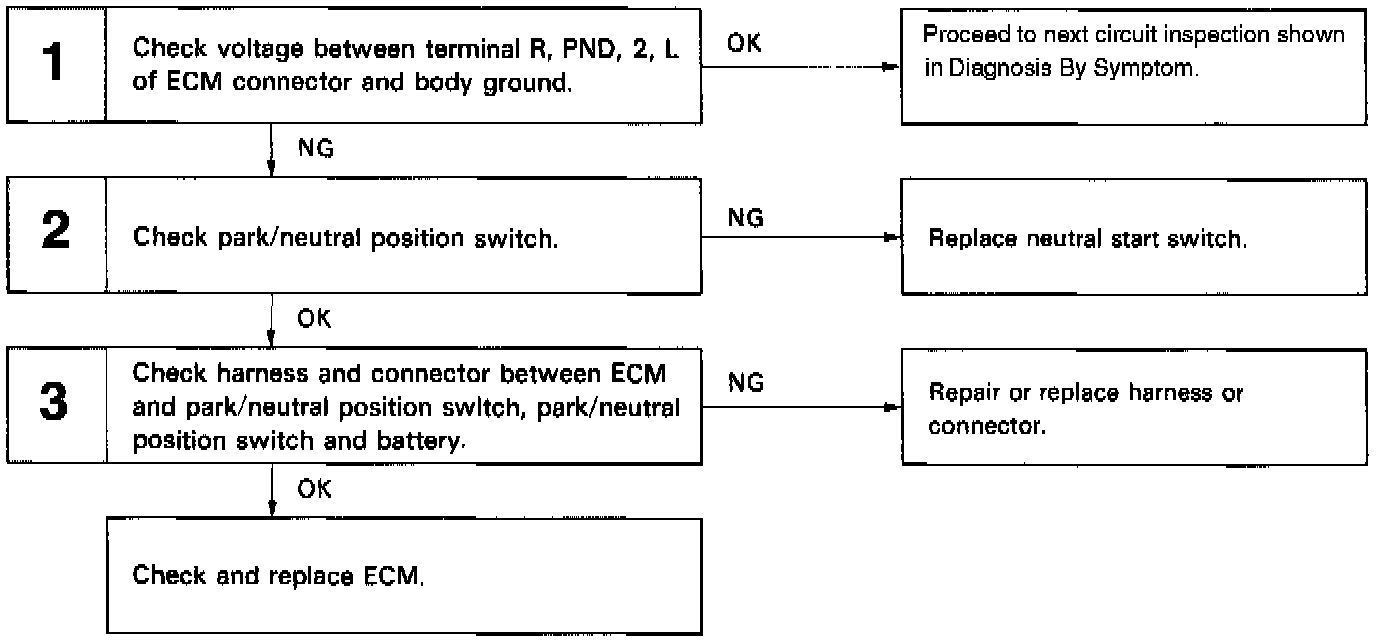

DIAGNOSTIC CHART

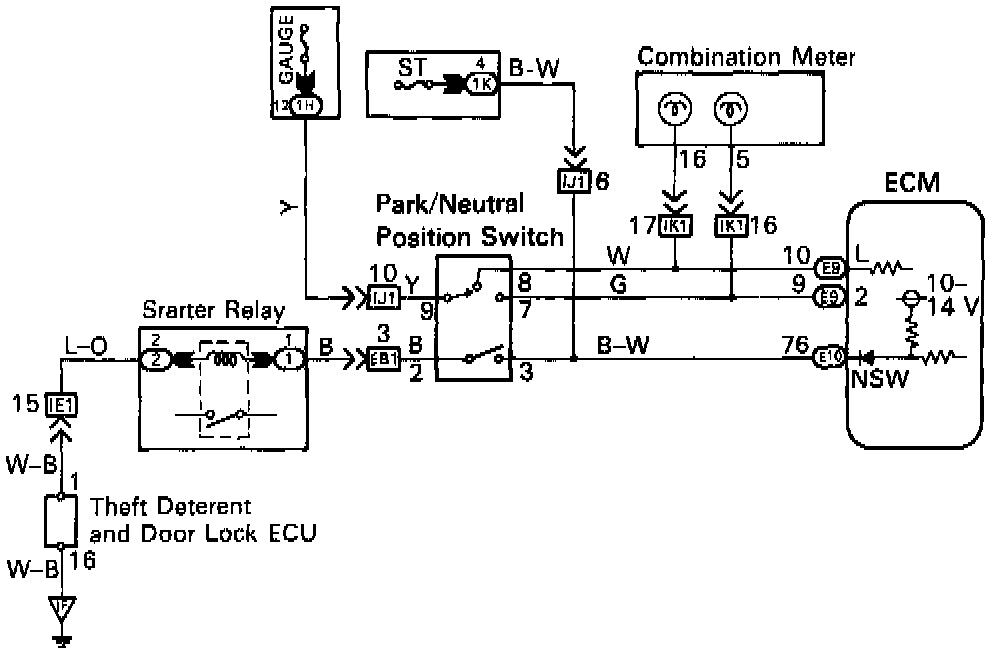

WIRING DIAGRAM

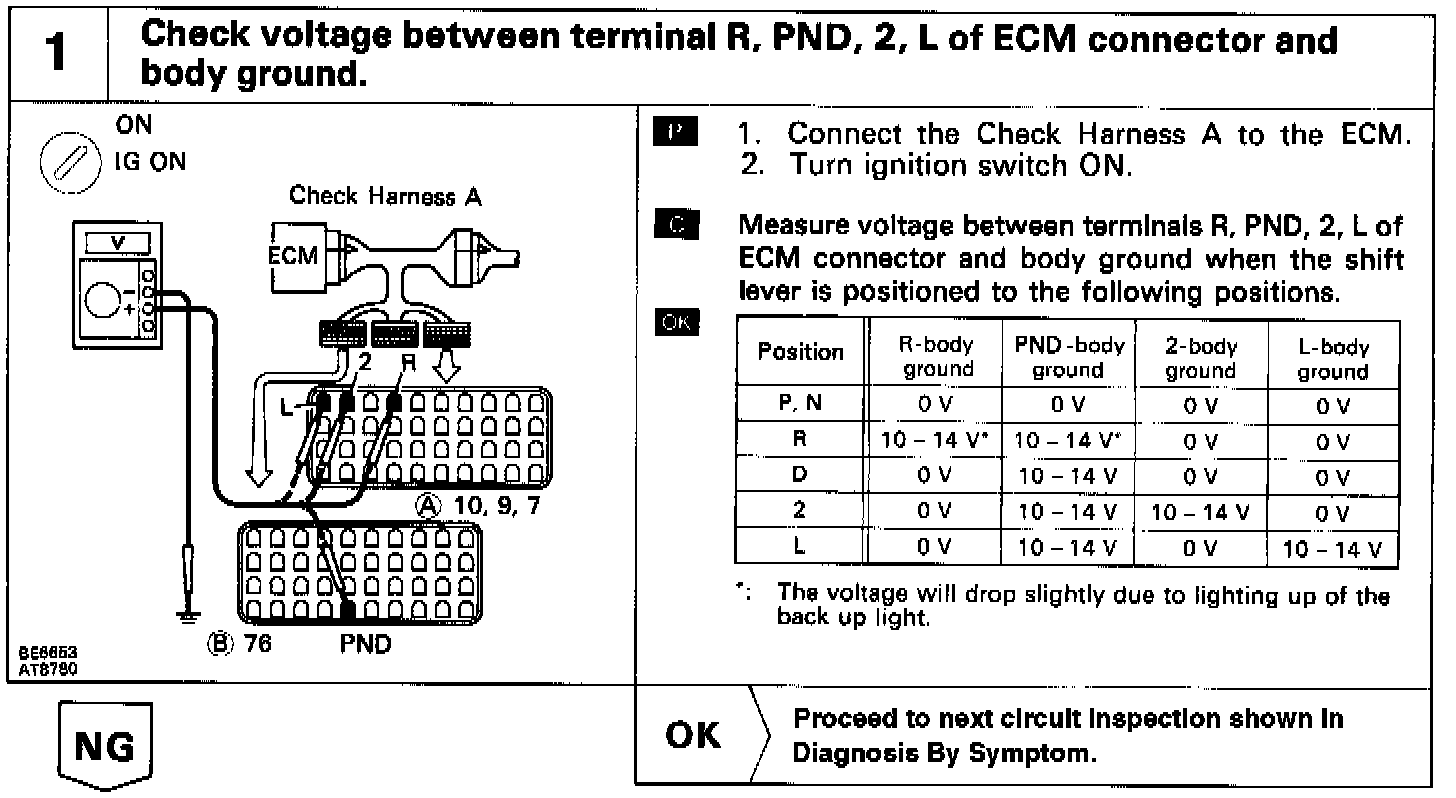

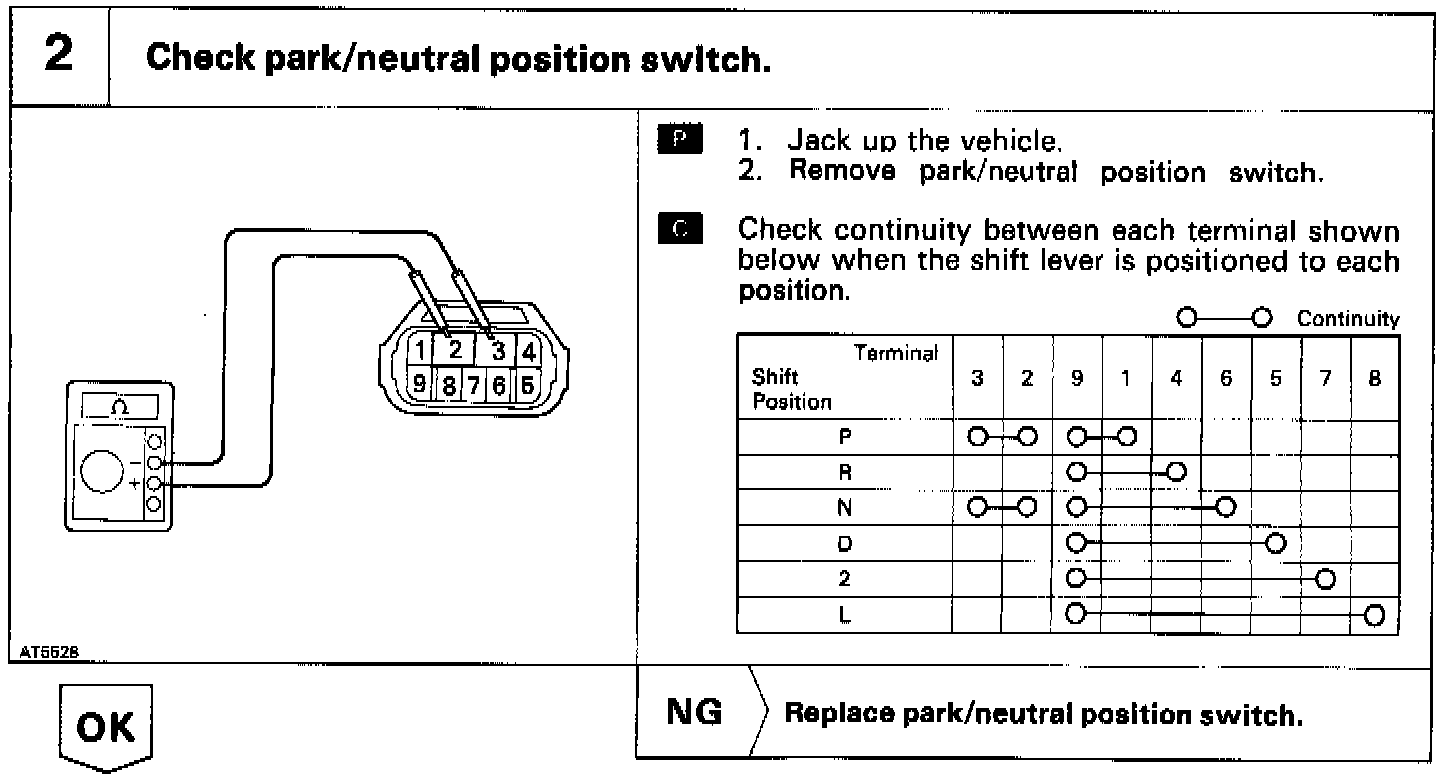

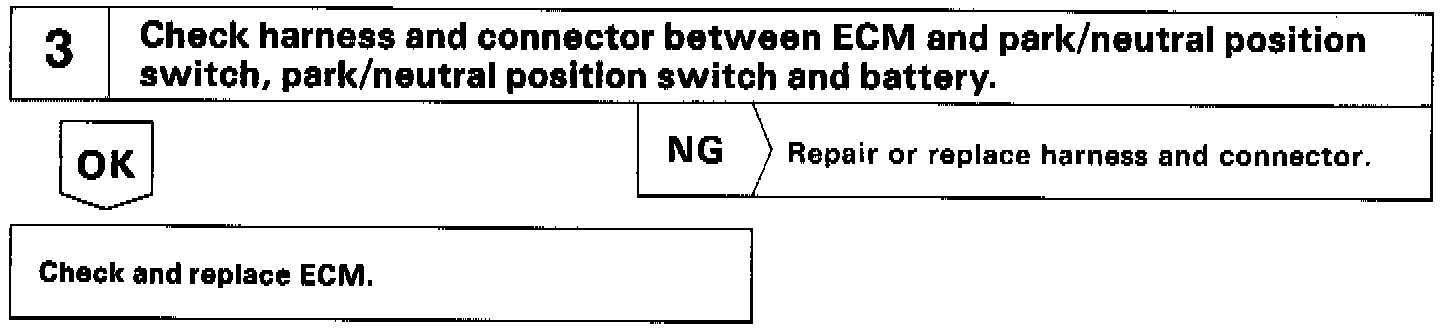

INSPECTION PROCEDURE
