O/D Main Switch & O/D OFF Indicator Light Circuit

CIRCUIT DESCRIPTION
The O/D main switch contacts go off when the switch is pushed in and come on when it is pushed out. In O/D main switch OFF position, the O/D OFF indicator lights up, and the Engine Control Module (ECM) prohibits shifting to overdrive. The ECM also causes the O/D OFF indicator light to blink when a malfunction is detected. In this case, connecting the terminals in the DLC2 or DLC1 can display the malfunction code.

DIAGNOSTIC CHARTS

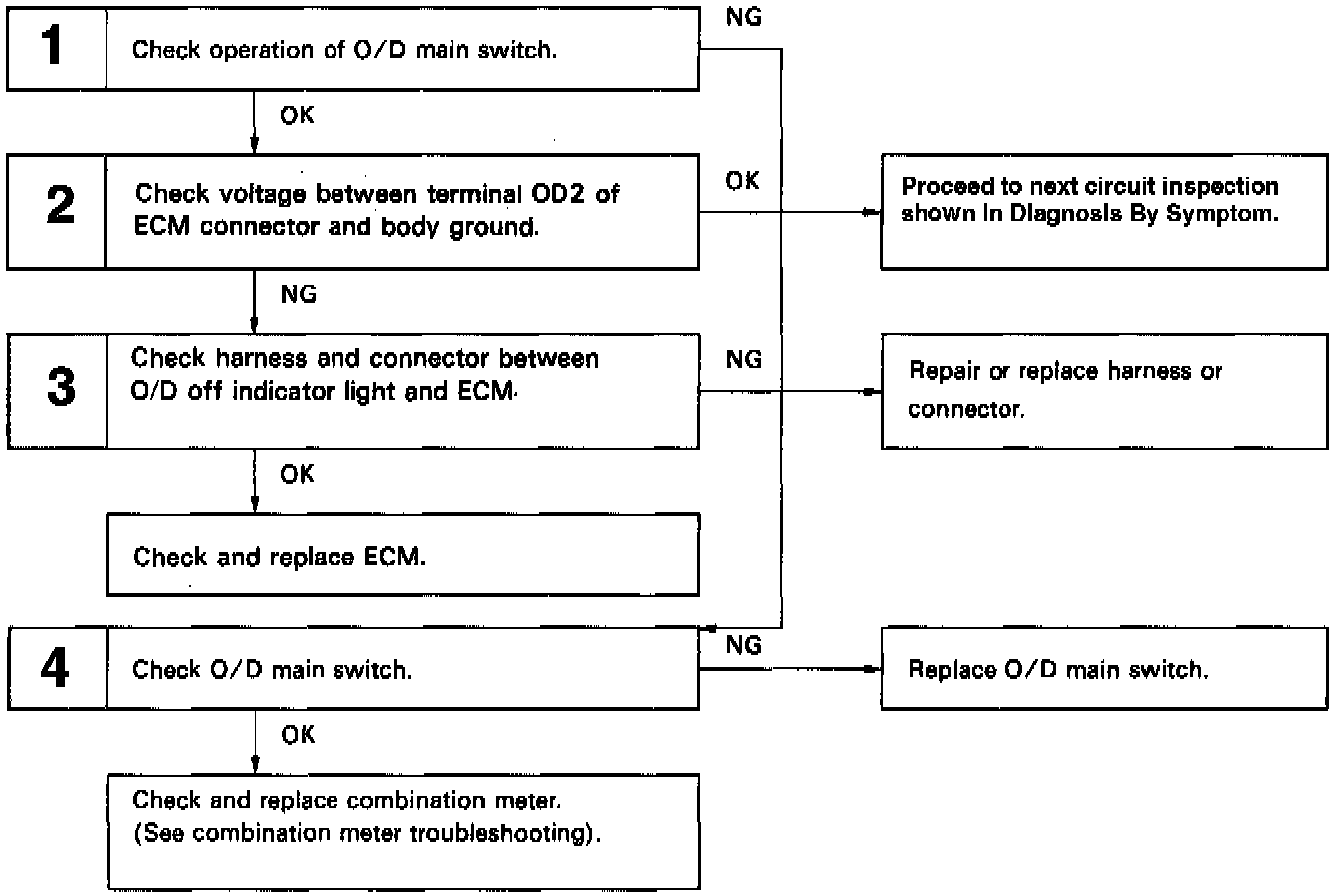

O/D OFF Indicator Light Does Not Light Up

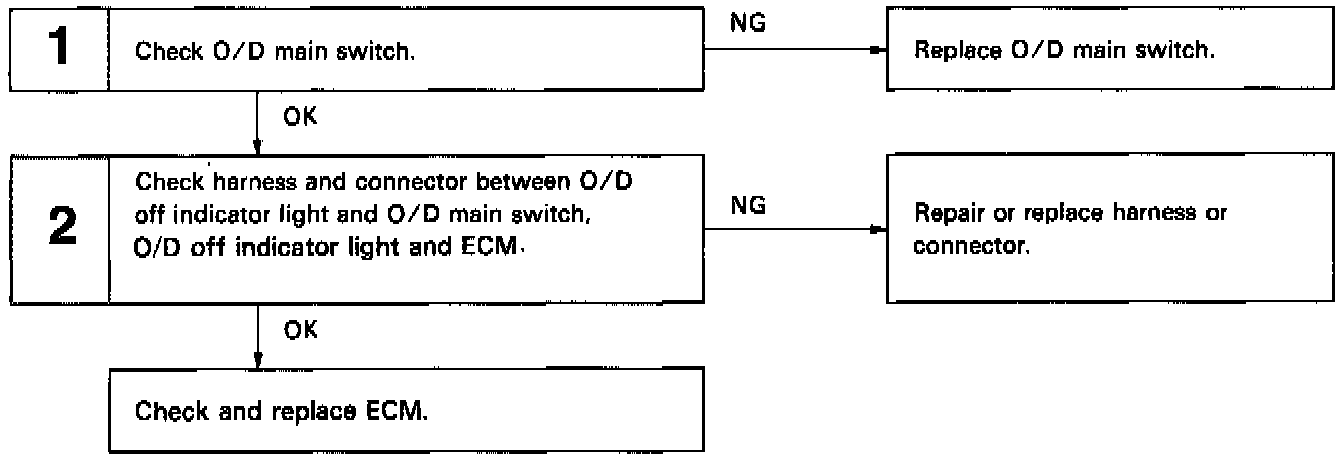

O/D OFF Indicator Light Remains ON

O/D OFF Indicator Light Blinks
Perform diagnostic trouble code check using the flowchart. Refer to Testing and Inspection / Flow of Diagnosis. Flow of Diagnosis

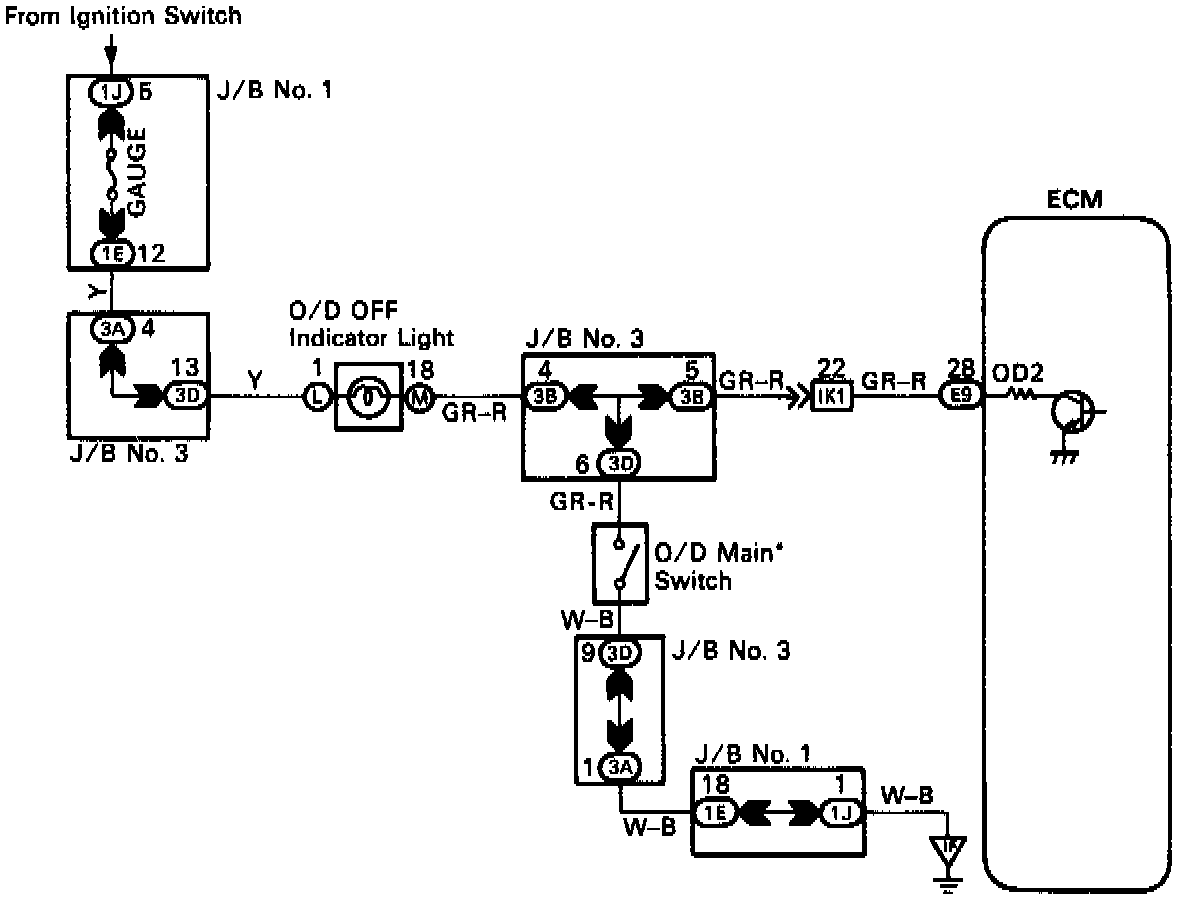

WIRING DIAGRAM
(*) O/D Main Switch
Contacts go off with switch pushed in.
Contacts go on with switch pushed out.

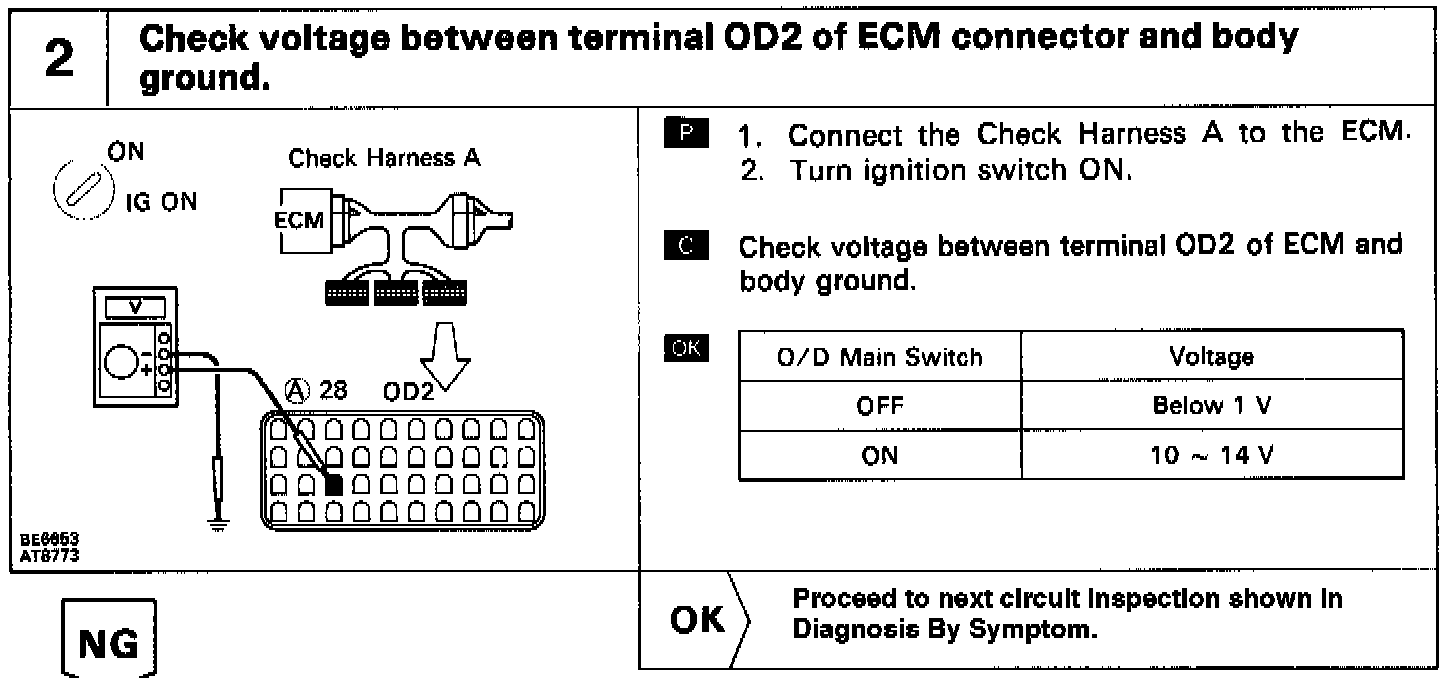

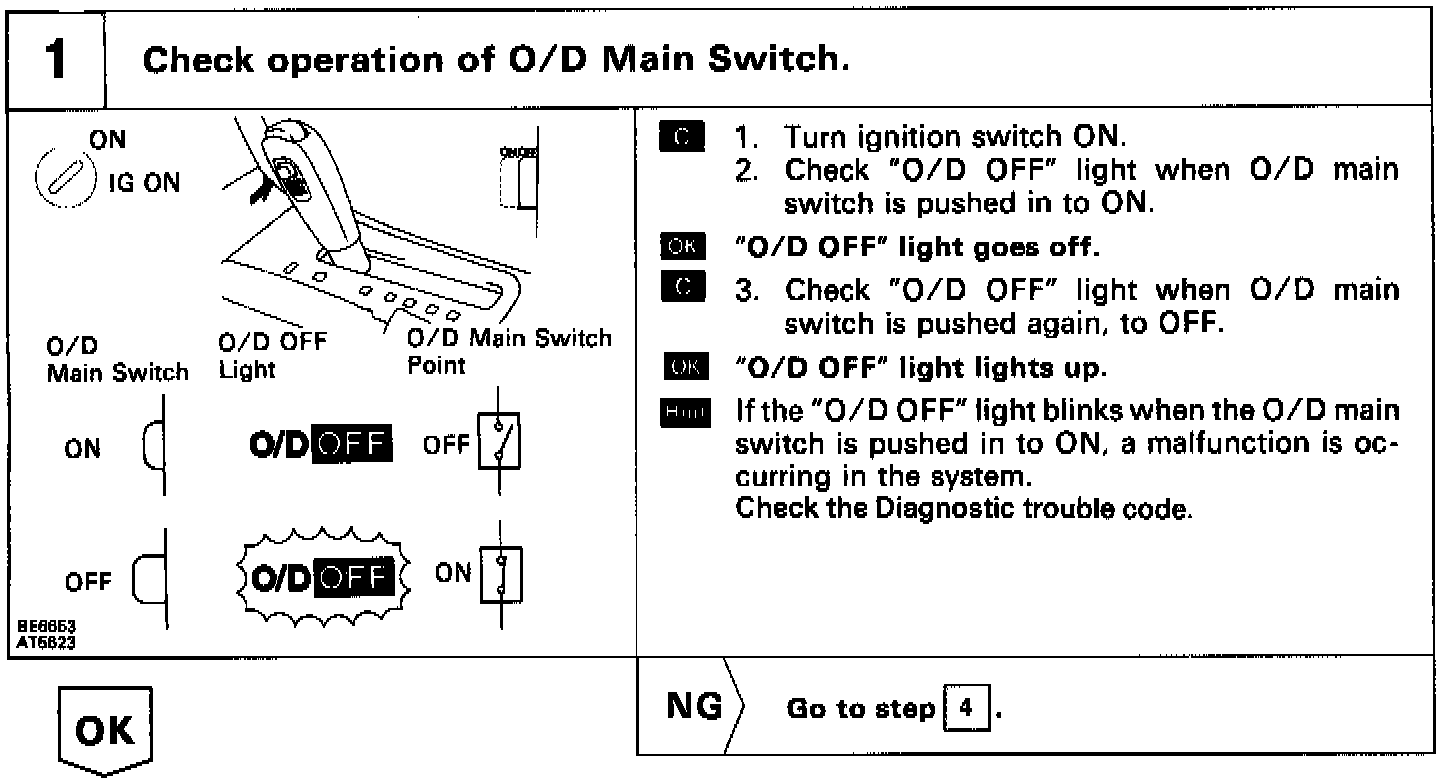

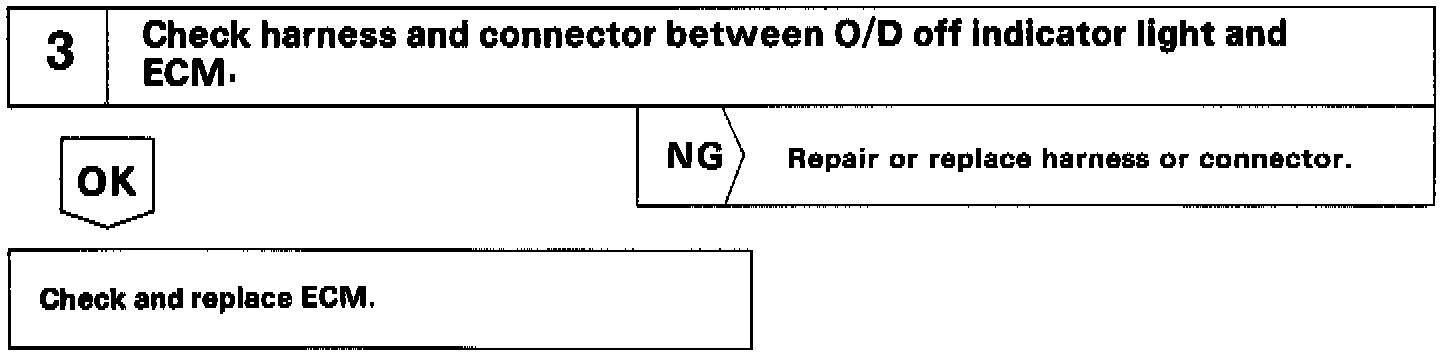

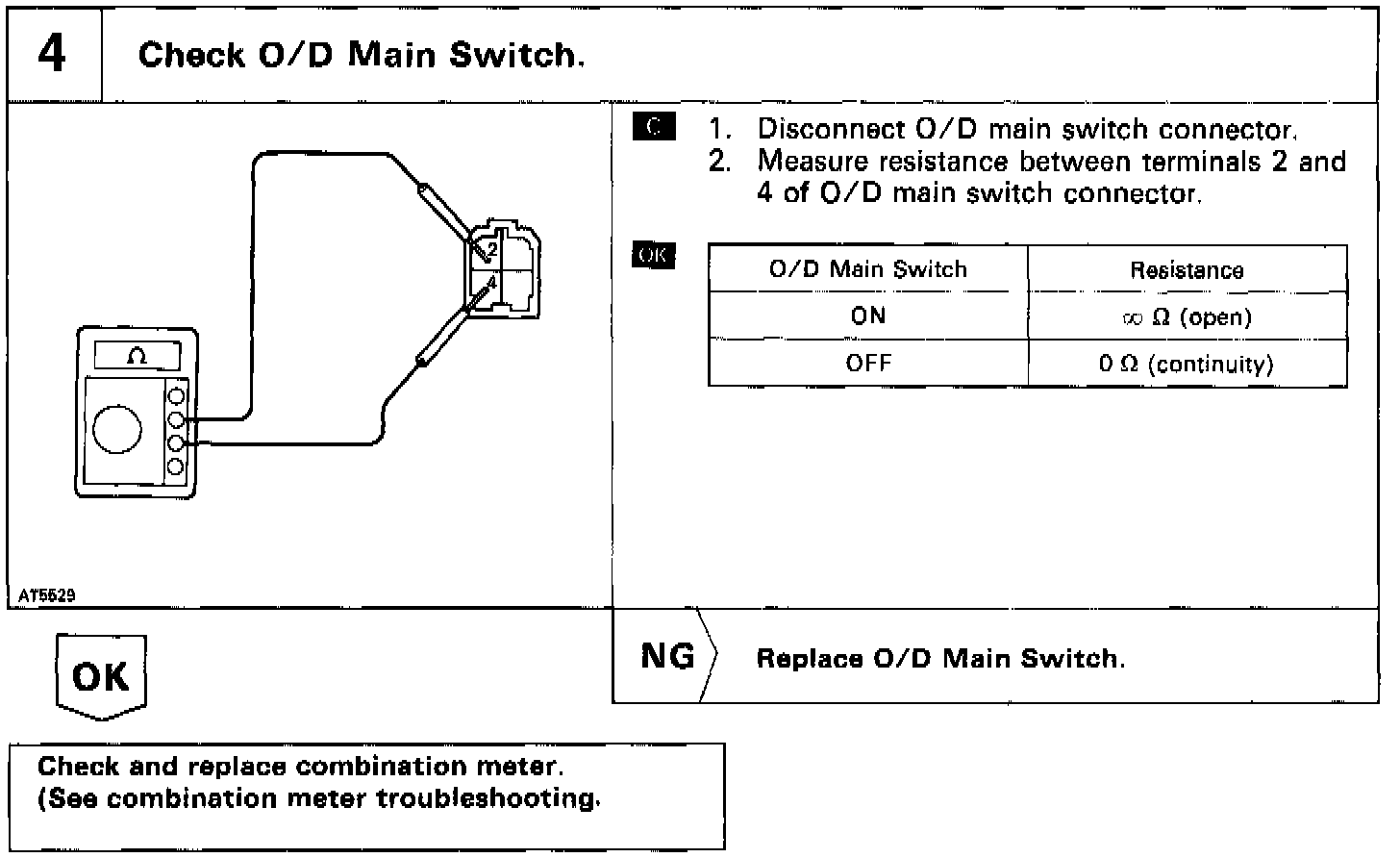

INSPECTION PROCEDURE
