A/C - Compressor Oil Applications

BULLETIN NUMBER:
AC93-004

SECTION:
HEATING & AIR CONDITIONING

DATE:
OCTOBER 22, 1993

TITLE:
A/C COMPRESSOR OIL APPLICATIONS

MODELS:
ALL MODELS

Care must be taken to use only refrigerant oil which is compatible to the vehicle's system. Following are A/C oil application charts for both R-12 and HFC-134a Systems:

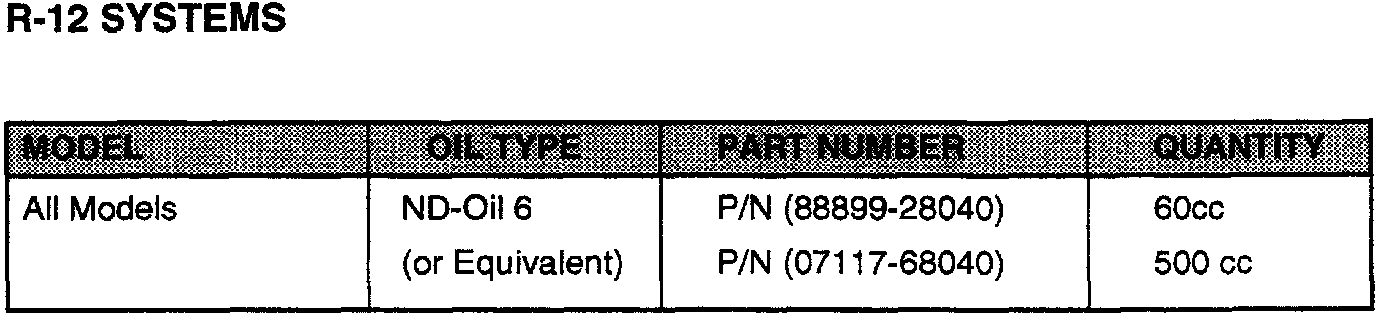

R-12 SYSTEMS

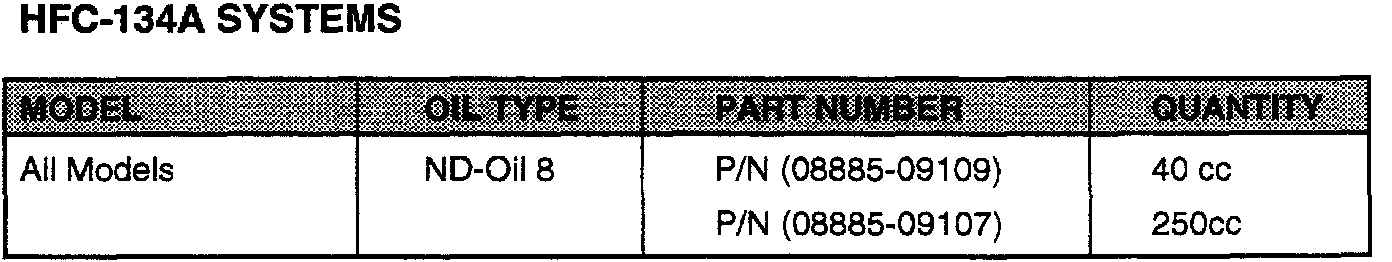

HFC-134A SYSTEMS
