Displaying & Reading Trouble Codes

1. OUTPUT DIAGNOSTIC TROUBLE CODE
(a) Turn the ignition switch to ACC or ON position and wait approx. 20 seconds.





(b) Using SST, connect terminals Tc and E1 of the DLC1.

SST 09843-18020

NOTICE: Never make a mistake with the terminal connection position as this will cause a malfunction.

2. READ DIAGNOSTIC TROUBLE CODE
Read the diagnostic trouble code as indicated by the number of times the SRS warning light blinks.

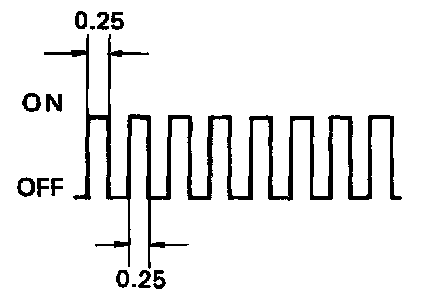

^ Normal code indication
The light will blink 2 times per second.

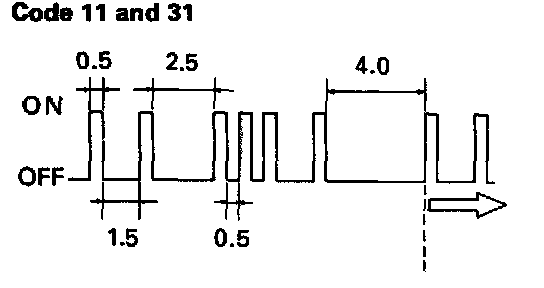

^ Malfunction code indication
In the event of a malfunction, the light will blink. The number represented by the first blink code output indicates the first digit of a 2-digit diagnostic trouble code. After a 1.5 second pause, the second blink code will indicate the second digit.
If there are 2 or more codes, there will be a 2.5 second pause between each. After all the codes have been out- put there will be a 4.0 second pause and they will all be repeated.

HINT:
^ In the event of a number of trouble codes, indication will begin from the smallest numbered code to the larger.
^ If it does not output a diagnostic trouble code or is continuously output, proceed to the Tc terminal circuit inspection.
TC Terminal Circuit
