Airbag - Wire Harness Connector Design Changed

ELECTRICAL
EL93-004
APRIL 30, 1993
'93 SC 300/400, LS 400

Title: FRONT PASSENGER AIRBAG WIRE HARNESS CONNECTOR

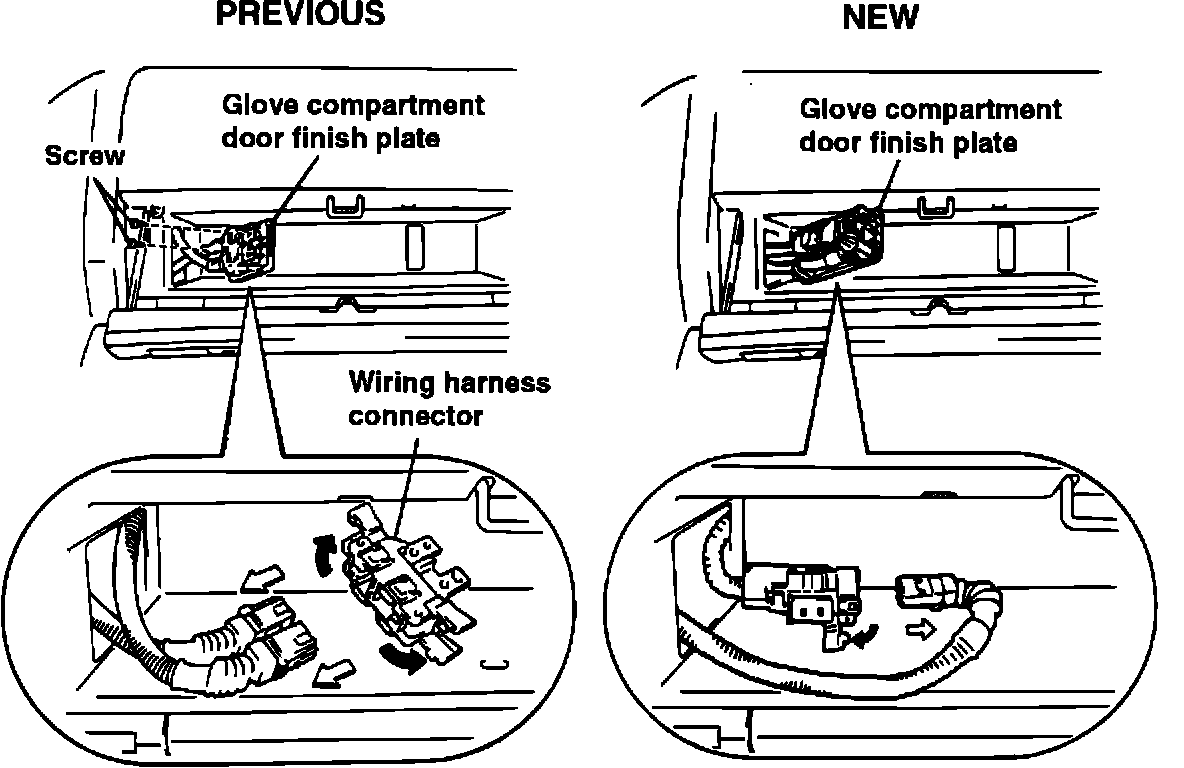

In order to reduce parts complexity the passenger side airbag (squib) wire harness connector design has been changed for LS 400 and SC 300/400.

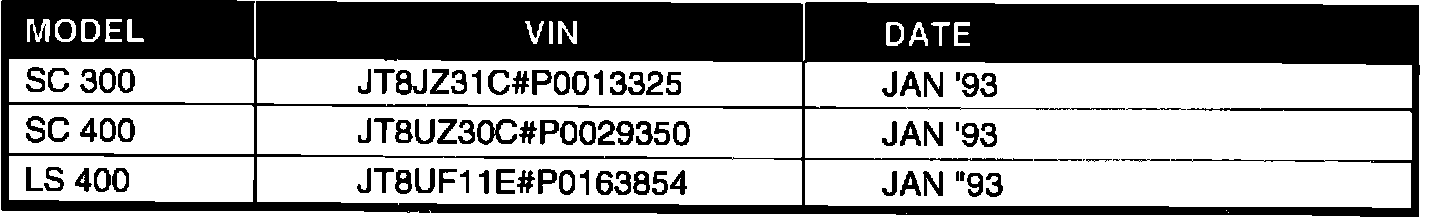

PRODUCTION EFFECTIVE:

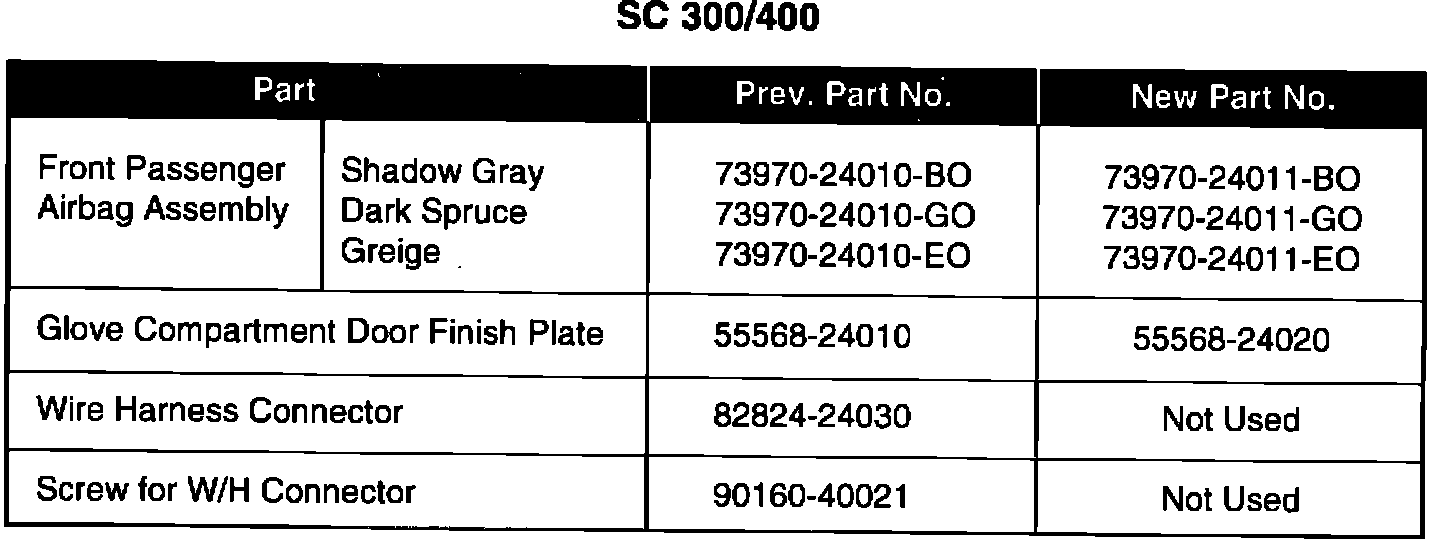

PARTS INFORMATION:
