Ignition Coil: Description and Operation

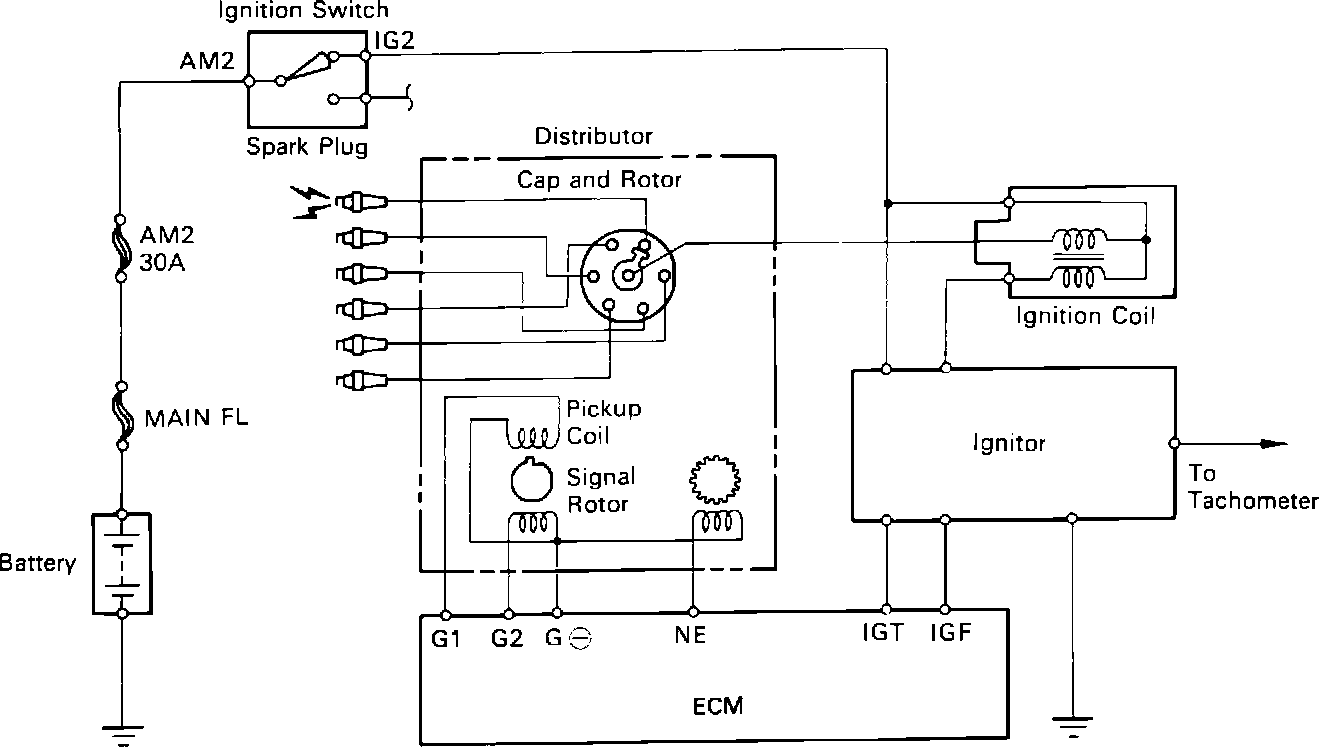

Ignition System Schematic:

PURPOSE
The ignition coil transforms battery voltage into ignition voltage and delivers it in the form of a high voltage surge to the secondary ignition components.

CONSTRUCTION
The ignition coil contains two windings of copper wire around a soft iron core. The primary windings are made of a hundred or so turns of wire. The secondary windings contain several thousand turns of wire wound directly onto the iron core. The ratio of the number of wraps in the secondary winding to the number of wraps in the primary windings determines the output voltage of the coil.

The primary windings are connected directly to the ignition switch (+) and the igniter (-). The secondary windings are connected to the coil output tower through the iron core.

OPERATION
Current flow through the primary winding is stored as a magnetic field. When current flow in the primary winding is interrupted (by the power transistor breaking the circuit ground), the magnetic field collapses, inducing a voltage surge into the secondary windings.
