Removal

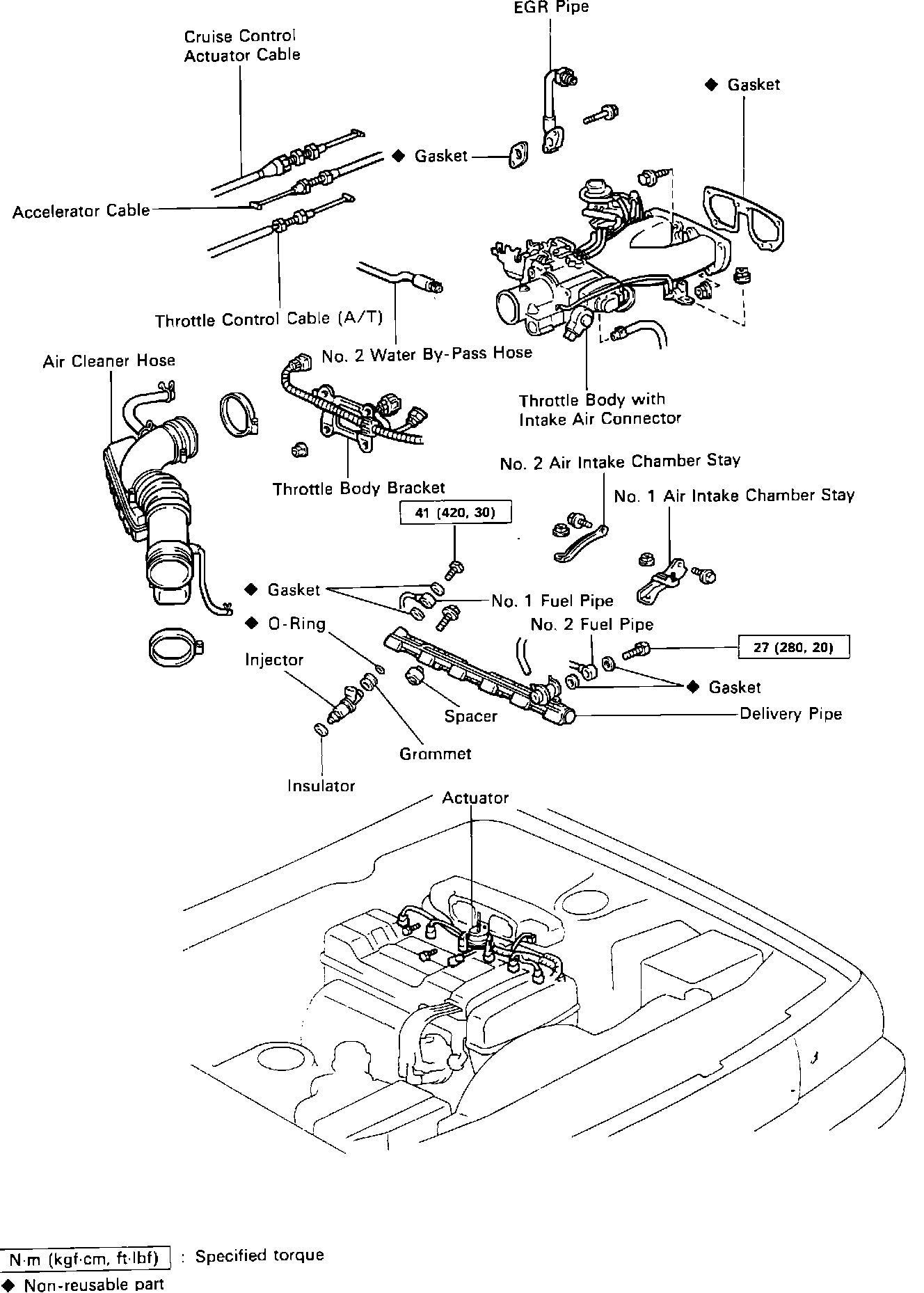

Injector Removal:

Preparation
- Disconnect negative battery terminal.
- Drain engine coolant into an approved container.

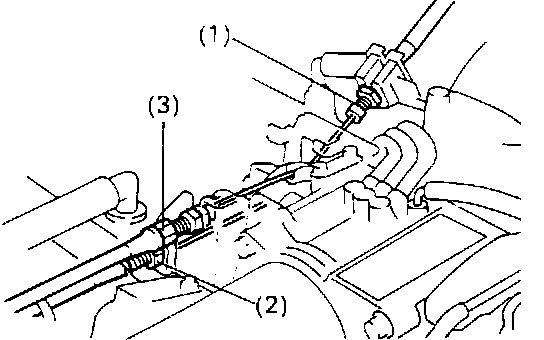

Throttle Body Cables:

Throttle Body Removal
- Disconnect cables from throttle body.
- Disconnect PCV hose from valve cover.
- Disconnect power steering air hose from timing cover.

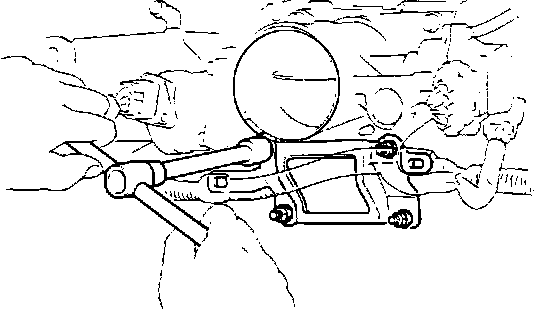

Throttle Body Bracket:

- Remove throttle body bracket.

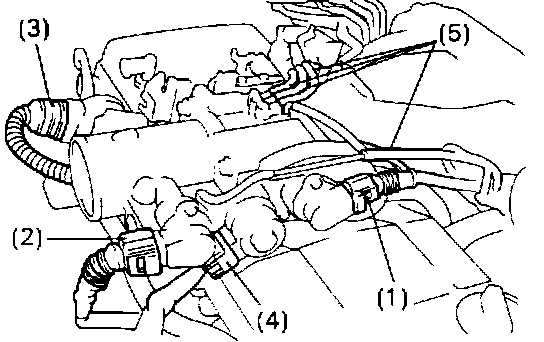

Throttle Body Electrical Connectors:

- Remove the following connectors and hoses:
^ Throttle position sensor
^ Sub-throttle postion sensor (if equipped)
^ Sub-throttle actuator (if equipped)
^ IAC valve
^ 4 vacuum hoses

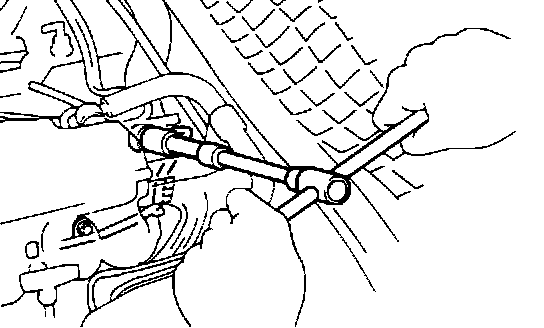

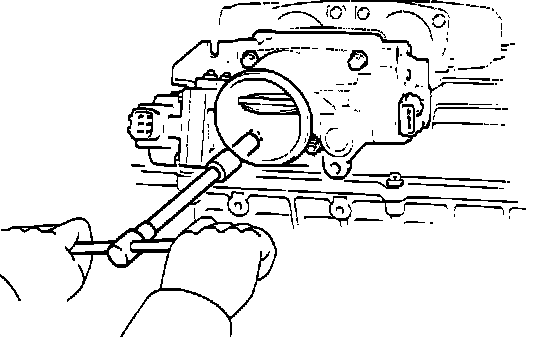

Throttle Body Fasteners:

- Remove throttle body mounting hardware.
- Disconnect 2 water bypass hoses.
- Remove throttle body and gasket.

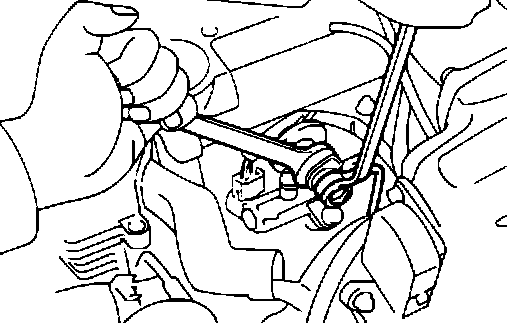

No. 1 Fuel Pipe:

Intake Air Chamber Removal
- Disconnect No. 1 fuel line from rear of fuel rail and discard gasket washers.

No. 2 Fuel Pipe:

- Disconnect No. 2 fuel line from pressure regulator and discard gasket washers.

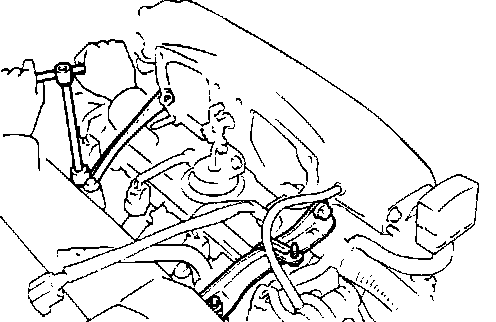

Air Intake Chamber Supports:

- Remove intake air chamber supports.
- Disconnect vacuum hose from fuel pressure regulator.

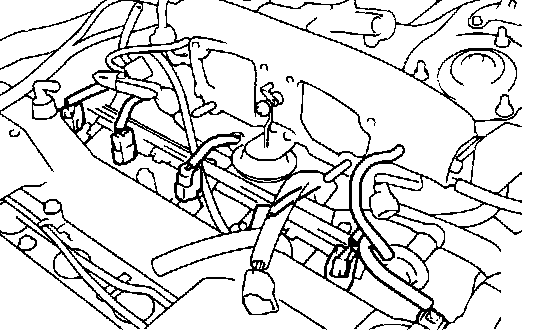

- Disconnect fuel injector electrical connectors.

Injector Electrical Connectors:

- Unbolt intake air control valve actuator.
Note:Do not disconnect actuator rod. Using wire or tape, pull unit to the side.

Fuel Rail And Injectors:

Injector removal

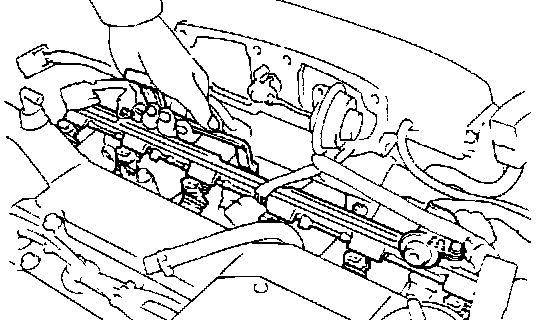

- Remove fuel rail mounting bolts.
- Remove fuel rail and injectors as an assembly
- Pull injectors from fuel rail.
- Remove and discard o-rings from injectors.
- Remove insulators and spacers from intake manifold.
