Canister Check Valve

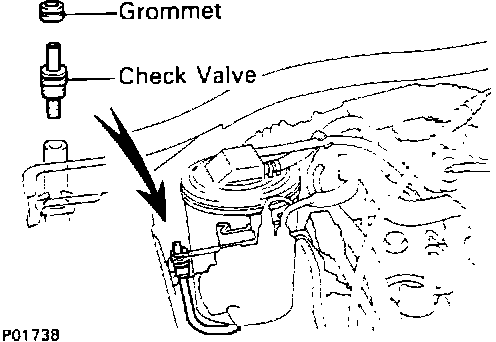

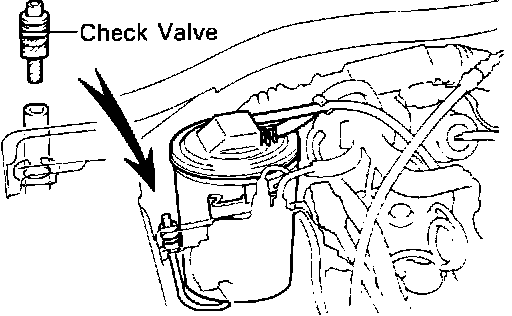

Check Valve:





- Remove check valve from canister hose.

Check Valve Inspection:





- Check that air flows freely from yellow port to black port.
- Check that no air flows from black port to yellow port.
- Replace check valve if it fails to provide the desired results.
- Reinstall valve with black port on canister side of hose.
