TE1, TE2 Terminal Circuit

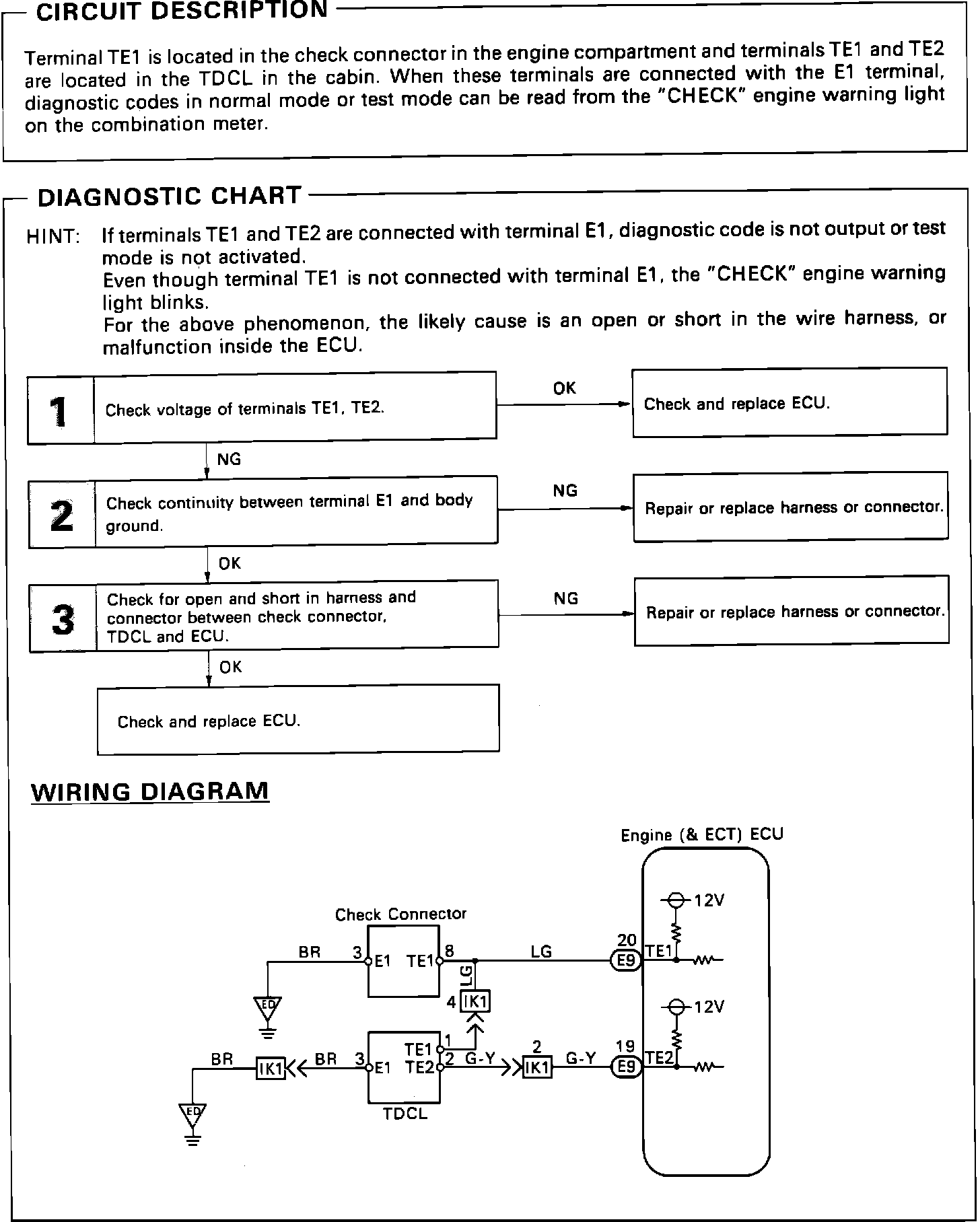

Fig. 29 TE1 & TE2 Terminal Circuit Diagnosis (Part 1 Of 2):

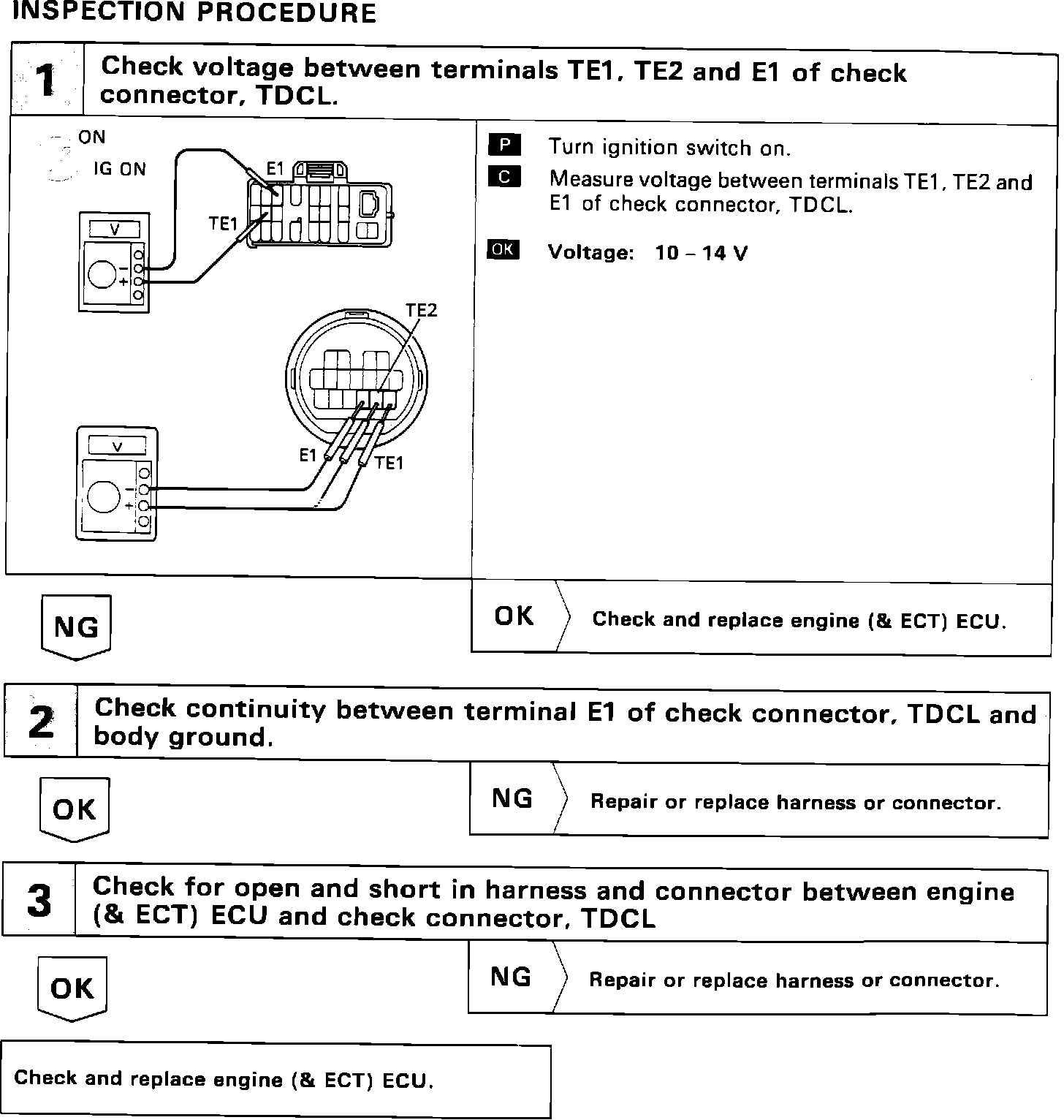

Fig. 29 TE1 & TE2 Terminal Circuit Diagnosis (Part 2 Of 2):
