Electrical Diagrams

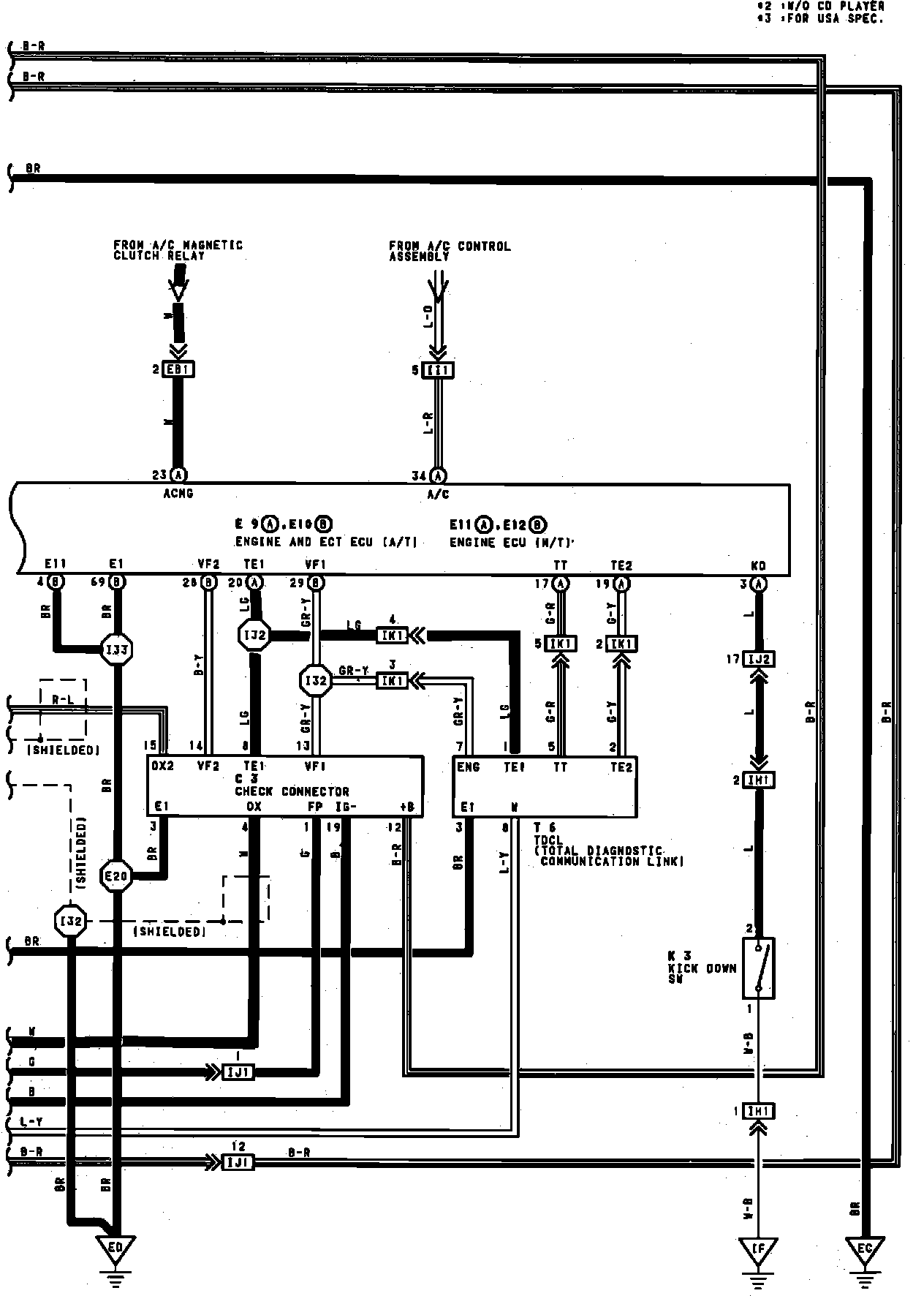

Fuel Injection Wiring Diagram (Part 1 Of 6):

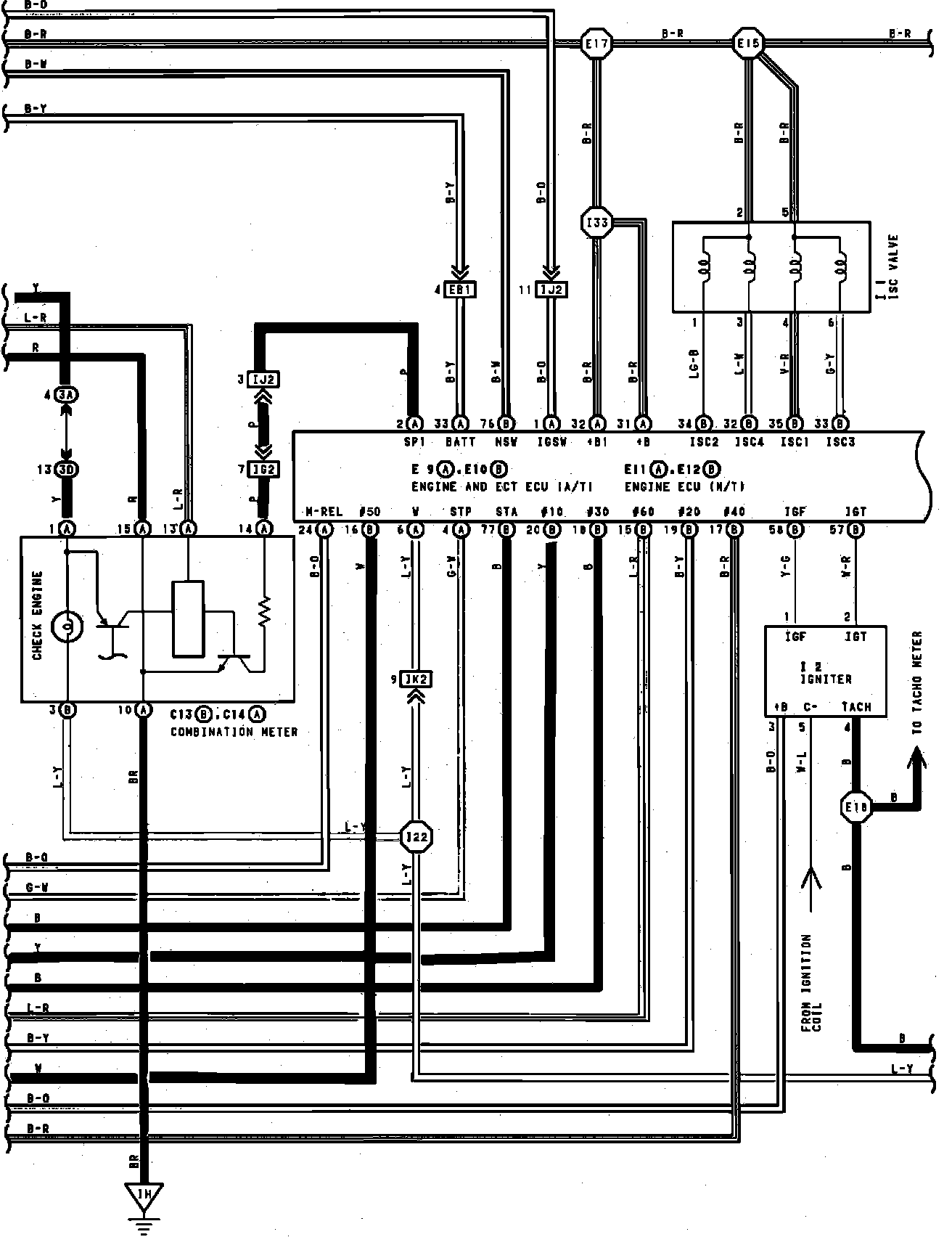

Fuel Injection Wiring Diagram (Part 2 Of 6):

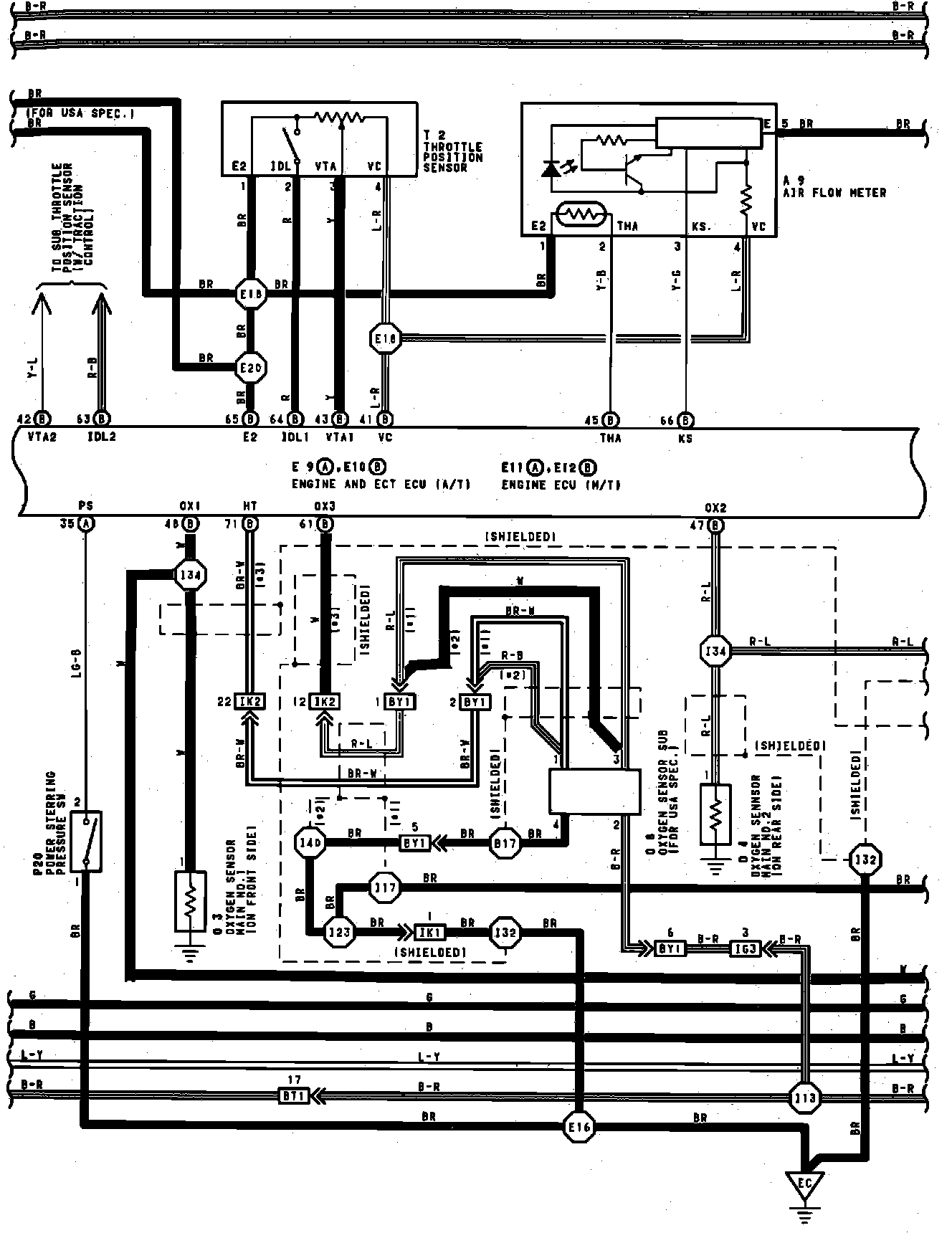

Fuel Injection Wiring Diagram (Part 3 Of 6):

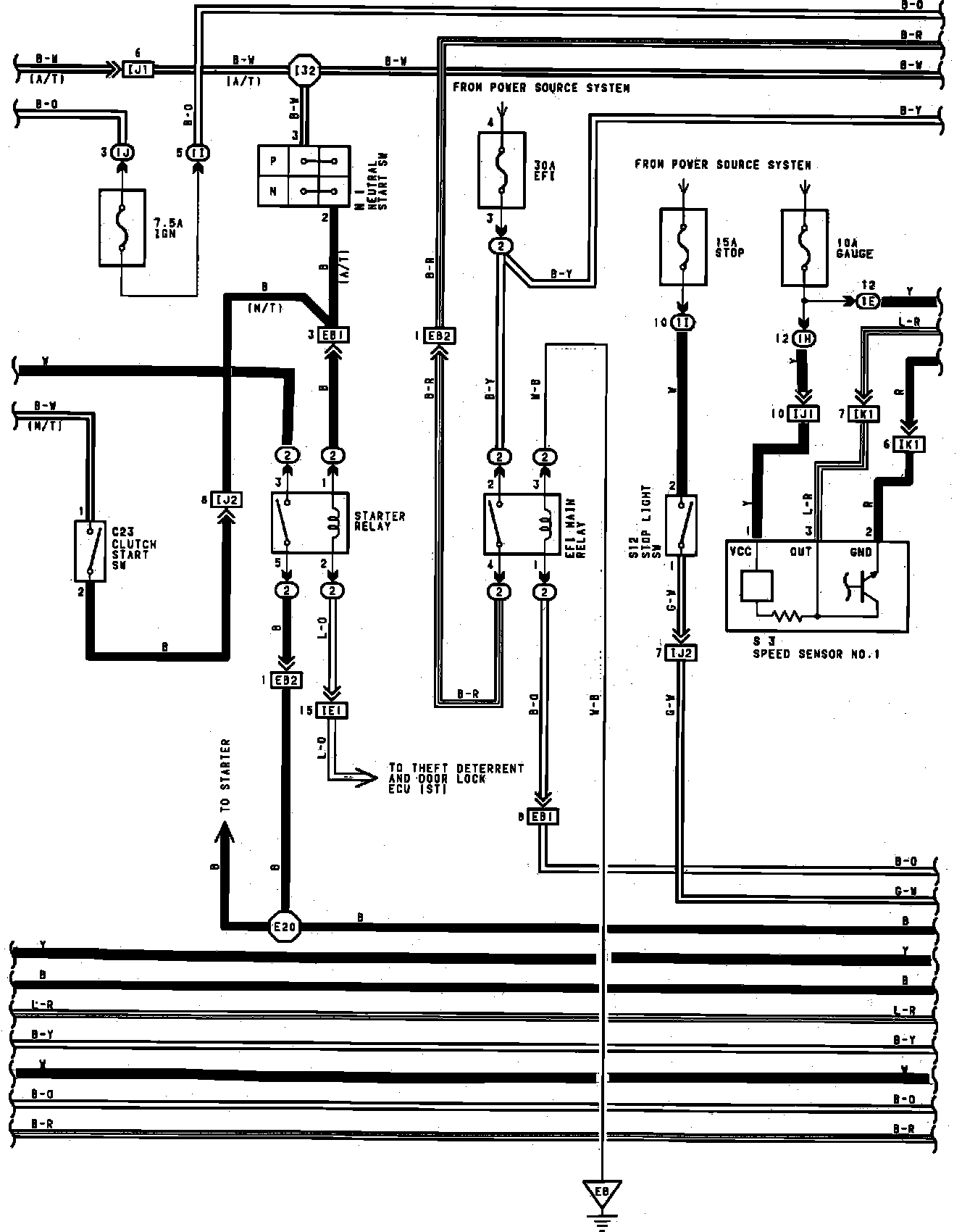

Fuel Injection Wiring Diagram (Part 4 Of 6):

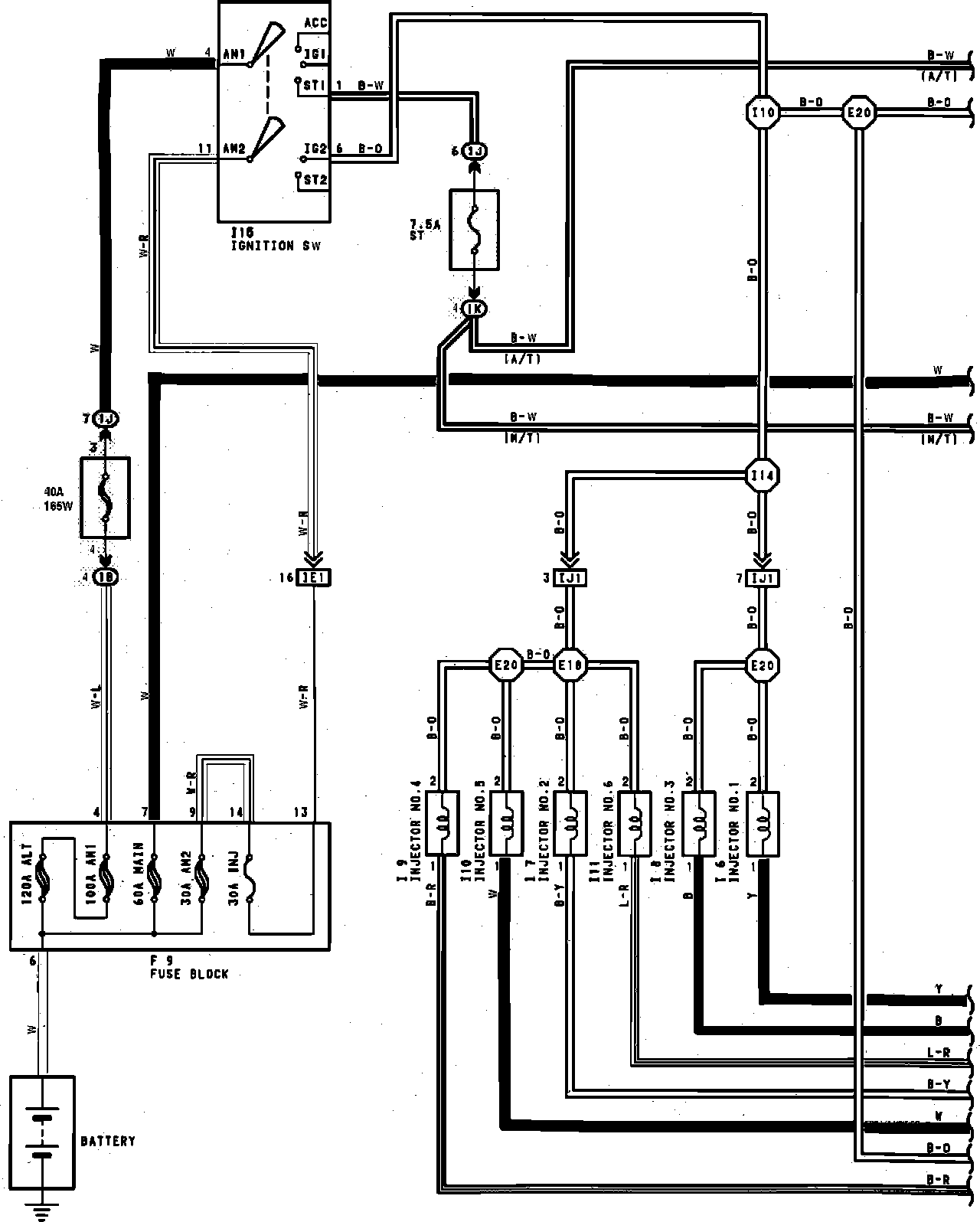

Fuel Injection Wiring Diagram (Part 5 Of 6):

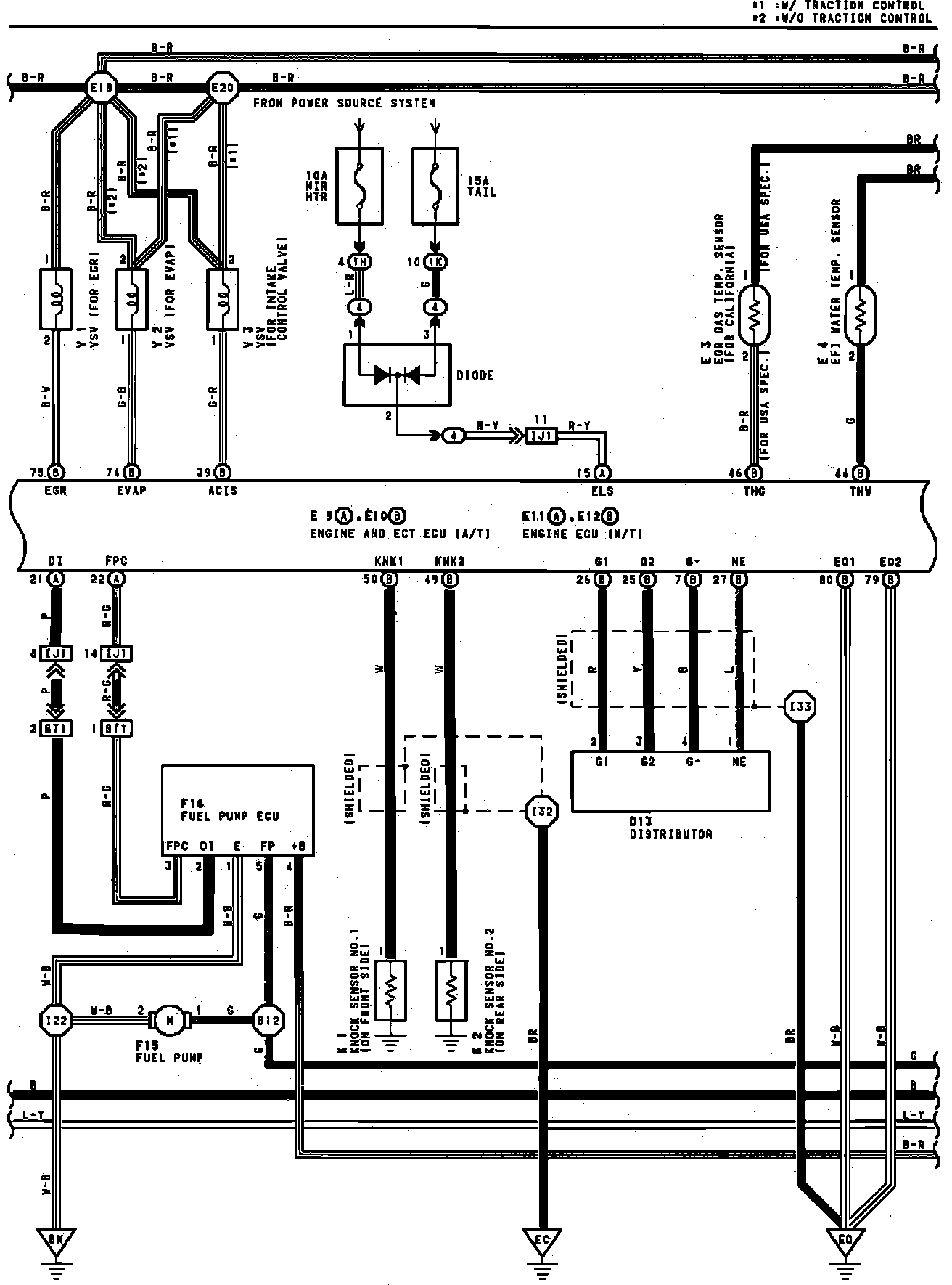

Fuel Injection Wiring Diagram (Part 6 Of 6):
