Ground Point Diagrams

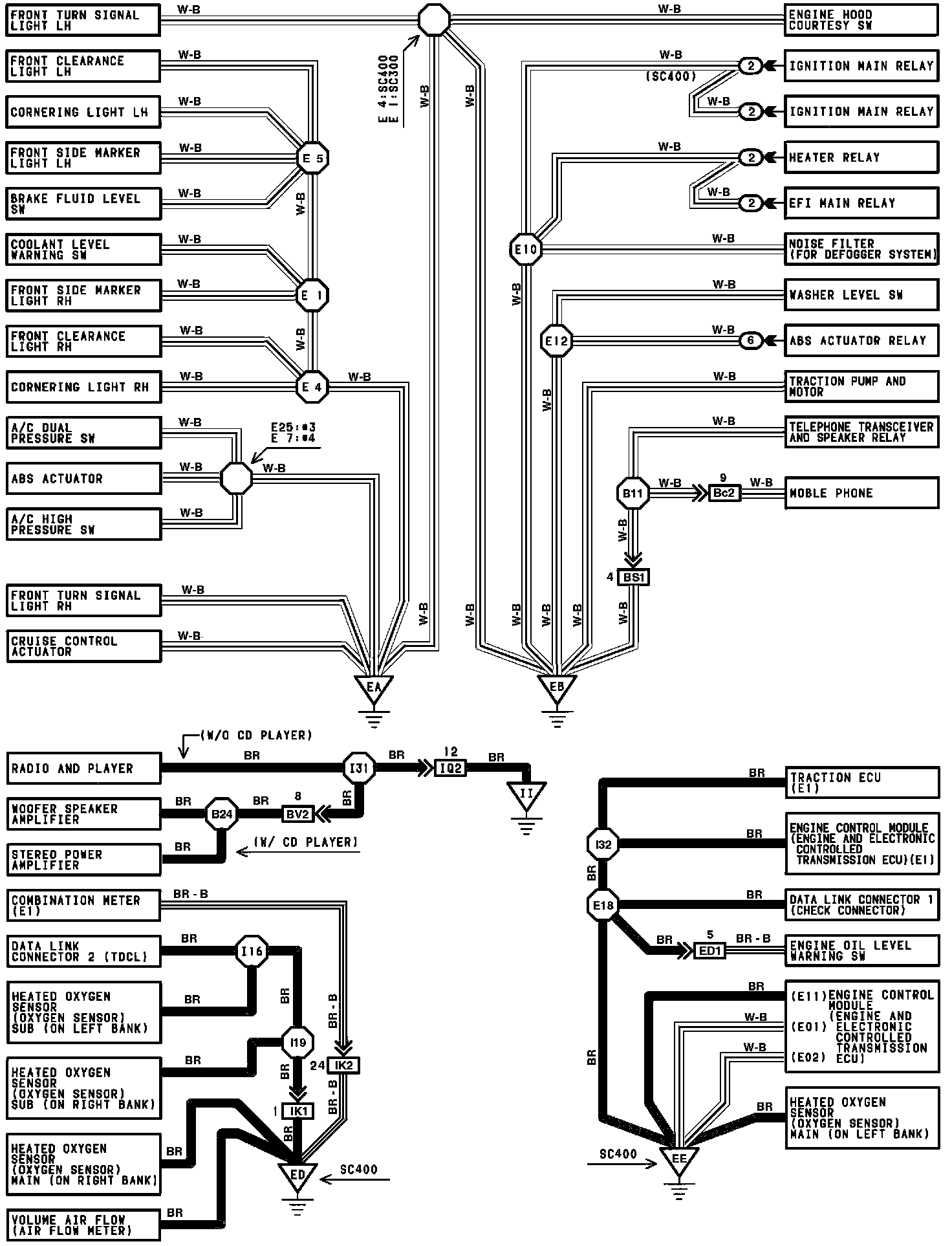

Ground Point (Part 1 Of 4):

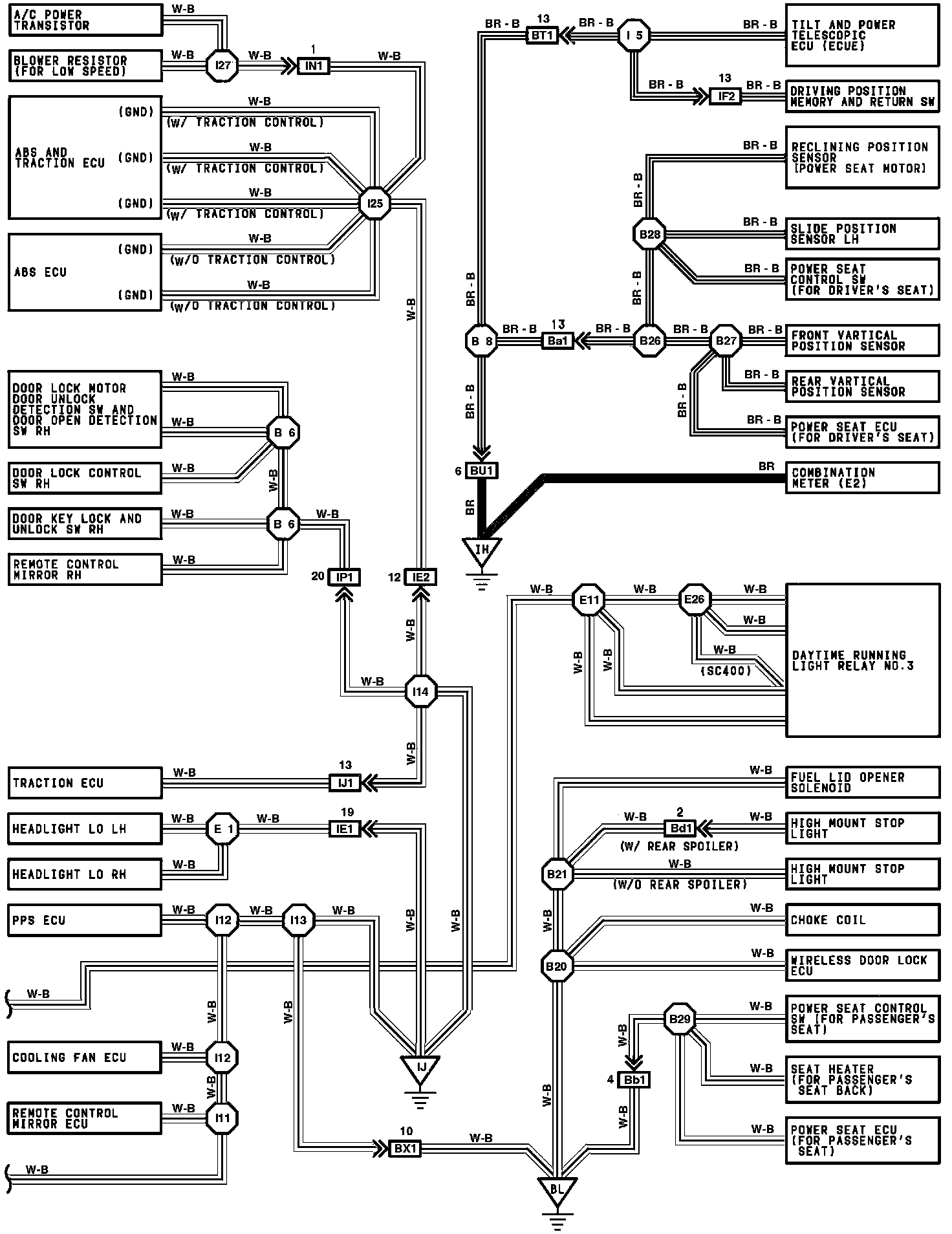

Ground Point (Part 2 Of 4):

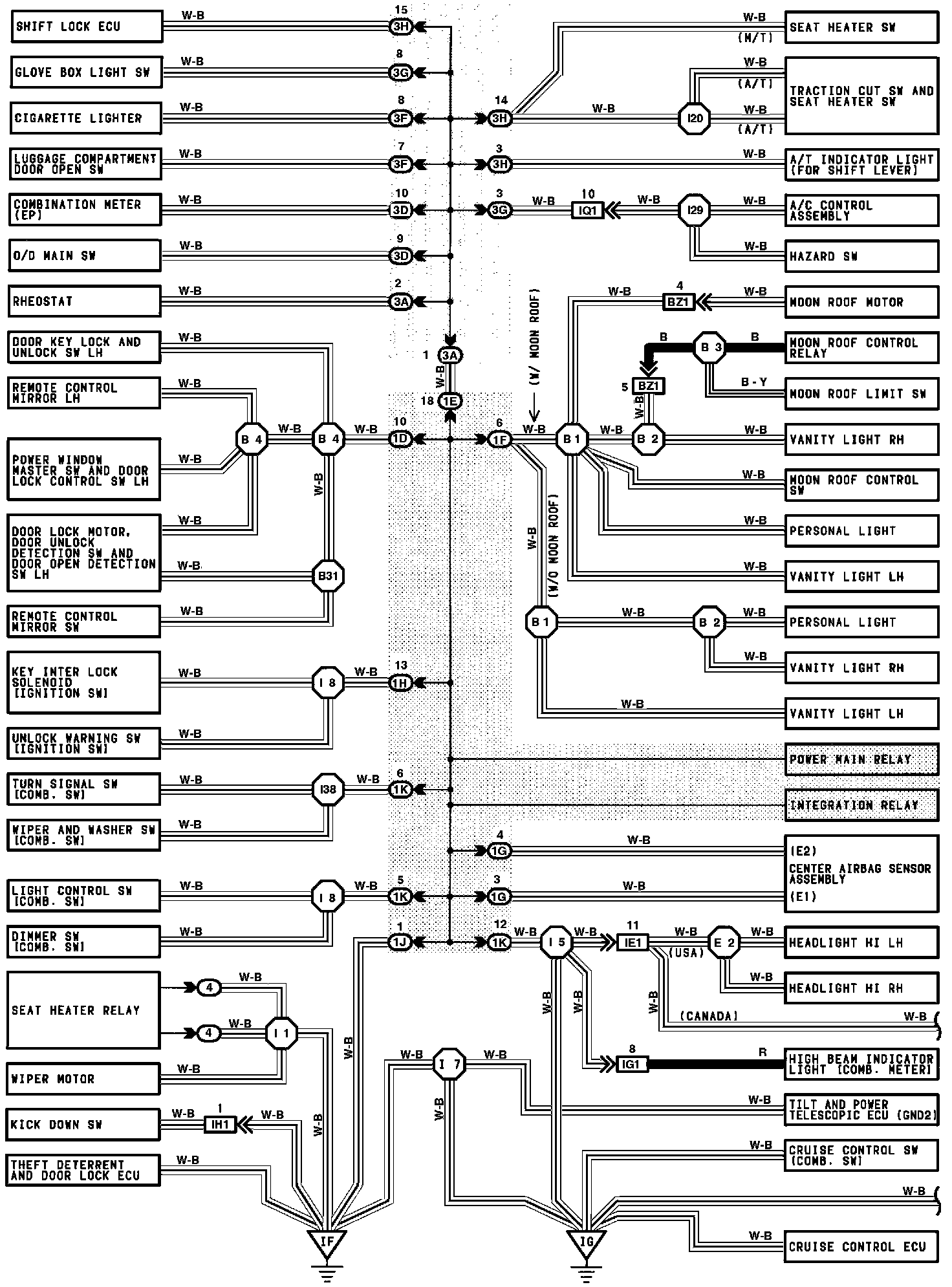

Ground Point (Part 3 Of 4):

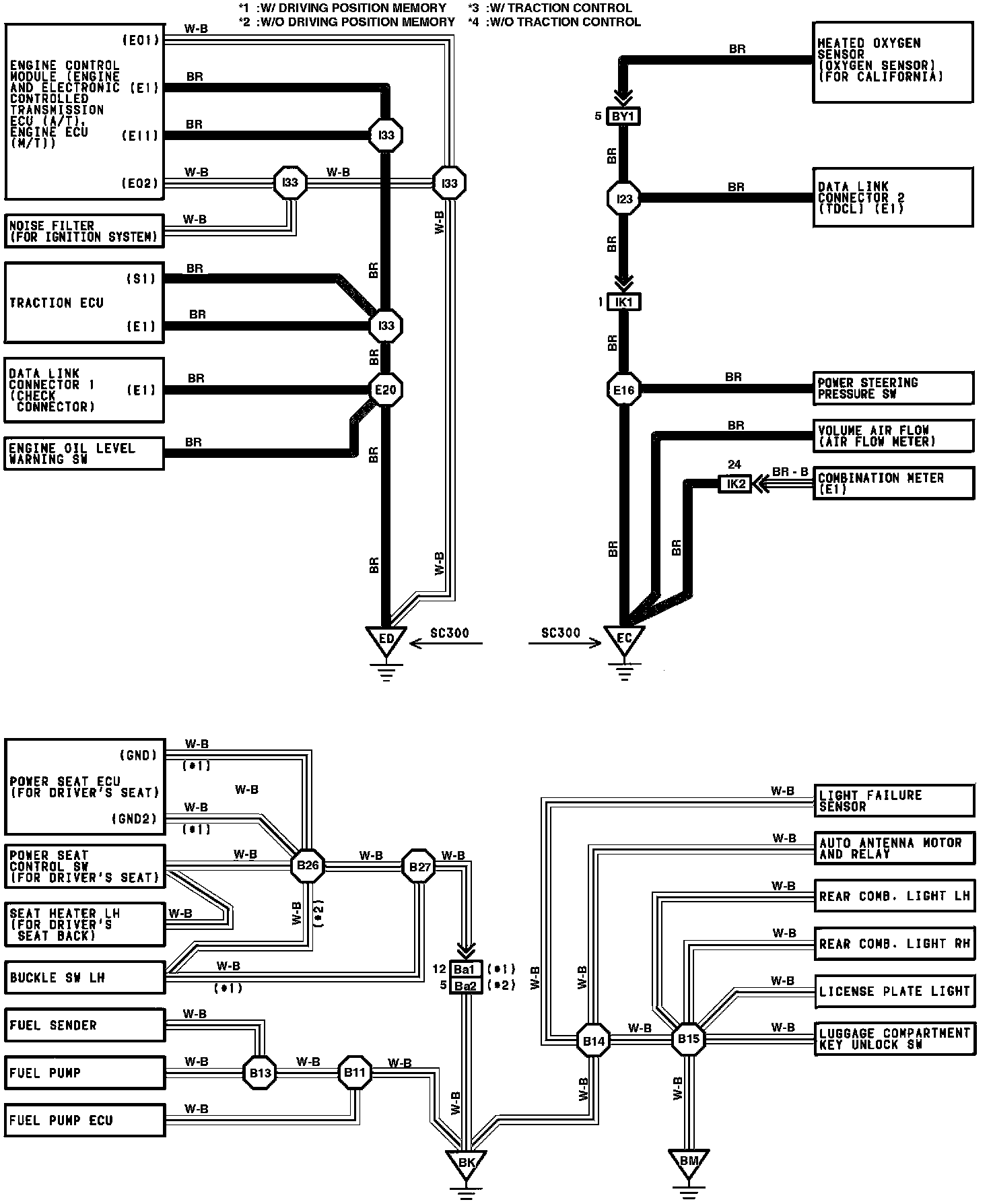

Ground Point (Part 4 Of 4):
