Pinout Values and Diagnostic Parameters

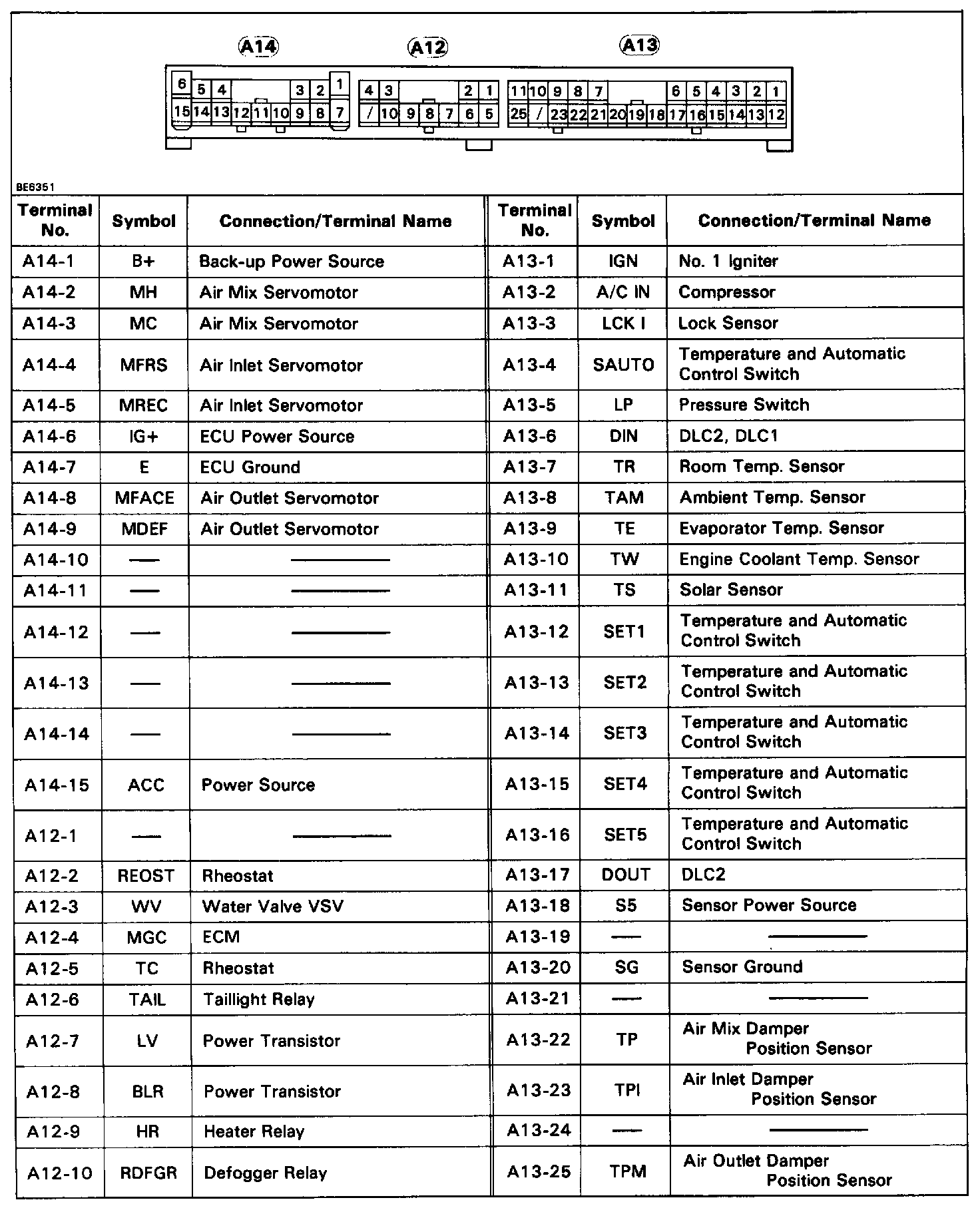

Terminals Of ECU:

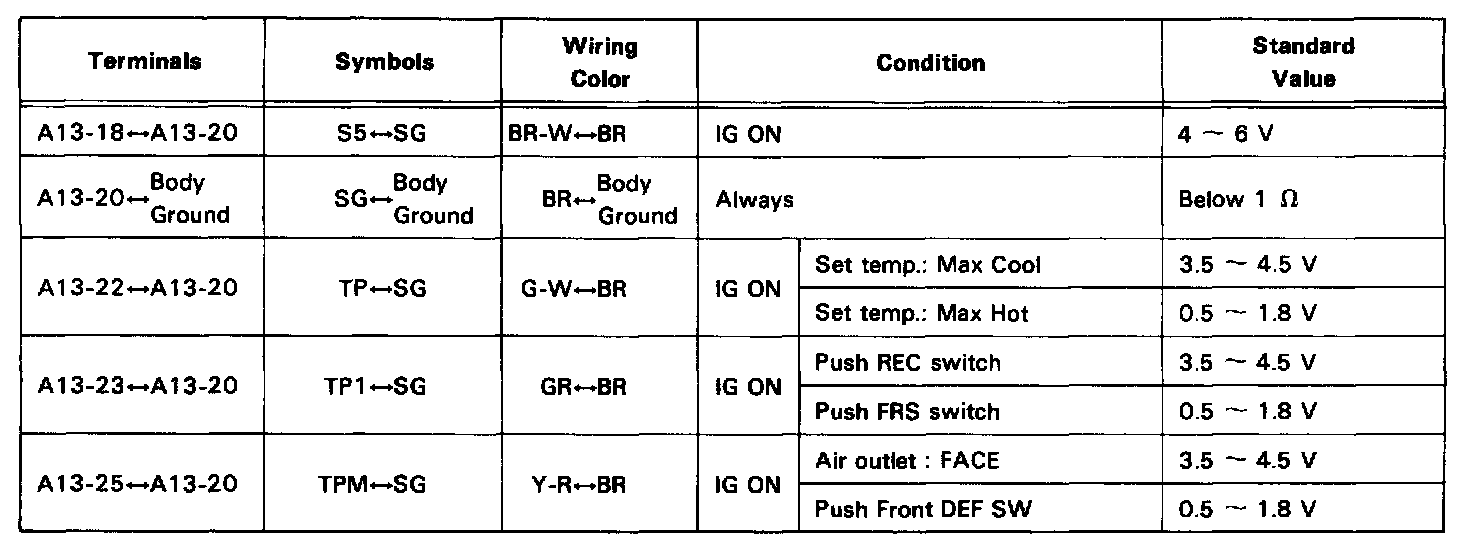

ECU Terminal Standard Value:

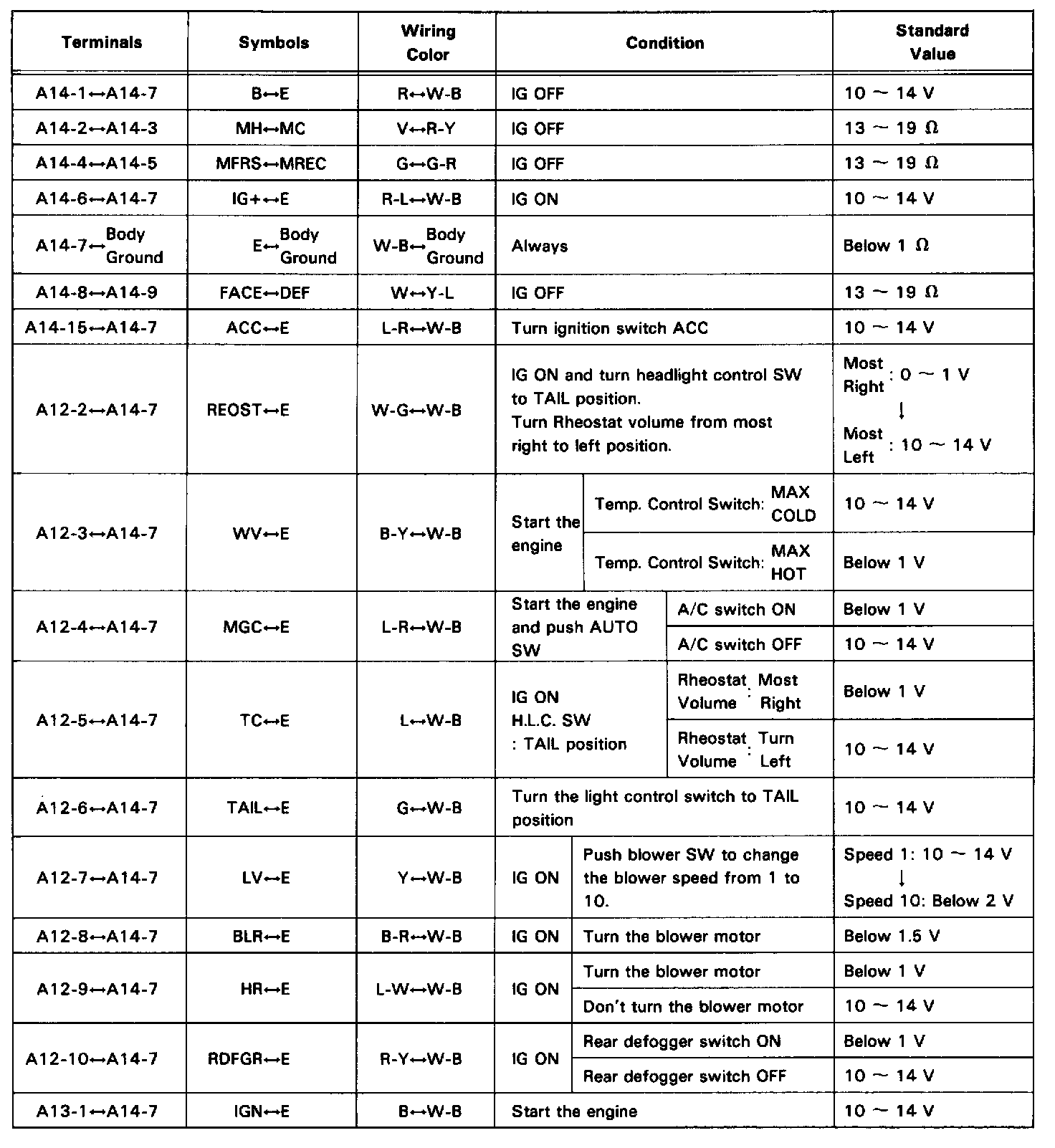

ECU Terminal Standard Value (Cont'd):

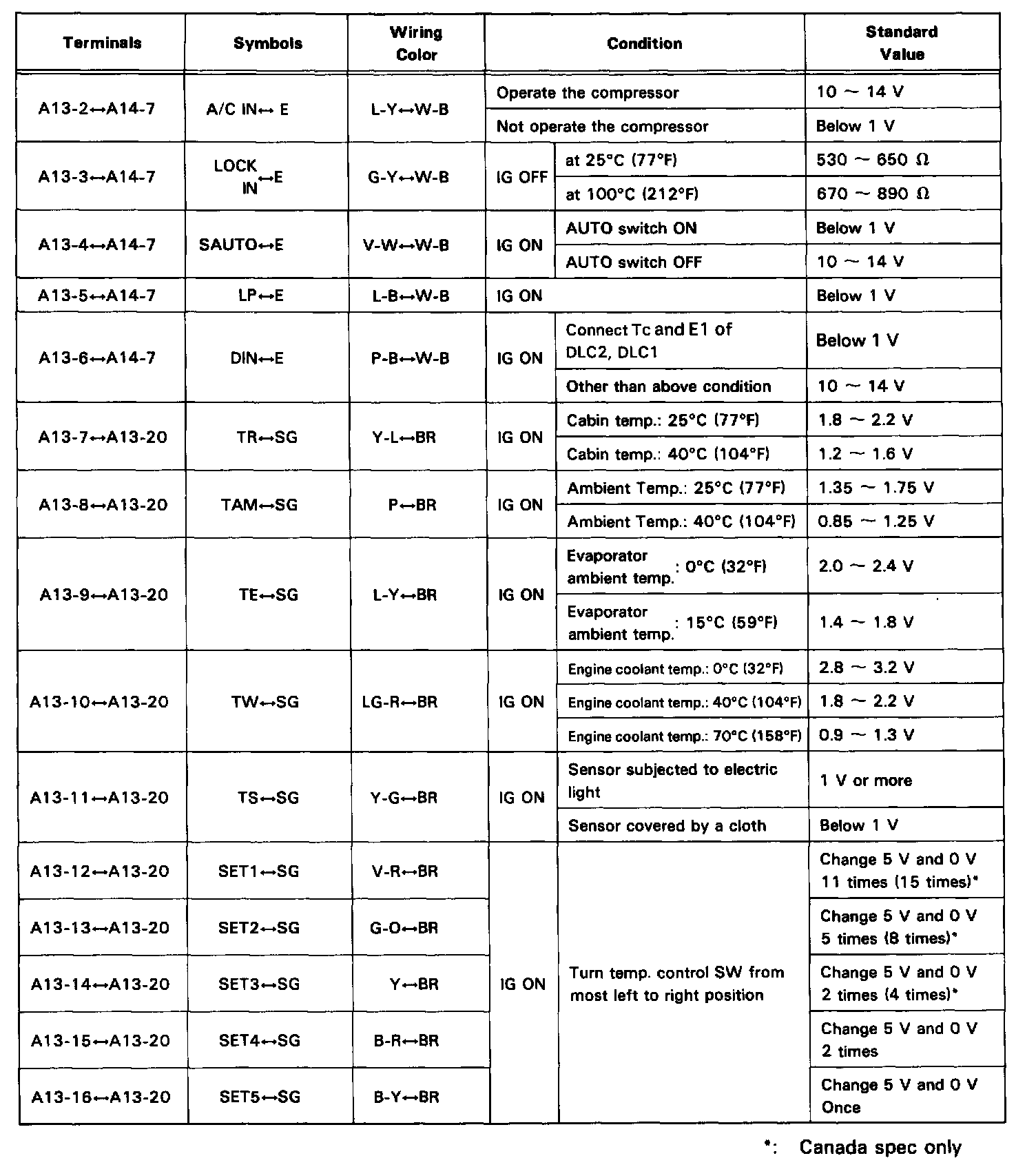

ECU Terminal Standard Value (Cont'd):
