IG Power Source Circuit



Circuit Description
This is the power source for the air conditioning control assembly (contains the A/C control assembly) and servomotor, etc.

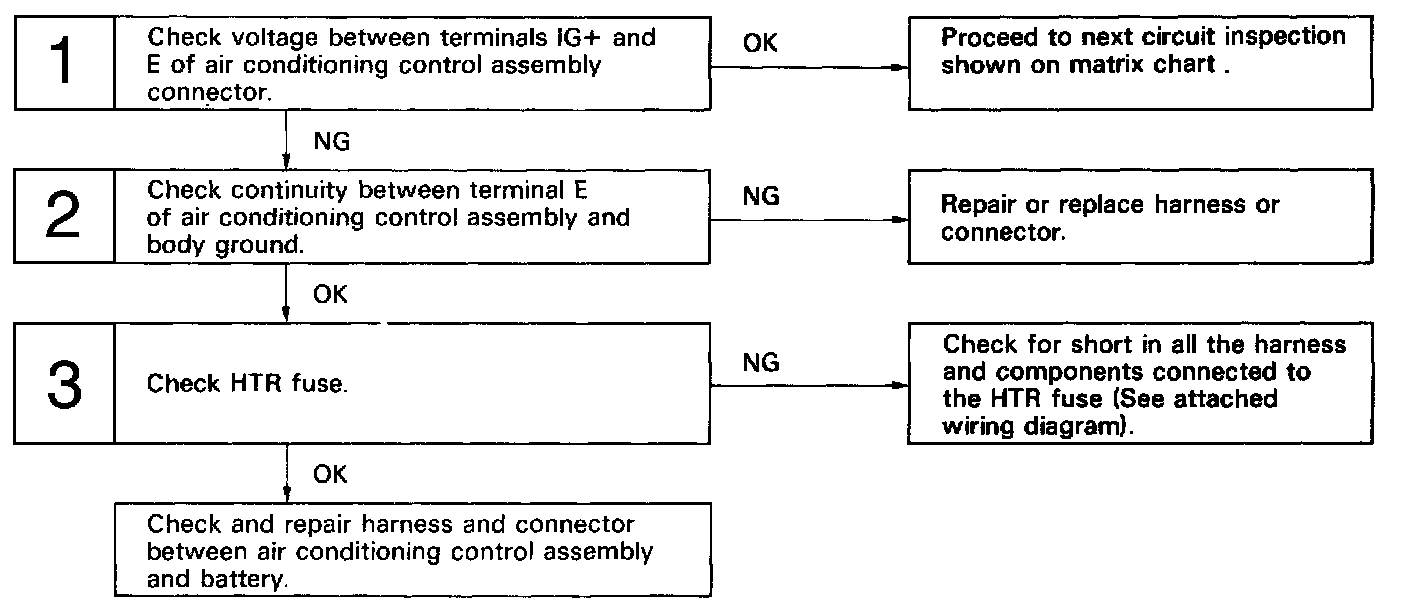

Diagnostic Chart:

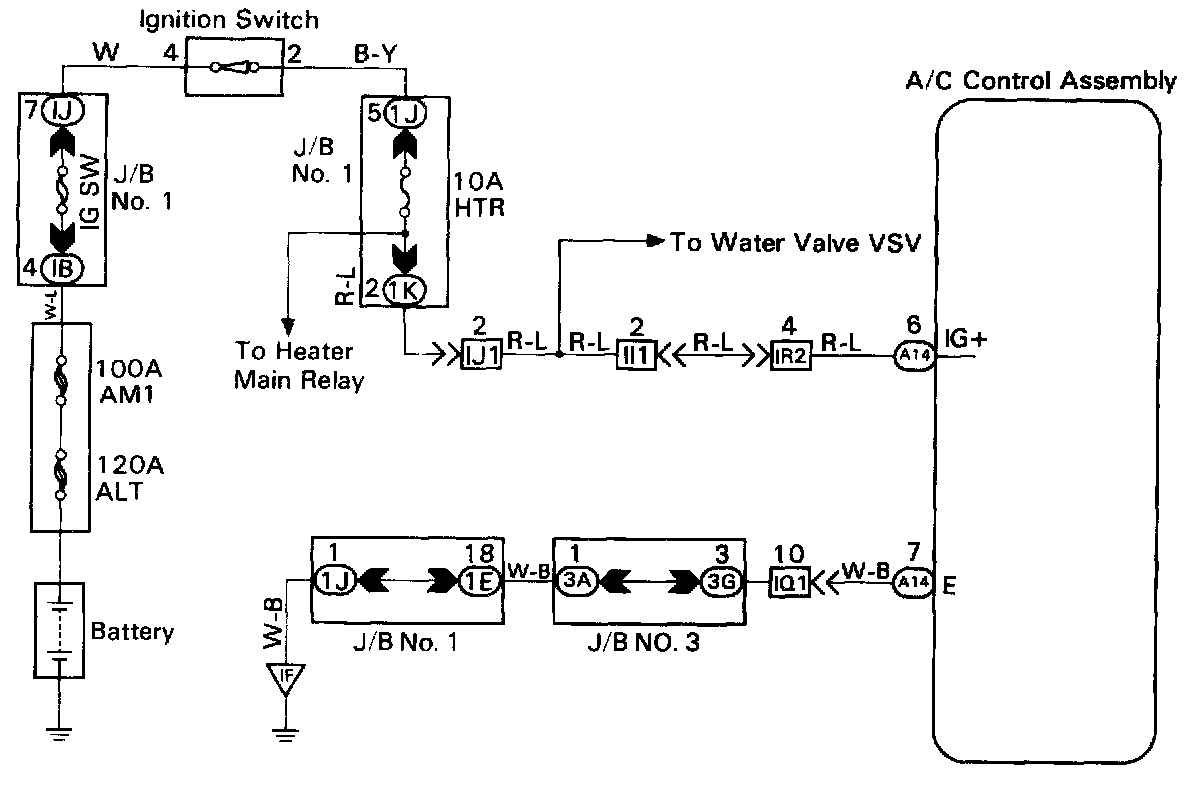

Wiring Diagram:





Inspection Procedure

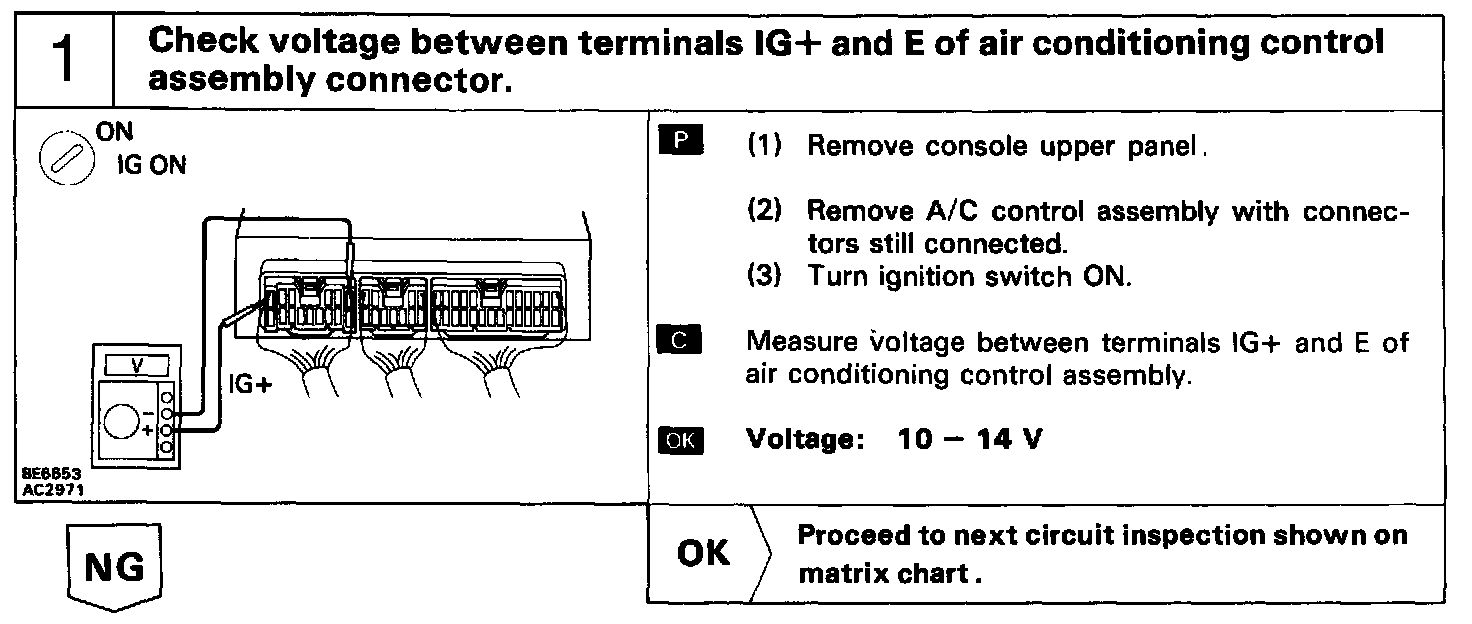

Step 1:





Step 2:

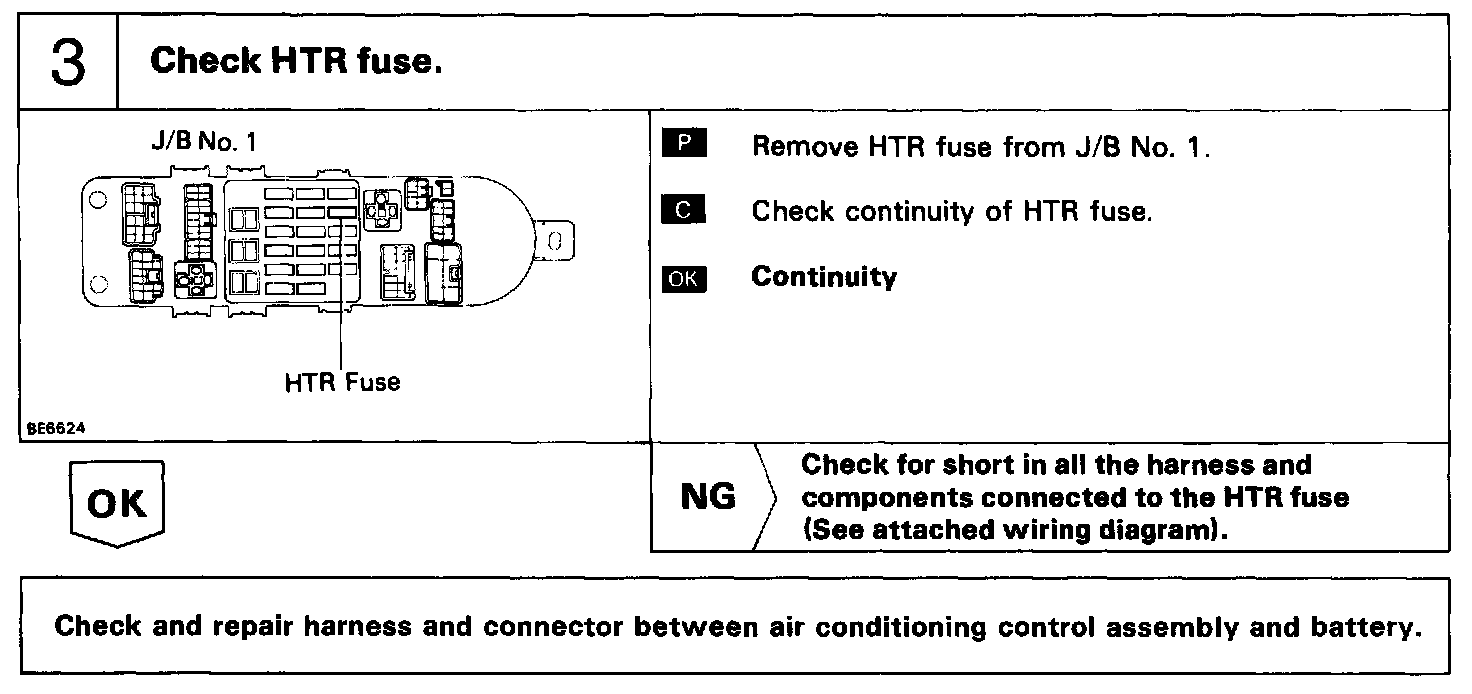

Step 3:
