Actuator Check

List Of Operation Methods
By operating each of the air conditioning control switches as shown in the diagram, it is possible to enter the diagnosis check mode.

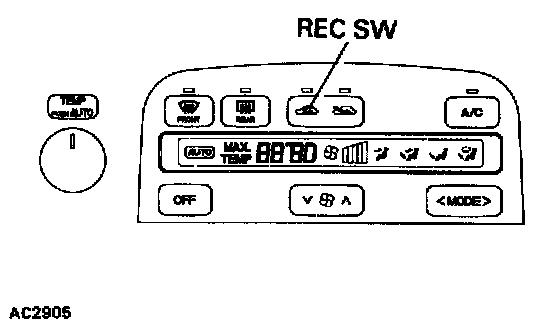

1. After entering the diagnostic trouble code check mode sensor check mode, press the REC switch.
2. Since each damper, motor and relay automatically operates at 1 secondintervals beginning in order from 20 in the temperature display, check the temperature and air flow visually and by hand.

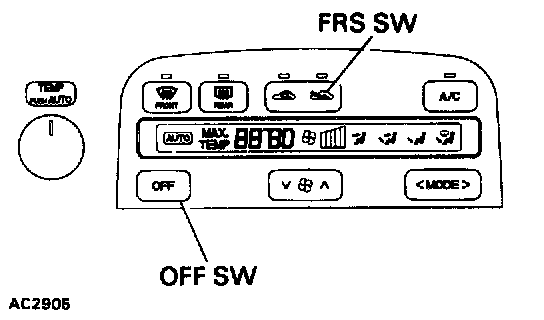

If the slower display is desired, press the FRS switch and change it to step operation. Each time the FRS switch is pressed, the display changes by 1 step.

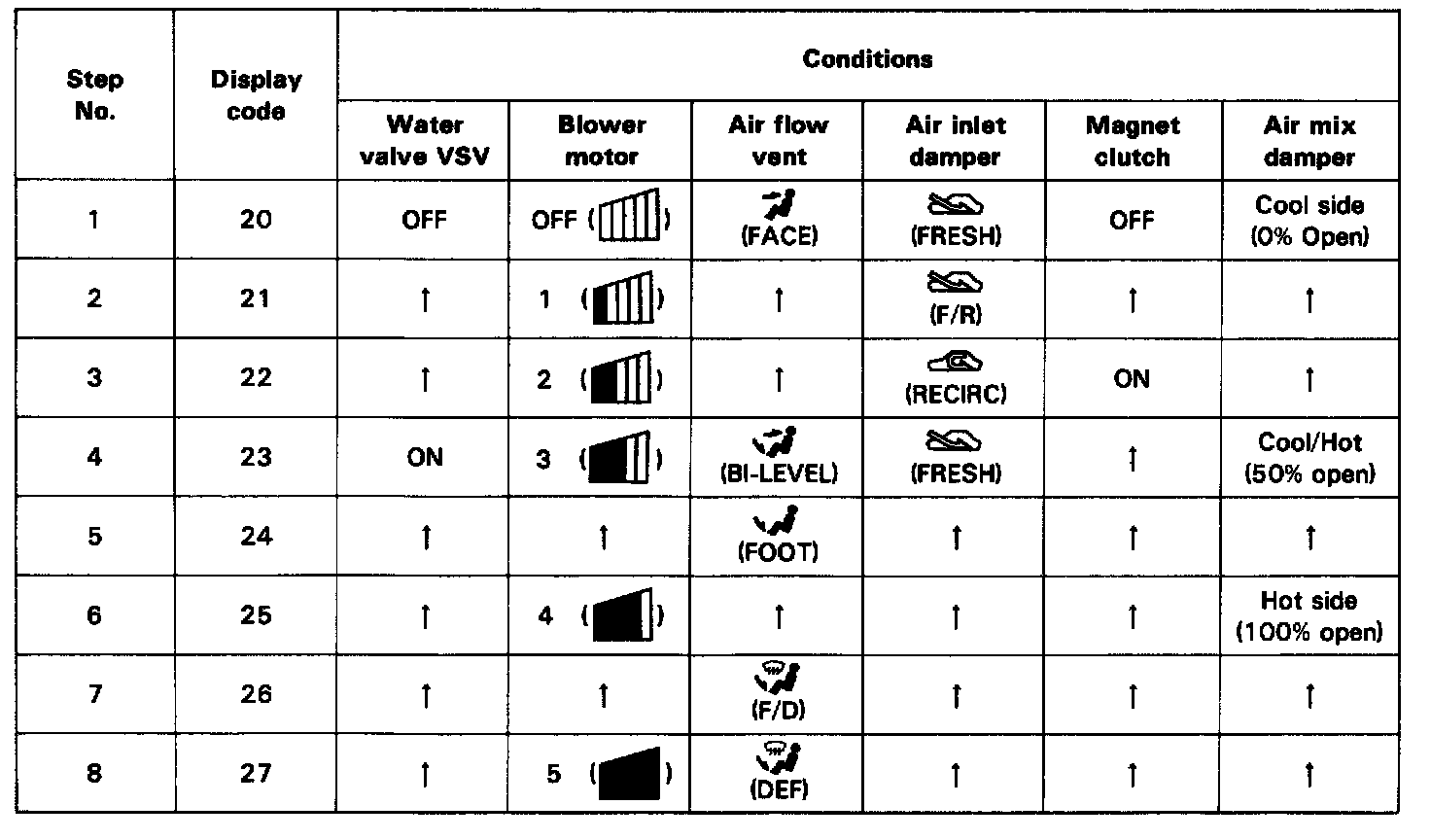

Display Code/Conditions Chart:

HINT:
- The buzzer sounds when the display code changes.
- Codes are displayed in order from the smaller to the larger numbers.
- To cancel the check mode, press the OFF switch.
