ACC Power Source Circuit



Circuit Description
This circuit supplies power to the air conditioning control assembly (contains the A/C control assembly).

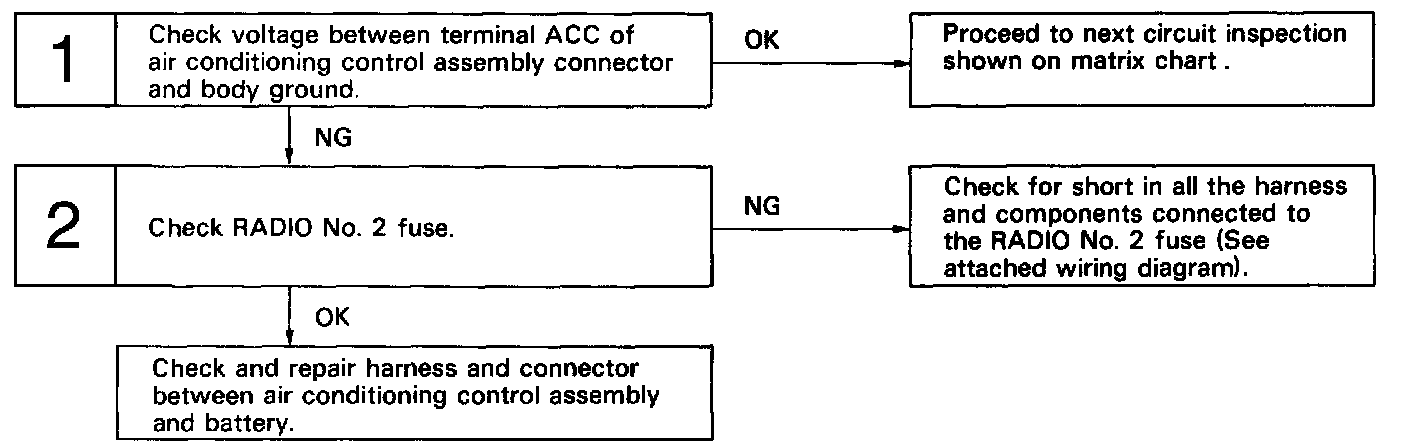

Diagnostic Chart:

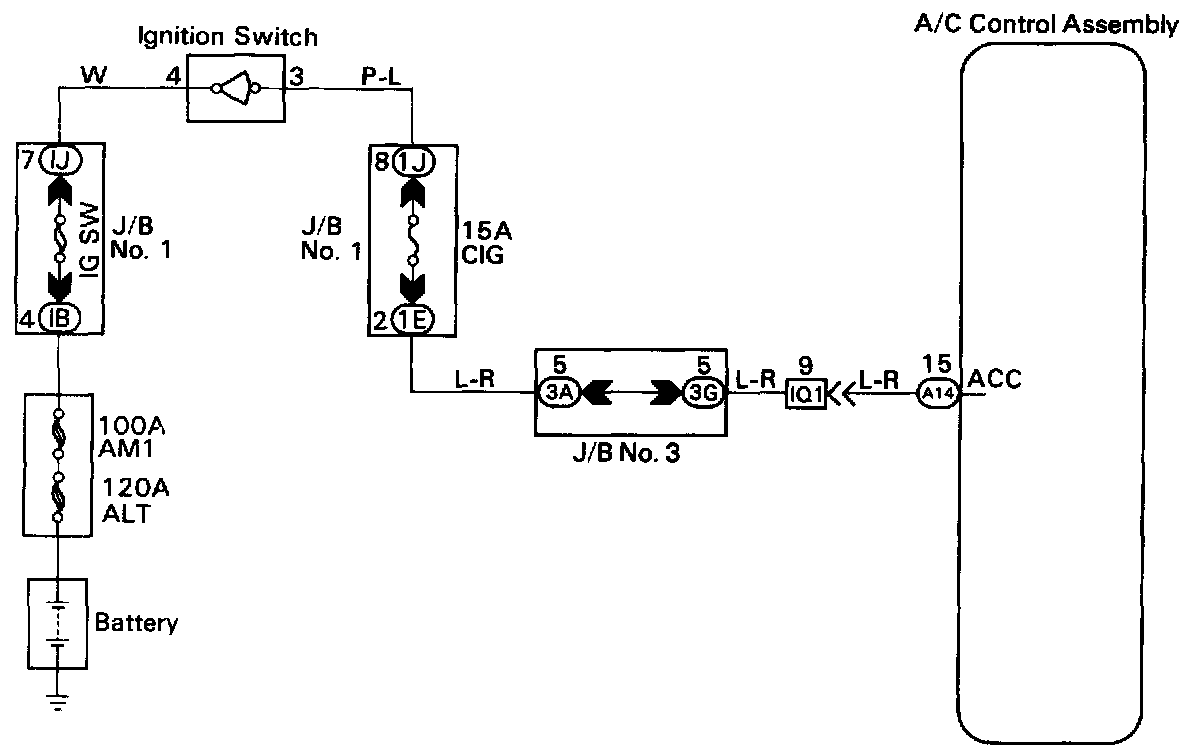

Wiring Diagram:





Inspection Procedure

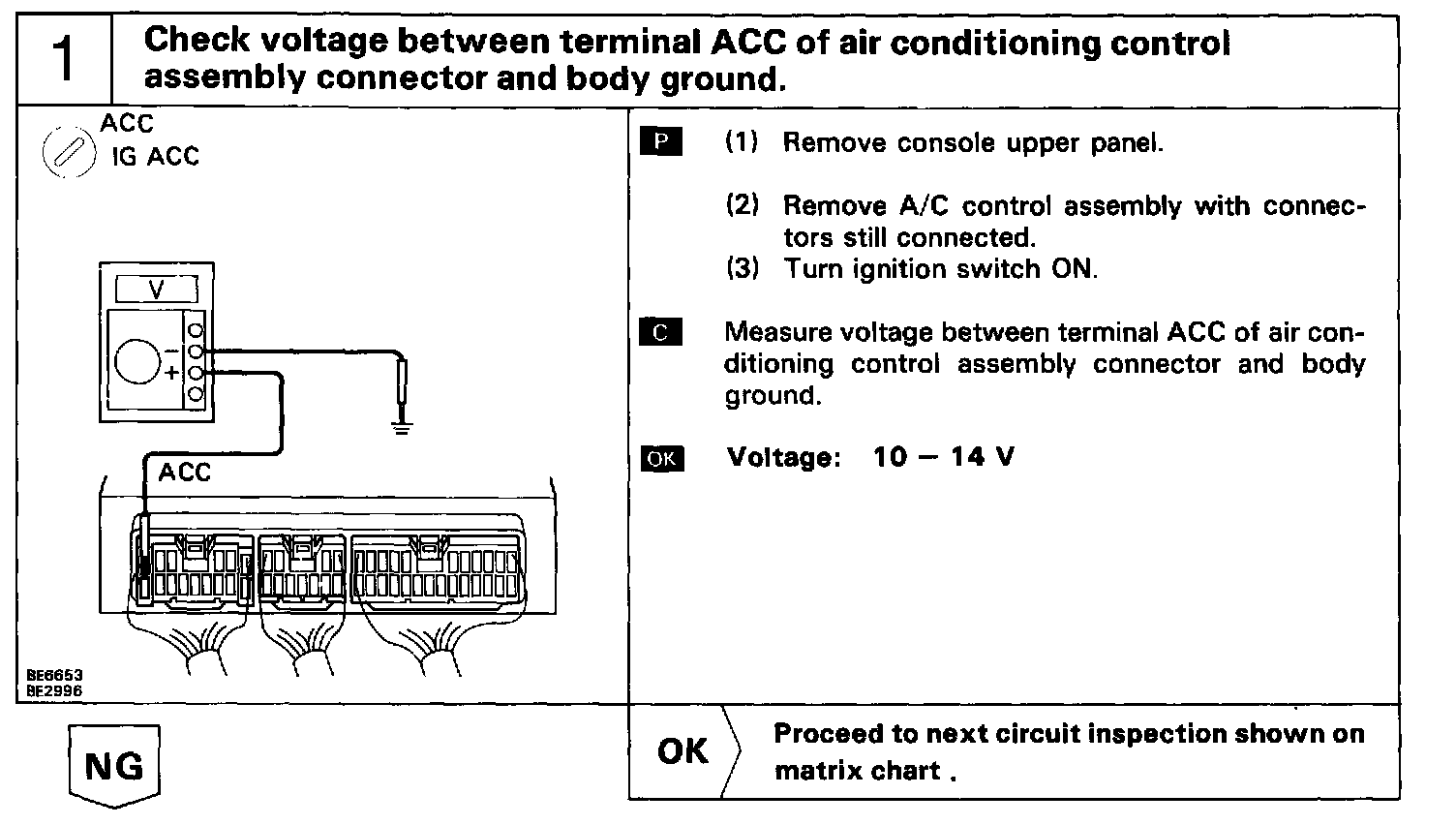

Step 1:

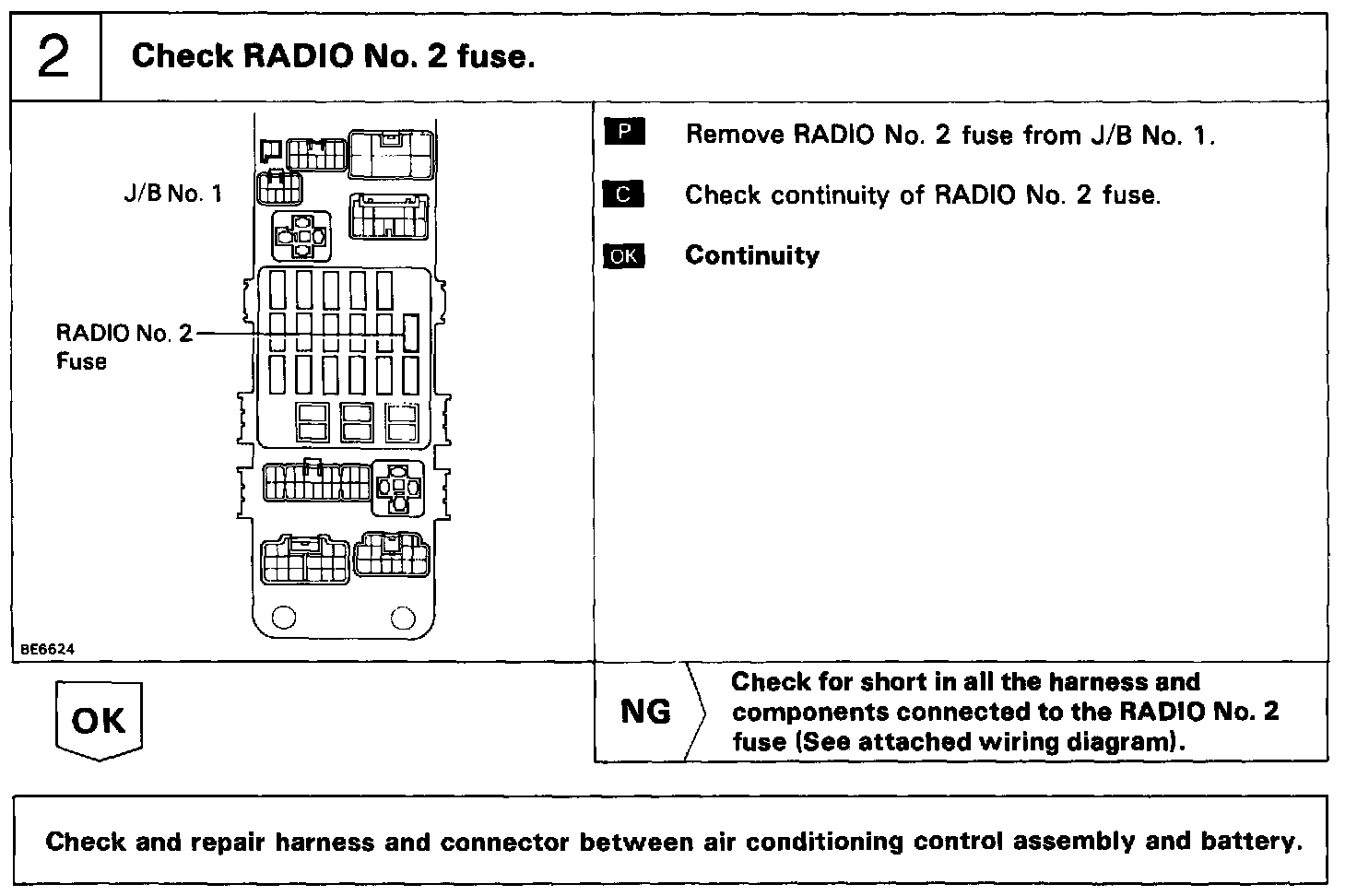

Step 2:
