Home >> Lexus >> 1993 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Connector Locations >> Instrument Panel

Instrument Panel

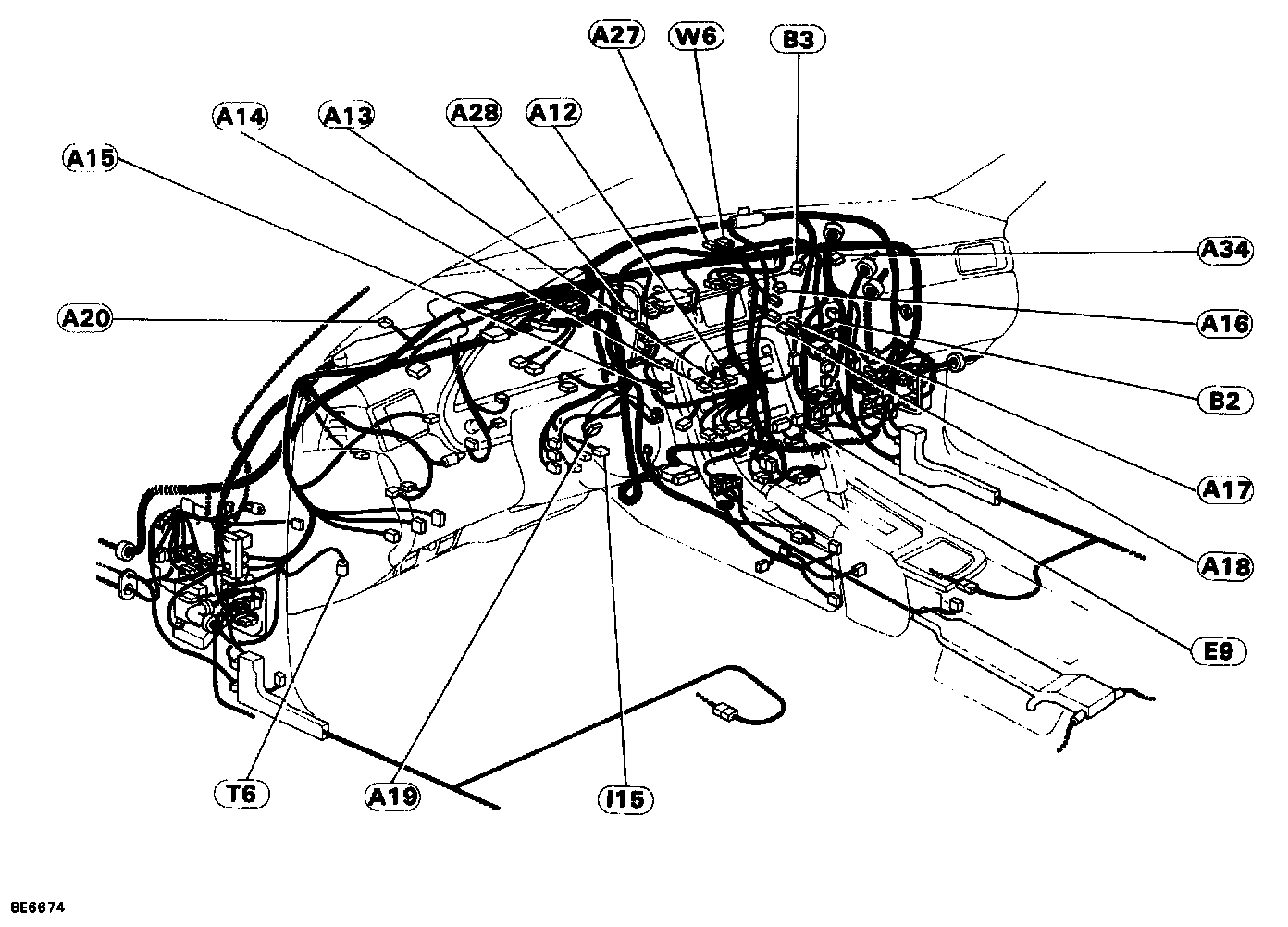

Location Of Connectors In Instrument Panel:

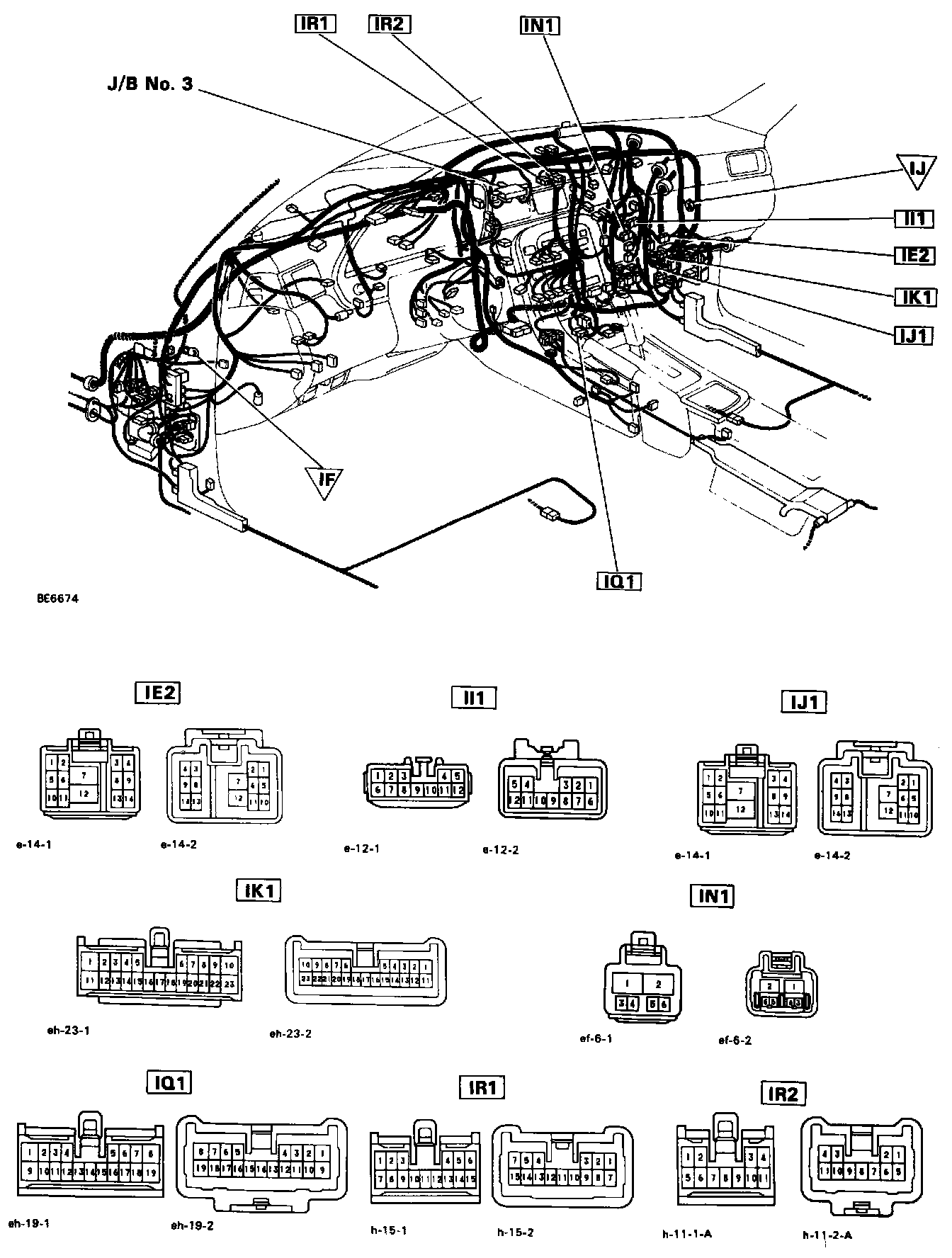

Location Of Connectors (Cont'd):

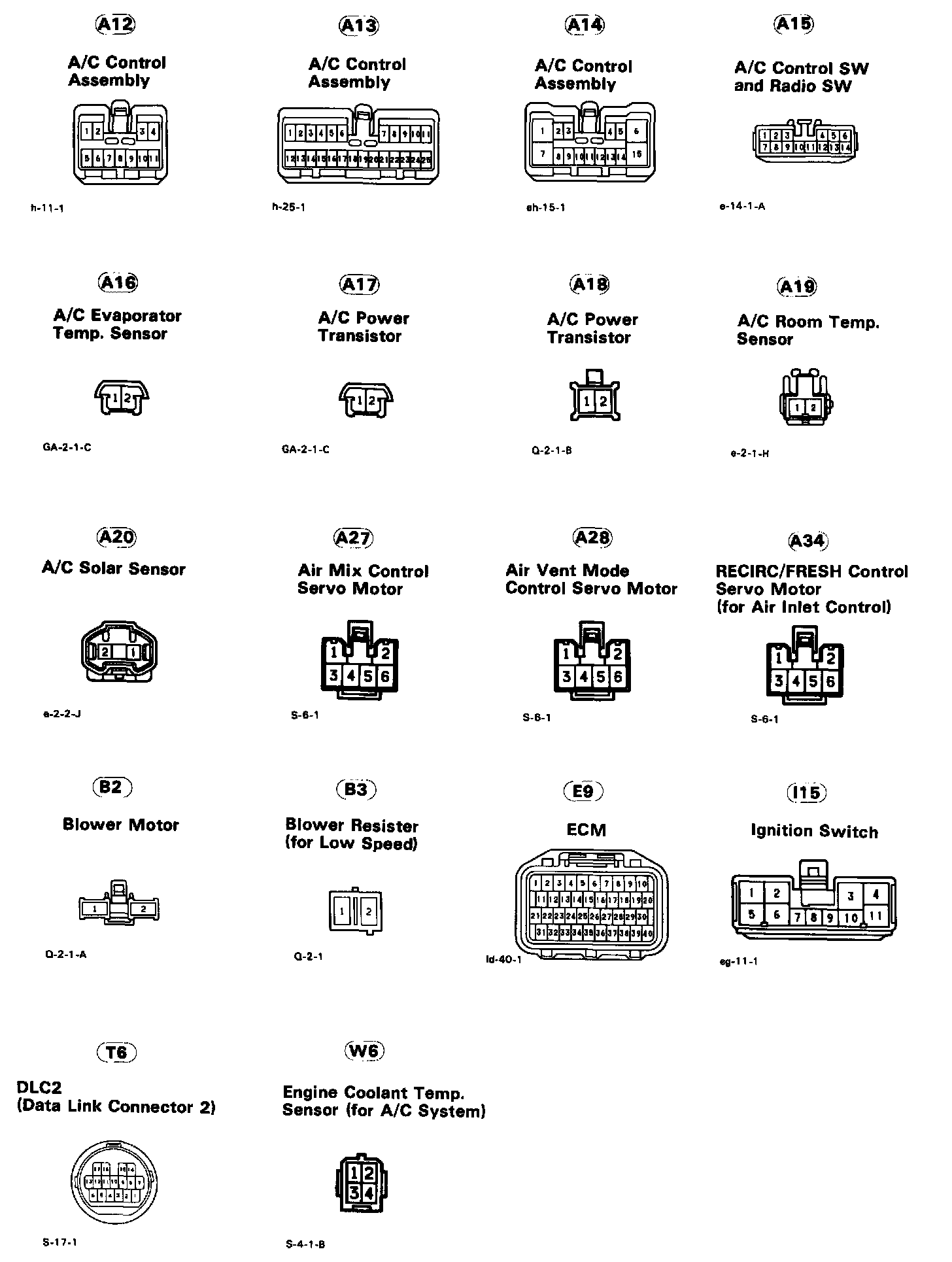

Connector Views:

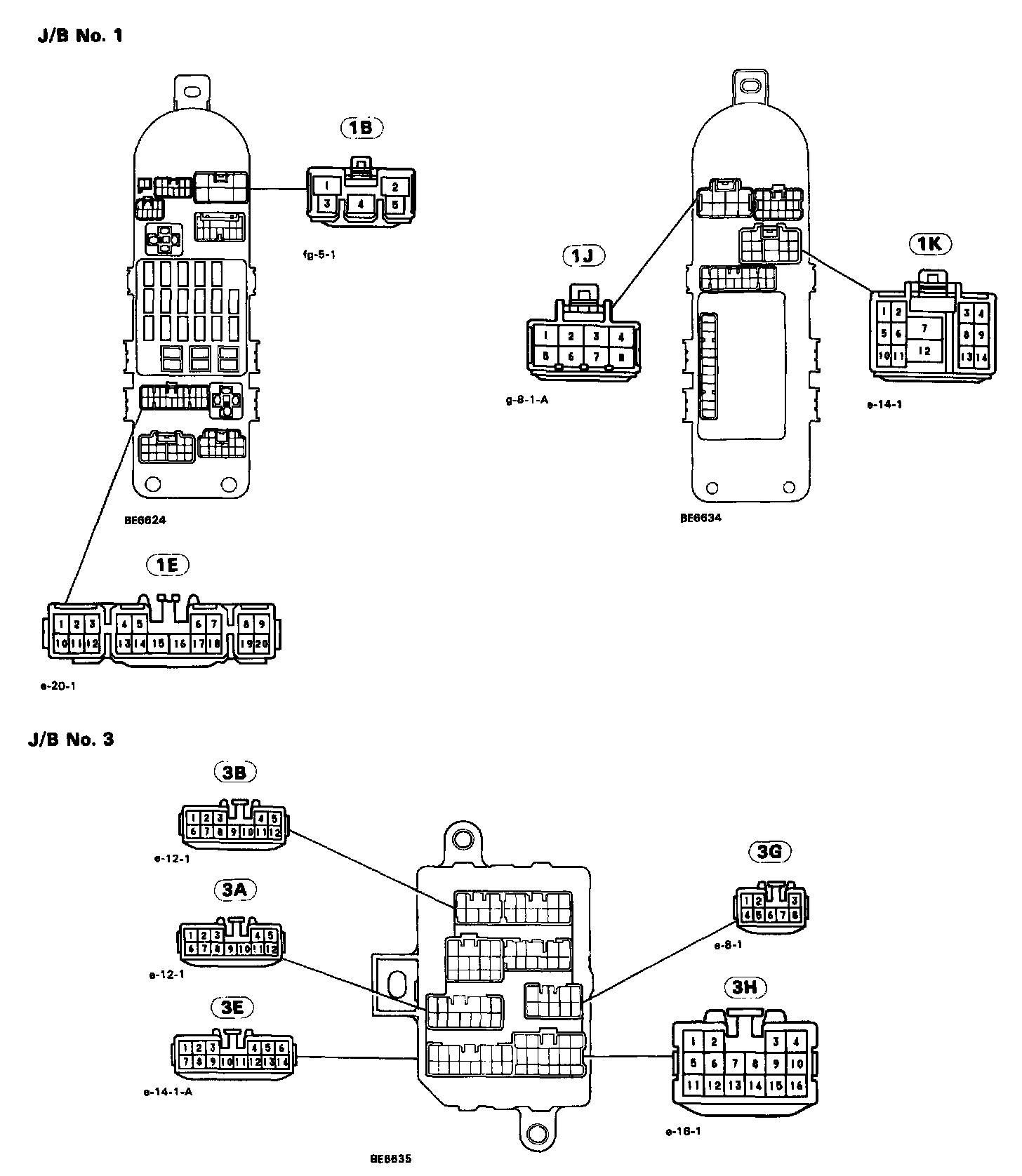

Connector Views (Cont'd):
