Home
>>
Lexus
>>
1993
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Connector Locations
>>
Engine Compartment
Engine Compartment

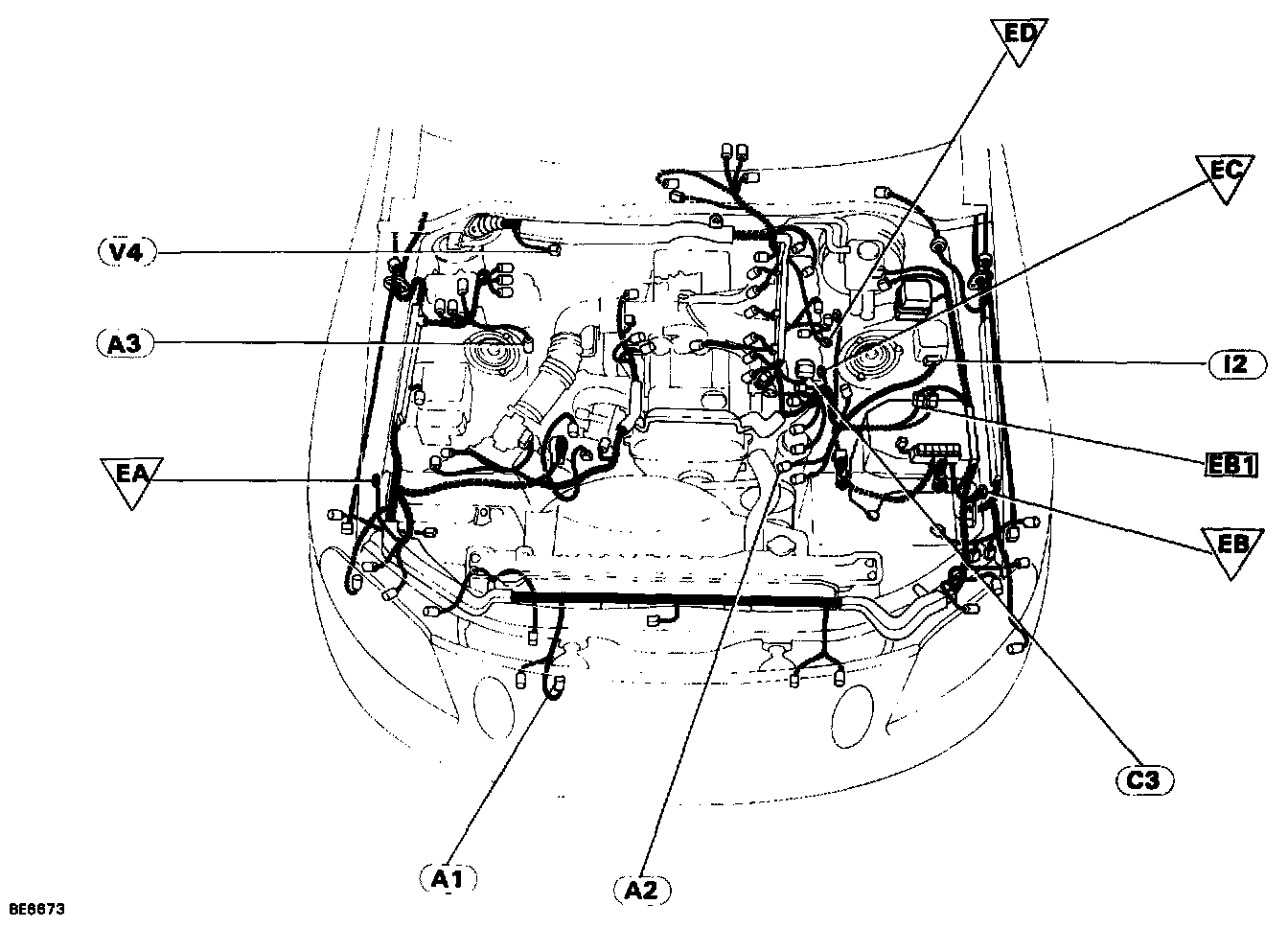

Location Of Connectors In Engine Compartment:

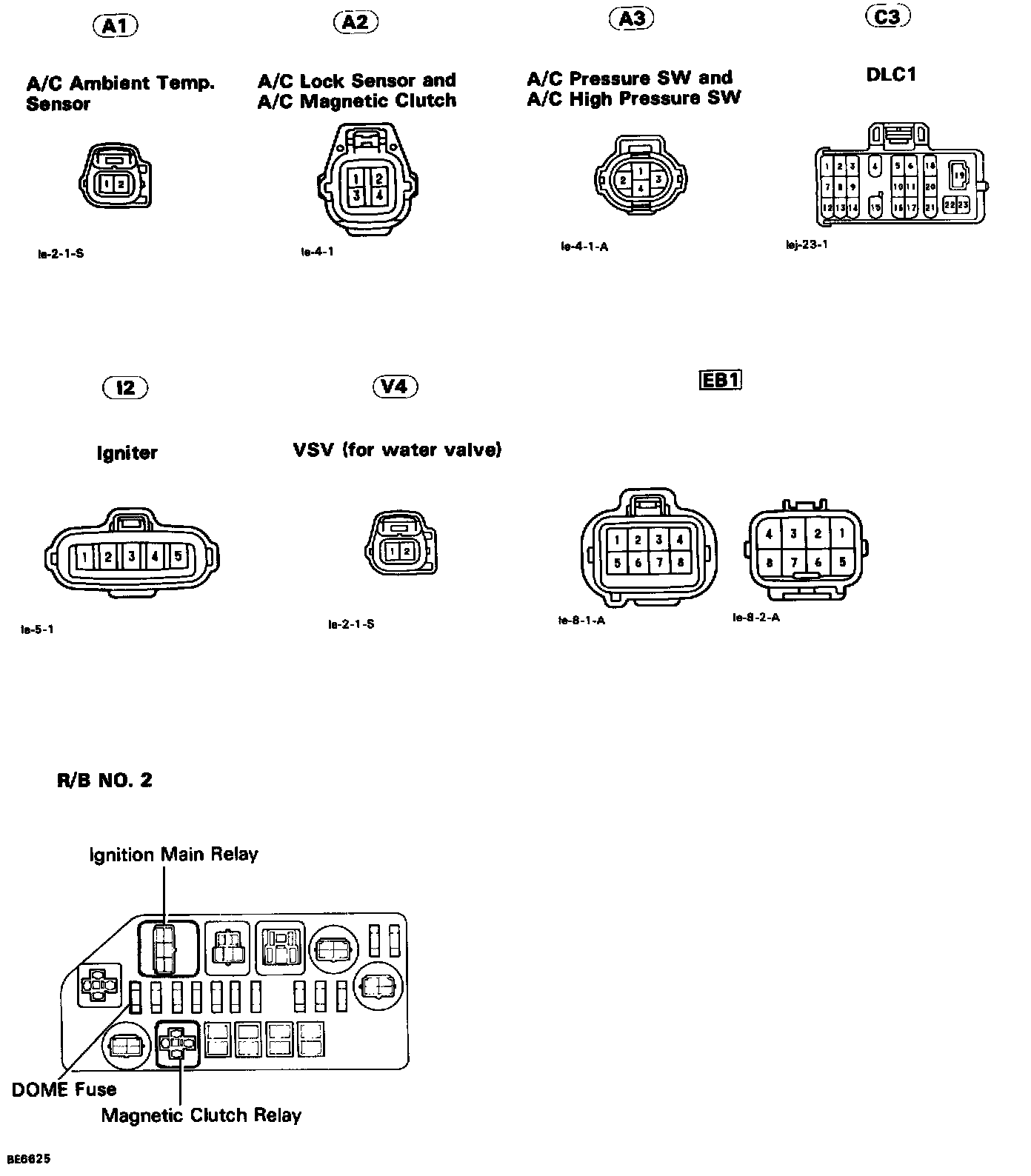

Connector Views:
