Oil Pump: Service and Repair

1. Remove oil pan as outlined under Oil Pan, Service and Repair.
2. Remove oil pump bolts, then the oil pump and O-ring, Fig. 41.

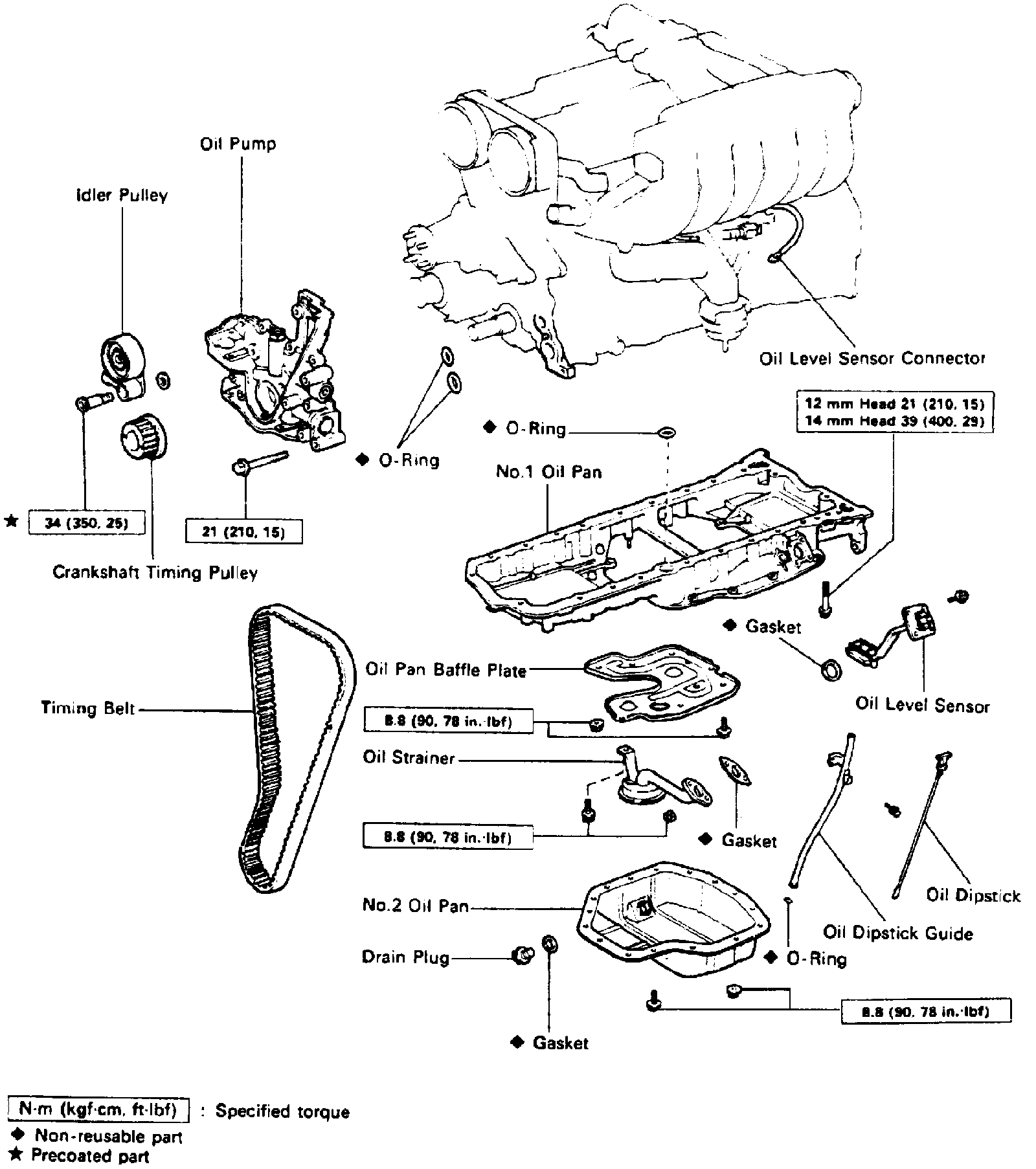

Fig. 41 Oil Pan & Oil Pump Replacement:

.
3. Reverse procedure to install.
