Engine Mount: Service and Repair

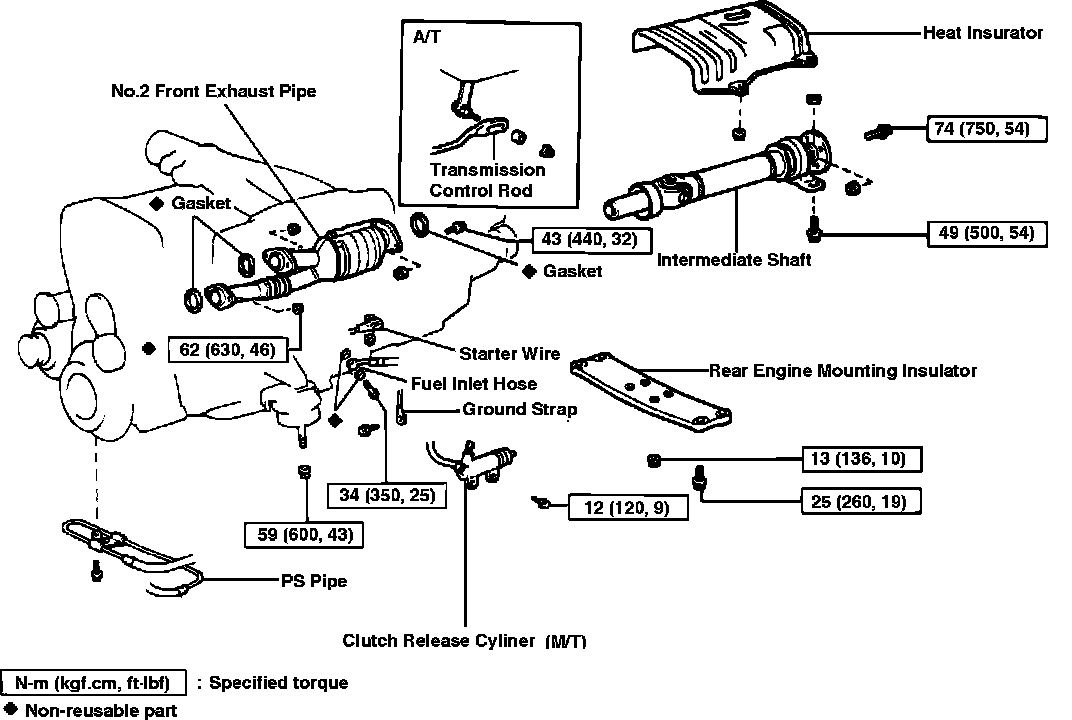

Fig. 1 Engine & Transaxle Component Location:






Refer to Fig. 1 when replacing engine mounts.
