Home >> Lexus >> 1993 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio and Player (W/CD Player)

Radio and Player (W/CD Player)

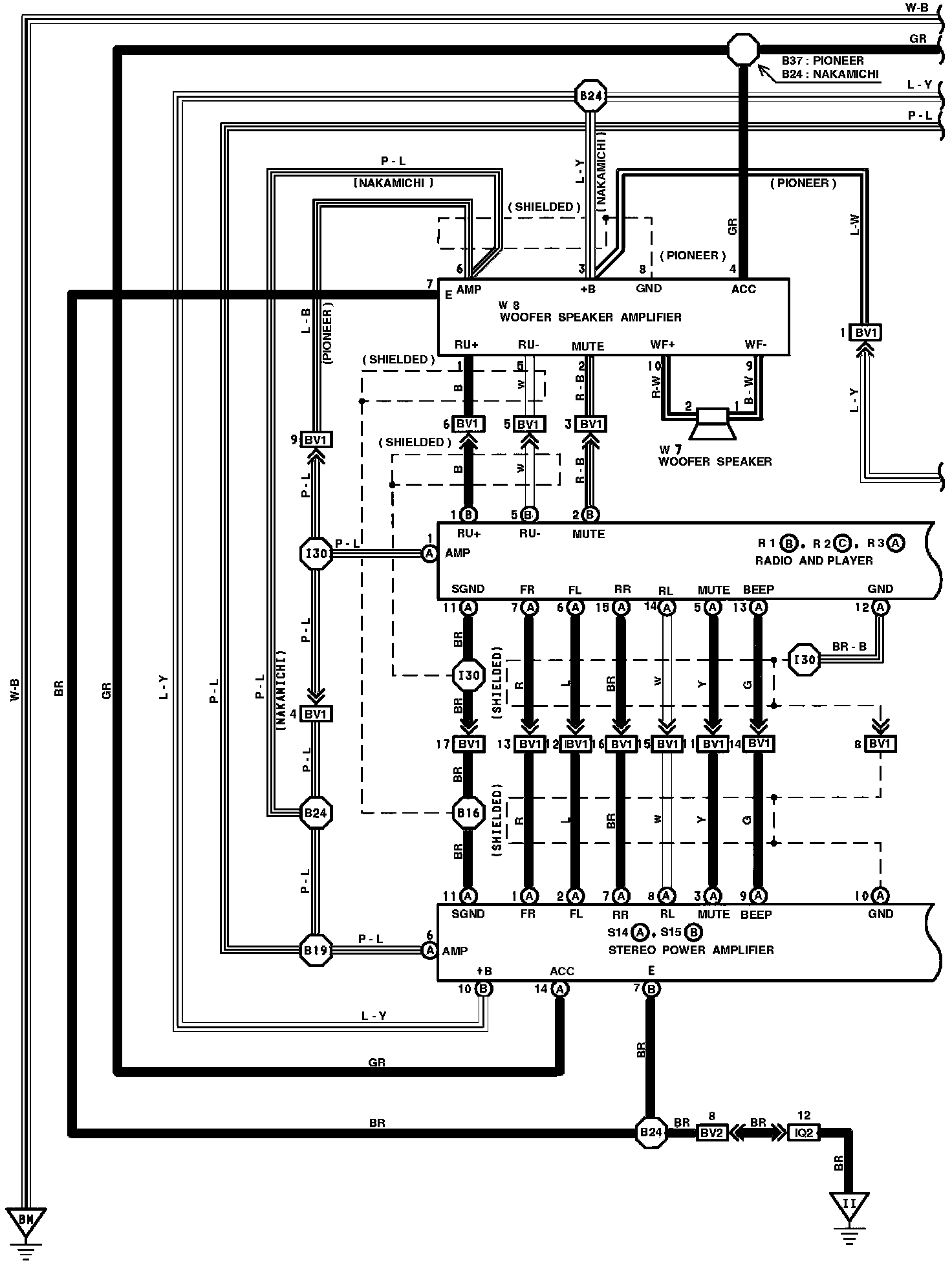

Radio And Player (W/CD Player) (Part 1 Of 3):

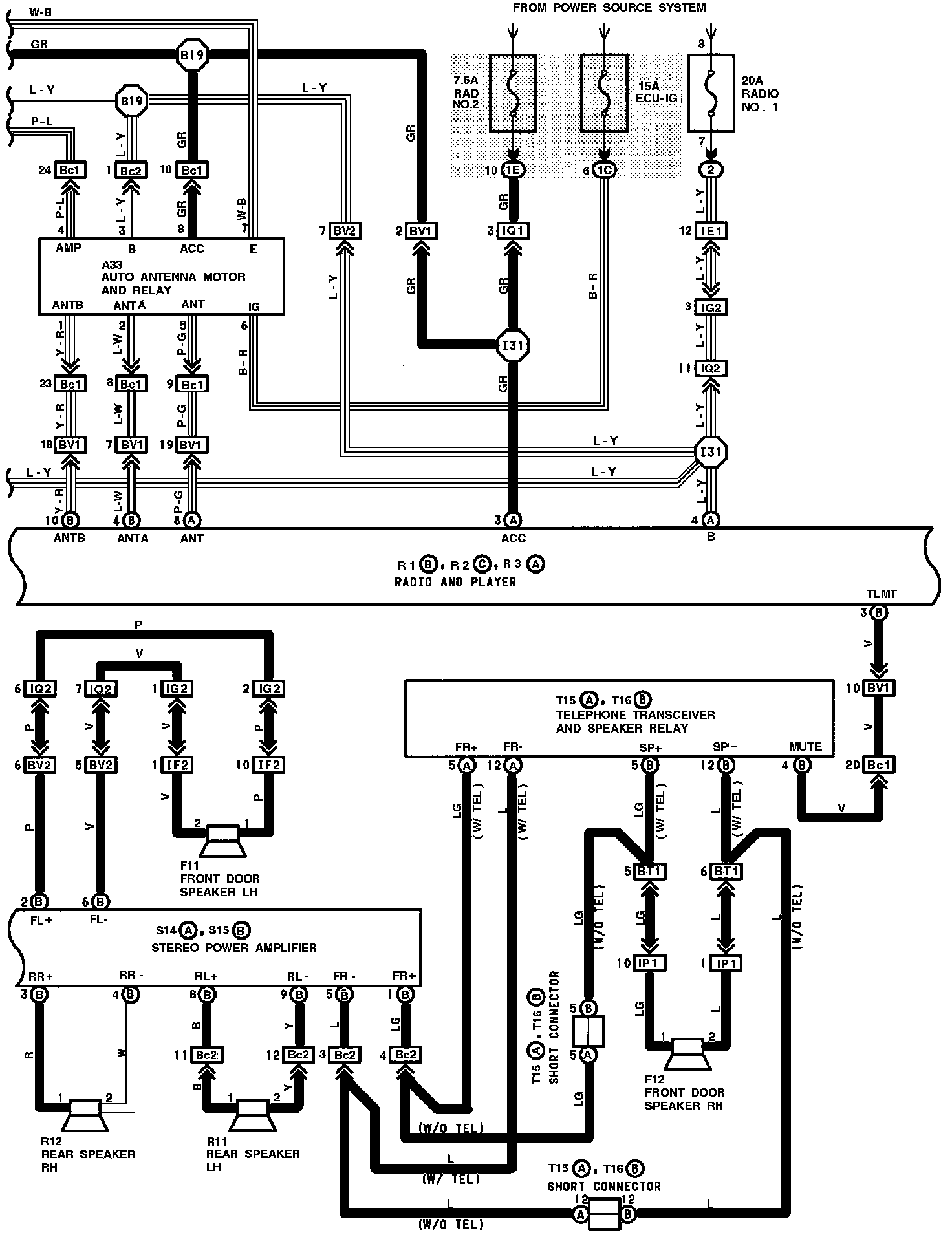

Radio And Player (W/CD Player) (Part 2 Of 3):




Radio And Player (W/CD Player) (Part 3 Of 3):
