Instrument Panel / Center Console

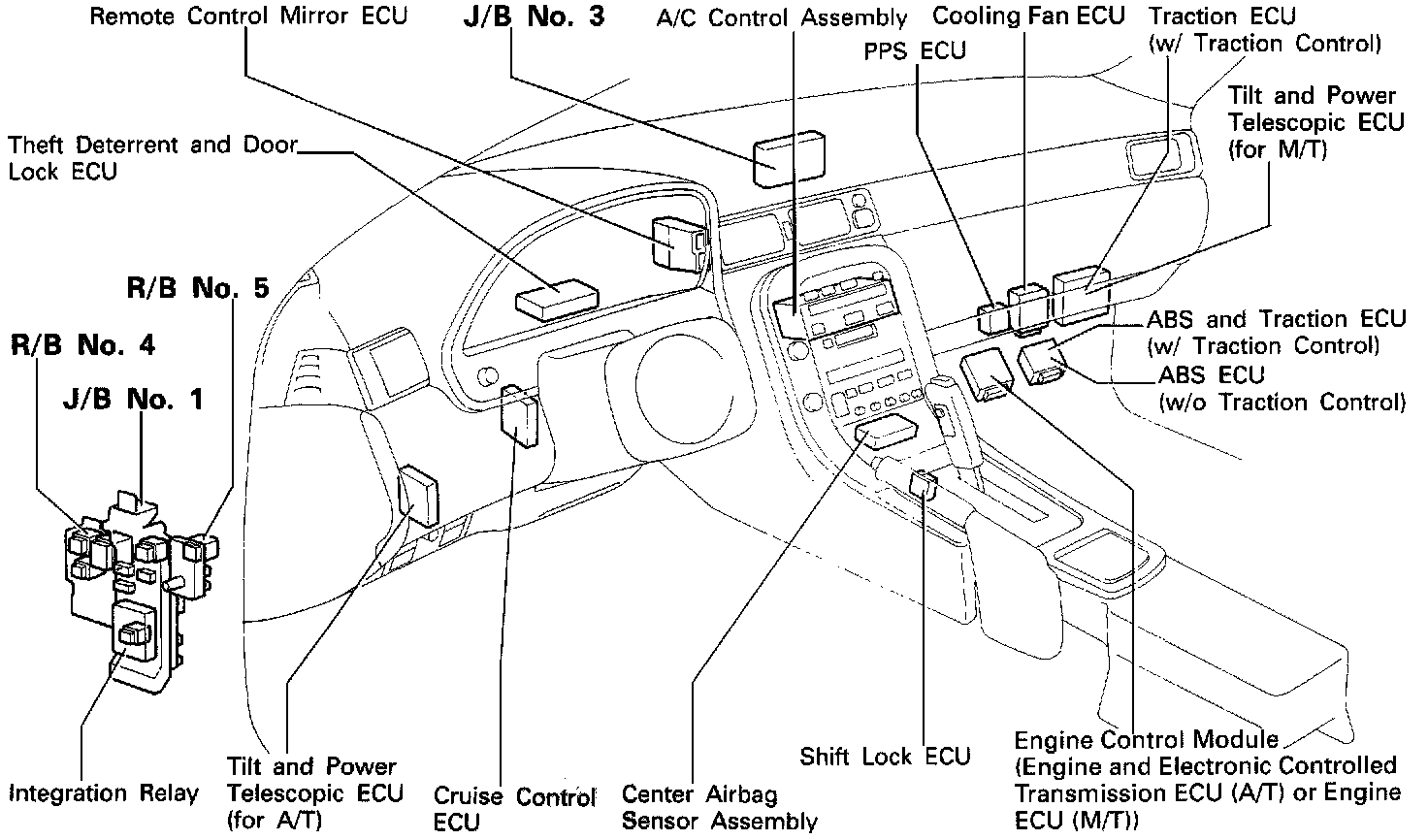

Instrument Panel (Fig 18):

A/C Control Assembly
ABS and Traction ECU (W/ Traction Control)
ABS ECU (W/O Traction Control)
Cooling Fan ECU
Center Airbag Sensor Assembly
Cruise Control ECU
Engine Control Module (Engine and Electronic Controlled Transmission ECU (A/T) or Engine ECU (M/T))
Integration Relay
J/B No. 1
J/B No. 3
PPS ECU
R/B No. 4
R/B No. 5
Remote Control Mirror ECU
Shift Lock ECU
Theft Deterrent and Door Lock ECU
Traction ECU (W/ Traction Control)
Tilt and Power Telescopic ECU (For M/T)
Tilt and Power Telescopic ECU (For A/T)
