Engine Compartment
Position Of Parts In Engine Compartment (Part 3 Of 4) (Fig 28):
A 1 A/C Ambient Temp. Sensor
A 2 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 3 A/C Lock Sensor and A/C Magnetic Clutch
A 4 ABS Actuator
A 5 ABS Actuator
A 6 ABS Actuator
A 7 ABS Actuator (W/O Traction Control)
A 8 ABS Speed Sensor Front LH
A 9 ABS Speed Sensor Front RH
B 1 Back-Up Light SW (for M/T)
B 2 Brake Fluid Level SW
C 5 Cornering Light LH
C 6 Cornering Light RH
C 7 Cruise Control Actuator
D 1 Data Link Connector 1 (Check Connector)
D 2 Daytime Running Light Relay No.2
D 3 Daytime Running Light Relay No.3
D 4 Daytime Running Light Relay No.3
D 5 Distributor
E 1 EGR Gas Temp. Sensor
E 3 Electronic Controlled Transmission Solenoid
E 5 Engine Coolant Temp. Sensor (Water Temp. Sensor)
E 6 Engine Hood Courtesy SW
E 7 Engine Oil Level Warning SW
F 1 Front Airbag Sensor LH
F 2 Front Airbag Sensor RH
F 3 Front Clearance Light LH
F 4 Front Clearance Light RH
F 5 Front Side Marker Light LH
F 6 Front Side Marker Light RH
F 7 Front Turn Signal Light LH
F 8 Front Turn Signal Light RH
F 9 Fuse Block
G 1 Generator (Alternator)
G 2 Generator (Alternator)
H 1 Headlight Hi LH
H 2 Headlight Hi RH
H 3 Headlight Lo LH
H 4 Headlight Lo RH
H 7 Horn LH
H 8 Horn RH

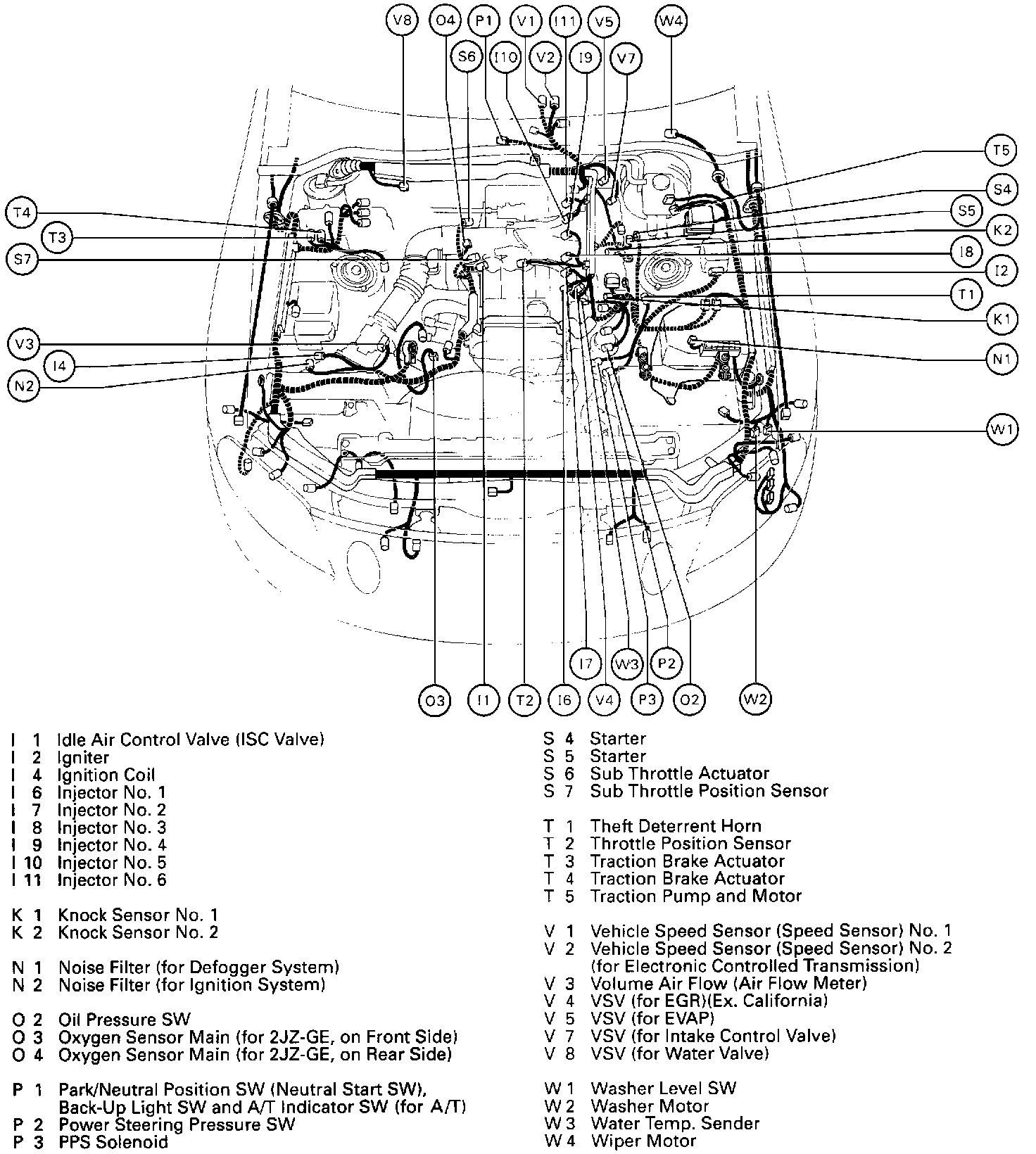

Position Of Parts In Engine Compartment (Part 4 Of 4) (Fig 29):
I 1 Idle Air Control Valve(ISC Valve)
I 2 Igniter
I 4 Ignition Coil
I 6 Injector No. 1
I 7 Injector No. 2
I 8 Injector No.3
I 9 Injector No.4
I 10 Injector No. 5
I 11 Injector No.6
K 1 Knock Sensor No. 1
K 2 Knock Sensor No. 2
N 1 Noise Filter (for Defogger System)
N 2 Noise Filter (for Ignition System)
O 2 Oil Pressure SW
O 3 Oxygen Sensor Main (for 2JZ-GE, on Front Side)
O 4 Oxygen Sensor Main (for 2JZ-GE, on Rear Side)
P 1 Park/Neutral Position SW (Neutral Start SW), Back-Up Light SW and A/T Indicator SW (for A/T)
P 2 Power Steering Pressure SW
P 3 PPS Solenoid
S 4 Starter
S 5 Starter
S 6 Sub Throttle Actuator
S 7 Sub Throttle Position Sensor
T 1 Theft Deterrent Horn
T 2 Throttle Position ensor
T 3 Traction Brake Actuator
T 4 Traction Brake Actuator
T 5 Traction Pump and Motor
V 1 Vehicle Speed Sensor (Speed Sensor) No. 1
V 2 Vehicle Speed Sensor (Speed Sensor) No. 2 (for Electronic Controlled Transmission)
V 3 Volume Air Flow (Air Flow Meter)
V 4 VSV (For EGR)(Ex. California)
V 5 VSV (For EVAP)
V 7 VSV (For Intake Control Valve)
V 8 VSV (For Water Valve)
W 1 Washer Level SW
W 2 Washer Motor
W 3 Water Temp. Sender
W 4 Wiper Motor
