Home >> Lexus >> 1993 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> ABS W/Traction Control (TRAC) >> TRAC Off Indicator, TRAC Cut Switch Circuit >> TRAC Off Indicator, TRAC Cut Switch Circuit Inspection

TRAC Off Indicator, TRAC Cut Switch Circuit Inspection

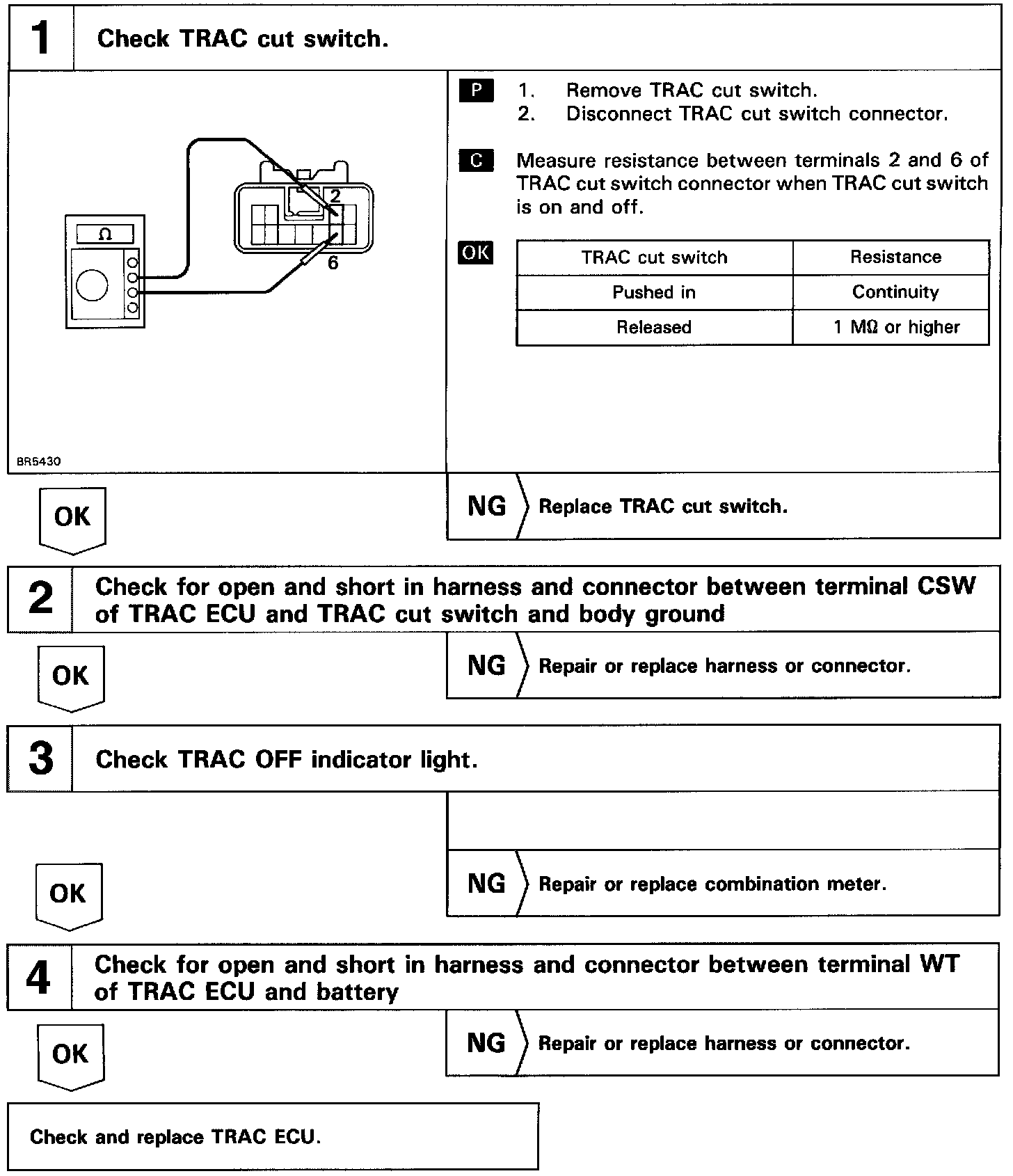

TRAC OFF Indicator, TRAC Cut Switch Circuit Inspection:
