Paint - Original & Refinish Codes

PAINT
PA92-004
DECEMBER 4, 1992
ALL MODELS

Title:
1993 PAINT AND REFINISH CODES

This bulletin shows a list of 1993 Lexus paint codes and corresponding refinish formulas for 7 (seven) refinish paint manufacturers -- BASF, DuPont, Herberts Standox, PPG Industries, Sherwin Williams, Sikkens and Spies Hecker (Paint and refinish formula codes are located in this bulletin.)





NOTE:

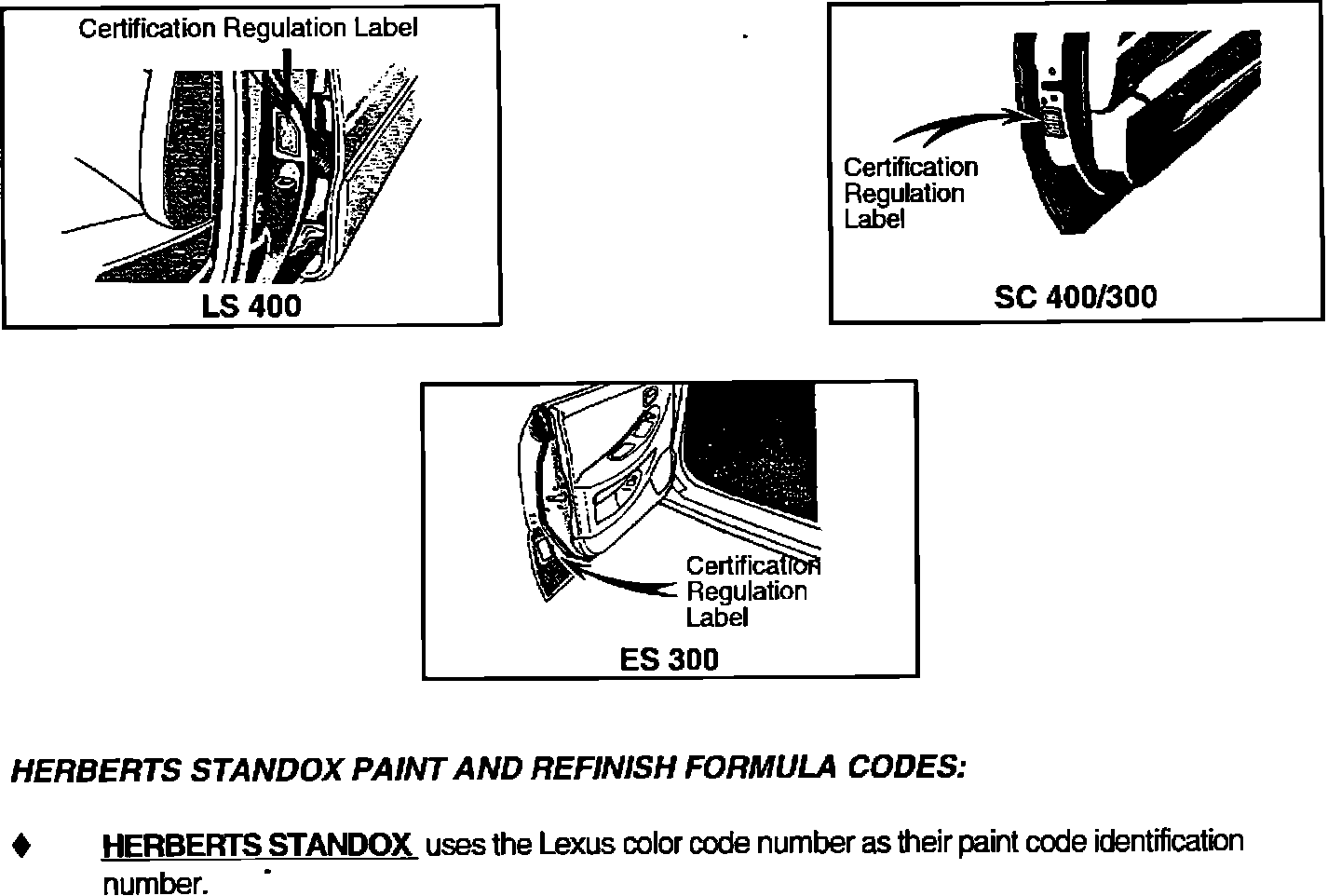

The body color code is indicated on the Certification Label which is located in the left door area as shown.

Example:
The Herberts Standox paint code number for Lexus color code 202 (Black) is 202.

Contact Your Local Paint Representative For The Actual Paint Mixing Formulas Or For Additional Assistance On Color Matching.

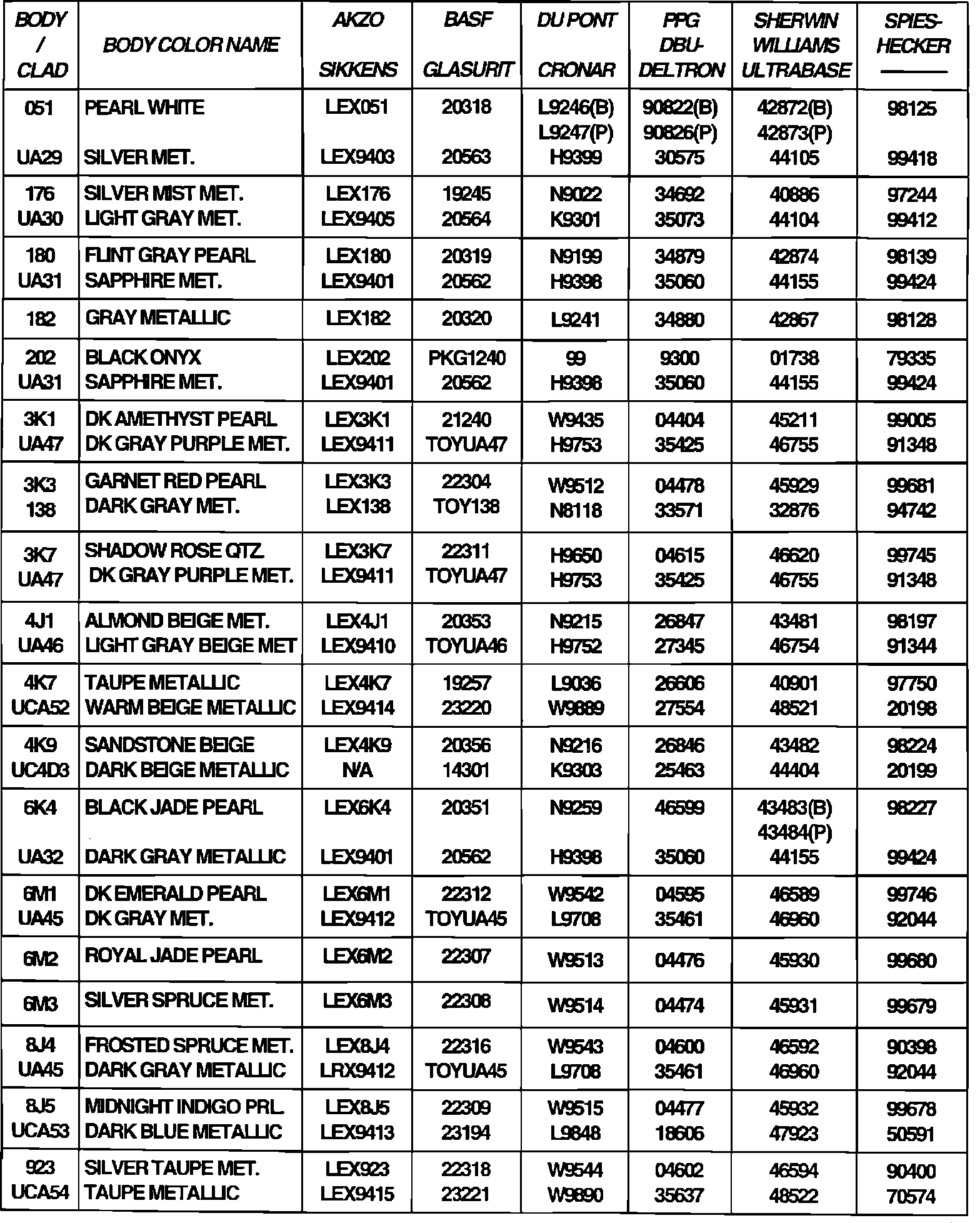

1993 PAINT AND REFINISH CODES
