Inner Rear View Mirror - Service Parts
BODYB092-008
DECEMBER 4, 1992
SC 300/400
Title:
CHANGE IN SUPPLY PARTS FOR INNER REAR VIEW MIRROR
Supply parts for the inner rear view mirror have been changed from an assembly to the components listed.

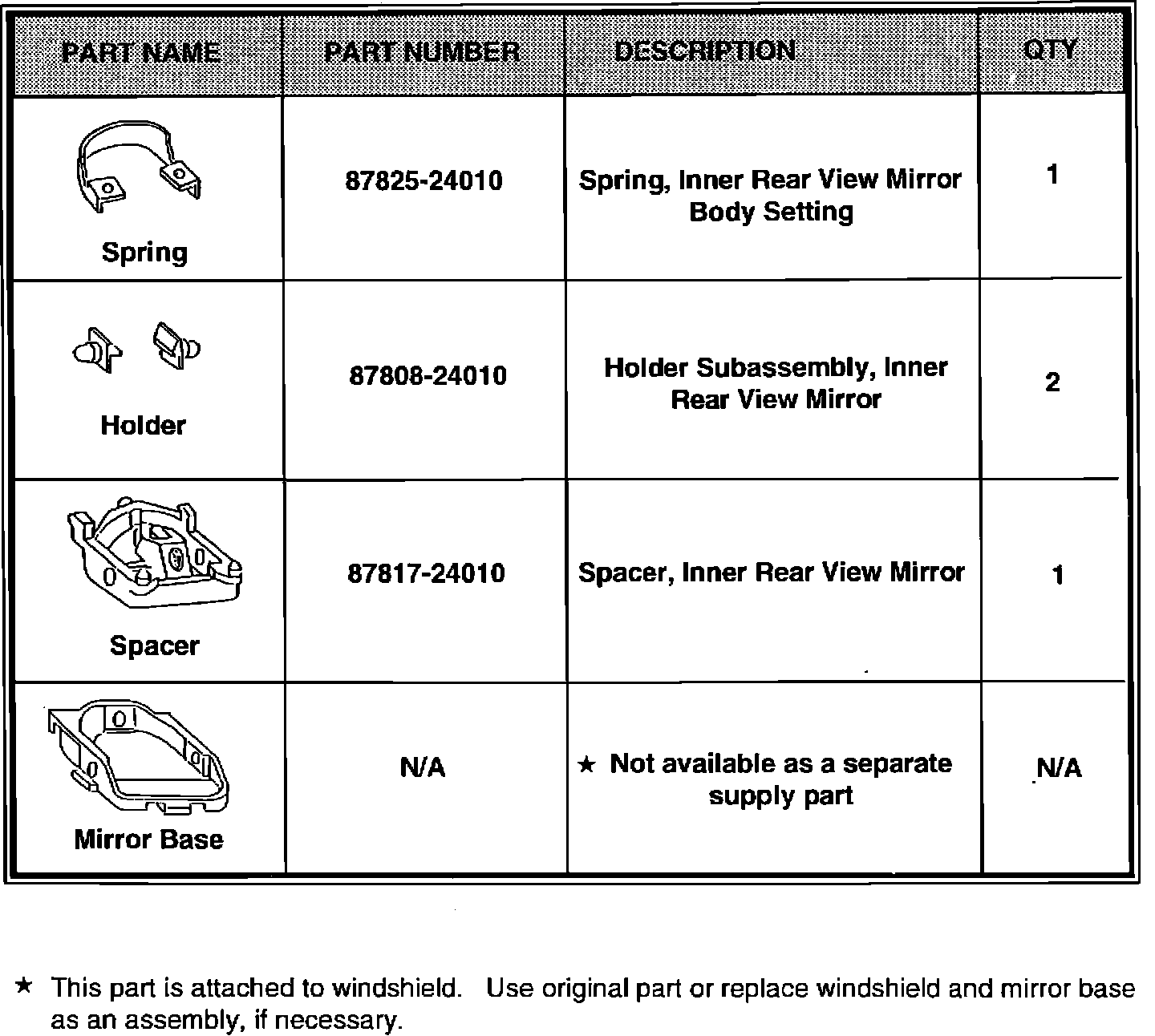

PART NUMBER INFORMATION
INNER REAR VIEW MIRROR REMOVAL:
Note:
To prevent damage to plastic parts, tape the screwdriver tip before use.
1. Remove Center Visor

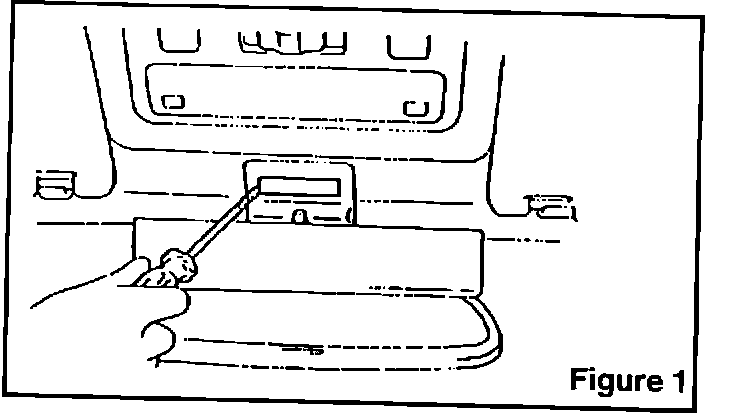

a) Remove the visor arm set clip. (Figure 1)
b) Remove the two attachment screws
2. Remove Inner Rear View Mirror

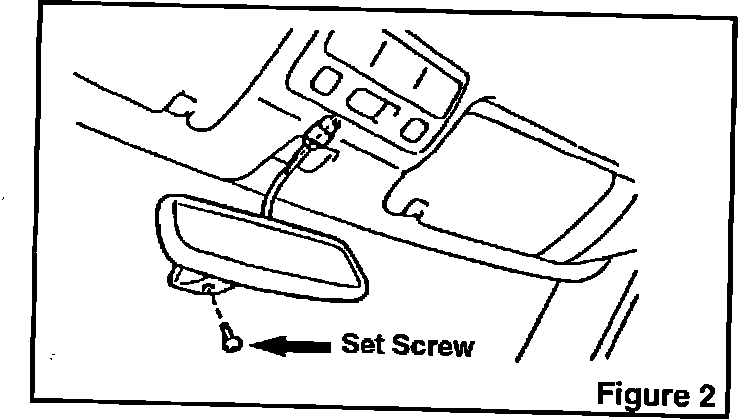

a) Remove mirror set screw. (Figure 2)
b) Disconnect the mirror wire harness.
COMPONENT DISASSEMBLY:
a) Using snap ring pliers, remove the spring.

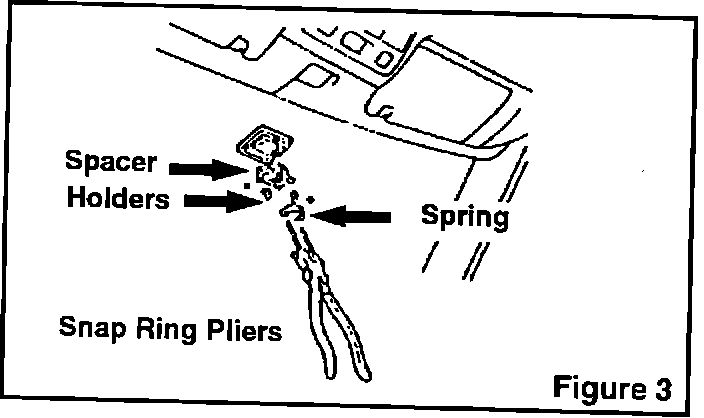

b) Remove the two holders and the spacer. (Figure 3)
NOTE:
Do not remove the mirror base from the windshield.
COMPONENT ASSEMBLY:
a) Re-install components by installing the spacer, two holders and spring.

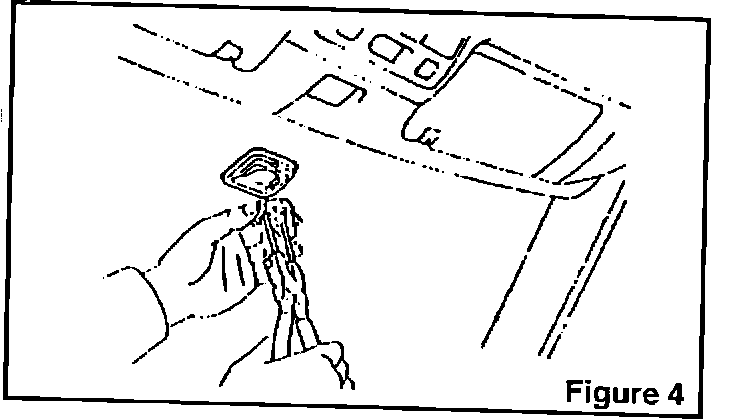

b) Install the spring using snap ring pliers. (Figure 4)
INNER REAR VIEW MIRROR & CENTER VISOR INSTALLATION:

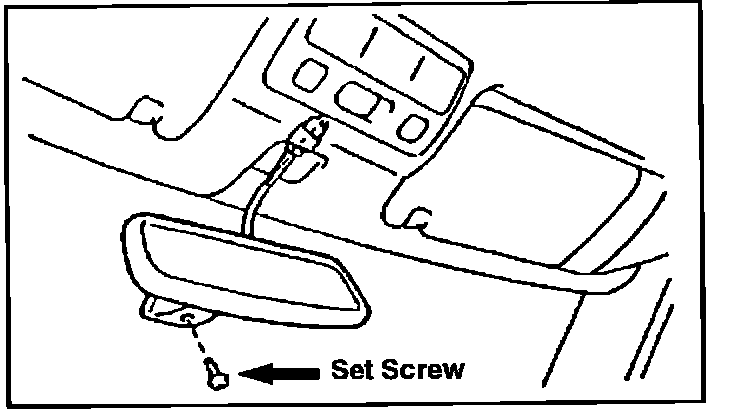

a) Install inner rear view mirror by re-installing attachment set screw. (Figure 5)
Note:
Use thread locking compound on set screw to insure screw retention.
b) Re-connect wire harness.
Note:
Check review mirror dimming operation before re-installation of center visor.
c) Install center visor by re-installing two attachment screws.
d) Re-install visor arm set clip.

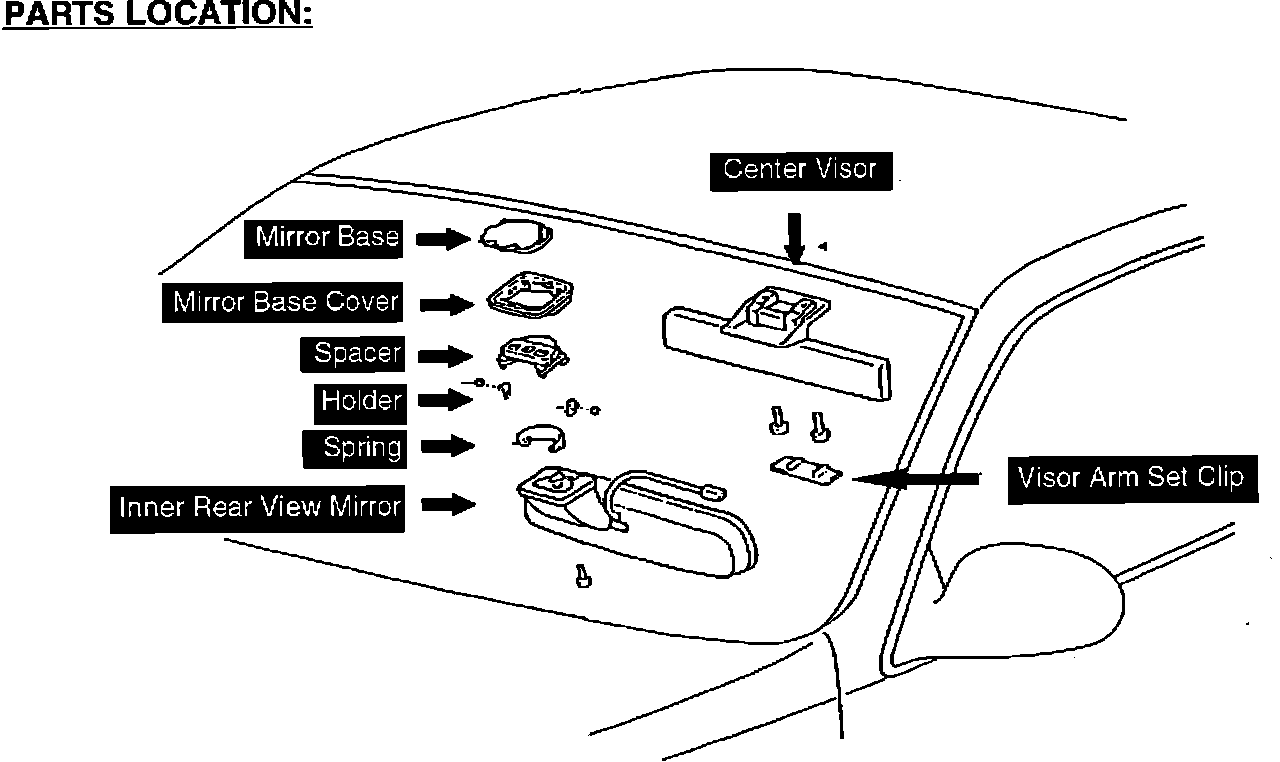

PARTS LOCATION
