Power Mirror (W/O Driving Position Memory)

MIRROR MOTOR INSPECTION

(w/o Driving Position Memory)

INSPECTION MIRROR MOTOR OPERATION

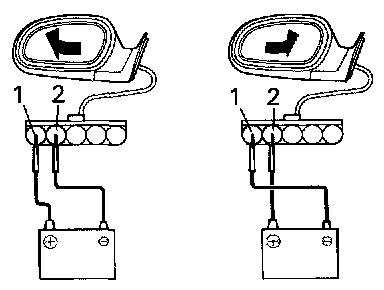

(a) Connect the position (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2 check that the mirror turns to left side.
(b) Reverse the polarity, check that the mirror turns to right side.

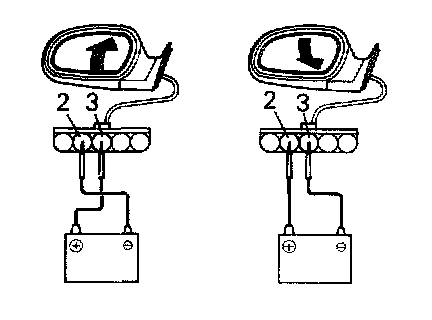

(c) Connect the position (+) lead from the battery to terminal 3 and negative (-) lead to terminal 2 check that the mirror turns upward.
(d) Reverse the polatity, check that the mirror turns downward.
