DTC 51

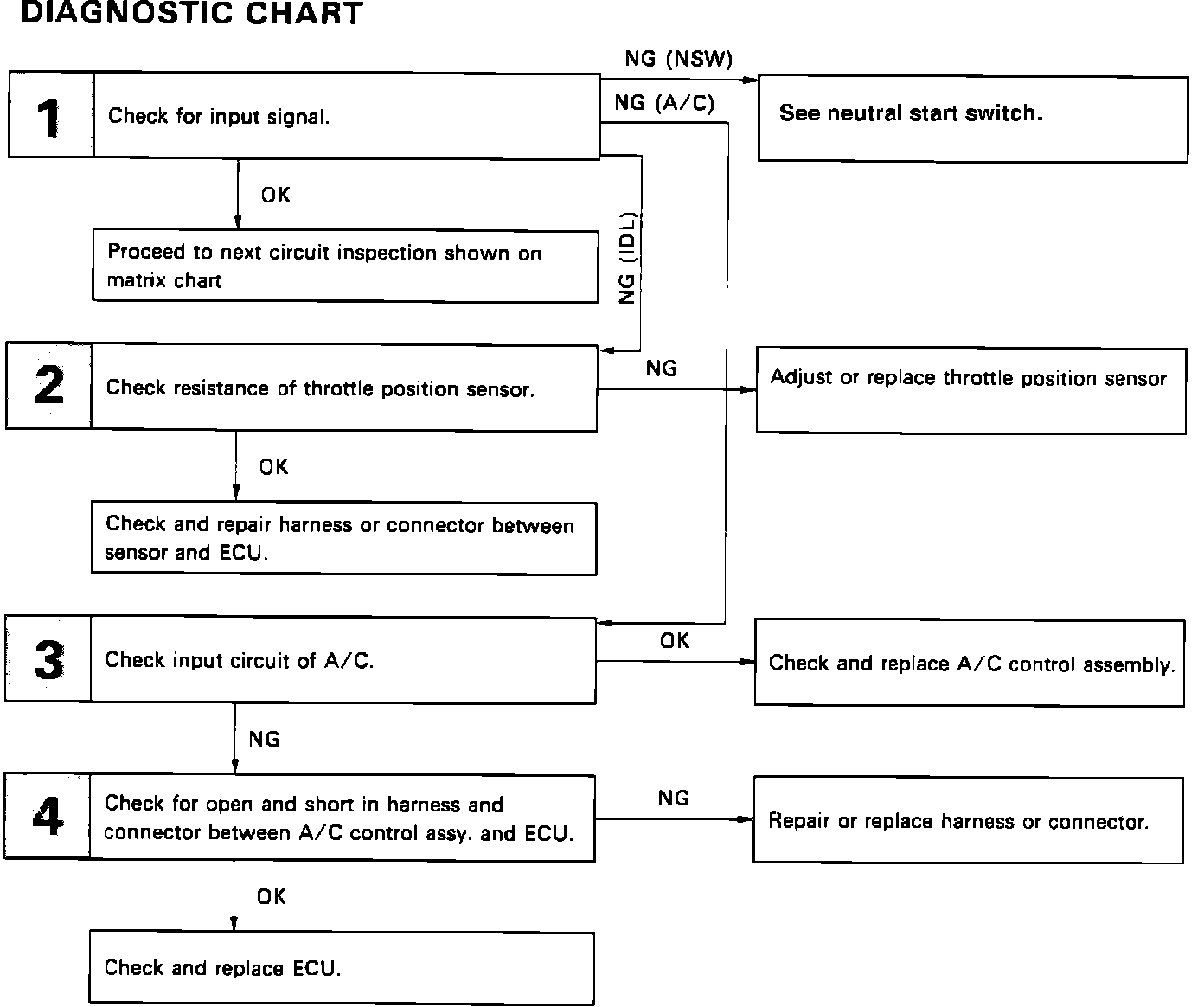

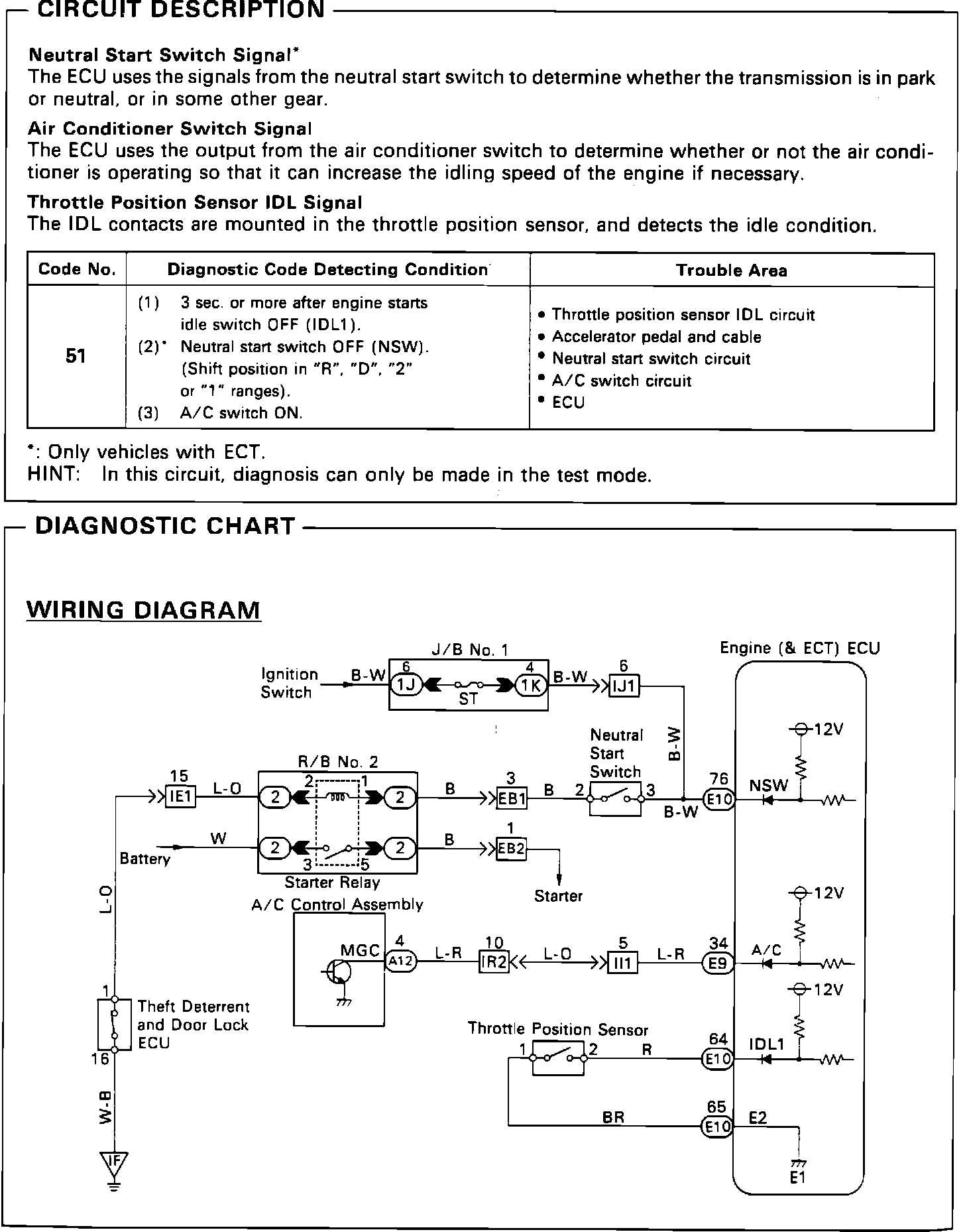

Fig. 19 Diagnostic Code 51 (Switch Condition Signal, Part 1 Of 4):

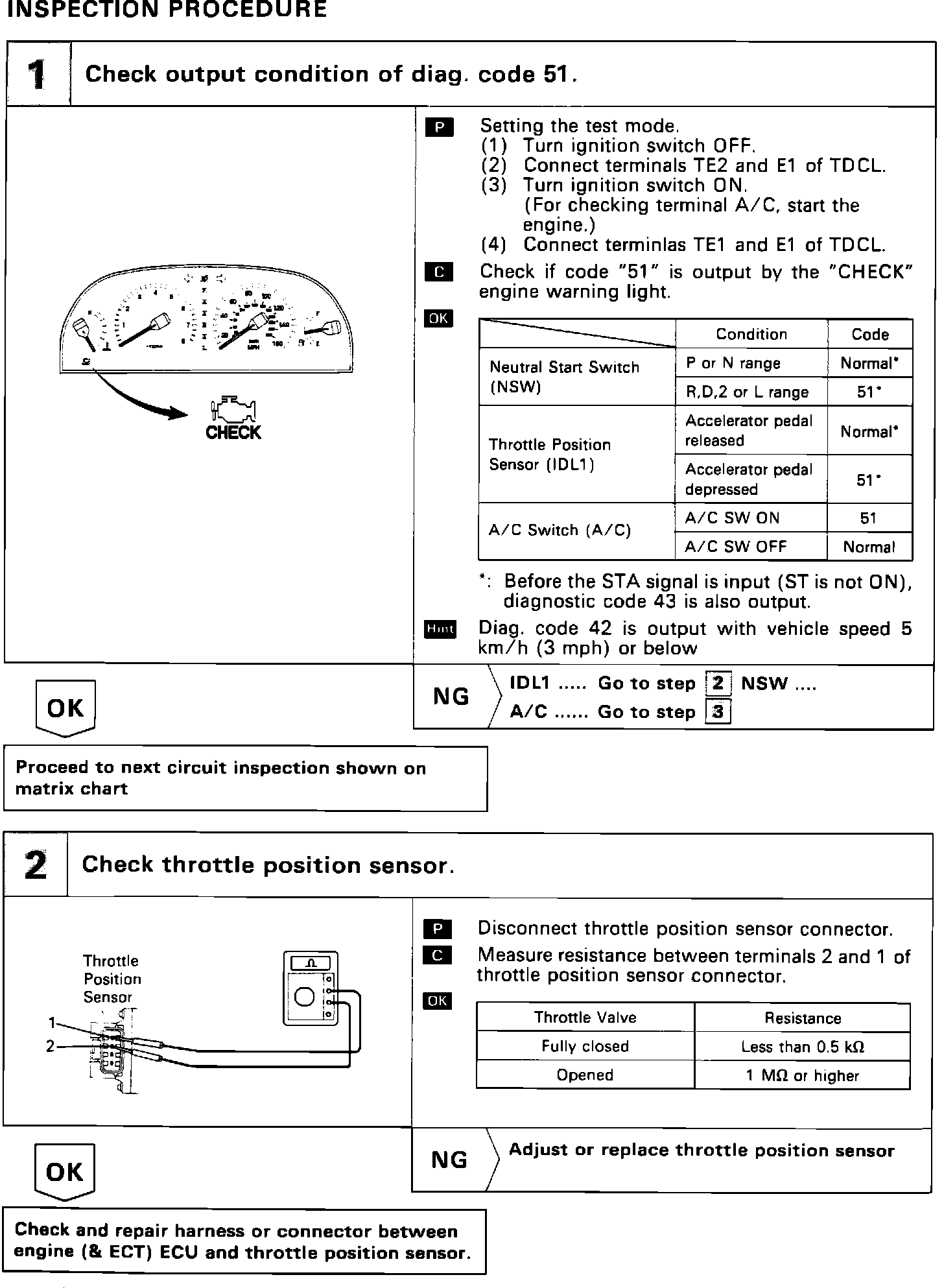

Fig. 19 Diagnostic Code 51 (Switch Condition Signal, Part 2 Of 4):

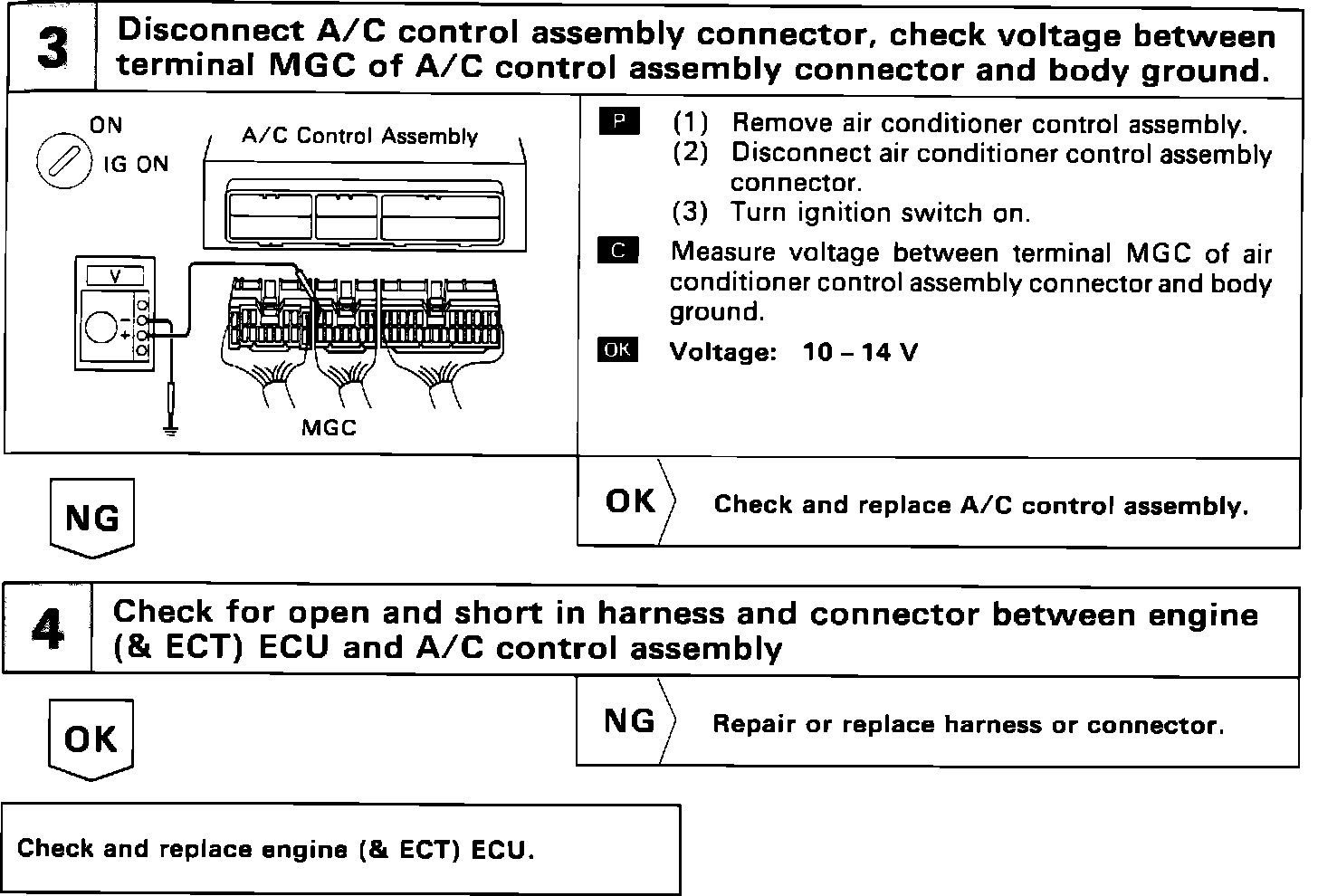

Fig. 19 Diagnostic Code 51 (Switch Condition Signal, Part 3 Of 4):

Fig. 19 Diagnostic Code 51 (Switch Condition Signal, Part 4 Of 4):
